Dell Inc. PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz) ssj_ops@100% = 1,482,870
ssj_ops@100% per JVM = 92,679
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 25, 2012
Hardware Availability: Oct-2012 Software Availability: Jun-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,418,060
Calibration 2     1,491,298
Calibration 3     1,490,635
ssj_ops@calibrated=1,490,966
100% 99.5% 1,490,966 1,482,870
90% 90.0% 1,341,870 1,341,182
80% 80.3% 1,192,773 1,197,014
70% 69.9% 1,043,676 1,042,529
60% 60.0% 894,580 895,147
50% 49.8% 745,483 742,300
40% 40.0% 596,386 596,833
30% 30.1% 447,290 448,184
20% 20.0% 298,193 298,548
10% 10.0% 149,097 149,472
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (2.30 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x Onboard dual-port Broadcom 5720 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.3.5
Management Firmware Version: iDRAC7 1.23.23 Build 1
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-02.001 93,552
M520-02.002 92,813
M520-02.003 94,620
M520-02.004 93,178
M520-02.005 93,323
M520-02.006 93,108
M520-02.007 93,852
M520-02.008 93,688
M520-02.009 92,125
M520-02.010 91,338
M520-02.011 92,073
M520-02.012 91,491
M520-02.013 90,760
M520-02.014 92,210
M520-02.015 91,884
M520-02.016 92,853
ssj_ops@100% 1,482,870
ssj_ops@100% per JVM 92,679
Graph of per-instance results
JVM 'M520-02.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,901
Calibration 2     94,359
Calibration 3     94,262
ssj_ops@calibrated=94,311
100% 99.2% 94,311 93,552
90% 89.6% 84,880 84,495
80% 79.6% 75,449 75,087
70% 71.0% 66,018 66,922
60% 60.2% 56,587 56,822
50% 49.3% 47,155 46,523
40% 40.1% 37,724 37,814
30% 29.4% 28,293 27,700
20% 19.9% 18,862 18,766
10% 10.4% 9,431 9,787
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-02.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,376
Calibration 2     93,075
Calibration 3     93,166
ssj_ops@calibrated=93,121
100% 99.7% 93,121 92,813
90% 89.5% 83,809 83,372
80% 80.2% 74,497 74,642
70% 69.5% 65,184 64,709
60% 59.9% 55,872 55,737
50% 49.8% 46,560 46,333
40% 40.6% 37,248 37,816
30% 29.6% 27,936 27,554
20% 20.3% 18,624 18,887
10% 10.5% 9,312 9,824
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-02.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,783
Calibration 2     94,476
Calibration 3     94,642
ssj_ops@calibrated=94,559
100% 100.1% 94,559 94,620
90% 90.1% 85,103 85,165
80% 80.5% 75,647 76,162
70% 70.4% 66,191 66,522
60% 59.4% 56,735 56,178
50% 49.3% 47,279 46,608
40% 40.0% 37,823 37,828
30% 29.9% 28,368 28,283
20% 20.4% 18,912 19,303
10% 10.0% 9,456 9,458
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-02.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,650
Calibration 2     93,845
Calibration 3     93,741
ssj_ops@calibrated=93,793
100% 99.3% 93,793 93,178
90% 90.2% 84,413 84,624
80% 79.9% 75,034 74,958
70% 69.6% 65,655 65,317
60% 60.1% 56,276 56,355
50% 49.8% 46,896 46,677
40% 40.4% 37,517 37,927
30% 29.7% 28,138 27,902
20% 20.4% 18,759 19,159
10% 9.9% 9,379 9,317
Active Idle   0 0

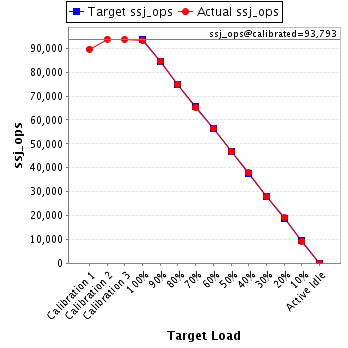

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-02.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,148
Calibration 2     93,912
Calibration 3     93,546
ssj_ops@calibrated=93,729
100% 99.6% 93,729 93,323
90% 90.1% 84,356 84,468
80% 81.4% 74,983 76,299
70% 70.3% 65,610 65,906
60% 59.6% 56,237 55,829
50% 49.8% 46,864 46,703
40% 40.3% 37,492 37,801
30% 30.6% 28,119 28,700
20% 20.2% 18,746 18,974
10% 9.7% 9,373 9,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-02.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,232
Calibration 2     93,256
Calibration 3     93,721
ssj_ops@calibrated=93,488
100% 99.6% 93,488 93,108
90% 90.1% 84,139 84,189
80% 80.3% 74,791 75,042
70% 69.1% 65,442 64,571
60% 60.4% 56,093 56,470
50% 49.8% 46,744 46,557
40% 39.6% 37,395 36,982
30% 29.5% 28,046 27,564
20% 20.4% 18,698 19,083
10% 10.1% 9,349 9,433
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-02.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,918
Calibration 2     94,263
Calibration 3     93,879
ssj_ops@calibrated=94,071
100% 99.8% 94,071 93,852
90% 90.1% 84,664 84,758
80% 80.4% 75,257 75,674
70% 70.5% 65,850 66,351
60% 59.9% 56,443 56,372
50% 49.3% 47,035 46,354
40% 40.6% 37,628 38,207
30% 30.3% 28,221 28,519
20% 20.3% 18,814 19,064
10% 9.9% 9,407 9,311
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-02.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,260
Calibration 2     94,471
Calibration 3     94,260
ssj_ops@calibrated=94,366
100% 99.3% 94,366 93,688
90% 89.6% 84,929 84,579
80% 80.1% 75,492 75,573
70% 70.0% 66,056 66,031
60% 60.2% 56,619 56,818
50% 50.5% 47,183 47,677
40% 38.8% 37,746 36,610
30% 29.7% 28,310 28,041
20% 20.3% 18,873 19,138
10% 9.8% 9,437 9,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-02.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,748
Calibration 2     92,842
Calibration 3     92,294
ssj_ops@calibrated=92,568
100% 99.5% 92,568 92,125
90% 89.9% 83,311 83,226
80% 80.4% 74,055 74,420
70% 70.2% 64,798 65,019
60% 60.7% 55,541 56,163
50% 49.7% 46,284 46,009
40% 39.9% 37,027 36,928
30% 30.3% 27,770 28,011
20% 20.0% 18,514 18,509
10% 9.8% 9,257 9,070
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-02.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,116
Calibration 2     91,889
Calibration 3     92,358
ssj_ops@calibrated=92,123
100% 99.1% 92,123 91,338
90% 89.3% 82,911 82,275
80% 80.6% 73,699 74,206
70% 70.2% 64,486 64,713
60% 59.7% 55,274 55,035
50% 48.8% 46,062 44,925
40% 40.3% 36,849 37,115
30% 30.5% 27,637 28,077
20% 19.8% 18,425 18,224
10% 10.2% 9,212 9,366
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-02.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,881
Calibration 2     92,219
Calibration 3     92,700
ssj_ops@calibrated=92,460
100% 99.6% 92,460 92,073
90% 90.6% 83,214 83,740
80% 80.5% 73,968 74,438
70% 69.7% 64,722 64,443
60% 60.6% 55,476 56,011
50% 50.1% 46,230 46,312
40% 40.1% 36,984 37,108
30% 30.2% 27,738 27,898
20% 19.2% 18,492 17,745
10% 10.0% 9,246 9,249
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-02.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,568
Calibration 2     92,496
Calibration 3     91,616
ssj_ops@calibrated=92,056
100% 99.4% 92,056 91,491
90% 90.1% 82,851 82,943
80% 80.2% 73,645 73,803
70% 68.9% 64,439 63,422
60% 60.3% 55,234 55,539
50% 49.8% 46,028 45,869
40% 40.0% 36,822 36,824
30% 30.1% 27,617 27,698
20% 19.6% 18,411 18,053
10% 10.1% 9,206 9,316
Active Idle   0 0

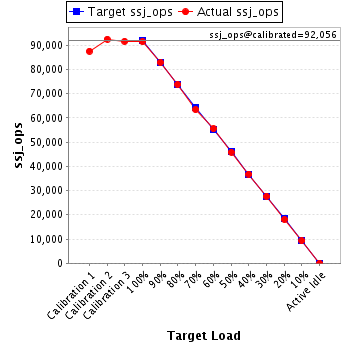

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-02.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,023
Calibration 2     91,977
Calibration 3     91,651
ssj_ops@calibrated=91,814
100% 98.9% 91,814 90,760
90% 90.7% 82,633 83,255
80% 80.0% 73,451 73,433
70% 69.4% 64,270 63,749
60% 60.4% 55,088 55,483
50% 50.6% 45,907 46,447
40% 40.3% 36,726 37,030
30% 30.1% 27,544 27,648
20% 20.1% 18,363 18,460
10% 10.0% 9,181 9,136
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-02.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,769
Calibration 2     92,128
Calibration 3     92,777
ssj_ops@calibrated=92,452
100% 99.7% 92,452 92,210
90% 89.8% 83,207 82,976
80% 79.9% 73,962 73,871
70% 69.8% 64,717 64,557
60% 59.7% 55,471 55,224
50% 50.4% 46,226 46,564
40% 39.6% 36,981 36,624
30% 30.4% 27,736 28,065
20% 19.4% 18,490 17,943
10% 10.0% 9,245 9,291
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-02.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,457
Calibration 2     93,328
Calibration 3     93,098
ssj_ops@calibrated=93,213
100% 98.6% 93,213 91,884
90% 89.8% 83,892 83,674
80% 79.6% 74,571 74,214
70% 68.9% 65,249 64,235
60% 59.5% 55,928 55,477
50% 49.9% 46,607 46,483
40% 39.4% 37,285 36,696
30% 30.2% 27,964 28,169
20% 20.3% 18,643 18,954
10% 10.0% 9,321 9,286
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-02.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,231
Calibration 2     92,760
Calibration 3     92,925
ssj_ops@calibrated=92,843
100% 100.0% 92,843 92,853
90% 89.9% 83,558 83,442
80% 81.0% 74,274 75,191
70% 71.2% 64,990 66,060
60% 59.9% 55,706 55,633
50% 49.8% 46,421 46,260
40% 40.4% 37,137 37,521
30% 30.5% 27,853 28,352
20% 19.7% 18,569 18,288
10% 10.0% 9,284 9,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
