Dell Inc. PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz) ssj_ops@100% = 1,469,619
ssj_ops@100% per JVM = 91,851
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 25, 2012
Hardware Availability: Oct-2012 Software Availability: Jun-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,408,931
Calibration 2     1,476,243
Calibration 3     1,479,138
ssj_ops@calibrated=1,477,690
100% 99.5% 1,477,690 1,469,619
90% 90.0% 1,329,921 1,329,454
80% 79.9% 1,182,152 1,180,836
70% 70.1% 1,034,383 1,035,291
60% 60.0% 886,614 887,056
50% 49.9% 738,845 737,867
40% 40.2% 591,076 593,319
30% 30.2% 443,307 445,546
20% 20.0% 295,538 295,895
10% 10.0% 147,769 147,283
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (2.30 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x Onboard dual-port Broadcom 5720 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.3.5
Management Firmware Version: iDRAC7 1.23.23 Build 1
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-03.001 92,155
M520-03.002 91,382
M520-03.003 91,690
M520-03.004 90,367
M520-03.005 92,156
M520-03.006 91,673
M520-03.007 91,197
M520-03.008 91,181
M520-03.009 92,319
M520-03.010 92,583
M520-03.011 92,712
M520-03.012 91,528
M520-03.013 91,753
M520-03.014 91,709
M520-03.015 92,754
M520-03.016 92,461
ssj_ops@100% 1,469,619
ssj_ops@100% per JVM 91,851

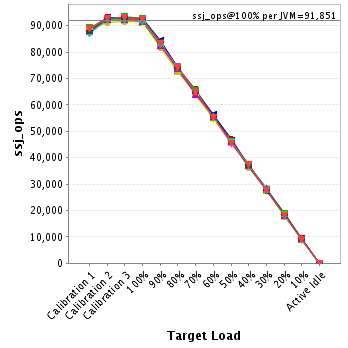

Graph of per-instance results
JVM 'M520-03.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,623
Calibration 2     92,533
Calibration 3     92,769
ssj_ops@calibrated=92,651
100% 99.5% 92,651 92,155
90% 89.9% 83,386 83,249
80% 80.3% 74,121 74,429
70% 70.3% 64,856 65,125
60% 59.9% 55,591 55,470
50% 49.5% 46,326 45,896
40% 40.2% 37,060 37,215
30% 29.9% 27,795 27,727
20% 19.8% 18,530 18,382
10% 10.1% 9,265 9,321
Active Idle   0 0
Graph of results
JVM 'M520-03.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,657
Calibration 2     91,850
Calibration 3     92,255
ssj_ops@calibrated=92,053
100% 99.3% 92,053 91,382
90% 91.2% 82,847 83,984
80% 80.9% 73,642 74,515
70% 69.4% 64,437 63,883
60% 59.4% 55,232 54,646
50% 49.6% 46,026 45,665
40% 40.5% 36,821 37,276
30% 30.0% 27,616 27,628
20% 20.5% 18,411 18,898
10% 9.8% 9,205 9,020
Active Idle   0 0
Graph of results
JVM 'M520-03.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,137
Calibration 2     92,259
Calibration 3     91,963
ssj_ops@calibrated=92,111
100% 99.5% 92,111 91,690
90% 89.9% 82,900 82,844
80% 78.7% 73,689 72,491
70% 70.4% 64,478 64,884
60% 60.5% 55,267 55,700
50% 50.1% 46,056 46,115
40% 40.6% 36,844 37,352
30% 30.1% 27,633 27,732
20% 19.4% 18,422 17,883
10% 9.9% 9,211 9,096
Active Idle   0 0
Graph of results
JVM 'M520-03.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,347
Calibration 2     91,456
Calibration 3     91,485
ssj_ops@calibrated=91,471
100% 98.8% 91,471 90,367
90% 89.4% 82,324 81,783
80% 80.8% 73,177 73,932
70% 69.3% 64,030 63,392
60% 59.3% 54,882 54,242
50% 50.2% 45,735 45,936
40% 40.5% 36,588 37,065
30% 30.3% 27,441 27,716
20% 20.1% 18,294 18,380
10% 9.9% 9,147 9,029
Active Idle   0 0
Graph of results
JVM 'M520-03.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,215
Calibration 2     92,406
Calibration 3     92,556
ssj_ops@calibrated=92,481
100% 99.6% 92,481 92,156
90% 89.0% 83,233 82,270
80% 79.6% 73,985 73,641
70% 70.6% 64,737 65,251
60% 59.9% 55,489 55,362
50% 48.7% 46,241 45,063
40% 40.5% 36,992 37,456
30% 30.5% 27,744 28,182
20% 20.5% 18,496 18,978
10% 10.1% 9,248 9,345
Active Idle   0 0
Graph of results
JVM 'M520-03.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,820
Calibration 2     91,824
Calibration 3     91,998
ssj_ops@calibrated=91,911
100% 99.7% 91,911 91,673
90% 90.3% 82,720 82,994
80% 80.6% 73,529 74,122
70% 70.3% 64,337 64,633
60% 59.9% 55,146 55,010
50% 50.5% 45,955 46,373
40% 40.5% 36,764 37,183
30% 30.7% 27,573 28,183
20% 20.5% 18,382 18,819
10% 9.8% 9,191 8,995
Active Idle   0 0
Graph of results
JVM 'M520-03.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,290
Calibration 2     92,250
Calibration 3     92,066
ssj_ops@calibrated=92,158
100% 99.0% 92,158 91,197
90% 89.9% 82,942 82,814
80% 80.2% 73,726 73,948
70% 69.6% 64,511 64,121
60% 59.8% 55,295 55,080
50% 50.3% 46,079 46,314
40% 39.9% 36,863 36,758
30% 30.3% 27,647 27,912
20% 20.0% 18,432 18,386
10% 10.2% 9,216 9,420
Active Idle   0 0
Graph of results
JVM 'M520-03.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,774
Calibration 2     92,101
Calibration 3     92,647
ssj_ops@calibrated=92,374
100% 98.7% 92,374 91,181
90% 90.9% 83,137 83,941
80% 79.2% 73,899 73,179
70% 70.5% 64,662 65,152
60% 60.5% 55,425 55,853
50% 51.3% 46,187 47,378
40% 40.2% 36,950 37,176
30% 30.6% 27,712 28,235
20% 20.0% 18,475 18,470
10% 10.3% 9,237 9,512
Active Idle   0 0
Graph of results
JVM 'M520-03.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,869
Calibration 2     93,166
Calibration 3     92,849
ssj_ops@calibrated=93,008
100% 99.3% 93,008 92,319
90% 89.6% 83,707 83,305
80% 79.6% 74,406 74,014
70% 70.6% 65,105 65,702
60% 60.2% 55,805 56,030
50% 50.3% 46,504 46,817
40% 39.3% 37,203 36,538
30% 29.6% 27,902 27,532
20% 20.2% 18,602 18,768
10% 10.0% 9,301 9,287
Active Idle   0 0
Graph of results

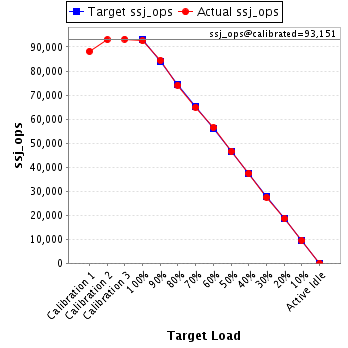

JVM 'M520-03.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,180
Calibration 2     93,048
Calibration 3     93,254
ssj_ops@calibrated=93,151
100% 99.4% 93,151 92,583
90% 90.7% 83,836 84,451
80% 79.5% 74,521 74,084
70% 69.7% 65,206 64,911
60% 60.6% 55,891 56,467
50% 50.0% 46,576 46,582
40% 40.1% 37,260 37,371
30% 29.5% 27,945 27,471
20% 19.9% 18,630 18,559
10% 10.2% 9,315 9,495
Active Idle   0 0
Graph of results
JVM 'M520-03.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,194
Calibration 2     92,148
Calibration 3     93,520
ssj_ops@calibrated=92,834
100% 99.9% 92,834 92,712
90% 89.8% 83,551 83,362
80% 79.7% 74,267 73,944
70% 70.4% 64,984 65,387
60% 59.5% 55,701 55,281
50% 49.6% 46,417 46,021
40% 40.2% 37,134 37,331
30% 30.2% 27,850 28,039
20% 20.1% 18,567 18,686
10% 9.8% 9,283 9,116
Active Idle   0 0
Graph of results
JVM 'M520-03.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,579
Calibration 2     91,361
Calibration 3     91,545
ssj_ops@calibrated=91,453
100% 100.1% 91,453 91,528
90% 89.3% 82,308 81,713
80% 79.4% 73,162 72,607
70% 70.3% 64,017 64,298
60% 60.4% 54,872 55,234
50% 50.4% 45,727 46,050
40% 39.5% 36,581 36,168
30% 30.4% 27,436 27,837
20% 20.0% 18,291 18,291
10% 9.9% 9,145 9,066
Active Idle   0 0
Graph of results
JVM 'M520-03.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,403
Calibration 2     92,221
Calibration 3     92,229
ssj_ops@calibrated=92,225
100% 99.5% 92,225 91,753
90% 89.5% 83,003 82,581
80% 79.9% 73,780 73,689
70% 69.4% 64,558 64,022
60% 60.4% 55,335 55,659
50% 50.0% 46,113 46,106
40% 40.2% 36,890 37,028
30% 30.6% 27,668 28,246
20% 19.8% 18,445 18,261
10% 10.2% 9,223 9,395
Active Idle   0 0
Graph of results

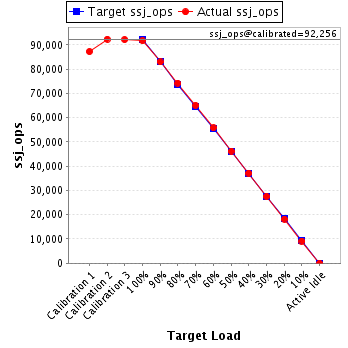

JVM 'M520-03.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,210
Calibration 2     92,344
Calibration 3     92,168
ssj_ops@calibrated=92,256
100% 99.4% 92,256 91,709
90% 89.9% 83,030 82,944
80% 80.5% 73,805 74,268
70% 70.6% 64,579 65,115
60% 60.4% 55,353 55,759
50% 50.1% 46,128 46,196
40% 40.3% 36,902 37,159
30% 30.0% 27,677 27,633
20% 19.7% 18,451 18,214
10% 9.9% 9,226 9,149
Active Idle   0 0
Graph of results
JVM 'M520-03.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,753
Calibration 2     92,549
Calibration 3     92,925
ssj_ops@calibrated=92,737
100% 100.0% 92,737 92,754
90% 90.7% 83,463 84,079
80% 79.7% 74,190 73,922
70% 69.8% 64,916 64,738
60% 60.3% 55,642 55,885
50% 49.4% 46,369 45,830
40% 39.5% 37,095 36,670
30% 30.2% 27,821 28,029
20% 20.2% 18,547 18,707
10% 9.7% 9,274 9,003
Active Idle   0 0
Graph of results

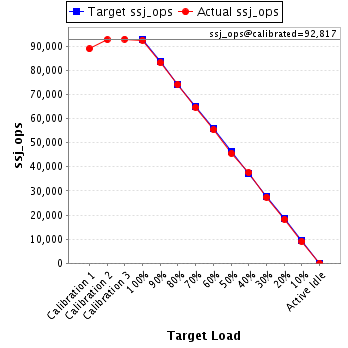

JVM 'M520-03.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,879
Calibration 2     92,726
Calibration 3     92,908
ssj_ops@calibrated=92,817
100% 99.6% 92,817 92,461
90% 89.6% 83,535 83,142
80% 79.8% 74,254 74,049
70% 69.7% 64,972 64,677
60% 59.7% 55,690 55,377
50% 49.0% 46,409 45,525
40% 40.5% 37,127 37,574
30% 29.6% 27,845 27,444
20% 19.6% 18,563 18,212
10% 9.7% 9,282 9,033
Active Idle   0 0
Graph of results
