Dell Inc. PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz) ssj_ops@100% = 1,482,771
ssj_ops@100% per JVM = 92,673
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 25, 2012
Hardware Availability: Oct-2012 Software Availability: Jun-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,423,074
Calibration 2     1,496,917
Calibration 3     1,496,693
ssj_ops@calibrated=1,496,805
100% 99.1% 1,496,805 1,482,771
90% 90.0% 1,347,124 1,347,304
80% 79.6% 1,197,444 1,192,123
70% 70.1% 1,047,763 1,048,744
60% 59.8% 898,083 895,785
50% 49.9% 748,402 746,740
40% 40.0% 598,722 598,626
30% 30.0% 449,041 449,011
20% 20.0% 299,361 299,362
10% 9.9% 149,680 148,917
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (2.30 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x Onboard dual-port Broadcom 5720 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.3.5
Management Firmware Version: iDRAC7 1.23.23 Build 1
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-06.001 92,489
M520-06.002 93,352
M520-06.003 92,456
M520-06.004 91,859
M520-06.005 92,956
M520-06.006 91,595
M520-06.007 93,083
M520-06.008 93,044
M520-06.009 92,266
M520-06.010 93,066
M520-06.011 93,884
M520-06.012 93,583
M520-06.013 92,360
M520-06.014 92,397
M520-06.015 91,890
M520-06.016 92,490
ssj_ops@100% 1,482,771
ssj_ops@100% per JVM 92,673

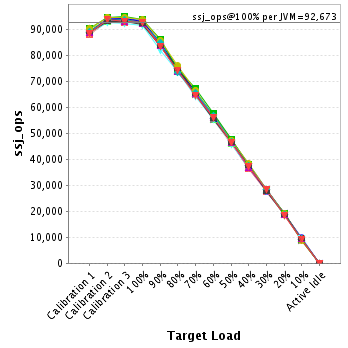

Graph of per-instance results
JVM 'M520-06.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,166
Calibration 2     92,879
Calibration 3     92,647
ssj_ops@calibrated=92,763
100% 99.7% 92,763 92,489
90% 91.2% 83,487 84,572
80% 80.0% 74,211 74,228
70% 70.5% 64,934 65,368
60% 59.9% 55,658 55,544
50% 49.9% 46,382 46,247
40% 39.3% 37,105 36,462
30% 29.6% 27,829 27,426
20% 20.1% 18,553 18,662
10% 9.9% 9,276 9,171
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

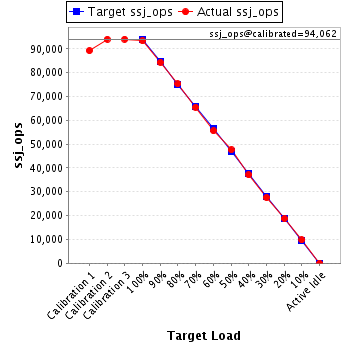

JVM 'M520-06.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,201
Calibration 2     94,044
Calibration 3     94,080
ssj_ops@calibrated=94,062
100% 99.2% 94,062 93,352
90% 89.6% 84,656 84,320
80% 80.1% 75,250 75,324
70% 69.7% 65,844 65,536
60% 59.1% 56,437 55,604
50% 50.6% 47,031 47,640
40% 39.4% 37,625 37,099
30% 29.3% 28,219 27,558
20% 19.9% 18,812 18,750
10% 10.4% 9,406 9,819
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-06.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,132
Calibration 2     93,074
Calibration 3     92,994
ssj_ops@calibrated=93,034
100% 99.4% 93,034 92,456
90% 90.4% 83,730 84,138
80% 79.7% 74,427 74,111
70% 71.1% 65,123 66,132
60% 59.5% 55,820 55,390
50% 49.7% 46,517 46,231
40% 39.5% 37,213 36,709
30% 30.3% 27,910 28,221
20% 20.0% 18,607 18,646
10% 9.7% 9,303 9,069
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

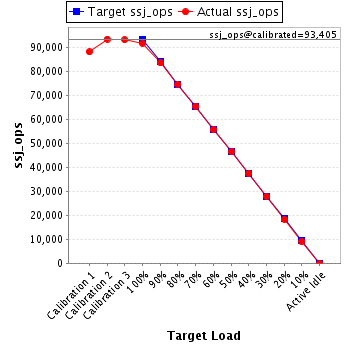

JVM 'M520-06.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,222
Calibration 2     93,558
Calibration 3     93,252
ssj_ops@calibrated=93,405
100% 98.3% 93,405 91,859
90% 89.6% 84,065 83,673
80% 80.1% 74,724 74,814
70% 70.2% 65,384 65,559
60% 59.7% 56,043 55,719
50% 49.8% 46,703 46,535
40% 40.3% 37,362 37,630
30% 29.8% 28,022 27,879
20% 19.7% 18,681 18,354
10% 9.8% 9,341 9,162
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-06.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,778
Calibration 2     93,478
Calibration 3     93,705
ssj_ops@calibrated=93,591
100% 99.3% 93,591 92,956
90% 89.0% 84,232 83,266
80% 79.7% 74,873 74,631
70% 69.8% 65,514 65,371
60% 60.7% 56,155 56,805
50% 49.2% 46,796 46,037
40% 39.8% 37,437 37,221
30% 30.2% 28,077 28,299
20% 19.6% 18,718 18,364
10% 9.6% 9,359 8,979
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-06.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,395
Calibration 2     92,413
Calibration 3     92,368
ssj_ops@calibrated=92,390
100% 99.1% 92,390 91,595
90% 88.5% 83,151 81,801
80% 80.0% 73,912 73,912
70% 69.5% 64,673 64,200
60% 59.7% 55,434 55,169
50% 49.5% 46,195 45,690
40% 39.8% 36,956 36,806
30% 30.1% 27,717 27,846
20% 20.0% 18,478 18,509
10% 10.5% 9,239 9,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-06.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,075
Calibration 2     93,800
Calibration 3     93,806
ssj_ops@calibrated=93,803
100% 99.2% 93,803 93,083
90% 90.3% 84,423 84,661
80% 79.2% 75,042 74,290
70% 69.8% 65,662 65,518
60% 59.0% 56,282 55,298
50% 48.9% 46,901 45,851
40% 40.4% 37,521 37,865
30% 30.2% 28,141 28,321
20% 20.0% 18,761 18,803
10% 10.0% 9,380 9,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

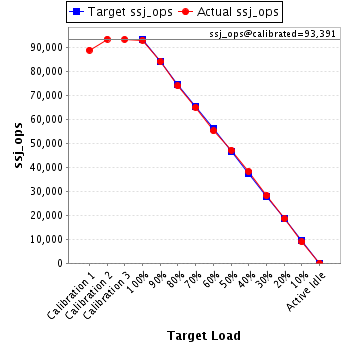

JVM 'M520-06.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,890
Calibration 2     93,442
Calibration 3     93,340
ssj_ops@calibrated=93,391
100% 99.6% 93,391 93,044
90% 90.0% 84,052 84,077
80% 79.2% 74,713 73,966
70% 69.6% 65,374 64,989
60% 59.1% 56,035 55,185
50% 50.5% 46,695 47,158
40% 41.0% 37,356 38,283
30% 30.3% 28,017 28,258
20% 19.9% 18,678 18,568
10% 9.5% 9,339 8,907
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-06.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,059
Calibration 2     93,792
Calibration 3     93,759
ssj_ops@calibrated=93,776
100% 98.4% 93,776 92,266
90% 89.9% 84,398 84,326
80% 79.9% 75,020 74,959
70% 70.4% 65,643 65,992
60% 60.8% 56,265 56,979
50% 50.6% 46,888 47,424
40% 40.0% 37,510 37,466
30% 29.7% 28,133 27,811
20% 20.4% 18,755 19,092
10% 10.2% 9,378 9,558
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

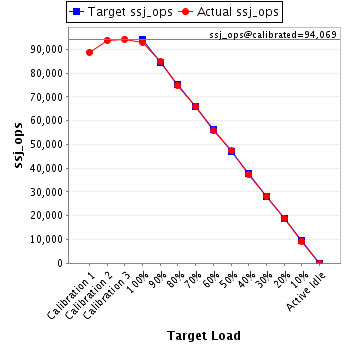

JVM 'M520-06.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,762
Calibration 2     93,851
Calibration 3     94,288
ssj_ops@calibrated=94,069
100% 98.9% 94,069 93,066
90% 90.4% 84,663 84,992
80% 79.5% 75,256 74,803
70% 70.2% 65,849 66,057
60% 59.2% 56,442 55,667
50% 50.3% 47,035 47,289
40% 39.9% 37,628 37,521
30% 30.0% 28,221 28,202
20% 20.2% 18,814 18,960
10% 9.8% 9,407 9,193
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-06.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,125
Calibration 2     94,597
Calibration 3     94,969
ssj_ops@calibrated=94,783
100% 99.1% 94,783 93,884
90% 90.8% 85,305 86,110
80% 78.9% 75,826 74,791
70% 70.8% 66,348 67,126
60% 60.7% 56,870 57,540
50% 50.2% 47,391 47,579
40% 40.1% 37,913 37,998
30% 29.6% 28,435 28,101
20% 20.1% 18,957 19,079
10% 9.8% 9,478 9,316
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-06.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,267
Calibration 2     94,663
Calibration 3     94,641
ssj_ops@calibrated=94,652
100% 98.9% 94,652 93,583
90% 90.6% 85,187 85,731
80% 80.2% 75,722 75,918
70% 70.4% 66,257 66,593
60% 59.7% 56,791 56,512
50% 50.0% 47,326 47,352
40% 40.4% 37,861 38,260
30% 30.1% 28,396 28,503
20% 20.0% 18,930 18,968
10% 9.4% 9,465 8,899
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-06.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,683
Calibration 2     93,194
Calibration 3     93,052
ssj_ops@calibrated=93,123
100% 99.2% 93,123 92,360
90% 89.8% 83,811 83,653
80% 79.1% 74,499 73,683
70% 70.2% 65,186 65,327
60% 60.2% 55,874 56,044
50% 49.8% 46,562 46,391
40% 39.6% 37,249 36,854
30% 30.2% 27,937 28,154
20% 20.1% 18,625 18,709
10% 10.4% 9,312 9,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

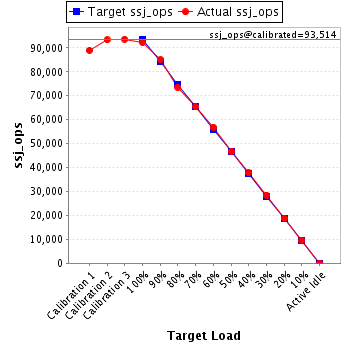

JVM 'M520-06.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,043
Calibration 2     93,362
Calibration 3     93,667
ssj_ops@calibrated=93,514
100% 98.8% 93,514 92,397
90% 91.0% 84,163 85,087
80% 78.6% 74,811 73,527
70% 70.0% 65,460 65,488
60% 60.8% 56,108 56,881
50% 50.0% 46,757 46,773
40% 40.4% 37,406 37,734
30% 30.5% 28,054 28,510
20% 20.1% 18,703 18,799
10% 10.3% 9,351 9,633
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-06.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,943
Calibration 2     92,900
Calibration 3     93,139
ssj_ops@calibrated=93,020
100% 98.8% 93,020 91,890
90% 89.7% 83,718 83,453
80% 80.5% 74,416 74,841
70% 69.8% 65,114 64,969
60% 59.6% 55,812 55,486
50% 49.7% 46,510 46,259
40% 40.3% 37,208 37,529
30% 29.5% 27,906 27,425
20% 20.1% 18,604 18,743
10% 9.9% 9,302 9,203
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M520-06.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,333
Calibration 2     93,871
Calibration 3     92,985
ssj_ops@calibrated=93,428
100% 99.0% 93,428 92,490
90% 89.3% 84,085 83,444
80% 79.6% 74,742 74,325
70% 69.1% 65,400 64,519
60% 59.9% 56,057 55,961
50% 49.5% 46,714 46,285
40% 39.8% 37,371 37,190
30% 30.5% 28,028 28,499
20% 19.6% 18,686 18,356
10% 10.0% 9,343 9,300
Active Idle   0 0

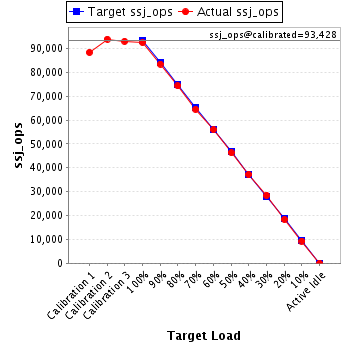

Graph of results
See the JVM Instance Performance Report for additional details.
