Dell Inc. PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz) ssj_ops@100% = 1,470,023
ssj_ops@100% per JVM = 91,876
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 25, 2012
Hardware Availability: Oct-2012 Software Availability: Jun-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,399,593
Calibration 2     1,476,353
Calibration 3     1,475,673
ssj_ops@calibrated=1,476,013
100% 99.6% 1,476,013 1,470,023
90% 89.8% 1,328,412 1,325,637
80% 80.1% 1,180,811 1,181,951
70% 70.2% 1,033,209 1,035,720
60% 60.1% 885,608 886,881
50% 50.0% 738,007 738,507
40% 40.1% 590,405 591,334
30% 30.1% 442,804 443,980
20% 20.1% 295,203 296,452
10% 10.1% 147,601 148,343
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (2.30 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x Onboard dual-port Broadcom 5720 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.3.5
Management Firmware Version: iDRAC7 1.23.23 Build 1
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M520-08.001 91,066
M520-08.002 92,705
M520-08.003 92,191
M520-08.004 91,569
M520-08.005 90,603
M520-08.006 92,022
M520-08.007 91,955
M520-08.008 90,594
M520-08.009 92,546
M520-08.010 92,278
M520-08.011 91,537
M520-08.012 92,729
M520-08.013 91,407
M520-08.014 91,137
M520-08.015 92,490
M520-08.016 93,194
ssj_ops@100% 1,470,023
ssj_ops@100% per JVM 91,876

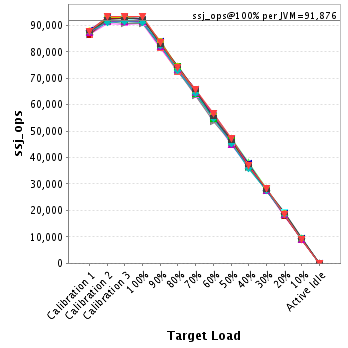

Graph of per-instance results

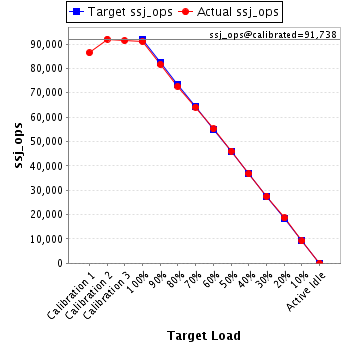

JVM 'M520-08.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,422
Calibration 2     92,030
Calibration 3     91,447
ssj_ops@calibrated=91,738
100% 99.3% 91,738 91,066
90% 89.0% 82,564 81,687
80% 79.2% 73,391 72,650
70% 70.0% 64,217 64,171
60% 60.1% 55,043 55,151
50% 50.2% 45,869 46,032
40% 40.0% 36,695 36,687
30% 30.0% 27,521 27,528
20% 20.3% 18,348 18,602
10% 10.0% 9,174 9,166
Active Idle   0 0
Graph of results
JVM 'M520-08.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,663
Calibration 2     92,806
Calibration 3     93,437
ssj_ops@calibrated=93,121
100% 99.6% 93,121 92,705
90% 89.5% 83,809 83,380
80% 79.5% 74,497 74,048
70% 69.7% 65,185 64,874
60% 60.8% 55,873 56,633
50% 50.4% 46,561 46,912
40% 39.8% 37,249 37,076
30% 30.1% 27,936 28,076
20% 20.3% 18,624 18,911
10% 10.0% 9,312 9,304
Active Idle   0 0
Graph of results
JVM 'M520-08.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,528
Calibration 2     92,870
Calibration 3     92,623
ssj_ops@calibrated=92,746
100% 99.4% 92,746 92,191
90% 89.6% 83,472 83,134
80% 80.3% 74,197 74,481
70% 70.1% 64,922 65,047
60% 59.9% 55,648 55,530
50% 50.8% 46,373 47,120
40% 41.0% 37,099 38,059
30% 30.4% 27,824 28,236
20% 19.9% 18,549 18,483
10% 10.1% 9,275 9,399
Active Idle   0 0
Graph of results
JVM 'M520-08.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,245
Calibration 2     91,902
Calibration 3     91,968
ssj_ops@calibrated=91,935
100% 99.6% 91,935 91,569
90% 90.2% 82,741 82,895
80% 80.2% 73,548 73,706
70% 70.1% 64,354 64,409
60% 60.4% 55,161 55,506
50% 50.3% 45,967 46,285
40% 40.1% 36,774 36,841
30% 29.9% 27,580 27,519
20% 20.3% 18,387 18,704
10% 10.2% 9,193 9,412
Active Idle   0 0
Graph of results
JVM 'M520-08.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,597
Calibration 2     90,736
Calibration 3     90,539
ssj_ops@calibrated=90,638
100% 100.0% 90,638 90,603
90% 89.7% 81,574 81,319
80% 80.7% 72,510 73,170
70% 70.0% 63,446 63,402
60% 60.0% 54,383 54,384
50% 49.7% 45,319 45,019
40% 40.0% 36,255 36,283
30% 30.5% 27,191 27,646
20% 19.7% 18,128 17,871
10% 10.2% 9,064 9,225
Active Idle   0 0
Graph of results

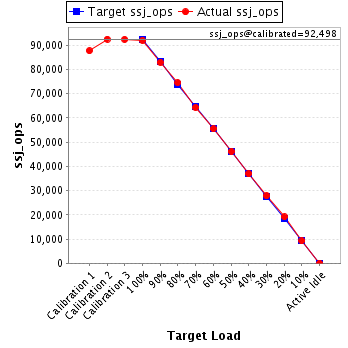

JVM 'M520-08.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,705
Calibration 2     92,544
Calibration 3     92,453
ssj_ops@calibrated=92,498
100% 99.5% 92,498 92,022
90% 89.7% 83,249 82,971
80% 80.6% 73,999 74,536
70% 69.5% 64,749 64,329
60% 60.0% 55,499 55,523
50% 49.9% 46,249 46,155
40% 39.9% 36,999 36,934
30% 30.1% 27,750 27,833
20% 20.7% 18,500 19,158
10% 10.0% 9,250 9,258
Active Idle   0 0
Graph of results
JVM 'M520-08.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,321
Calibration 2     93,143
Calibration 3     92,978
ssj_ops@calibrated=93,060
100% 98.8% 93,060 91,955
90% 90.0% 83,754 83,781
80% 79.9% 74,448 74,388
70% 70.2% 65,142 65,367
60% 59.8% 55,836 55,651
50% 50.4% 46,530 46,905
40% 40.6% 37,224 37,783
30% 29.7% 27,918 27,620
20% 19.8% 18,612 18,462
10% 10.1% 9,306 9,371
Active Idle   0 0
Graph of results
JVM 'M520-08.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,593
Calibration 2     91,492
Calibration 3     90,843
ssj_ops@calibrated=91,167
100% 99.4% 91,167 90,594
90% 90.4% 82,051 82,427
80% 79.9% 72,934 72,864
70% 69.5% 63,817 63,388
60% 59.0% 54,700 53,786
50% 50.2% 45,584 45,731
40% 39.8% 36,467 36,322
30% 30.1% 27,350 27,425
20% 20.0% 18,233 18,251
10% 10.3% 9,117 9,366
Active Idle   0 0
Graph of results

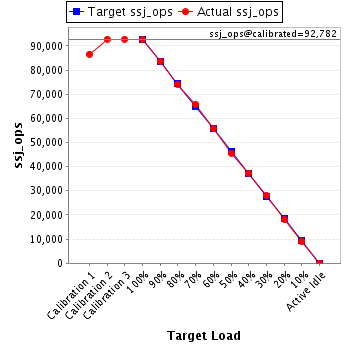

JVM 'M520-08.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,598
Calibration 2     92,776
Calibration 3     92,789
ssj_ops@calibrated=92,782
100% 99.7% 92,782 92,546
90% 90.2% 83,504 83,695
80% 80.0% 74,226 74,217
70% 70.9% 64,947 65,784
60% 60.0% 55,669 55,645
50% 49.2% 46,391 45,609
40% 40.2% 37,113 37,317
30% 30.2% 27,835 28,036
20% 19.5% 18,556 18,108
10% 9.8% 9,278 9,129
Active Idle   0 0
Graph of results
JVM 'M520-08.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,059
Calibration 2     93,135
Calibration 3     93,018
ssj_ops@calibrated=93,077
100% 99.1% 93,077 92,278
90% 90.0% 83,769 83,749
80% 79.6% 74,461 74,086
70% 70.5% 65,154 65,606
60% 59.6% 55,846 55,442
50% 50.1% 46,538 46,645
40% 40.4% 37,231 37,570
30% 29.7% 27,923 27,690
20% 20.1% 18,615 18,735
10% 9.9% 9,308 9,221
Active Idle   0 0
Graph of results
JVM 'M520-08.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,575
Calibration 2     91,455
Calibration 3     91,847
ssj_ops@calibrated=91,651
100% 99.9% 91,651 91,537
90% 89.6% 82,486 82,075
80% 81.2% 73,321 74,463
70% 70.2% 64,156 64,365
60% 59.8% 54,991 54,841
50% 50.8% 45,825 46,551
40% 40.1% 36,660 36,712
30% 29.9% 27,495 27,436
20% 20.0% 18,330 18,356
10% 9.8% 9,165 9,017
Active Idle   0 0
Graph of results
JVM 'M520-08.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,580
Calibration 2     92,960
Calibration 3     93,156
ssj_ops@calibrated=93,058
100% 99.6% 93,058 92,729
90% 90.4% 83,752 84,082
80% 80.0% 74,446 74,447
70% 69.7% 65,141 64,843
60% 60.4% 55,835 56,181
50% 49.3% 46,529 45,866
40% 39.4% 37,223 36,637
30% 29.9% 27,917 27,794
20% 20.1% 18,612 18,746
10% 10.2% 9,306 9,504
Active Idle   0 0
Graph of results
JVM 'M520-08.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,425
Calibration 2     91,535
Calibration 3     91,375
ssj_ops@calibrated=91,455
100% 99.9% 91,455 91,407
90% 89.6% 82,310 81,948
80% 80.1% 73,164 73,249
70% 70.7% 64,019 64,692
60% 61.5% 54,873 56,200
50% 49.2% 45,728 45,005
40% 40.3% 36,582 36,861
30% 30.2% 27,437 27,598
20% 20.0% 18,291 18,287
10% 9.8% 9,146 9,000
Active Idle   0 0
Graph of results
JVM 'M520-08.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,746
Calibration 2     91,218
Calibration 3     91,479
ssj_ops@calibrated=91,348
100% 99.8% 91,348 91,137
90% 90.0% 82,213 82,217
80% 79.7% 73,079 72,797
70% 70.5% 63,944 64,400
60% 59.8% 54,809 54,624
50% 49.4% 45,674 45,164
40% 39.4% 36,539 35,980
30% 30.1% 27,404 27,492
20% 20.1% 18,270 18,329
10% 10.4% 9,135 9,472
Active Idle   0 0
Graph of results
JVM 'M520-08.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,709
Calibration 2     92,371
Calibration 3     92,506
ssj_ops@calibrated=92,438
100% 100.1% 92,438 92,490
90% 89.5% 83,195 82,708
80% 80.8% 73,951 74,697
70% 70.7% 64,707 65,391
60% 59.7% 55,463 55,225
50% 50.2% 46,219 46,426
40% 40.2% 36,975 37,183
30% 30.2% 27,732 27,911
20% 20.6% 18,488 19,031
10% 10.3% 9,244 9,562
Active Idle   0 0
Graph of results
JVM 'M520-08.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,828
Calibration 2     93,381
Calibration 3     93,217
ssj_ops@calibrated=93,299
100% 99.9% 93,299 93,194
90% 89.6% 83,969 83,569
80% 79.5% 74,639 74,154
70% 70.4% 65,309 65,652
60% 60.6% 55,979 56,559
50% 50.5% 46,649 47,082
40% 39.8% 37,319 37,090
30% 30.2% 27,990 28,140
20% 19.7% 18,660 18,417
10% 9.6% 9,330 8,937
Active Idle   0 0
Graph of results
