IBM Corporation IBM System x3300 M4 | SPECpower_ssj2008 = 5,418 overall ssj_ops/watt | ||||
Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
Tested By: | IBM Corporation | Test Location: | Taipei, Taiwan | Test Date: | Oct 23, 2012 |
Hardware Availability: | Sep-2012 | Software Availability: | Dec-2012 | Publication: | Nov 14, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

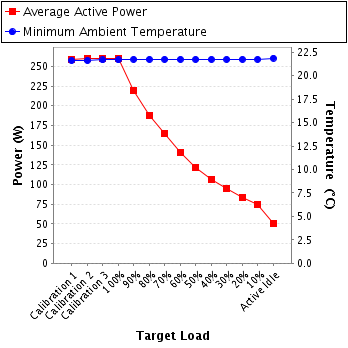

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 259 | 21.6 |
Calibration 2 | 260 | 21.6 |
Calibration 3 | 260 | 21.7 |
100% | 260 | 21.7 |
90% | 220 | 21.8 |
80% | 188 | 21.8 |
70% | 164 | 21.8 |
60% | 141 | 21.8 |
50% | 122 | 21.8 |
40% | 106 | 21.8 |
30% | 94.5 | 21.8 |
20% | 84.1 | 21.8 |
10% | 74.3 | 21.8 |
Active Idle | 50.8 | 21.9 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
Model: | WT210 |
Serial Number: | 91JB14535 |
Connectivity: | RS-232 |
Input Connection: | Default |
Metrology Institute: | NML/ROC |
Accredited by: | ETC, Taiwan |
Calibration Label: | 11-05-BAC-032-03 |
Date of Calibration: | 05-May-2012 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
Setup Description: | none |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International, Inc. |
Model: | Watchport/H |
Driver Version: | 4.20.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 1 cm in front of SUT main intake |

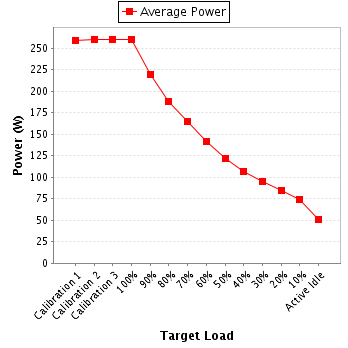

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 210 | 300.0 | 1.27 | 2.0 | 0.970 | 259 | 0.4% |
Calibration 2 | 210 | 300.0 | 1.27 | 2.0 | 0.970 | 260 | 0.4% |
Calibration 3 | 210 | 300.0 | 1.28 | 2.0 | 0.970 | 260 | 0.4% |
100% | 210 | 300.0 | 1.28 | 2.0 | 0.970 | 260 | 0.4% |
90% | 210 | 300.0 | 1.09 | 2.0 | 0.964 | 220 | 0.5% |
80% | 211 | 300.0 | 0.936 | 2.0 | 0.954 | 188 | 0.5% |
70% | 211 | 300.0 | 0.831 | 2.0 | 0.940 | 164 | 0.6% |
60% | 211 | 300.0 | 0.724 | 2.0 | 0.925 | 141 | 0.7% |
50% | 211 | 300.0 | 0.635 | 1.0 | 0.909 | 122 | 0.5% |
40% | 211 | 300.0 | 0.568 | 1.0 | 0.888 | 106 | 0.5% |
30% | 211 | 300.0 | 0.517 | 1.0 | 0.865 | 94.5 | 0.6% |
20% | 211 | 300.0 | 0.474 | 1.0 | 0.841 | 84.1 | 0.6% |
10% | 210 | 300.0 | 0.435 | 1.0 | 0.813 | 74.3 | 0.7% |
Active Idle | 210 | 300.0 | 0.340 | 0.5 | 0.711 | 50.8 | 0.6% |
