SPECpower_ssj2008
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3530 M4 | SPECpower_ssj2008 = 5,006 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Taipei, Taiwan | Test Date: | Oct 26, 2012 |
| Hardware Availability: | Dec-2012 | Software Availability: | Dec-2012 | Publication: | Nov 14, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

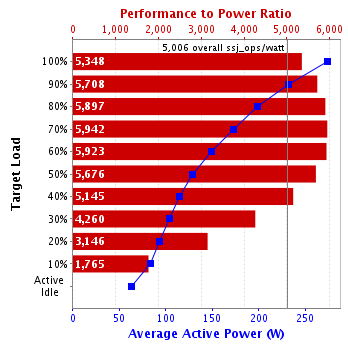

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.7% | 1,463,219 | 274 | 5,348 |
| 90% | 90.2% | 1,323,006 | 232 | 5,708 |
| 80% | 80.0% | 1,173,186 | 199 | 5,897 |
| 70% | 70.2% | 1,029,217 | 173 | 5,942 |
| 60% | 60.0% | 880,317 | 149 | 5,923 |
| 50% | 49.9% | 732,166 | 129 | 5,676 |
| 40% | 40.1% | 588,035 | 114 | 5,145 |
| 30% | 30.0% | 440,440 | 103 | 4,260 |
| 20% | 20.0% | 293,903 | 93.4 | 3,146 |
| 10% | 10.1% | 147,486 | 83.6 | 1,765 |
| Active Idle | 0 | 62.6 | 0 | |
| ∑ssj_ops / ∑power = | 5,006 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x3530 M4 |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon E5-2470 2.30 GHz (Intel Turbo Boost Technology up to 3.10 GHz) |
| CPU Characteristics: | 8 core, 2.30GHz, 20MB L3 Cache |
| CPU Frequency (MHz): | 2300 |
| CPU(s) Enabled: | 16 cores, 2 chips, 8 cores/chip |
| Hardware Threads: | 32 (2 / core) |
| CPU(s) Orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 24 |
| # and size of DIMM: | 6 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3L-10600E; slots 1, 3, 5, 7, 9 and 11 populated |
| Power Supply Quantity and Rating (W): | 1 x 675 |
| Power Supply Details: | IBM 675w PSU(39Y7216) |
| Disk Drive: | 1 x 250GB 2.5 SATA(IBM P/N: 81Y9722) |
| Disk Controller: | Integrated SAS/SATA Controller |
| # and type of Network Interface Cards (NICs) Installed: | 4 x Integrated Intel I350 Gigabit Ethernet Controller |
| NICs Enabled in Firmware / OS / Connected: | 4/4/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | IBM Power Profile |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise Edition x64 |
| OS Version: | R2 SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 |
| JVM Affinity: | start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | BEE123F |
| Management Firmware Version: | 1AOO31M |
| Workload Version: | SSJ 1.2.9 |
| Director Location: | Controller |
| Other Software: | IBM SDK Java Technology Edition Version 7.0 for Windows x64 |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | x3650 M3 |
| CPU Description: | Intel Xeon L5506 |
| Memory amount (GB): | 24 |
| Software | |
|---|---|
| Operating System (OS): | Windows 2008 R2 SP1 |
| JVM Vendor: | IBM |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| CCS Version: | 1.2.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91JB14535 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 11-05-BAC-032-03 |
| Date of Calibration: | 05-May-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | none |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 274 | 24.1 |
| 90% | 232 | 24.1 |
| 80% | 199 | 24.2 |
| 70% | 173 | 24.3 |
| 60% | 149 | 24.4 |
| 50% | 129 | 24.4 |
| 40% | 114 | 24.4 |
| 30% | 103 | 24.3 |
| 20% | 93.4 | 24.3 |
| 10% | 83.6 | 24.3 |
| Active Idle | 62.6 | 24.3 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 24.1 | 63 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,442,167 | ||
| Calibration 2 | 1,467,994 | ||
| Calibration 3 | 1,466,093 | ||
| ssj_ops@calibrated=1,467,043 | |||
| 100% | 99.7% | 1,467,043 | 1,463,219 |
| 90% | 90.2% | 1,320,339 | 1,323,006 |
| 80% | 80.0% | 1,173,635 | 1,173,186 |
| 70% | 70.2% | 1,026,930 | 1,029,217 |
| 60% | 60.0% | 880,226 | 880,317 |
| 50% | 49.9% | 733,522 | 732,166 |
| 40% | 40.1% | 586,817 | 588,035 |
| 30% | 30.0% | 440,113 | 440,440 |
| 20% | 20.0% | 293,409 | 293,903 |
| 10% | 10.1% | 146,704 | 147,486 |
| Active Idle | 0 | 0 | |
