Hewlett-Packard Company ProLiant DL385p Gen8 (2.50 GHz, AMD Opteron 6380 processor) | SPECpower_ssj2008 = 4,116 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Nov 5, 2012 |
Hardware Availability: | Dec-2012 | Software Availability: | Aug-2012 | Publication: | Dec 3, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

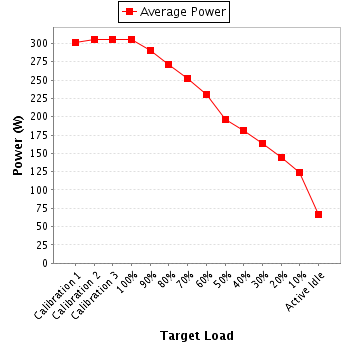

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 301 | 20.1 |
Calibration 2 | 305 | 20.4 |
Calibration 3 | 306 | 20.3 |
100% | 306 | 20.4 |
90% | 290 | 20.3 |
80% | 272 | 20.2 |
70% | 252 | 20.4 |
60% | 230 | 20.3 |
50% | 196 | 20.2 |
40% | 181 | 20.4 |
30% | 163 | 20.2 |
20% | 144 | 20.2 |
10% | 123 | 20.4 |
Active Idle | 66.6 | 20.4 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91K218964 |
Connectivity: | GPIB |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | Hewlett-Packard Company Metrology |
Calibration Label: | 705874 |
Date of Calibration: | 03-Jan-2012 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.1-1271fb18-20110728 |
Setup Description: | Connected to power supply |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.0.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 25 mm in front of SUT main air intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 211 | 300.0 | 1.44 | 2.0 | 0.992 | 301 | 0.3% |
Calibration 2 | 211 | 300.0 | 1.46 | 2.0 | 0.992 | 305 | 0.3% |
Calibration 3 | 211 | 300.0 | 1.46 | 2.0 | 0.992 | 306 | 0.3% |
100% | 211 | 300.0 | 1.46 | 2.0 | 0.992 | 306 | 0.3% |
90% | 211 | 300.0 | 1.38 | 2.0 | 0.991 | 290 | 0.3% |
80% | 211 | 300.0 | 1.30 | 2.0 | 0.990 | 272 | 0.3% |
70% | 211 | 300.0 | 1.21 | 2.0 | 0.988 | 252 | 0.4% |
60% | 211 | 300.0 | 1.11 | 2.0 | 0.985 | 230 | 0.4% |
50% | 211 | 300.0 | 0.949 | 2.0 | 0.981 | 196 | 0.4% |
40% | 211 | 300.0 | 0.875 | 2.0 | 0.979 | 181 | 0.5% |
30% | 211 | 300.0 | 0.791 | 1.0 | 0.976 | 163 | 0.3% |
20% | 211 | 300.0 | 0.704 | 1.0 | 0.973 | 144 | 0.4% |
10% | 211 | 300.0 | 0.605 | 1.0 | 0.967 | 123 | 0.4% |
Active Idle | 211 | 300.0 | 0.345 | 0.5 | 0.915 | 66.6 | 0.4% |
