SPECpower_ssj2008
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Tyan Computer Corporation B8228Y190X2-045V4H | SPECpower_ssj2008 = 3,293 overall ssj_ops/watt | ||||
| Test Sponsor: | Advanced Micro Devices | SPEC License #: | 49 | Test Method: | Single Node |
| Tested By: | AMD Performance Lab | Test Location: | Austin, TX, USA | Test Date: | Nov 6, 2012 |
| Hardware Availability: | Dec-2012 | Software Availability: | Jun-2012 | Publication: | Dec 4, 2012 |
| System Source: | Parts Built | System Designation: | Server | Power Provisioning: | Line-powered |

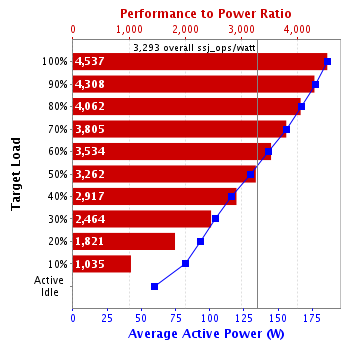

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 843,336 | 186 | 4,537 |
| 90% | 90.0% | 762,728 | 177 | 4,308 |
| 80% | 80.0% | 678,268 | 167 | 4,062 |
| 70% | 69.9% | 592,598 | 156 | 3,805 |
| 60% | 59.7% | 506,069 | 143 | 3,534 |
| 50% | 49.8% | 422,222 | 129 | 3,262 |
| 40% | 39.8% | 337,368 | 116 | 2,917 |
| 30% | 30.2% | 256,268 | 104 | 2,464 |
| 20% | 20.1% | 170,120 | 93.4 | 1,821 |
| 10% | 10.1% | 85,183 | 82.3 | 1,035 |
| Active Idle | 0 | 59.5 | 0 | |
| ∑ssj_ops / ∑power = | 3,293 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Tyan Computer Corporation |
| Model: | B8228Y190X2-045V4H |
| Form Factor: | 1 of 2 Blades in 1U Rackmount Frame |
| CPU Name: | AMD Opteron 4376 HE |
| CPU Characteristics: | 8 Core, 2.6GHz, 6MB L3 Cache |
| CPU Frequency (MHz): | 2600 |
| CPU(s) Enabled: | 16 cores, 2 chips, 8 cores/chip |
| Hardware Threads: | 16 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 256 KB I + 128 KB D on chip per chip |
| Secondary Cache: | 8 MB I+D on chip per chip |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 32 |
| # and size of DIMM: | 4 x 8 GB |
| Memory Details: | 8GB 2Rx4 PC3L-12800R |
| Power Supply Quantity and Rating (W): | 1 x 450 |
| Power Supply Details: | 3Y Power Technology YM-2451C |
| Disk Drive: | 1 x 128GB, SSD, 2.5" SATA, WD SSC-D0128SC-2100 |
| Disk Controller: | Integrated AMD SP5100 SATA Controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Intel 82576 GigaBit Dual Port |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced Power profile |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise |
| OS Version: | SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209(JIT enabled, AOT enabled)) |
| JVM Command-line Options: | -Xms1875m -Xmn1400m -Xmx1875m -Xlp -Xaggressive -XlockReservation -Xcompressedrefs -Xnoloa -Xgcpolicy:gencon -Xthr:minimizeUserCPU -Xgcthreads2 |
| JVM Affinity: | start /affinity [03,0C,30,C0] /node [0|1] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 0.25 |
| Management Firmware Version: | 1.00 |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | IBM SDK Java Technology Edition Version 7.0 for Windows x64 |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Inc. |
| Model: | Inspiron 1721 |
| CPU Description: | AMD Turion 64 X2 TL-60 |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows 7 Enterprise |
| JVM Vendor: | Sun Microsystems |
| JVM Version: | Java HotSpot(TM) Client VM (build 14.2-b01, mixed mode, sharing) |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91M215719 |
| Connectivity: | USB-to-Serial |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | Yokogawa Corporation of America |
| Calibration Label: | 022412-91M215719 |
| Date of Calibration: | 24-Feb-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | Unknown |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 186 | 22.3 |
| 90% | 177 | 22.3 |
| 80% | 167 | 22.2 |
| 70% | 156 | 22.2 |
| 60% | 143 | 22.2 |
| 50% | 129 | 22.2 |
| 40% | 116 | 22.1 |
| 30% | 104 | 22.1 |
| 20% | 93.4 | 22.1 |
| 10% | 82.3 | 22.1 |
| Active Idle | 59.5 | 22.0 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 22.0 | 168 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 799,151 | ||
| Calibration 2 | 847,558 | ||
| Calibration 3 | 847,364 | ||
| ssj_ops@calibrated=847,461 | |||
| 100% | 99.5% | 847,461 | 843,336 |
| 90% | 90.0% | 762,715 | 762,728 |
| 80% | 80.0% | 677,969 | 678,268 |
| 70% | 69.9% | 593,223 | 592,598 |
| 60% | 59.7% | 508,476 | 506,069 |
| 50% | 49.8% | 423,730 | 422,222 |
| 40% | 39.8% | 338,984 | 337,368 |
| 30% | 30.2% | 254,238 | 256,268 |
| 20% | 20.1% | 169,492 | 170,120 |
| 10% | 10.1% | 84,746 | 85,183 |
| Active Idle | 0 | 0 | |
