Acer Incorporated Acer AW2000h-Aw170h F2 ssj_ops@100% = 1,601,407
ssj_ops@100% per JVM = 200,176
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Dec 12, 2012
Hardware Availability: Sep-2012 Software Availability: Mar-2012 Publication: Jan 4, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,580,606
Calibration 2     1,607,740
Calibration 3     1,607,757
ssj_ops@calibrated=1,607,748
100% 99.6% 1,607,748 1,601,407
90% 90.0% 1,446,974 1,447,353
80% 80.1% 1,286,199 1,287,999
70% 70.1% 1,125,424 1,126,740
60% 59.8% 964,649 961,728
50% 50.1% 803,874 805,073
40% 40.0% 643,099 643,892
30% 30.1% 482,325 484,415
20% 20.0% 321,550 322,132
10% 9.9% 160,775 158,917
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AW2000h-Aw170h F2
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.6 GHz (Intel Turbo Boost Technology up to 3.30 GHz)
CPU Characteristics: 8 core, 2.6GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 MB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 16GB 2Rx4 PC3-12800R; slots A1, B1, C1, D1, E1, F1, G1 and H1 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200 RPM SATA, Acer P/N KH.50001.043
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedresf-Xmx1500m -Xms1500m -Xmn110m -xlockReservation -xnoloa -xtlhPrefetch -xlp
JVM Affinity: start /affinity [0F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 01.06.0001
Management Firmware Version: 1.16.4010
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-ECAQAB7SPJC.001 201,452
WIN-ECAQAB7SPJC.002 200,965
WIN-ECAQAB7SPJC.003 199,023
WIN-ECAQAB7SPJC.004 198,890
WIN-ECAQAB7SPJC.005 197,980
WIN-ECAQAB7SPJC.006 200,950
WIN-ECAQAB7SPJC.007 201,771
WIN-ECAQAB7SPJC.008 200,377
ssj_ops@100% 1,601,407
ssj_ops@100% per JVM 200,176

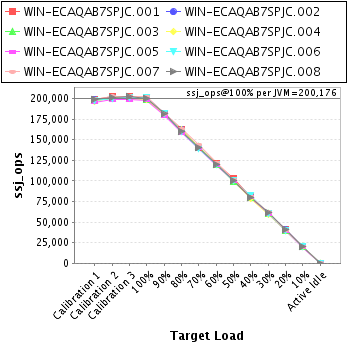

Graph of per-instance results
JVM 'WIN-ECAQAB7SPJC.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,112
Calibration 2     202,619
Calibration 3     202,580
ssj_ops@calibrated=202,599
100% 99.4% 202,599 201,452
90% 89.7% 182,339 181,739
80% 79.8% 162,080 161,755
70% 69.4% 141,820 140,578
60% 59.6% 121,560 120,664
50% 50.6% 101,300 102,518
40% 40.1% 81,040 81,293
30% 30.1% 60,780 60,984
20% 20.3% 40,520 41,117
10% 9.8% 20,260 19,757
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ECAQAB7SPJC.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,249
Calibration 2     201,025
Calibration 3     201,640
ssj_ops@calibrated=201,332
100% 99.8% 201,332 200,965
90% 90.3% 181,199 181,714
80% 80.8% 161,066 162,605
70% 69.9% 140,933 140,794
60% 59.6% 120,799 120,021
50% 50.0% 100,666 100,615
40% 40.1% 80,533 80,734
30% 30.2% 60,400 60,855
20% 20.1% 40,266 40,474
10% 9.9% 20,133 19,898
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ECAQAB7SPJC.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,945
Calibration 2     200,370
Calibration 3     199,996
ssj_ops@calibrated=200,183
100% 99.4% 200,183 199,023
90% 90.2% 180,165 180,541
80% 79.9% 160,146 159,930
70% 70.7% 140,128 141,600
60% 59.8% 120,110 119,664
50% 49.7% 100,091 99,478
40% 39.9% 80,073 79,966
30% 29.9% 60,055 59,863
20% 19.9% 40,037 39,885
10% 10.0% 20,018 20,065
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ECAQAB7SPJC.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,426
Calibration 2     200,563
Calibration 3     200,198
ssj_ops@calibrated=200,381
100% 99.3% 200,381 198,890
90% 90.0% 180,342 180,427
80% 81.0% 160,304 162,264
70% 70.3% 140,266 140,893
60% 59.9% 120,228 120,126
50% 50.3% 100,190 100,804
40% 39.2% 80,152 78,515
30% 29.7% 60,114 59,417
20% 20.0% 40,076 40,120
10% 9.9% 20,038 19,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ECAQAB7SPJC.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,167
Calibration 2     198,624
Calibration 3     198,142
ssj_ops@calibrated=198,383
100% 99.8% 198,383 197,980
90% 90.2% 178,544 178,954
80% 79.8% 158,706 158,291
70% 70.2% 138,868 139,297
60% 60.0% 119,030 119,090
50% 50.3% 99,191 99,869
40% 40.4% 79,353 80,207
30% 30.2% 59,515 59,936
20% 19.9% 39,677 39,535
10% 9.8% 19,838 19,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ECAQAB7SPJC.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,565
Calibration 2     200,493
Calibration 3     200,713
ssj_ops@calibrated=200,603
100% 100.2% 200,603 200,950
90% 90.3% 180,542 181,135
80% 79.5% 160,482 159,556
70% 69.6% 140,422 139,697
60% 59.9% 120,362 120,084
50% 49.9% 100,301 100,157
40% 40.8% 80,241 81,881
30% 30.2% 60,181 60,484
20% 20.0% 40,121 40,042
10% 9.9% 20,060 19,905
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ECAQAB7SPJC.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,036
Calibration 2     202,710
Calibration 3     202,702
ssj_ops@calibrated=202,706
100% 99.5% 202,706 201,771
90% 89.6% 182,435 181,714
80% 80.5% 162,165 163,184
70% 70.9% 141,894 143,697
60% 60.1% 121,624 121,905
50% 50.0% 101,353 101,394
40% 39.9% 81,082 80,978
30% 30.4% 60,812 61,649
20% 19.9% 40,541 40,358
10% 9.9% 20,271 20,049
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-ECAQAB7SPJC.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,105
Calibration 2     201,337
Calibration 3     201,787
ssj_ops@calibrated=201,562
100% 99.4% 201,562 200,377
90% 89.9% 181,406 181,130
80% 79.6% 161,250 160,413
70% 69.5% 141,093 140,185
60% 59.6% 120,937 120,174
50% 49.7% 100,781 100,238
40% 39.8% 80,625 80,318
30% 30.4% 60,469 61,226
20% 20.1% 40,312 40,602
10% 10.0% 20,156 20,084
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
