Acer Incoporated Acer AR360 F2 SPECpower_ssj2008 = 3,900 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: acer Incorporated Test Location: Taipei, R.O.C. Test Date: Dec 10, 2012
Hardware Availability: May-2012 Software Availability: Oct-2012 Publication: Jan 9, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 309 22.1
Calibration 2 313 22.0
Calibration 3 313 21.6
100% 315 22.1
90% 290 21.6
80% 240 22.1
70% 218 21.9
60% 201 22.0
50% 182 22.1
40% 159 22.1
30% 137 22.4
20% 117 22.1
10% 103 22.3
Active Idle 69.4 22.1

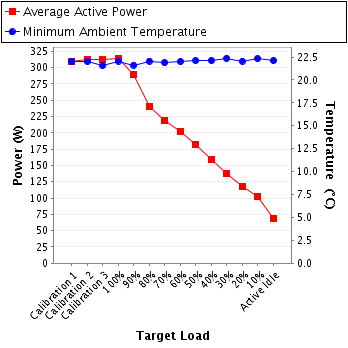

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 12-05-BAC-113-01
Date of Calibration: 10-May-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 216 300.0 1.55 2.0 0.927 309 0.4%
Calibration 2 215 300.0 1.57 2.0 0.928 313 0.4%
Calibration 3 216 300.0 1.56 2.0 0.928 313 0.4%
100% 215 300.0 1.57 2.0 0.928 315 0.4%
90% 216 300.0 1.46 2.0 0.921 290 0.4%
80% 216 300.0 1.23 2.0 0.906 240 0.5%
70% 216 300.0 1.13 2.0 0.897 218 0.5%
60% 216 300.0 1.05 2.0 0.889 201 0.6%
50% 216 300.0 0.958 2.0 0.878 182 0.6%
40% 216 300.0 0.851 2.0 0.862 159 0.6%
30% 216 300.0 0.752 1.0 0.845 137 0.5%
20% 216 300.0 0.660 1.0 0.823 117 0.5%
10% 216 300.0 0.594 1.0 0.800 103 0.6%
Active Idle 216 300.0 0.448 1.0 0.715 69.4 0.8%
Power details for pwr1
