Acer Incorporated Acer AR585 F1 ssj_ops@100% = 3,151,008
ssj_ops@100% per JVM = 196,938
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Dec 21, 2012
Hardware Availability: Nov-2012 Software Availability: Mar-2012 Publication: Jan 9, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,071,265
Calibration 2     3,163,880
Calibration 3     3,159,241
ssj_ops@calibrated=3,161,561
100% 99.7% 3,161,561 3,151,008
90% 90.0% 2,845,404 2,845,845
80% 80.1% 2,529,248 2,533,958
70% 70.1% 2,213,092 2,216,402
60% 60.0% 1,896,936 1,895,710
50% 50.0% 1,580,780 1,580,668
40% 40.1% 1,264,624 1,269,300
30% 30.0% 948,468 948,849
20% 19.9% 632,312 630,282
10% 10.0% 316,156 317,295
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR585 F1
Form Factor: 2U
CPU Name: AMD Opteron 6380
CPU Characteristics: 16 core, 2.50 GHz (AMD Turbo CORE up to 3.4GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 64 cores, 4 chips, 16 cores/chip
Hardware Threads: 64 (1 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 512 KB I + 256 KB D on chip per chip
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 16 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R; slots 1A, 2A, 3A and 4A are populated on each processor
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: PWS-1K41F-1R
Disk Drive: 1 x 500GB 7200 RPM SATA 3.5" HDD, Acer P/N KH.500W8.019
Disk Controller: Onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled)
JVM Command-line Options: -Xms1875m -Xmn1400m -Xmx1875m -Xlp -Xaggressive -XlockReservation -Xcompressedrefs -Xnoloa -Xgcpolicy:gencon -Xthr:minimizeUserCPU -Xgcthreads2
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000, F000000, F0000000, F00000000, F000000000, F0000000000, F00000000000, F000000000000, F0000000000000, F00000000000000, F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: P09
Management Firmware Version: 1.40
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
ar585f1.001 195,635
ar585f1.002 198,249
ar585f1.003 199,045
ar585f1.004 198,821
ar585f1.005 198,471
ar585f1.006 198,871
ar585f1.007 196,372
ar585f1.008 195,789
ar585f1.009 194,819
ar585f1.010 195,156
ar585f1.011 197,135
ar585f1.012 197,664
ar585f1.013 197,966
ar585f1.014 194,859
ar585f1.015 196,293
ar585f1.016 195,861
ssj_ops@100% 3,151,008
ssj_ops@100% per JVM 196,938
Graph of per-instance results
JVM 'ar585f1.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,973
Calibration 2     197,699
Calibration 3     196,190
ssj_ops@calibrated=196,945
100% 99.3% 196,945 195,635
90% 89.9% 177,250 177,116
80% 80.2% 157,556 157,915
70% 70.2% 137,861 138,341
60% 59.9% 118,167 117,996
50% 49.8% 98,472 98,143
40% 40.5% 78,778 79,844
30% 30.3% 59,083 59,609
20% 20.1% 39,389 39,660
10% 10.0% 19,694 19,786
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ar585f1.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,994
Calibration 2     198,391
Calibration 3     198,429
ssj_ops@calibrated=198,410
100% 99.9% 198,410 198,249
90% 89.4% 178,569 177,304
80% 80.3% 158,728 159,276
70% 69.8% 138,887 138,552
60% 60.3% 119,046 119,734
50% 50.4% 99,205 100,010
40% 40.0% 79,364 79,299
30% 29.9% 59,523 59,284
20% 19.9% 39,682 39,459
10% 10.3% 19,841 20,359
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ar585f1.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,442
Calibration 2     199,725
Calibration 3     199,773
ssj_ops@calibrated=199,749
100% 99.6% 199,749 199,045
90% 89.6% 179,774 179,007
80% 80.2% 159,799 160,164
70% 69.7% 139,824 139,281
60% 59.8% 119,849 119,484
50% 50.1% 99,875 100,154
40% 40.2% 79,900 80,255
30% 30.0% 59,925 59,972
20% 19.9% 39,950 39,742
10% 10.0% 19,975 20,049
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ar585f1.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,034
Calibration 2     199,654
Calibration 3     198,779
ssj_ops@calibrated=199,217
100% 99.8% 199,217 198,821
90% 90.2% 179,295 179,722
80% 80.5% 159,373 160,287
70% 69.8% 139,452 139,021
60% 60.6% 119,530 120,677
50% 50.0% 99,608 99,593
40% 40.1% 79,687 79,816
30% 29.9% 59,765 59,563
20% 20.0% 39,843 39,908
10% 10.0% 19,922 19,899
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ar585f1.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,830
Calibration 2     199,296
Calibration 3     199,239
ssj_ops@calibrated=199,267
100% 99.6% 199,267 198,471
90% 90.3% 179,341 180,018
80% 80.4% 159,414 160,223
70% 70.2% 139,487 139,960
60% 60.2% 119,560 119,895
50% 49.8% 99,634 99,315
40% 40.1% 79,707 79,819
30% 30.2% 59,780 60,145
20% 20.0% 39,853 39,815
10% 10.1% 19,927 20,100
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ar585f1.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,589
Calibration 2     199,111
Calibration 3     199,567
ssj_ops@calibrated=199,339
100% 99.8% 199,339 198,871
90% 90.8% 179,405 181,056
80% 79.5% 159,471 158,534
70% 70.6% 139,537 140,792
60% 59.7% 119,603 118,967
50% 50.0% 99,670 99,577
40% 40.2% 79,736 80,051
30% 30.1% 59,802 60,000
20% 20.0% 39,868 39,936
10% 10.0% 19,934 19,865
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ar585f1.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,099
Calibration 2     197,269
Calibration 3     196,211
ssj_ops@calibrated=196,740
100% 99.8% 196,740 196,372
90% 89.9% 177,066 176,813
80% 80.7% 157,392 158,833
70% 70.5% 137,718 138,658
60% 60.2% 118,044 118,460
50% 49.9% 98,370 98,092
40% 40.6% 78,696 79,871
30% 29.9% 59,022 58,820
20% 19.8% 39,348 39,024
10% 10.0% 19,674 19,632
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ar585f1.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,664
Calibration 2     196,233
Calibration 3     196,759
ssj_ops@calibrated=196,496
100% 99.6% 196,496 195,789
90% 90.0% 176,846 176,806
80% 79.8% 157,197 156,745
70% 70.4% 137,547 138,344
60% 60.0% 117,898 117,839
50% 49.9% 98,248 98,021
40% 40.2% 78,598 78,905
30% 30.0% 58,949 58,904
20% 20.1% 39,299 39,452
10% 10.0% 19,650 19,677
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ar585f1.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,116
Calibration 2     195,160
Calibration 3     195,216
ssj_ops@calibrated=195,188
100% 99.8% 195,188 194,819
90% 89.3% 175,669 174,369
80% 80.0% 156,150 156,101
70% 70.6% 136,632 137,818
60% 60.1% 117,113 117,378
50% 49.8% 97,594 97,200
40% 39.9% 78,075 77,887
30% 30.2% 58,556 58,924
20% 20.3% 39,038 39,638
10% 9.9% 19,519 19,398
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ar585f1.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,404
Calibration 2     196,581
Calibration 3     196,173
ssj_ops@calibrated=196,377
100% 99.4% 196,377 195,156
90% 90.1% 176,740 177,026
80% 81.0% 157,102 159,000
70% 69.9% 137,464 137,187
60% 59.6% 117,826 117,132
50% 50.0% 98,189 98,222
40% 39.9% 78,551 78,304
30% 30.4% 58,913 59,741
20% 19.9% 39,275 38,991
10% 9.9% 19,638 19,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ar585f1.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,019
Calibration 2     197,240
Calibration 3     197,783
ssj_ops@calibrated=197,511
100% 99.8% 197,511 197,135
90% 90.7% 177,760 179,160
80% 80.3% 158,009 158,515
70% 70.2% 138,258 138,619
60% 59.7% 118,507 117,819
50% 50.0% 98,756 98,827
40% 39.8% 79,005 78,700
30% 30.0% 59,253 59,295
20% 19.8% 39,502 39,038
10% 10.2% 19,751 20,128
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ar585f1.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,035
Calibration 2     198,934
Calibration 3     197,993
ssj_ops@calibrated=198,463
100% 99.6% 198,463 197,664
90% 90.0% 178,617 178,576
80% 79.6% 158,771 158,052
70% 70.3% 138,924 139,442
60% 59.7% 119,078 118,579
50% 50.2% 99,232 99,700
40% 40.3% 79,385 79,960
30% 29.8% 59,539 59,113
20% 20.0% 39,693 39,665
10% 10.1% 19,846 19,989
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ar585f1.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,581
Calibration 2     198,782
Calibration 3     198,376
ssj_ops@calibrated=198,579
100% 99.7% 198,579 197,966
90% 89.4% 178,721 177,447
80% 80.1% 158,863 159,143
70% 69.0% 139,005 137,080
60% 59.7% 119,148 118,479
50% 49.6% 99,290 98,525
40% 40.0% 79,432 79,354
30% 30.0% 59,574 59,616
20% 19.9% 39,716 39,480
10% 10.0% 19,858 19,911
Active Idle   0 0

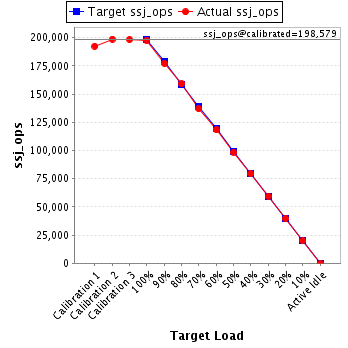

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ar585f1.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,842
Calibration 2     196,058
Calibration 3     195,509
ssj_ops@calibrated=195,784
100% 99.5% 195,784 194,859
90% 90.5% 176,205 177,121
80% 79.6% 156,627 155,835
70% 70.4% 137,049 137,885
60% 59.6% 117,470 116,650
50% 50.0% 97,892 97,978
40% 40.3% 78,314 78,846
30% 30.0% 58,735 58,639
20% 19.4% 39,157 37,924
10% 9.9% 19,578 19,410
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ar585f1.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,303
Calibration 2     196,806
Calibration 3     197,366
ssj_ops@calibrated=197,086
100% 99.6% 197,086 196,293
90% 90.2% 177,377 177,677
80% 80.0% 157,669 157,728
70% 69.9% 137,960 137,779
60% 60.4% 118,252 118,963
50% 50.0% 98,543 98,536
40% 40.3% 78,834 79,380
30% 29.8% 59,126 58,656
20% 20.0% 39,417 39,353
10% 10.1% 19,709 19,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'ar585f1.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,338
Calibration 2     196,941
Calibration 3     195,877
ssj_ops@calibrated=196,409
100% 99.7% 196,409 195,861
90% 89.9% 176,768 176,627
80% 80.2% 157,127 157,607
70% 70.1% 137,486 137,642
60% 59.9% 117,845 117,655
50% 50.3% 98,204 98,775
40% 40.2% 78,564 79,008
30% 29.8% 58,923 58,568
20% 20.0% 39,282 39,195
10% 10.0% 19,641 19,618
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
