Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.60 GHz) ssj_ops@100% = 1,425,718
ssj_ops@100% per JVM = 89,107
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jan 11, 2013
Hardware Availability: Dec-2012 Software Availability: Jun-2012 Publication: Feb 20, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,346,660
Calibration 2     1,425,809
Calibration 3     1,427,655
ssj_ops@calibrated=1,426,732
100% 99.9% 1,426,732 1,425,718
90% 89.9% 1,284,059 1,282,284
80% 79.9% 1,141,386 1,140,185
70% 69.8% 998,712 995,691
60% 60.0% 856,039 855,349
50% 49.9% 713,366 712,341
40% 40.0% 570,693 569,994
30% 30.0% 428,020 427,467
20% 19.9% 285,346 284,589
10% 9.9% 142,673 141,333
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.60 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-3, B1-3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Dual-Port Intel X520-k Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.4.9
Management Firmware Version: iDRAC7 1.30.30 (Build 39)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M620-09.001 90,209
M620-09.002 89,302
M620-09.003 88,031
M620-09.004 89,908
M620-09.005 89,587
M620-09.006 89,012
M620-09.007 89,900
M620-09.008 89,593
M620-09.009 89,716
M620-09.010 88,767
M620-09.011 88,938
M620-09.012 87,612
M620-09.013 88,588
M620-09.014 88,136
M620-09.015 88,713
M620-09.016 89,707
ssj_ops@100% 1,425,718
ssj_ops@100% per JVM 89,107
Graph of per-instance results
JVM 'M620-09.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,213
Calibration 2     90,091
Calibration 3     90,059
ssj_ops@calibrated=90,075
100% 100.1% 90,075 90,209
90% 88.9% 81,067 80,041
80% 79.3% 72,060 71,398
70% 69.8% 63,052 62,839
60% 60.8% 54,045 54,748
50% 50.1% 45,037 45,127
40% 39.6% 36,030 35,677
30% 29.6% 27,022 26,702
20% 20.2% 18,015 18,155
10% 9.6% 9,007 8,650
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-09.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,651
Calibration 2     89,208
Calibration 3     89,241
ssj_ops@calibrated=89,224
100% 100.1% 89,224 89,302
90% 90.3% 80,302 80,555
80% 79.8% 71,379 71,218
70% 70.3% 62,457 62,767
60% 58.8% 53,535 52,498
50% 50.4% 44,612 44,935
40% 40.5% 35,690 36,116
30% 29.4% 26,767 26,265
20% 19.9% 17,845 17,776
10% 9.8% 8,922 8,773
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-09.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,736
Calibration 2     88,051
Calibration 3     89,117
ssj_ops@calibrated=88,584
100% 99.4% 88,584 88,031
90% 89.6% 79,726 79,374
80% 80.4% 70,867 71,225
70% 69.4% 62,009 61,493
60% 59.4% 53,150 52,584
50% 49.4% 44,292 43,784
40% 39.6% 35,434 35,058
30% 29.9% 26,575 26,455
20% 20.0% 17,717 17,739
10% 9.9% 8,858 8,812
Active Idle   0 0

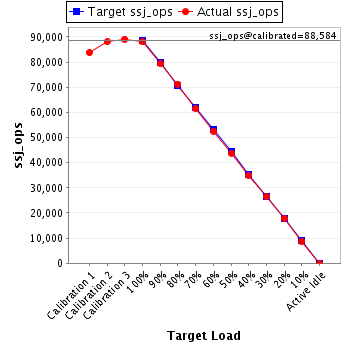

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-09.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,392
Calibration 2     89,612
Calibration 3     89,933
ssj_ops@calibrated=89,773
100% 100.2% 89,773 89,908
90% 90.2% 80,795 80,950
80% 80.5% 71,818 72,234
70% 68.9% 62,841 61,824
60% 60.3% 53,864 54,177
50% 49.5% 44,886 44,475
40% 40.5% 35,909 36,400
30% 30.3% 26,932 27,214
20% 19.5% 17,955 17,538
10% 9.8% 8,977 8,766
Active Idle   0 0

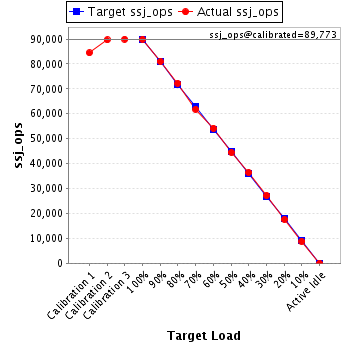

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-09.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,622
Calibration 2     88,857
Calibration 3     89,392
ssj_ops@calibrated=89,125
100% 100.5% 89,125 89,587
90% 89.6% 80,212 79,853
80% 79.6% 71,300 70,947
70% 69.9% 62,387 62,321
60% 60.4% 53,475 53,857
50% 50.0% 44,562 44,533
40% 39.6% 35,650 35,286
30% 30.5% 26,737 27,205
20% 20.2% 17,825 17,966
10% 9.9% 8,912 8,858
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-09.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,120
Calibration 2     88,749
Calibration 3     89,227
ssj_ops@calibrated=88,988
100% 100.0% 88,988 89,012
90% 90.0% 80,089 80,122
80% 78.7% 71,190 70,034
70% 69.9% 62,291 62,225
60% 60.3% 53,393 53,687
50% 50.2% 44,494 44,685
40% 40.3% 35,595 35,885
30% 29.8% 26,696 26,519
20% 19.5% 17,798 17,351
10% 9.8% 8,899 8,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-09.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,256
Calibration 2     89,618
Calibration 3     89,668
ssj_ops@calibrated=89,643
100% 100.3% 89,643 89,900
90% 89.8% 80,679 80,461
80% 80.3% 71,714 72,019
70% 70.1% 62,750 62,863
60% 60.3% 53,786 54,024
50% 49.2% 44,821 44,103
40% 40.4% 35,857 36,215
30% 29.8% 26,893 26,682
20% 20.3% 17,929 18,194
10% 9.5% 8,964 8,478
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-09.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,281
Calibration 2     89,389
Calibration 3     89,162
ssj_ops@calibrated=89,275
100% 100.4% 89,275 89,593
90% 90.2% 80,348 80,526
80% 79.7% 71,420 71,165
70% 69.1% 62,493 61,734
60% 60.5% 53,565 54,033
50% 49.7% 44,638 44,347
40% 39.7% 35,710 35,441
30% 30.3% 26,783 27,018
20% 19.4% 17,855 17,335
10% 9.8% 8,928 8,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-09.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,312
Calibration 2     89,352
Calibration 3     89,770
ssj_ops@calibrated=89,561
100% 100.2% 89,561 89,716
90% 90.6% 80,605 81,156
80% 79.1% 71,649 70,810
70% 70.0% 62,693 62,691
60% 59.7% 53,737 53,465
50% 49.6% 44,781 44,378
40% 39.7% 35,824 35,556
30% 29.8% 26,868 26,732
20% 20.0% 17,912 17,903
10% 10.1% 8,956 9,027
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-09.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,576
Calibration 2     89,302
Calibration 3     88,999
ssj_ops@calibrated=89,150
100% 99.6% 89,150 88,767
90% 89.9% 80,235 80,132
80% 81.3% 71,320 72,437
70% 69.6% 62,405 62,022
60% 59.7% 53,490 53,244
50% 50.1% 44,575 44,644
40% 39.8% 35,660 35,442
30% 29.5% 26,745 26,319
20% 20.7% 17,830 18,423
10% 10.0% 8,915 8,935
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-09.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,744
Calibration 2     88,910
Calibration 3     88,896
ssj_ops@calibrated=88,903
100% 100.0% 88,903 88,938
90% 90.0% 80,013 80,050
80% 79.7% 71,122 70,854
70% 70.5% 62,232 62,682
60% 59.8% 53,342 53,177
50% 50.6% 44,452 45,009
40% 40.2% 35,561 35,753
30% 29.6% 26,671 26,293
20% 19.8% 17,781 17,613
10% 9.9% 8,890 8,781
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-09.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,143
Calibration 2     88,253
Calibration 3     88,256
ssj_ops@calibrated=88,255
100% 99.3% 88,255 87,612
90% 90.5% 79,429 79,883
80% 79.7% 70,604 70,338
70% 69.4% 61,778 61,276
60% 59.8% 52,953 52,766
50% 50.0% 44,127 44,128
40% 40.3% 35,302 35,527
30% 30.3% 26,476 26,783
20% 19.7% 17,651 17,381
10% 10.2% 8,825 9,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-09.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,500
Calibration 2     88,986
Calibration 3     88,669
ssj_ops@calibrated=88,828
100% 99.7% 88,828 88,588
90% 89.2% 79,945 79,240
80% 80.6% 71,062 71,567
70% 71.0% 62,179 63,033
60% 60.2% 53,297 53,457
50% 50.9% 44,414 45,180
40% 38.8% 35,531 34,434
30% 30.1% 26,648 26,719
20% 20.1% 17,766 17,828
10% 10.0% 8,883 8,850
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-09.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,253
Calibration 2     88,100
Calibration 3     88,188
ssj_ops@calibrated=88,144
100% 100.0% 88,144 88,136
90% 89.4% 79,330 78,812
80% 79.8% 70,515 70,305
70% 69.1% 61,701 60,913
60% 60.2% 52,886 53,026
50% 49.2% 44,072 43,333
40% 39.7% 35,258 35,029
30% 30.2% 26,443 26,588
20% 19.8% 17,629 17,443
10% 10.5% 8,814 9,298
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-09.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,617
Calibration 2     89,758
Calibration 3     89,534
ssj_ops@calibrated=89,646
100% 99.0% 89,646 88,713
90% 89.4% 80,681 80,111
80% 80.3% 71,717 71,944
70% 69.8% 62,752 62,580
60% 59.5% 53,787 53,299
50% 49.7% 44,823 44,588
40% 40.0% 35,858 35,853
30% 30.1% 26,894 26,954
20% 20.3% 17,929 18,230
10% 10.1% 8,965 9,020
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-09.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,244
Calibration 2     89,574
Calibration 3     89,544
ssj_ops@calibrated=89,559
100% 100.2% 89,559 89,707
90% 90.5% 80,603 81,015
80% 80.0% 71,647 71,691
70% 69.7% 62,691 62,428
60% 59.5% 53,736 53,306
50% 50.3% 44,780 45,091
40% 40.6% 35,824 36,322
30% 30.2% 26,868 27,019
20% 19.8% 17,912 17,715
10% 9.6% 8,956 8,613
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
