SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Acer Incorporated Altos R360 F2 | SPECpower_ssj2008 = 4,142 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Apr 9, 2013 |
| Hardware Availability: | May-2013 | Software Availability: | Oct-2012 | Publication: | May 8, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

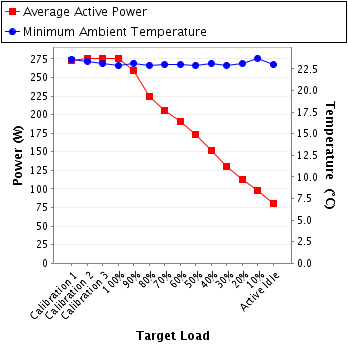

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 273 | 23.6 |
| Calibration 2 | 276 | 23.4 |
| Calibration 3 | 276 | 23.1 |
| 100% | 275 | 22.9 |
| 90% | 259 | 23.2 |
| 80% | 225 | 22.9 |
| 70% | 205 | 23.0 |
| 60% | 191 | 23.0 |
| 50% | 173 | 22.9 |
| 40% | 151 | 23.1 |
| 30% | 131 | 22.9 |
| 20% | 113 | 23.1 |
| 10% | 98.0 | 23.8 |
| Active Idle | 80.4 | 23.0 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 12-05-BAC-113-01 |
| Date of Calibration: | 10-May-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 217 | 300.0 | 1.29 | 5.0 | 0.976 | 273 | 0.7% |
| Calibration 2 | 217 | 300.0 | 1.30 | 5.0 | 0.977 | 276 | 0.7% |
| Calibration 3 | 217 | 300.0 | 1.30 | 5.0 | 0.977 | 276 | 0.7% |
| 100% | 217 | 300.0 | 1.30 | 5.0 | 0.976 | 275 | 0.7% |
| 90% | 217 | 300.0 | 1.23 | 5.0 | 0.973 | 259 | 0.8% |
| 80% | 217 | 300.0 | 1.07 | 5.0 | 0.968 | 225 | 0.9% |
| 70% | 218 | 300.0 | 0.976 | 5.0 | 0.966 | 205 | 0.9% |
| 60% | 218 | 300.0 | 0.912 | 2.0 | 0.964 | 191 | 0.5% |
| 50% | 218 | 300.0 | 0.824 | 2.0 | 0.960 | 173 | 0.6% |
| 40% | 218 | 300.0 | 0.726 | 2.0 | 0.956 | 151 | 0.6% |
| 30% | 218 | 300.0 | 0.630 | 1.0 | 0.949 | 131 | 0.4% |
| 20% | 219 | 300.0 | 0.551 | 1.0 | 0.936 | 113 | 0.5% |
| 10% | 219 | 300.0 | 0.490 | 1.0 | 0.914 | 98.0 | 0.5% |
| Active Idle | 219 | 300.0 | 0.417 | 1.0 | 0.880 | 80.4 | 0.6% |
