Huawei Technologies Co., Ltd RH2288 V2 SPECpower_ssj2008 = 5,284 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Jun 5, 2013
Hardware Availability: Apr-2013 Software Availability: Jun-2012 Publication: Jun 26, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 201 22.5
Calibration 2 207 22.6
Calibration 3 207 22.6
100% 207 22.6
90% 187 22.6
80% 162 22.6
70% 143 22.7
60% 127 22.7
50% 113 22.7
40% 106 22.7
30% 97.4 22.7
20% 88.3 22.7
10% 78.3 22.7
Active Idle 55.3 22.7

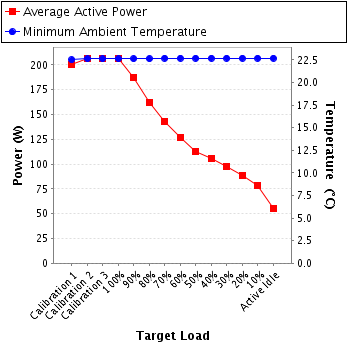

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91K630156
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: "2GB12006186-0010"
Date of Calibration: 30-Jul-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.6.0-7f9b1b00-20130314
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 224 300.0 0.943 1.0 0.953 201 0.4%
Calibration 2 224 300.0 0.969 1.0 0.954 207 0.4%
Calibration 3 223 300.0 0.971 1.0 0.954 207 0.4%
100% 223 300.0 0.973 1.0 0.955 207 0.4%
90% 223 300.0 0.886 1.0 0.948 187 0.4%
80% 224 300.0 0.770 1.0 0.942 162 0.4%
70% 224 300.0 0.685 1.0 0.933 143 0.4%
60% 224 300.0 0.616 1.0 0.920 127 0.5%
50% 224 300.0 0.557 1.0 0.905 113 0.5%
40% 224 300.0 0.528 0.5 0.895 106 0.4%
30% 223 300.0 0.494 0.5 0.883 97.4 0.4%
20% 224 300.0 0.455 0.5 0.866 88.3 0.4%
10% 224 300.0 0.415 0.5 0.843 78.3 0.5%
Active Idle 224 300.0 0.325 0.5 0.759 55.3 0.6%
Power details for pwr1
