Acer Incorporated Altos R380 F2 ssj_ops@100% = 1,292,540
ssj_ops@100% per JVM = 161,567
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Jun 6, 2013
Hardware Availability: Apr-2013 Software Availability: Mar-2013 Publication: Jun 26, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,242,418
Calibration 2     1,293,987
Calibration 3     1,293,877
ssj_ops@calibrated=1,293,932
100% 99.9% 1,293,932 1,292,540
90% 89.7% 1,164,539 1,160,738
80% 80.0% 1,035,145 1,035,437
70% 70.0% 905,752 905,844
60% 60.1% 776,359 777,245
50% 49.8% 646,966 644,113
40% 39.9% 517,573 516,210
30% 29.9% 388,180 387,300
20% 20.0% 258,786 258,333
10% 10.0% 129,393 129,882
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Acer Incorporated
Model: Altos R380 F2
Form Factor: 2U
CPU Name: Intel Xeon E5-2650
CPU Characteristics: 8 core, 2.00 GHz, 20MB L3 Cache (Intel Turbo Boost Technology up to 2.80 GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per chip
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx4 PC3L-10600E; slots A1, B1, C1, E1, F1 and G1 are populated
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Acer P/N SC.46017.001
Disk Drive: 1 x 160GB SATA 2.5" SSD, Acer part KN.1600N.001
Disk Controller: onboard SCU controller
# and type of Network Interface Cards (NICs) Installed: 4 x Intel I350 dual-port Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1600m -Xms1600m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [0F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: 01.06.0002
Management Firmware Version: 1.17.4010
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-GVRVGBSTJA7.001 161,477
WIN-GVRVGBSTJA7.002 161,231
WIN-GVRVGBSTJA7.003 161,801
WIN-GVRVGBSTJA7.004 162,306
WIN-GVRVGBSTJA7.005 162,640
WIN-GVRVGBSTJA7.006 161,897
WIN-GVRVGBSTJA7.007 158,264
WIN-GVRVGBSTJA7.008 162,923
ssj_ops@100% 1,292,540
ssj_ops@100% per JVM 161,567

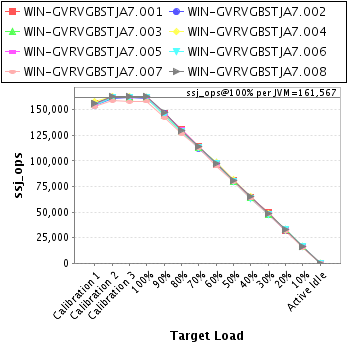

Graph of per-instance results
JVM 'WIN-GVRVGBSTJA7.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,236
Calibration 2     161,877
Calibration 3     162,293
ssj_ops@calibrated=162,085
100% 99.6% 162,085 161,477
90% 90.0% 145,877 145,919
80% 80.6% 129,668 130,585
70% 70.1% 113,460 113,694
60% 59.5% 97,251 96,506
50% 49.7% 81,043 80,554
40% 39.8% 64,834 64,533
30% 30.5% 48,626 49,411
20% 19.6% 32,417 31,797
10% 10.2% 16,209 16,571
Active Idle   0 0
Graph of results
JVM 'WIN-GVRVGBSTJA7.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,407
Calibration 2     161,295
Calibration 3     162,167
ssj_ops@calibrated=161,731
100% 99.7% 161,731 161,231
90% 90.3% 145,558 145,980
80% 80.4% 129,385 129,955
70% 69.5% 113,212 112,419
60% 60.4% 97,039 97,648
50% 49.8% 80,865 80,513
40% 39.9% 64,692 64,473
30% 29.6% 48,519 47,857
20% 20.0% 32,346 32,365
10% 10.2% 16,173 16,500
Active Idle   0 0
Graph of results
JVM 'WIN-GVRVGBSTJA7.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,064
Calibration 2     161,756
Calibration 3     161,907
ssj_ops@calibrated=161,832
100% 100.0% 161,832 161,801
90% 89.2% 145,648 144,306
80% 79.7% 129,465 129,056
70% 69.7% 113,282 112,744
60% 60.6% 97,099 98,140
50% 49.5% 80,916 80,153
40% 39.8% 64,733 64,447
30% 29.7% 48,549 48,062
20% 20.3% 32,366 32,850
10% 10.1% 16,183 16,334
Active Idle   0 0
Graph of results
JVM 'WIN-GVRVGBSTJA7.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,870
Calibration 2     162,628
Calibration 3     162,969
ssj_ops@calibrated=162,799
100% 99.7% 162,799 162,306
90% 89.3% 146,519 145,418
80% 79.8% 130,239 129,989
70% 69.6% 113,959 113,356
60% 60.2% 97,679 98,013
50% 50.0% 81,399 81,450
40% 40.3% 65,119 65,574
30% 30.1% 48,840 48,964
20% 19.6% 32,560 31,913
10% 10.2% 16,280 16,673
Active Idle   0 0
Graph of results
JVM 'WIN-GVRVGBSTJA7.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,363
Calibration 2     162,905
Calibration 3     162,363
ssj_ops@calibrated=162,634
100% 100.0% 162,634 162,640
90% 89.7% 146,370 145,892
80% 80.3% 130,107 130,661
70% 70.1% 113,844 113,981
60% 59.7% 97,580 97,163
50% 49.9% 81,317 81,141
40% 39.8% 65,053 64,786
30% 29.9% 48,790 48,608
20% 19.8% 32,527 32,168
10% 10.0% 16,263 16,229
Active Idle   0 0
Graph of results
JVM 'WIN-GVRVGBSTJA7.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,376
Calibration 2     161,664
Calibration 3     161,437
ssj_ops@calibrated=161,551
100% 100.2% 161,551 161,897
90% 89.3% 145,396 144,323
80% 79.8% 129,240 128,853
70% 70.0% 113,085 113,036
60% 60.3% 96,930 97,470
50% 49.4% 80,775 79,769
40% 39.4% 64,620 63,669
30% 29.8% 48,465 48,094
20% 20.2% 32,310 32,608
10% 10.0% 16,155 16,104
Active Idle   0 0
Graph of results

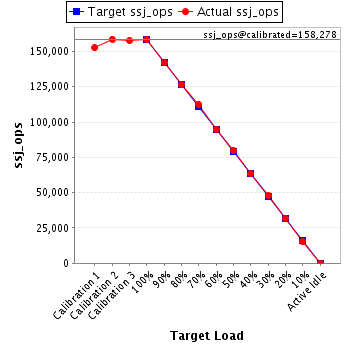

JVM 'WIN-GVRVGBSTJA7.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,675
Calibration 2     158,739
Calibration 3     157,817
ssj_ops@calibrated=158,278
100% 100.0% 158,278 158,264
90% 89.7% 142,450 141,964
80% 79.8% 126,623 126,299
70% 71.1% 110,795 112,572
60% 59.8% 94,967 94,727
50% 50.4% 79,139 79,813
40% 40.1% 63,311 63,524
30% 30.2% 47,483 47,878
20% 20.1% 31,656 31,781
10% 9.7% 15,828 15,325
Active Idle   0 0
Graph of results
JVM 'WIN-GVRVGBSTJA7.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,427
Calibration 2     163,123
Calibration 3     162,924
ssj_ops@calibrated=163,023
100% 99.9% 163,023 162,923
90% 90.1% 146,721 146,935
80% 79.8% 130,419 130,040
70% 70.0% 114,116 114,042
60% 59.9% 97,814 97,578
50% 49.5% 81,512 80,721
40% 40.0% 65,209 65,203
30% 29.7% 48,907 48,427
20% 20.2% 32,605 32,850
10% 9.9% 16,302 16,146
Active Idle   0 0
Graph of results
