SPECpower_ssj2008
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Acer Incorporated Altos R380 F2 | SPECpower_ssj2008 = 5,227 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Jan 1, 2005 |
| Hardware Availability: | Apr-2013 | Software Availability: | Mar-2013 | Publication: | Jun 26, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

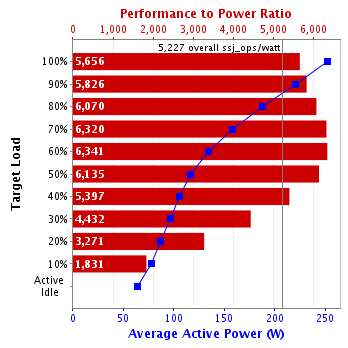

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 100.0% | 1,426,072 | 252 | 5,656 |
| 90% | 90.3% | 1,287,686 | 221 | 5,826 |
| 80% | 79.8% | 1,138,934 | 188 | 6,070 |
| 70% | 70.0% | 999,267 | 158 | 6,320 |
| 60% | 59.8% | 852,999 | 135 | 6,341 |
| 50% | 50.0% | 713,502 | 116 | 6,135 |
| 40% | 39.9% | 569,525 | 106 | 5,397 |
| 30% | 30.0% | 427,629 | 96.5 | 4,432 |
| 20% | 20.0% | 284,703 | 87.0 | 3,271 |
| 10% | 10.0% | 142,807 | 78.0 | 1,831 |
| Active Idle | 0 | 63.7 | 0 | |
| ∑ssj_ops / ∑power = | 5,227 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | Here is a comment for this set. |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Altos R380 F2 |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon E5-2660 |
| CPU Characteristics: | 8 core, 2.20 GHz, 20MB L3 Cache (Intel Turbo Boost Technology up to 3.00 GHz) |
| CPU Frequency (MHz): | 2200 |
| CPU(s) Enabled: | 16 cores, 2 chips, 8 cores/chip |
| Hardware Threads: | 32 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per chip |
| Tertiary Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 24 |
| # and size of DIMM: | 6 x 4096 MB |
| Memory Details: | 4GB 2Rx4 PC3L-10600E; slots A1, B1, C1, E1, F1 and G1 are populated |
| Power Supply Quantity and Rating (W): | 1 x 460 |
| Power Supply Details: | Acer P/N SC.46017.001 |
| Disk Drive: | 1 x 160GB SATA 2.5" SSD, Acer part KN.1600N.001 |
| Disk Controller: | onboard SCU controller |
| # and type of Network Interface Cards (NICs) Installed: | 4 x Intel I350 dual-port Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power saver enabled in OS |
| Operating System (OS): | Windows Server 2008, Enterprise Edition |
| OS Version: | R2 SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xmx1600m -Xms1600m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 |
| JVM Affinity: | start /affinity [0F,F0,F00,F000,F0000,F00000,F000000,F0000000] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 01.06.0002 |
| Management Firmware Version: | 1.17.4010 |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | IBM SDK Java Technology Edition Version 7.0 for Windows x64 |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Acer AR160 F1 |
| CPU Description: | Xeon L5520 |
| Memory amount (GB): | 3 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 R2, Enterprise Edition SP2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-ia32, compiled mode) |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 13-04-BAC-380-01 |
| Date of Calibration: | 9-May-2013 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.6.0-7f9b1b00-20130314 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT airflow intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 252 | 22.8 |
| 90% | 221 | 22.7 |
| 80% | 188 | 22.7 |
| 70% | 158 | 22.5 |
| 60% | 135 | 22.4 |
| 50% | 116 | 22.4 |
| 40% | 106 | 22.5 |
| 30% | 96.5 | 22.4 |
| 20% | 87.0 | 22.3 |
| 10% | 78.0 | 22.3 |
| Active Idle | 63.7 | 22.4 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 60 Hz / 1 phase / 2 wires | 22.3 | 132 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,374,619 | ||
| Calibration 2 | 1,426,142 | ||
| Calibration 3 | 1,427,406 | ||
| ssj_ops@calibrated=1,426,774 | |||
| 100% | 100.0% | 1,426,774 | 1,426,072 |
| 90% | 90.3% | 1,284,097 | 1,287,686 |
| 80% | 79.8% | 1,141,419 | 1,138,934 |
| 70% | 70.0% | 998,742 | 999,267 |
| 60% | 59.8% | 856,064 | 852,999 |
| 50% | 50.0% | 713,387 | 713,502 |
| 40% | 39.9% | 570,710 | 569,525 |
| 30% | 30.0% | 428,032 | 427,629 |
| 20% | 20.0% | 285,355 | 284,703 |
| 10% | 10.0% | 142,677 | 142,807 |
| Active Idle | 0 | 0 | |
