Acer Incorporated Altos R360 F2 SPECpower_ssj2008 = 4,909 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Jun 7, 2013
Hardware Availability: May-2013 Software Availability: Jun-2012 Publication: Jul 16, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.0% 1,432,448 258 5,562
90% 89.8% 1,286,540 227 5,679
80% 80.0% 1,146,778 197 5,833
70% 70.2% 1,005,145 168 5,974
60% 60.2% 862,801 146 5,922
50% 49.8% 713,240 127 5,617
40% 40.0% 573,022 117 4,902
30% 29.9% 428,553 108 3,971
20% 20.0% 286,818 98.2 2,920
10% 9.9% 142,098 87.5 1,624
Active Idle 0 72.4 0
∑ssj_ops / ∑power = 4,909

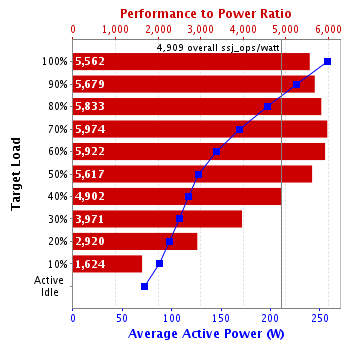

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Acer Incorporated
Model: Altos R360 F2
Form Factor: 1U
CPU Name: Intel Xeon E5-2660 2.2 GHz (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Characteristics: 8 core, 2.20 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots A1, B1, C1, E1, F1 and G1 populated
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Acer P/N SC.46017.001
Disk Drive: 1 x 160GB SSD 2.5" SATA, Acer part KN.1600N.001
Disk Controller: onboard SCU controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I350 dual-port Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1600m -Xms1600m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: 01.06.0002
Management Firmware Version: 1.17.4151
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR160 F1
CPU Description: Xeon L5520
Memory amount (GB): 3
Software
Operating System (OS): Windows Server 2003 R2, Enterprise Edition SP2
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-ia32, compiled mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 13-04-BAC-380-01
Date of Calibration: 9-May-2013
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.6.0-7f9b1b00-20130314
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT airflow intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 258 22.5
90% 227 22.2
80% 197 22.2
70% 168 22.2
60% 146 21.9
50% 127 21.9
40% 117 21.9
30% 108 21.9
20% 98.2 21.8
10% 87.5 21.8
Active Idle 72.4 21.9
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 21.8 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,385,569
Calibration 2     1,430,789
Calibration 3     1,434,739
ssj_ops@calibrated=1,432,764
100% 100.0% 1,432,764 1,432,448
90% 89.8% 1,289,488 1,286,540
80% 80.0% 1,146,212 1,146,778
70% 70.2% 1,002,935 1,005,145
60% 60.2% 859,659 862,801
50% 49.8% 716,382 713,240
40% 40.0% 573,106 573,022
30% 29.9% 429,829 428,553
20% 20.0% 286,553 286,818
10% 9.9% 143,276 142,098
Active Idle   0 0

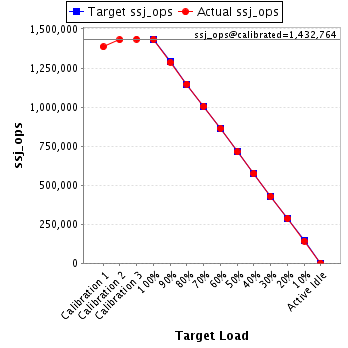

Graph of results
