Huawei Technologies Co., Ltd RH2288H V2-8 Rack Server SPECpower_ssj2008 = 7,336 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Aug 19, 2013
Hardware Availability: Sep-2013 Software Availability: Jun-2012 Publication: Oct 2, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 191 23.0
Calibration 2 202 23.3
Calibration 3 202 23.4
100% 202 23.4
90% 175 23.5
80% 148 23.2
70% 137 23.5
60% 125 23.8
50% 114 23.8
40% 105 23.3
30% 96.4 23.5
20% 86.9 22.5
10% 77.1 22.4
Active Idle 52.0 22.2

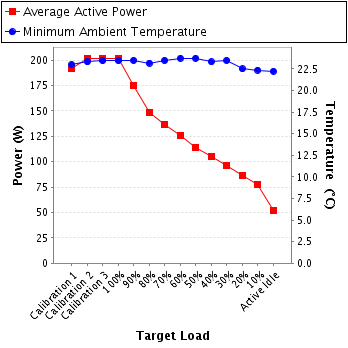

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91K630156
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: 2GB13002877-0009
Date of Calibration: 25-Apr-2013
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.6.0-7f9b1b00-20130314
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 227 300.0 0.867 1.0 0.979 191 0.4%
Calibration 2 227 300.0 0.906 1.0 0.981 202 0.3%
Calibration 3 227 300.0 0.906 1.0 0.981 202 0.3%
100% 227 300.0 0.904 1.0 0.981 202 0.3%
90% 228 300.0 0.792 1.0 0.976 175 0.4%
80% 228 220 0.668 1 0.972 148 0.4%
70% 226 300.0 0.625 1.0 0.971 137 0.4%
60% 226 300.0 0.573 1.0 0.966 125 0.4%
50% 226 300.0 0.524 1.0 0.963 114 0.5%
40% 226 300.0 0.482 1.0 0.967 105 0.5%
30% 227 300.0 0.442 1.0 0.963 96.4 0.5%
20% 226 300.0 0.401 0.5 0.958 86.9 0.4%
10% 223 300.0 0.363 0.5 0.951 77.1 0.4%
Active Idle 218 300.0 0.277 0.5 0.861 52.0 0.6%
Power details for pwr1
