Huawei Technologies Co., Ltd Tecal CH121 ssj_ops@100% = 1,724,837
ssj_ops@100% per JVM = 172,484
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Sep 2, 2013
Hardware Availability: Sep-2013 Software Availability: Jan-2012 Publication: Oct 21, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,699,936
Calibration 2     1,731,219
Calibration 3     1,728,440
ssj_ops@calibrated=1,729,830
100% 99.7% 1,729,830 1,724,837
90% 90.0% 1,556,847 1,556,138
80% 80.3% 1,383,864 1,389,230
70% 70.0% 1,210,881 1,210,636
60% 60.0% 1,037,898 1,037,845
50% 50.0% 864,915 864,249
40% 40.1% 691,932 694,032
30% 30.0% 518,949 519,504
20% 20.0% 345,966 346,288
10% 10.1% 172,983 174,072
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 6
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Tecal CH121
Form Factor: Blade
CPU Name: Intel Xeon E5-2660 v2
CPU Characteristics: 10-Core, 2.2GHz, 25MB L3 Cache (Intel Turbo Boost Technology up to 3.0GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 20 cores, 2 chips, 10 cores/chip
Hardware Threads: 40 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 25 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM,Slots 1A1 1B1, 1C1,2A1,2B1,2C1 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 240GB SSD 2.5" SATA Huawei P/N 02310MMT
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1875m -Xms1875m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000]
JVM Instances: 10
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: V063
Management Firmware Version: 3.35
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-Q4POSRLKNCI.001 172,261
WIN-Q4POSRLKNCI.002 171,986
WIN-Q4POSRLKNCI.003 173,611
WIN-Q4POSRLKNCI.004 169,567
WIN-Q4POSRLKNCI.005 168,497
WIN-Q4POSRLKNCI.006 171,003
WIN-Q4POSRLKNCI.007 173,121
WIN-Q4POSRLKNCI.008 173,908
WIN-Q4POSRLKNCI.009 174,811
WIN-Q4POSRLKNCI.010 176,073
ssj_ops@100% 1,724,837
ssj_ops@100% per JVM 172,484
Graph of per-instance results
JVM 'WIN-Q4POSRLKNCI.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,035
Calibration 2     172,205
Calibration 3     172,648
ssj_ops@calibrated=172,426
100% 99.9% 172,426 172,261
90% 90.0% 155,184 155,131
80% 81.0% 137,941 139,661
70% 70.0% 120,699 120,771
60% 60.1% 103,456 103,618
50% 50.0% 86,213 86,232
40% 39.6% 68,971 68,308
30% 30.1% 51,728 51,888
20% 20.2% 34,485 34,802
10% 10.3% 17,243 17,682
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

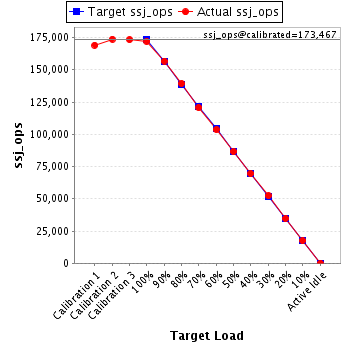

JVM 'WIN-Q4POSRLKNCI.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,122
Calibration 2     173,710
Calibration 3     173,224
ssj_ops@calibrated=173,467
100% 99.1% 173,467 171,986
90% 90.4% 156,120 156,781
80% 80.3% 138,774 139,347
70% 69.5% 121,427 120,608
60% 59.7% 104,080 103,623
50% 49.9% 86,734 86,626
40% 40.1% 69,387 69,523
30% 30.2% 52,040 52,381
20% 20.0% 34,693 34,734
10% 10.1% 17,347 17,575
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q4POSRLKNCI.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,122
Calibration 2     174,603
Calibration 3     174,568
ssj_ops@calibrated=174,586
100% 99.4% 174,586 173,611
90% 89.1% 157,127 155,606
80% 80.1% 139,668 139,913
70% 69.7% 122,210 121,668
60% 60.4% 104,751 105,467
50% 49.9% 87,293 87,052
40% 40.6% 69,834 70,933
30% 29.9% 52,376 52,126
20% 20.3% 34,917 35,381
10% 9.8% 17,459 17,128
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

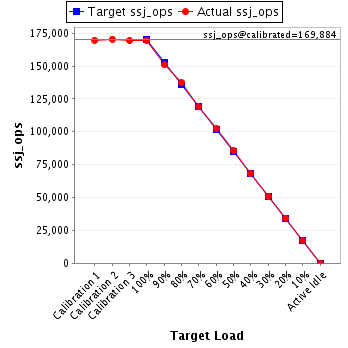

JVM 'WIN-Q4POSRLKNCI.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,630
Calibration 2     170,439
Calibration 3     169,329
ssj_ops@calibrated=169,884
100% 99.8% 169,884 169,567
90% 88.9% 152,896 150,972
80% 80.9% 135,907 137,414
70% 70.1% 118,919 119,041
60% 60.3% 101,930 102,388
50% 50.5% 84,942 85,784
40% 40.1% 67,954 68,086
30% 30.1% 50,965 51,077
20% 20.1% 33,977 34,119
10% 10.2% 16,988 17,324
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q4POSRLKNCI.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,888
Calibration 2     168,855
Calibration 3     169,450
ssj_ops@calibrated=169,152
100% 99.6% 169,152 168,497
90% 89.9% 152,237 152,036
80% 79.6% 135,322 134,569
70% 70.4% 118,407 119,077
60% 59.7% 101,491 101,000
50% 50.5% 84,576 85,393
40% 39.8% 67,661 67,269
30% 30.3% 50,746 51,317
20% 20.1% 33,830 33,993
10% 10.0% 16,915 16,859
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q4POSRLKNCI.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,401
Calibration 2     172,111
Calibration 3     171,081
ssj_ops@calibrated=171,596
100% 99.7% 171,596 171,003
90% 90.3% 154,436 154,966
80% 80.3% 137,276 137,729
70% 70.0% 120,117 120,080
60% 60.1% 102,957 103,089
50% 49.5% 85,798 84,876
40% 40.2% 68,638 69,056
30% 30.0% 51,479 51,544
20% 19.8% 34,319 33,963
10% 10.3% 17,160 17,649
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q4POSRLKNCI.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,327
Calibration 2     174,490
Calibration 3     173,634
ssj_ops@calibrated=174,062
100% 99.5% 174,062 173,121
90% 91.5% 156,656 159,222
80% 80.2% 139,249 139,516
70% 69.4% 121,843 120,858
60% 60.3% 104,437 105,018
50% 50.3% 87,031 87,470
40% 40.2% 69,625 70,036
30% 29.6% 52,219 51,480
20% 20.0% 34,812 34,735
10% 10.0% 17,406 17,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q4POSRLKNCI.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,642
Calibration 2     173,734
Calibration 3     173,990
ssj_ops@calibrated=173,862
100% 100.0% 173,862 173,908
90% 89.5% 156,476 155,567
80% 80.2% 139,090 139,389
70% 70.5% 121,703 122,622
60% 59.9% 104,317 104,075
50% 49.7% 86,931 86,383
40% 40.3% 69,545 70,087
30% 30.2% 52,159 52,568
20% 20.1% 34,772 34,960
10% 9.9% 17,386 17,141
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q4POSRLKNCI.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,938
Calibration 2     174,390
Calibration 3     174,733
ssj_ops@calibrated=174,561
100% 100.1% 174,561 174,811
90% 89.5% 157,105 156,268
80% 80.3% 139,649 140,087
70% 70.1% 122,193 122,380
60% 59.6% 104,737 104,015
50% 49.9% 87,281 87,031
40% 40.1% 69,824 69,924
30% 29.8% 52,368 52,033
20% 19.7% 34,912 34,436
10% 10.0% 17,456 17,491
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Q4POSRLKNCI.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,830
Calibration 2     176,682
Calibration 3     175,785
ssj_ops@calibrated=176,233
100% 99.9% 176,233 176,073
90% 90.6% 158,610 159,589
80% 80.4% 140,987 141,605
70% 70.1% 123,363 123,532
60% 59.9% 105,740 105,553
50% 49.6% 88,117 87,402
40% 40.2% 70,493 70,811
30% 30.1% 52,870 53,091
20% 20.0% 35,247 35,165
10% 10.1% 17,623 17,861
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
