Huawei Technologies Co., Ltd Tecal CH121 ssj_ops@100% = 1,730,658
ssj_ops@100% per JVM = 173,066
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Sep 2, 2013
Hardware Availability: Sep-2013 Software Availability: Jan-2012 Publication: Oct 21, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,703,015
Calibration 2     1,734,431
Calibration 3     1,736,456
ssj_ops@calibrated=1,735,444
100% 99.7% 1,735,444 1,730,658
90% 90.0% 1,561,899 1,561,713
80% 80.1% 1,388,355 1,389,780
70% 69.8% 1,214,811 1,212,132
60% 60.1% 1,041,266 1,042,852
50% 49.9% 867,722 866,616
40% 40.1% 694,177 695,269
30% 30.0% 520,633 521,155
20% 19.9% 347,089 345,579
10% 9.9% 173,544 172,223
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 6
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Tecal CH121
Form Factor: Blade
CPU Name: Intel Xeon E5-2660 v2
CPU Characteristics: 10-Core, 2.2GHz, 25MB L3 Cache (Intel Turbo Boost Technology up to 3.0GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 20 cores, 2 chips, 10 cores/chip
Hardware Threads: 40 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 25 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM,Slots 1A1 1B1, 1C1,2A1,2B1,2C1 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 240GB SSD 2.5" SATA Huawei P/N 02310MMT
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1875m -Xms1875m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000]
JVM Instances: 10
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: V063
Management Firmware Version: 3.35
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-U43FQGB3PEV.001 170,936
WIN-U43FQGB3PEV.002 172,950
WIN-U43FQGB3PEV.003 172,249
WIN-U43FQGB3PEV.004 174,753
WIN-U43FQGB3PEV.005 174,939
WIN-U43FQGB3PEV.006 172,214
WIN-U43FQGB3PEV.007 172,064
WIN-U43FQGB3PEV.008 175,576
WIN-U43FQGB3PEV.009 171,610
WIN-U43FQGB3PEV.010 173,367
ssj_ops@100% 1,730,658
ssj_ops@100% per JVM 173,066
Graph of per-instance results
JVM 'WIN-U43FQGB3PEV.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,017
Calibration 2     172,301
Calibration 3     172,244
ssj_ops@calibrated=172,272
100% 99.2% 172,272 170,936
90% 89.5% 155,045 154,262
80% 79.4% 137,818 136,778
70% 70.0% 120,591 120,577
60% 60.6% 103,363 104,431
50% 50.2% 86,136 86,447
40% 40.0% 68,909 68,944
30% 29.9% 51,682 51,446
20% 20.2% 34,454 34,739
10% 9.9% 17,227 16,970
Active Idle   0 0
Graph of results
JVM 'WIN-U43FQGB3PEV.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,857
Calibration 2     172,920
Calibration 3     173,290
ssj_ops@calibrated=173,105
100% 99.9% 173,105 172,950
90% 90.2% 155,794 156,069
80% 80.5% 138,484 139,380
70% 69.6% 121,173 120,404
60% 60.1% 103,863 104,079
50% 49.9% 86,552 86,427
40% 40.0% 69,242 69,259
30% 30.5% 51,931 52,751
20% 20.0% 34,621 34,633
10% 10.1% 17,310 17,454
Active Idle   0 0
Graph of results
JVM 'WIN-U43FQGB3PEV.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,630
Calibration 2     172,353
Calibration 3     172,721
ssj_ops@calibrated=172,537
100% 99.8% 172,537 172,249
90% 89.3% 155,283 154,148
80% 79.6% 138,030 137,375
70% 70.0% 120,776 120,794
60% 60.9% 103,522 104,993
50% 50.3% 86,269 86,736
40% 40.3% 69,015 69,516
30% 29.9% 51,761 51,615
20% 19.7% 34,507 33,997
10% 9.9% 17,254 17,033
Active Idle   0 0
Graph of results

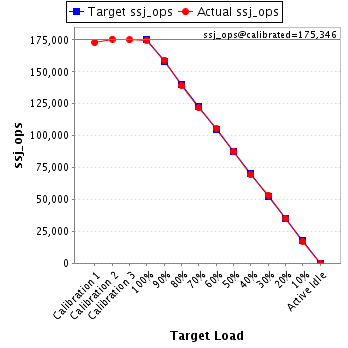

JVM 'WIN-U43FQGB3PEV.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,105
Calibration 2     175,612
Calibration 3     175,079
ssj_ops@calibrated=175,346
100% 99.7% 175,346 174,753
90% 90.8% 157,811 159,200
80% 79.4% 140,276 139,279
70% 69.5% 122,742 121,798
60% 60.2% 105,207 105,560
50% 49.8% 87,673 87,398
40% 39.6% 70,138 69,446
30% 30.4% 52,604 53,289
20% 19.9% 35,069 34,874
10% 9.9% 17,535 17,382
Active Idle   0 0
Graph of results

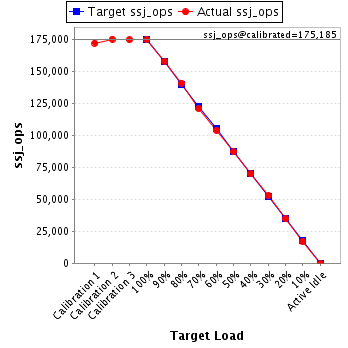

JVM 'WIN-U43FQGB3PEV.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,390
Calibration 2     175,392
Calibration 3     174,979
ssj_ops@calibrated=175,185
100% 99.9% 175,185 174,939
90% 90.3% 157,667 158,235
80% 80.5% 140,148 141,084
70% 69.2% 122,630 121,215
60% 59.4% 105,111 104,099
50% 49.8% 87,593 87,200
40% 39.9% 70,074 69,878
30% 30.1% 52,556 52,703
20% 19.9% 35,037 34,808
10% 9.8% 17,519 17,175
Active Idle   0 0
Graph of results
JVM 'WIN-U43FQGB3PEV.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,482
Calibration 2     172,432
Calibration 3     173,191
ssj_ops@calibrated=172,811
100% 99.7% 172,811 172,214
90% 89.8% 155,530 155,210
80% 80.3% 138,249 138,745
70% 70.6% 120,968 121,964
60% 59.8% 103,687 103,426
50% 49.9% 86,406 86,256
40% 39.9% 69,125 68,979
30% 30.1% 51,843 52,015
20% 20.0% 34,562 34,583
10% 9.9% 17,281 17,125
Active Idle   0 0
Graph of results
JVM 'WIN-U43FQGB3PEV.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,171
Calibration 2     172,982
Calibration 3     172,556
ssj_ops@calibrated=172,769
100% 99.6% 172,769 172,064
90% 89.5% 155,492 154,679
80% 81.0% 138,215 139,912
70% 69.7% 120,938 120,411
60% 60.1% 103,661 103,784
50% 50.1% 86,385 86,600
40% 39.8% 69,108 68,785
30% 29.5% 51,831 50,883
20% 19.8% 34,554 34,257
10% 9.9% 17,277 17,190
Active Idle   0 0
Graph of results
JVM 'WIN-U43FQGB3PEV.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,390
Calibration 2     175,021
Calibration 3     175,509
ssj_ops@calibrated=175,265
100% 100.2% 175,265 175,576
90% 90.3% 157,739 158,191
80% 80.1% 140,212 140,361
70% 70.3% 122,686 123,219
60% 59.3% 105,159 103,958
50% 49.9% 87,633 87,392
40% 40.3% 70,106 70,571
30% 30.3% 52,580 53,059
20% 20.0% 35,053 34,992
10% 10.0% 17,527 17,454
Active Idle   0 0
Graph of results

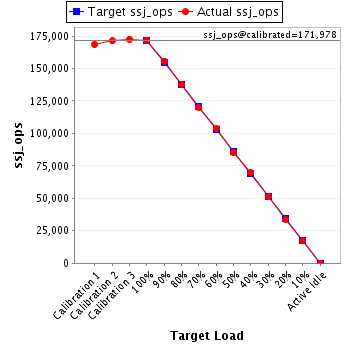

JVM 'WIN-U43FQGB3PEV.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,549
Calibration 2     171,325
Calibration 3     172,631
ssj_ops@calibrated=171,978
100% 99.8% 171,978 171,610
90% 90.6% 154,780 155,748
80% 80.1% 137,582 137,716
70% 69.9% 120,384 120,230
60% 60.5% 103,187 104,090
50% 49.5% 85,989 85,165
40% 40.6% 68,791 69,894
30% 30.0% 51,593 51,592
20% 19.7% 34,396 33,858
10% 10.0% 17,198 17,178
Active Idle   0 0
Graph of results
JVM 'WIN-U43FQGB3PEV.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,422
Calibration 2     174,093
Calibration 3     174,257
ssj_ops@calibrated=174,175
100% 99.5% 174,175 173,367
90% 89.5% 156,758 155,969
80% 79.9% 139,340 139,150
70% 69.8% 121,923 121,519
60% 60.0% 104,505 104,432
50% 49.9% 87,088 86,996
40% 40.2% 69,670 69,997
30% 29.7% 52,253 51,802
20% 20.0% 34,835 34,838
10% 9.9% 17,418 17,261
Active Idle   0 0
Graph of results
