Dell Inc. PowerEdge T630 (Intel Xeon E5-2699 v3 2.30 GHz) ssj_ops@100% = 3,246,430
ssj_ops@100% per JVM = 90,179
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Feb 17, 2015
Hardware Availability: Apr-2015 Software Availability: Jun-2013 Publication: Mar 18, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,024,930
Calibration 2     3,240,033
Calibration 3     3,244,853
ssj_ops@calibrated=3,242,443
100% 100.1% 3,242,443 3,246,430
90% 91.5% 2,918,198 2,967,458
80% 79.9% 2,593,954 2,591,043
70% 69.9% 2,269,710 2,266,274
60% 60.0% 1,945,466 1,945,892
50% 50.0% 1,621,221 1,620,354
40% 40.0% 1,296,977 1,296,795
30% 30.0% 972,733 972,113
20% 19.9% 648,489 645,820
10% 10.0% 324,244 325,183
Active Idle   0 0

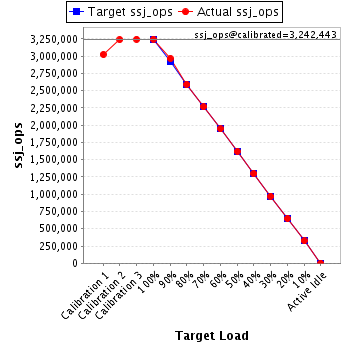

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge T630.
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge T630 (Intel Xeon E5-2699 v3 2.30 GHz)
Form Factor: Tower
CPU Name: Intel Xeon E5-2699 v3 2.30 GHz
CPU Characteristics: 18 core, 2.30 GHz, 45 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8192 MB
Memory Details: 8GB 2Rx8 PC4-2133P ECC; Dell p/n H8PGN X02, Slots A1-4,B1-4 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Dell p/n KNHJV
Disk Drive: 1 x 60 GB SATA SSD, Dell p/n WC8RX
Disk Controller: Native chipset SATA
# and type of Network Interface Cards (NICs) Installed: Onboard 1 x Dual Port Intel I350
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver power plan in OS
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn825m -Xms975m -Xmx975 -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 -Xgcpolicy:gencon
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: 1.2.5
Management Firmware Version: 2.10.10.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-02J5MTPIIUM.001 90,466
WIN-02J5MTPIIUM.002 90,363
WIN-02J5MTPIIUM.003 90,912
WIN-02J5MTPIIUM.004 91,135
WIN-02J5MTPIIUM.005 86,457
WIN-02J5MTPIIUM.006 90,881
WIN-02J5MTPIIUM.007 90,868
WIN-02J5MTPIIUM.008 91,127
WIN-02J5MTPIIUM.009 90,893
WIN-02J5MTPIIUM.010 89,288
WIN-02J5MTPIIUM.011 90,352
WIN-02J5MTPIIUM.012 90,249
WIN-02J5MTPIIUM.013 90,986
WIN-02J5MTPIIUM.014 86,122
WIN-02J5MTPIIUM.015 91,473
WIN-02J5MTPIIUM.016 89,544
WIN-02J5MTPIIUM.017 91,028
WIN-02J5MTPIIUM.018 92,099
WIN-02J5MTPIIUM.019 89,398
WIN-02J5MTPIIUM.020 87,929
WIN-02J5MTPIIUM.021 90,099
WIN-02J5MTPIIUM.022 90,947
WIN-02J5MTPIIUM.023 91,363
WIN-02J5MTPIIUM.024 88,609
WIN-02J5MTPIIUM.025 90,444
WIN-02J5MTPIIUM.026 90,042
WIN-02J5MTPIIUM.027 90,462
WIN-02J5MTPIIUM.028 88,855
WIN-02J5MTPIIUM.029 89,312
WIN-02J5MTPIIUM.030 91,316
WIN-02J5MTPIIUM.031 91,091
WIN-02J5MTPIIUM.032 90,379
WIN-02J5MTPIIUM.033 89,507
WIN-02J5MTPIIUM.034 91,312
WIN-02J5MTPIIUM.035 90,168
WIN-02J5MTPIIUM.036 90,957
ssj_ops@100% 3,246,430
ssj_ops@100% per JVM 90,179
Graph of per-instance results
JVM 'WIN-02J5MTPIIUM.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,749
Calibration 2     89,712
Calibration 3     89,692
ssj_ops@calibrated=89,702
100% 100.9% 89,702 90,466
90% 91.9% 80,732 82,459
80% 79.5% 71,761 71,341
70% 69.5% 62,791 62,387
60% 59.8% 53,821 53,602
50% 49.6% 44,851 44,528
40% 40.4% 35,881 36,200
30% 29.5% 26,911 26,455
20% 19.7% 17,940 17,629
10% 10.1% 8,970 9,029
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,840
Calibration 2     90,235
Calibration 3     90,459
ssj_ops@calibrated=90,347
100% 100.0% 90,347 90,363
90% 90.7% 81,312 81,974
80% 79.2% 72,277 71,600
70% 70.9% 63,243 64,032
60% 59.5% 54,208 53,731
50% 49.7% 45,173 44,866
40% 39.9% 36,139 36,074
30% 30.0% 27,104 27,129
20% 20.0% 18,069 18,088
10% 10.2% 9,035 9,183
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,219
Calibration 2     90,796
Calibration 3     90,641
ssj_ops@calibrated=90,719
100% 100.2% 90,719 90,912
90% 92.8% 81,647 84,143
80% 80.6% 72,575 73,132
70% 69.6% 63,503 63,144
60% 60.2% 54,431 54,575
50% 50.2% 45,359 45,581
40% 39.7% 36,287 36,050
30% 29.4% 27,216 26,647
20% 19.9% 18,144 18,067
10% 9.9% 9,072 8,946
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,462
Calibration 2     91,357
Calibration 3     90,762
ssj_ops@calibrated=91,060
100% 100.1% 91,060 91,135
90% 91.4% 81,954 83,206
80% 79.9% 72,848 72,781
70% 70.0% 63,742 63,754
60% 60.0% 54,636 54,597
50% 50.1% 45,530 45,656
40% 40.4% 36,424 36,824
30% 29.9% 27,318 27,195
20% 19.9% 18,212 18,100
10% 10.1% 9,106 9,158
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,223
Calibration 2     87,098
Calibration 3     87,053
ssj_ops@calibrated=87,075
100% 99.3% 87,075 86,457
90% 90.6% 78,368 78,909
80% 79.9% 69,660 69,543
70% 70.3% 60,953 61,231
60% 59.6% 52,245 51,938
50% 49.7% 43,538 43,276
40% 39.3% 34,830 34,241
30% 29.8% 26,123 25,983
20% 19.7% 17,415 17,140
10% 9.9% 8,708 8,596
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,653
Calibration 2     90,936
Calibration 3     90,820
ssj_ops@calibrated=90,878
100% 100.0% 90,878 90,881
90% 91.6% 81,790 83,269
80% 79.4% 72,702 72,152
70% 70.0% 63,615 63,592
60% 60.5% 54,527 55,012
50% 49.7% 45,439 45,147
40% 39.9% 36,351 36,264
30% 29.7% 27,263 26,996
20% 20.3% 18,176 18,420
10% 10.4% 9,088 9,487
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,339
Calibration 2     90,700
Calibration 3     90,712
ssj_ops@calibrated=90,706
100% 100.2% 90,706 90,868
90% 92.0% 81,636 83,483
80% 79.7% 72,565 72,303
70% 70.4% 63,494 63,844
60% 60.1% 54,424 54,493
50% 50.4% 45,353 45,696
40% 40.1% 36,282 36,385
30% 29.6% 27,212 26,839
20% 20.4% 18,141 18,484
10% 10.5% 9,071 9,525
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,345
Calibration 2     90,197
Calibration 3     90,882
ssj_ops@calibrated=90,540
100% 100.6% 90,540 91,127
90% 90.9% 81,486 82,269
80% 78.6% 72,432 71,187
70% 69.9% 63,378 63,281
60% 59.9% 54,324 54,250
50% 50.1% 45,270 45,339
40% 40.3% 36,216 36,523
30% 29.2% 27,162 26,448
20% 20.1% 18,108 18,192
10% 9.9% 9,054 8,929
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,460
Calibration 2     91,064
Calibration 3     91,400
ssj_ops@calibrated=91,232
100% 99.6% 91,232 90,893
90% 92.0% 82,109 83,941
80% 79.6% 72,986 72,653
70% 69.2% 63,862 63,098
60% 60.1% 54,739 54,855
50% 50.8% 45,616 46,361
40% 40.5% 36,493 36,979
30% 30.3% 27,370 27,672
20% 20.0% 18,246 18,238
10% 10.1% 9,123 9,204
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,380
Calibration 2     89,007
Calibration 3     89,533
ssj_ops@calibrated=89,270
100% 100.0% 89,270 89,288
90% 91.3% 80,343 81,535
80% 80.1% 71,416 71,503
70% 70.2% 62,489 62,650
60% 60.0% 53,562 53,534
50% 49.8% 44,635 44,428
40% 40.0% 35,708 35,752
30% 30.3% 26,781 27,004
20% 20.0% 17,854 17,893
10% 10.0% 8,927 8,929
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,085
Calibration 2     90,052
Calibration 3     90,193
ssj_ops@calibrated=90,123
100% 100.3% 90,123 90,352
90% 90.3% 81,111 81,357
80% 79.3% 72,098 71,495
70% 70.4% 63,086 63,458
60% 59.9% 54,074 53,970
50% 50.3% 45,061 45,362
40% 39.9% 36,049 35,996
30% 29.6% 27,037 26,687
20% 19.7% 18,025 17,775
10% 10.3% 9,012 9,287
Active Idle   0 0

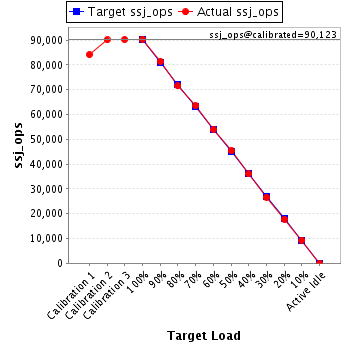

Graph of results
JVM 'WIN-02J5MTPIIUM.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,679
Calibration 2     90,633
Calibration 3     90,673
ssj_ops@calibrated=90,653
100% 99.6% 90,653 90,249
90% 90.6% 81,588 82,089
80% 80.7% 72,522 73,112
70% 69.8% 63,457 63,250
60% 60.6% 54,392 54,905
50% 50.9% 45,326 46,161
40% 39.6% 36,261 35,920
30% 30.1% 27,196 27,274
20% 19.7% 18,131 17,881
10% 10.2% 9,065 9,279
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,391
Calibration 2     91,001
Calibration 3     90,919
ssj_ops@calibrated=90,960
100% 100.0% 90,960 90,986
90% 92.1% 81,864 83,782
80% 80.4% 72,768 73,140
70% 69.9% 63,672 63,556
60% 60.2% 54,576 54,741
50% 50.0% 45,480 45,518
40% 40.0% 36,384 36,341
30% 30.0% 27,288 27,330
20% 20.2% 18,192 18,356
10% 10.1% 9,096 9,187
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,768
Calibration 2     86,569
Calibration 3     86,069
ssj_ops@calibrated=86,319
100% 99.8% 86,319 86,122
90% 92.0% 77,687 79,397
80% 79.3% 69,055 68,421
70% 69.4% 60,423 59,922
60% 60.1% 51,791 51,858
50% 49.9% 43,159 43,057
40% 40.1% 34,528 34,610
30% 29.0% 25,896 25,058
20% 19.8% 17,264 17,087
10% 10.1% 8,632 8,708
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,389
Calibration 2     91,007
Calibration 3     91,068
ssj_ops@calibrated=91,038
100% 100.5% 91,038 91,473
90% 91.4% 81,934 83,171
80% 80.3% 72,830 73,148
70% 70.9% 63,726 64,561
60% 59.7% 54,623 54,393
50% 49.5% 45,519 45,092
40% 40.6% 36,415 36,934
30% 30.6% 27,311 27,902
20% 20.2% 18,208 18,410
10% 9.6% 9,104 8,722
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,002
Calibration 2     89,854
Calibration 3     90,097
ssj_ops@calibrated=89,975
100% 99.5% 89,975 89,544
90% 91.8% 80,978 82,563
80% 80.1% 71,980 72,044
70% 68.9% 62,983 62,028
60% 59.4% 53,985 53,425
50% 50.7% 44,988 45,623
40% 39.8% 35,990 35,808
30% 30.1% 26,993 27,122
20% 19.7% 17,995 17,717
10% 9.8% 8,998 8,837
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,861
Calibration 2     90,991
Calibration 3     90,792
ssj_ops@calibrated=90,892
100% 100.1% 90,892 91,028
90% 92.3% 81,803 83,884
80% 78.9% 72,713 71,692
70% 69.8% 63,624 63,404
60% 59.9% 54,535 54,417
50% 50.2% 45,446 45,599
40% 40.3% 36,357 36,597
30% 29.9% 27,268 27,196
20% 19.5% 18,178 17,738
10% 10.1% 9,089 9,167
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,144
Calibration 2     92,040
Calibration 3     92,348
ssj_ops@calibrated=92,194
100% 99.9% 92,194 92,099
90% 92.2% 82,975 85,028
80% 80.1% 73,755 73,841
70% 68.7% 64,536 63,347
60% 60.1% 55,317 55,445
50% 50.1% 46,097 46,231
40% 40.7% 36,878 37,488
30% 29.8% 27,658 27,485
20% 19.5% 18,439 18,015
10% 9.8% 9,219 9,012
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,800
Calibration 2     89,446
Calibration 3     89,342
ssj_ops@calibrated=89,394
100% 100.0% 89,394 89,398
90% 90.8% 80,455 81,135
80% 79.7% 71,515 71,259
70% 69.9% 62,576 62,473
60% 59.9% 53,636 53,580
50% 49.2% 44,697 44,012
40% 39.9% 35,758 35,677
30% 30.2% 26,818 27,024
20% 20.5% 17,879 18,367
10% 10.3% 8,939 9,221
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,720
Calibration 2     88,375
Calibration 3     88,633
ssj_ops@calibrated=88,504
100% 99.4% 88,504 87,929
90% 92.0% 79,654 81,407
80% 79.8% 70,803 70,659
70% 69.5% 61,953 61,521
60% 59.5% 53,102 52,701
50% 49.2% 44,252 43,578
40% 39.9% 35,402 35,343
30% 30.0% 26,551 26,529
20% 19.8% 17,701 17,487
10% 9.9% 8,850 8,776
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,039
Calibration 2     90,596
Calibration 3     90,521
ssj_ops@calibrated=90,558
100% 99.5% 90,558 90,099
90% 92.9% 81,503 84,110
80% 79.7% 72,447 72,189
70% 70.2% 63,391 63,571
60% 59.6% 54,335 53,975
50% 49.8% 45,279 45,084
40% 40.0% 36,223 36,233
30% 29.8% 27,168 26,958
20% 19.7% 18,112 17,865
10% 10.4% 9,056 9,442
Active Idle   0 0
Graph of results

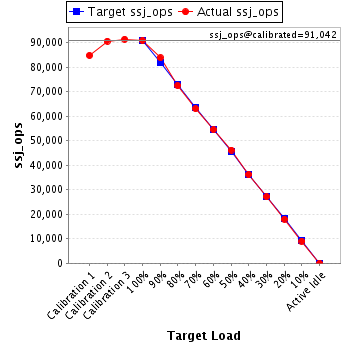

JVM 'WIN-02J5MTPIIUM.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,809
Calibration 2     90,639
Calibration 3     91,444
ssj_ops@calibrated=91,042
100% 99.9% 91,042 90,947
90% 92.1% 81,937 83,879
80% 79.6% 72,833 72,475
70% 69.3% 63,729 63,069
60% 59.9% 54,625 54,526
50% 50.8% 45,521 46,206
40% 39.8% 36,417 36,195
30% 29.8% 27,312 27,119
20% 19.8% 18,208 17,987
10% 9.9% 9,104 9,045
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,323
Calibration 2     90,447
Calibration 3     91,129
ssj_ops@calibrated=90,788
100% 100.6% 90,788 91,363
90% 91.6% 81,709 83,177
80% 79.8% 72,631 72,443
70% 70.0% 63,552 63,556
60% 60.3% 54,473 54,788
50% 49.5% 45,394 44,897
40% 40.1% 36,315 36,376
30% 30.0% 27,236 27,237
20% 19.9% 18,158 18,107
10% 10.2% 9,079 9,221
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,439
Calibration 2     88,826
Calibration 3     88,946
ssj_ops@calibrated=88,886
100% 99.7% 88,886 88,609
90% 91.9% 79,997 81,706
80% 80.6% 71,109 71,600
70% 69.1% 62,220 61,384
60% 60.6% 53,332 53,851
50% 49.7% 44,443 44,165
40% 40.0% 35,554 35,593
30% 30.7% 26,666 27,280
20% 19.5% 17,777 17,356
10% 9.9% 8,889 8,829
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,904
Calibration 2     89,355
Calibration 3     89,694
ssj_ops@calibrated=89,524
100% 101.0% 89,524 90,444
90% 91.3% 80,572 81,763
80% 79.9% 71,619 71,544
70% 69.6% 62,667 62,277
60% 60.1% 53,714 53,834
50% 49.5% 44,762 44,335
40% 39.5% 35,810 35,333
30% 30.3% 26,857 27,104
20% 19.8% 17,905 17,700
10% 10.0% 8,952 8,962
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,405
Calibration 2     90,100
Calibration 3     89,903
ssj_ops@calibrated=90,002
100% 100.0% 90,002 90,042
90% 91.8% 81,001 82,579
80% 80.4% 72,001 72,378
70% 69.8% 63,001 62,785
60% 60.4% 54,001 54,377
50% 49.9% 45,001 44,914
40% 39.0% 36,001 35,100
30% 30.2% 27,000 27,154
20% 19.6% 18,000 17,637
10% 9.8% 9,000 8,854
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,305
Calibration 2     90,800
Calibration 3     91,092
ssj_ops@calibrated=90,946
100% 99.5% 90,946 90,462
90% 91.4% 81,851 83,116
80% 79.6% 72,757 72,401
70% 70.0% 63,662 63,683
60% 59.7% 54,568 54,302
50% 49.0% 45,473 44,583
40% 39.7% 36,378 36,100
30% 30.3% 27,284 27,524
20% 20.8% 18,189 18,901
10% 10.1% 9,095 9,229
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,562
Calibration 2     88,659
Calibration 3     88,073
ssj_ops@calibrated=88,366
100% 100.6% 88,366 88,855
90% 90.9% 79,529 80,323
80% 79.6% 70,693 70,308
70% 71.1% 61,856 62,803
60% 61.2% 53,019 54,110
50% 50.0% 44,183 44,187
40% 39.5% 35,346 34,939
30% 30.1% 26,510 26,621
20% 20.0% 17,673 17,686
10% 10.0% 8,837 8,812
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,906
Calibration 2     88,720
Calibration 3     89,124
ssj_ops@calibrated=88,922
100% 100.4% 88,922 89,312
90% 91.1% 80,030 81,030
80% 80.9% 71,138 71,909
70% 70.6% 62,246 62,798
60% 60.2% 53,353 53,540
50% 50.9% 44,461 45,269
40% 39.7% 35,569 35,292
30% 30.5% 26,677 27,086
20% 20.3% 17,784 18,042
10% 10.2% 8,892 9,058
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,644
Calibration 2     90,833
Calibration 3     90,550
ssj_ops@calibrated=90,691
100% 100.7% 90,691 91,316
90% 92.3% 81,622 83,677
80% 80.7% 72,553 73,170
70% 70.1% 63,484 63,529
60% 59.5% 54,415 53,939
50% 50.4% 45,346 45,688
40% 39.8% 36,276 36,062
30% 30.3% 27,207 27,467
20% 20.1% 18,138 18,191
10% 9.9% 9,069 8,954
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,351
Calibration 2     90,600
Calibration 3     90,737
ssj_ops@calibrated=90,668
100% 100.5% 90,668 91,091
90% 91.6% 81,602 83,087
80% 80.8% 72,535 73,222
70% 69.9% 63,468 63,403
60% 59.5% 54,401 53,936
50% 49.9% 45,334 45,250
40% 40.1% 36,267 36,358
30% 29.9% 27,201 27,100
20% 20.1% 18,134 18,248
10% 9.9% 9,067 8,971
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,347
Calibration 2     90,076
Calibration 3     90,316
ssj_ops@calibrated=90,196
100% 100.2% 90,196 90,379
90% 91.2% 81,176 82,229
80% 79.1% 72,157 71,365
70% 69.9% 63,137 63,030
60% 59.8% 54,118 53,956
50% 49.7% 45,098 44,849
40% 39.8% 36,078 35,891
30% 30.3% 27,059 27,373
20% 20.0% 18,039 18,000
10% 9.5% 9,020 8,550
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,125
Calibration 2     88,175
Calibration 3     88,860
ssj_ops@calibrated=88,518
100% 101.1% 88,518 89,507
90% 90.9% 79,666 80,426
80% 80.4% 70,814 71,207
70% 70.3% 61,962 62,215
60% 60.5% 53,111 53,564
50% 49.6% 44,259 43,940
40% 40.5% 35,407 35,817
30% 30.5% 26,555 27,040
20% 19.7% 17,704 17,466
10% 10.0% 8,852 8,883
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,505
Calibration 2     91,073
Calibration 3     91,045
ssj_ops@calibrated=91,059
100% 100.3% 91,059 91,312
90% 90.2% 81,953 82,120
80% 80.5% 72,847 73,283
70% 69.5% 63,741 63,250
60% 60.3% 54,636 54,935
50% 50.0% 45,530 45,524
40% 39.7% 36,424 36,195
30% 29.7% 27,318 27,036
20% 19.6% 18,212 17,883
10% 10.1% 9,106 9,154
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,499
Calibration 2     89,512
Calibration 3     90,425
ssj_ops@calibrated=89,969
100% 100.2% 89,969 90,168
90% 91.4% 80,972 82,203
80% 79.5% 71,975 71,518
70% 70.1% 62,978 63,074
60% 59.9% 53,981 53,931
50% 50.2% 44,984 45,146
40% 40.8% 35,987 36,740
30% 30.0% 26,991 26,998
20% 20.0% 17,994 17,962
10% 10.1% 8,997 9,125
Active Idle   0 0
Graph of results
JVM 'WIN-02J5MTPIIUM.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,260
Calibration 2     90,551
Calibration 3     90,905
ssj_ops@calibrated=90,728
100% 100.3% 90,728 90,957
90% 91.5% 81,655 83,033
80% 80.5% 72,583 73,028
70% 69.8% 63,510 63,311
60% 59.9% 54,437 54,308
50% 49.8% 45,364 45,207
40% 40.3% 36,291 36,569
30% 29.8% 27,218 27,044
20% 19.5% 18,146 17,704
10% 9.8% 9,073 8,909
Active Idle   0 0
Graph of results
