Fujitsu FUJITSU Server PRIMERGY RX1330 M1 SPECpower_ssj2008 = 6,916 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Apr 24, 2015
Hardware Availability: Oct-2014 Software Availability: Jun-2013 Publication: Jun 2, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.0% 508,013 63.9 7,947
90% 91.2% 463,373 60.3 7,687
80% 79.9% 406,011 51.3 7,909
70% 70.3% 356,998 44.0 8,107
60% 60.0% 305,028 37.6 8,104
50% 49.7% 252,720 32.3 7,819
40% 39.9% 202,718 29.1 6,969
30% 30.1% 153,152 25.9 5,905
20% 19.9% 101,051 23.5 4,304
10% 9.9% 50,447 20.7 2,434
Active Idle 0 16.0 0
∑ssj_ops / ∑power = 6,916

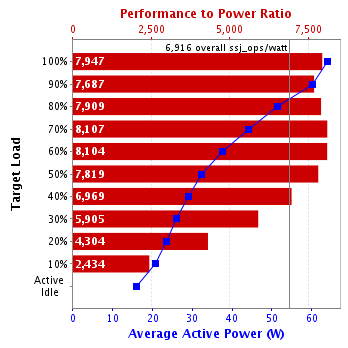

Graph of results
System Under Test
Set: 'RX1330 M1'
Set Identifier: RX1330 M1
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX1330 M1
Form Factor: 1U
CPU Name: Intel Xeon E3-1275Lv3
CPU Characteristics: 4-Core, 2.70GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.90 GHz)
CPU Frequency (MHz): 2700
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2 x 8192 MB
Memory Details: 8 GB 2Rx8 PC3L-12800E-11, ECC; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 300
Power Supply Details: Fujitsu Technology Solutions S26361-K1537-V101
Disk Drive: 1 x SSD SATA 6G 100GB 3.5", S26361-F5289-E100
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmx1875m -Xms1875m -Xmn1400m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2
JVM Affinity: start /AFFINITY [0x3,0xC,0x30,0xC0]
JVM Instances: 4
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: R2.14.0
Management Firmware Version: 7.82F
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX200 S6
CPU Description: Intel Xeon X5680
Memory amount (GB): 48
Software
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 25.25-b02, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11210802
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Atlas Copco Tools Central Europe GmbH
Calibration Label: W14113561
Date of Calibration: 21-Nov-2014
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.1-6ff11330-20150212
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 63.9 21.4
90% 60.3 21.5
80% 51.3 21.2
70% 44.0 21.1
60% 37.6 21.1
50% 32.3 21.2
40% 29.1 21.4
30% 25.9 21.4
20% 23.5 21.2
10% 20.7 21.1
Active Idle 16.0 21.1
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 21.1 117
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     490,192
Calibration 2     507,720
Calibration 3     508,372
ssj_ops@calibrated=508,046
100% 100.0% 508,046 508,013
90% 91.2% 457,241 463,373
80% 79.9% 406,437 406,011
70% 70.3% 355,632 356,998
60% 60.0% 304,827 305,028
50% 49.7% 254,023 252,720
40% 39.9% 203,218 202,718
30% 30.1% 152,414 153,152
20% 19.9% 101,609 101,051
10% 9.9% 50,805 50,447
Active Idle   0 0
Graph of results
