Dell Inc. PowerEdge R730 (Intel Xeon E5-2699 v4 2.20 GHz) ssj_ops@100% = 3,341,589
ssj_ops@100% per JVM = 75,945
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 28, 2016
Hardware Availability: Mar-2016 Software Availability: Apr-2015 Publication: Apr 15, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,375,414
Calibration 2     3,392,299
Calibration 3     3,332,626
ssj_ops@calibrated=3,362,463
100% 99.4% 3,362,463 3,341,589
90% 90.4% 3,026,216 3,038,834
80% 79.7% 2,689,970 2,679,252
70% 69.6% 2,353,724 2,340,874
60% 60.0% 2,017,478 2,016,068
50% 50.0% 1,681,231 1,680,601
40% 40.1% 1,344,985 1,347,418
30% 30.0% 1,008,739 1,009,827
20% 19.9% 672,493 670,112
10% 10.0% 336,246 337,218
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge R730
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R730 (Intel Xeon E5-2699 v4 2.20 GHz)
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v4 2.20 GHz
CPU Characteristics: 22 core, 2.20 GHz, 55 MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 44 cores, 2 chips, 22 cores/chip
Hardware Threads: 88 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 55 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2400T ECC; Dell p/n HNDJ7, Slots A1-4,B1-4 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Dell p/n KNHJV
Disk Drive: 1 x 120 GB SATA SSD, Dell p/n KX83R
Disk Controller: Native Chipset SATA
# and type of Network Interface Cards (NICs) Installed: 1 x quad-port Broadcom 5720, Dell P/N FM487
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver power plan in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.17196
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx1024m -Xms1024m -Xmn800m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=4 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+OptimizeStringConcat -XX:+UseStringCache -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000]
JVM Instances: 44
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 2.0.1
Management Firmware Version: 2.30.30.30
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-MPQ8LHUV8BS.001 76,316
WIN-MPQ8LHUV8BS.002 76,305
WIN-MPQ8LHUV8BS.003 78,974
WIN-MPQ8LHUV8BS.004 75,988
WIN-MPQ8LHUV8BS.005 75,002
WIN-MPQ8LHUV8BS.006 77,189
WIN-MPQ8LHUV8BS.007 76,576
WIN-MPQ8LHUV8BS.008 75,711
WIN-MPQ8LHUV8BS.009 77,116
WIN-MPQ8LHUV8BS.010 75,806
WIN-MPQ8LHUV8BS.011 78,815
WIN-MPQ8LHUV8BS.012 78,633
WIN-MPQ8LHUV8BS.013 76,698
WIN-MPQ8LHUV8BS.014 75,971
WIN-MPQ8LHUV8BS.015 75,891
WIN-MPQ8LHUV8BS.016 74,889
WIN-MPQ8LHUV8BS.017 74,976
WIN-MPQ8LHUV8BS.018 75,952
WIN-MPQ8LHUV8BS.019 75,645
WIN-MPQ8LHUV8BS.020 76,627
WIN-MPQ8LHUV8BS.021 74,358
WIN-MPQ8LHUV8BS.022 76,257
WIN-MPQ8LHUV8BS.023 75,432
WIN-MPQ8LHUV8BS.024 76,779
WIN-MPQ8LHUV8BS.025 76,049
WIN-MPQ8LHUV8BS.026 75,453
WIN-MPQ8LHUV8BS.027 75,272
WIN-MPQ8LHUV8BS.028 74,287
WIN-MPQ8LHUV8BS.029 76,569
WIN-MPQ8LHUV8BS.030 78,139
WIN-MPQ8LHUV8BS.031 75,983
WIN-MPQ8LHUV8BS.032 72,668
WIN-MPQ8LHUV8BS.033 74,976
WIN-MPQ8LHUV8BS.034 76,378
WIN-MPQ8LHUV8BS.035 75,077
WIN-MPQ8LHUV8BS.036 75,288
WIN-MPQ8LHUV8BS.037 74,955
WIN-MPQ8LHUV8BS.038 74,804
WIN-MPQ8LHUV8BS.039 76,900
WIN-MPQ8LHUV8BS.040 77,355
WIN-MPQ8LHUV8BS.041 76,099
WIN-MPQ8LHUV8BS.042 74,682
WIN-MPQ8LHUV8BS.043 75,154
WIN-MPQ8LHUV8BS.044 73,593
ssj_ops@100% 3,341,589
ssj_ops@100% per JVM 75,945

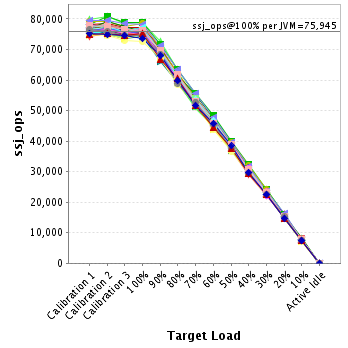

Graph of per-instance results
JVM 'WIN-MPQ8LHUV8BS.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,186
Calibration 2     77,267
Calibration 3     75,685
ssj_ops@calibrated=76,476
100% 99.8% 76,476 76,316
90% 91.4% 68,829 69,904
80% 78.7% 61,181 60,218
70% 70.0% 53,533 53,541
60% 60.8% 45,886 46,496
50% 49.2% 38,238 37,632
40% 39.8% 30,590 30,411
30% 29.5% 22,943 22,533
20% 20.1% 15,295 15,393
10% 10.6% 7,648 8,106
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,522
Calibration 2     77,744
Calibration 3     76,752
ssj_ops@calibrated=77,248
100% 98.8% 77,248 76,305
90% 91.3% 69,523 70,518
80% 78.8% 61,798 60,893
70% 70.0% 54,074 54,051
60% 59.5% 46,349 45,969
50% 51.0% 38,624 39,359
40% 41.0% 30,899 31,675
30% 29.7% 23,174 22,913
20% 19.6% 15,450 15,125
10% 10.0% 7,725 7,742
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,740
Calibration 2     80,861
Calibration 3     78,620
ssj_ops@calibrated=79,740
100% 99.0% 79,740 78,974
90% 91.0% 71,766 72,581
80% 79.4% 63,792 63,315
70% 69.3% 55,818 55,252
60% 60.3% 47,844 48,093
50% 49.7% 39,870 39,608
40% 39.4% 31,896 31,446
30% 30.5% 23,922 24,284
20% 20.0% 15,948 15,957
10% 10.3% 7,974 8,212
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,837
Calibration 2     77,141
Calibration 3     75,943
ssj_ops@calibrated=76,542
100% 99.3% 76,542 75,988
90% 89.7% 68,888 68,631
80% 80.5% 61,233 61,591
70% 70.7% 53,579 54,091
60% 59.2% 45,925 45,278
50% 50.2% 38,271 38,397
40% 40.0% 30,617 30,589
30% 30.5% 22,963 23,316
20% 20.0% 15,308 15,291
10% 9.9% 7,654 7,594
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,413
Calibration 2     78,209
Calibration 3     76,222
ssj_ops@calibrated=77,216
100% 97.1% 77,216 75,002
90% 90.8% 69,494 70,103
80% 80.1% 61,772 61,860
70% 69.8% 54,051 53,877
60% 59.7% 46,329 46,095
50% 49.6% 38,608 38,336
40% 40.6% 30,886 31,318
30% 30.1% 23,165 23,208
20% 19.8% 15,443 15,327
10% 9.6% 7,722 7,403
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,178
Calibration 2     77,554
Calibration 3     76,180
ssj_ops@calibrated=76,867
100% 100.4% 76,867 77,189
90% 90.1% 69,181 69,250
80% 80.7% 61,494 62,024
70% 69.9% 53,807 53,722
60% 59.8% 46,120 46,000
50% 48.7% 38,434 37,416
40% 40.5% 30,747 31,169
30% 30.1% 23,060 23,104
20% 20.7% 15,373 15,920
10% 10.2% 7,687 7,871
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,186
Calibration 2     77,707
Calibration 3     75,967
ssj_ops@calibrated=76,837
100% 99.7% 76,837 76,576
90% 90.2% 69,153 69,331
80% 79.4% 61,470 61,027
70% 70.2% 53,786 53,918
60% 58.8% 46,102 45,186
50% 50.4% 38,419 38,758
40% 40.9% 30,735 31,462
30% 30.3% 23,051 23,267
20% 20.3% 15,367 15,560
10% 9.6% 7,684 7,362
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,375
Calibration 2     76,901
Calibration 3     75,440
ssj_ops@calibrated=76,171
100% 99.4% 76,171 75,711
90% 91.4% 68,554 69,602
80% 79.2% 60,937 60,347
70% 70.6% 53,319 53,804
60% 60.2% 45,702 45,829
50% 49.7% 38,085 37,821
40% 39.6% 30,468 30,194
30% 29.9% 22,851 22,792
20% 20.3% 15,234 15,474
10% 10.0% 7,617 7,621
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,292
Calibration 2     78,564
Calibration 3     77,104
ssj_ops@calibrated=77,834
100% 99.1% 77,834 77,116
90% 90.8% 70,050 70,658
80% 79.7% 62,267 62,071
70% 69.9% 54,484 54,409
60% 60.3% 46,700 46,896
50% 50.6% 38,917 39,348
40% 39.9% 31,133 31,038
30% 30.5% 23,350 23,703
20% 19.9% 15,567 15,475
10% 9.8% 7,783 7,663
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,153
Calibration 2     77,254
Calibration 3     76,287
ssj_ops@calibrated=76,770
100% 98.7% 76,770 75,806
90% 90.2% 69,093 69,260
80% 80.4% 61,416 61,735
70% 70.6% 53,739 54,187
60% 60.6% 46,062 46,533
50% 50.6% 38,385 38,849
40% 39.9% 30,708 30,654
30% 29.4% 23,031 22,602
20% 20.1% 15,354 15,466
10% 10.1% 7,677 7,756
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,350
Calibration 2     80,663
Calibration 3     78,915
ssj_ops@calibrated=79,789
100% 98.8% 79,789 78,815
90% 89.9% 71,810 71,752
80% 79.6% 63,831 63,548
70% 69.8% 55,852 55,722
60% 60.6% 47,873 48,347
50% 50.2% 39,894 40,016
40% 40.4% 31,916 32,268
30% 30.2% 23,937 24,110
20% 20.2% 15,958 16,097
10% 9.8% 7,979 7,847
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,302
Calibration 2     79,181
Calibration 3     77,512
ssj_ops@calibrated=78,346
100% 100.4% 78,346 78,633
90% 89.7% 70,512 70,294
80% 79.5% 62,677 62,324
70% 69.5% 54,842 54,423
60% 58.9% 47,008 46,182
50% 50.4% 39,173 39,476
40% 40.7% 31,339 31,908
30% 30.6% 23,504 24,005
20% 19.3% 15,669 15,136
10% 9.8% 7,835 7,708
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,093
Calibration 2     76,630
Calibration 3     75,724
ssj_ops@calibrated=76,177
100% 100.7% 76,177 76,698
90% 92.0% 68,559 70,065
80% 78.5% 60,942 59,776
70% 69.3% 53,324 52,803
60% 60.0% 45,706 45,696
50% 50.7% 38,088 38,616
40% 40.6% 30,471 30,940
30% 29.8% 22,853 22,692
20% 19.6% 15,235 14,956
10% 10.2% 7,618 7,737
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,391
Calibration 2     76,232
Calibration 3     75,304
ssj_ops@calibrated=75,768
100% 100.3% 75,768 75,971
90% 91.7% 68,191 69,463
80% 80.0% 60,614 60,625
70% 70.4% 53,038 53,323
60% 60.3% 45,461 45,702
50% 49.7% 37,884 37,672
40% 40.3% 30,307 30,517
30% 29.9% 22,730 22,670
20% 19.8% 15,154 15,025
10% 9.9% 7,577 7,492
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,536
Calibration 2     76,451
Calibration 3     75,948
ssj_ops@calibrated=76,200
100% 99.6% 76,200 75,891
90% 88.6% 68,580 67,507
80% 80.9% 60,960 61,629
70% 69.6% 53,340 53,008
60% 60.2% 45,720 45,892
50% 49.9% 38,100 38,052
40% 40.3% 30,480 30,740
30% 30.4% 22,860 23,179
20% 20.1% 15,240 15,291
10% 10.0% 7,620 7,604
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,232
Calibration 2     75,342
Calibration 3     74,188
ssj_ops@calibrated=74,765
100% 100.2% 74,765 74,889
90% 90.8% 67,289 67,856
80% 78.8% 59,812 58,891
70% 68.5% 52,336 51,185
60% 59.5% 44,859 44,454
50% 49.4% 37,383 36,963
40% 38.7% 29,906 28,964
30% 29.7% 22,430 22,197
20% 19.9% 14,953 14,899
10% 10.0% 7,477 7,479
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,246
Calibration 2     76,446
Calibration 3     75,468
ssj_ops@calibrated=75,957
100% 98.7% 75,957 74,976
90% 90.3% 68,361 68,606
80% 80.2% 60,766 60,941
70% 69.2% 53,170 52,563
60% 58.8% 45,574 44,644
50% 50.0% 37,979 37,965
40% 39.7% 30,383 30,156
30% 29.6% 22,787 22,495
20% 19.9% 15,191 15,111
10% 10.1% 7,596 7,692
Active Idle   0 0
Graph of results

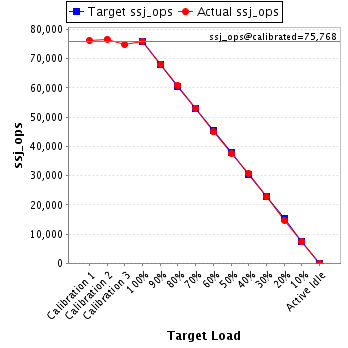

JVM 'WIN-MPQ8LHUV8BS.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,209
Calibration 2     76,707
Calibration 3     74,830
ssj_ops@calibrated=75,768
100% 100.2% 75,768 75,952
90% 89.7% 68,192 67,947
80% 80.3% 60,615 60,865
70% 70.1% 53,038 53,097
60% 59.3% 45,461 44,947
50% 49.6% 37,884 37,610
40% 40.5% 30,307 30,704
30% 29.9% 22,731 22,687
20% 19.4% 15,154 14,725
10% 9.7% 7,577 7,329
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,360
Calibration 2     75,838
Calibration 3     74,972
ssj_ops@calibrated=75,405
100% 100.3% 75,405 75,645
90% 90.3% 67,864 68,085
80% 80.5% 60,324 60,697
70% 69.0% 52,783 52,029
60% 60.3% 45,243 45,481
50% 50.7% 37,702 38,228
40% 39.2% 30,162 29,563
30% 29.8% 22,621 22,434
20% 20.2% 15,081 15,218
10% 10.0% 7,540 7,511
Active Idle   0 0
Graph of results

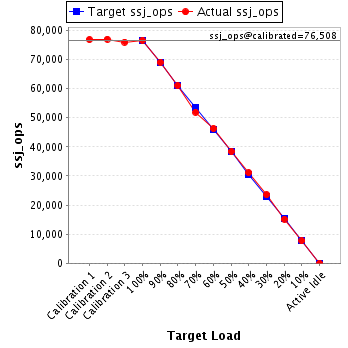

JVM 'WIN-MPQ8LHUV8BS.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,841
Calibration 2     76,999
Calibration 3     76,016
ssj_ops@calibrated=76,508
100% 100.2% 76,508 76,627
90% 90.3% 68,857 69,093
80% 79.8% 61,206 61,027
70% 67.9% 53,555 51,930
60% 60.5% 45,905 46,288
50% 50.2% 38,254 38,418
40% 40.6% 30,603 31,082
30% 30.7% 22,952 23,523
20% 19.8% 15,302 15,183
10% 10.1% 7,651 7,729
Active Idle   0 0
Graph of results

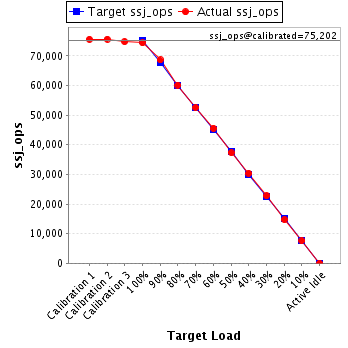

JVM 'WIN-MPQ8LHUV8BS.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,624
Calibration 2     75,646
Calibration 3     74,757
ssj_ops@calibrated=75,202
100% 98.9% 75,202 74,358
90% 91.3% 67,681 68,627
80% 80.0% 60,161 60,128
70% 69.9% 52,641 52,558
60% 60.6% 45,121 45,575
50% 49.6% 37,601 37,308
40% 40.4% 30,081 30,385
30% 30.2% 22,560 22,737
20% 19.5% 15,040 14,683
10% 10.1% 7,520 7,601
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,554
Calibration 2     77,509
Calibration 3     75,058
ssj_ops@calibrated=76,284
100% 100.0% 76,284 76,257
90% 90.1% 68,655 68,707
80% 78.8% 61,027 60,092
70% 68.7% 53,399 52,409
60% 60.0% 45,770 45,760
50% 50.2% 38,142 38,329
40% 39.9% 30,513 30,449
30% 30.5% 22,885 23,277
20% 19.4% 15,257 14,805
10% 10.1% 7,628 7,709
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,870
Calibration 2     77,940
Calibration 3     75,861
ssj_ops@calibrated=76,901
100% 98.1% 76,901 75,432
90% 90.6% 69,211 69,670
80% 79.4% 61,521 61,090
70% 68.9% 53,831 53,009
60% 59.8% 46,140 45,978
50% 49.2% 38,450 37,827
40% 39.6% 30,760 30,419
30% 29.7% 23,070 22,823
20% 20.8% 15,380 15,966
10% 10.0% 7,690 7,704
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,706
Calibration 2     77,552
Calibration 3     76,345
ssj_ops@calibrated=76,949
100% 99.8% 76,949 76,779
90% 89.3% 69,254 68,709
80% 80.3% 61,559 61,755
70% 69.5% 53,864 53,460
60% 59.3% 46,169 45,658
50% 49.8% 38,474 38,288
40% 40.6% 30,780 31,232
30% 30.2% 23,085 23,264
20% 20.4% 15,390 15,682
10% 9.8% 7,695 7,571
Active Idle   0 0
Graph of results

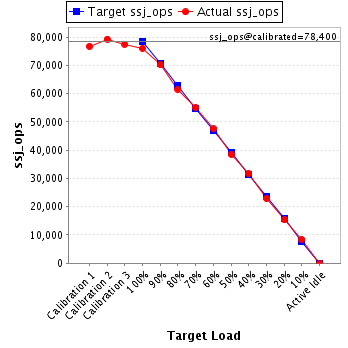

JVM 'WIN-MPQ8LHUV8BS.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,746
Calibration 2     79,273
Calibration 3     77,527
ssj_ops@calibrated=78,400
100% 97.0% 78,400 76,049
90% 89.6% 70,560 70,233
80% 78.5% 62,720 61,559
70% 70.3% 54,880 55,113
60% 60.6% 47,040 47,527
50% 49.2% 39,200 38,560
40% 40.4% 31,360 31,682
30% 29.2% 23,520 22,927
20% 19.6% 15,680 15,350
10% 10.7% 7,840 8,354
Active Idle   0 0
Graph of results

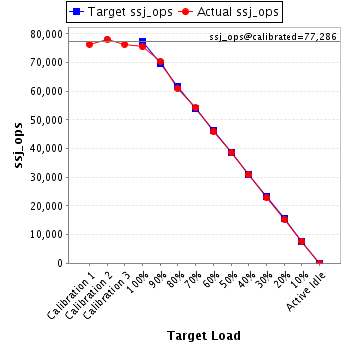

JVM 'WIN-MPQ8LHUV8BS.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,377
Calibration 2     78,166
Calibration 3     76,405
ssj_ops@calibrated=77,286
100% 97.6% 77,286 75,453
90% 91.2% 69,557 70,471
80% 79.0% 61,829 61,059
70% 70.1% 54,100 54,165
60% 59.4% 46,371 45,940
50% 49.8% 38,643 38,500
40% 40.0% 30,914 30,890
30% 29.8% 23,186 22,993
20% 19.9% 15,457 15,364
10% 10.0% 7,729 7,729
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,802
Calibration 2     76,291
Calibration 3     74,966
ssj_ops@calibrated=75,628
100% 99.5% 75,628 75,272
90% 90.5% 68,066 68,419
80% 79.6% 60,503 60,165
70% 68.8% 52,940 52,054
60% 60.0% 45,377 45,392
50% 50.0% 37,814 37,809
40% 40.1% 30,251 30,326
30% 30.3% 22,689 22,918
20% 20.0% 15,126 15,101
10% 10.0% 7,563 7,546
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,053
Calibration 2     74,806
Calibration 3     73,449
ssj_ops@calibrated=74,128
100% 100.2% 74,128 74,287
90% 89.3% 66,715 66,188
80% 80.0% 59,302 59,279
70% 69.3% 51,889 51,343
60% 60.7% 44,477 44,986
50% 49.9% 37,064 36,978
40% 40.6% 29,651 30,111
30% 30.5% 22,238 22,623
20% 19.8% 14,826 14,703
10% 9.9% 7,413 7,354
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,270
Calibration 2     78,183
Calibration 3     76,692
ssj_ops@calibrated=77,438
100% 98.9% 77,438 76,569
90% 89.4% 69,694 69,241
80% 79.9% 61,950 61,859
70% 69.9% 54,206 54,098
60% 60.7% 46,463 46,969
50% 50.0% 38,719 38,742
40% 40.1% 30,975 31,018
30% 30.2% 23,231 23,354
20% 19.5% 15,488 15,087
10% 10.3% 7,744 7,942
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,444
Calibration 2     79,652
Calibration 3     78,626
ssj_ops@calibrated=79,139
100% 98.7% 79,139 78,139
90% 90.0% 71,225 71,240
80% 80.0% 63,311 63,329
70% 70.3% 55,397 55,666
60% 60.3% 47,483 47,746
50% 50.1% 39,569 39,628
40% 40.0% 31,656 31,647
30% 29.5% 23,742 23,355
20% 20.6% 15,828 16,337
10% 10.0% 7,914 7,875
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,470
Calibration 2     77,372
Calibration 3     75,764
ssj_ops@calibrated=76,568
100% 99.2% 76,568 75,983
90% 90.1% 68,911 69,001
80% 79.7% 61,255 61,042
70% 70.5% 53,598 53,995
60% 59.6% 45,941 45,646
50% 50.5% 38,284 38,631
40% 39.8% 30,627 30,452
30% 29.8% 22,970 22,796
20% 19.1% 15,314 14,612
10% 10.1% 7,657 7,717
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,368
Calibration 2     74,477
Calibration 3     72,971
ssj_ops@calibrated=73,724
100% 98.6% 73,724 72,668
90% 91.1% 66,352 67,182
80% 79.5% 58,979 58,611
70% 70.4% 51,607 51,908
60% 59.6% 44,235 43,930
50% 49.7% 36,862 36,650
40% 39.9% 29,490 29,388
30% 30.2% 22,117 22,291
20% 20.4% 14,745 15,075
10% 9.9% 7,372 7,269
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,362
Calibration 2     76,621
Calibration 3     75,658
ssj_ops@calibrated=76,140
100% 98.5% 76,140 74,976
90% 90.5% 68,526 68,934
80% 79.0% 60,912 60,168
70% 70.3% 53,298 53,517
60% 59.7% 45,684 45,489
50% 49.5% 38,070 37,667
40% 40.1% 30,456 30,567
30% 30.3% 22,842 23,051
20% 20.0% 15,228 15,241
10% 10.2% 7,614 7,796
Active Idle   0 0
Graph of results

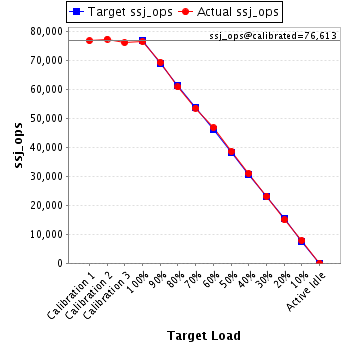

JVM 'WIN-MPQ8LHUV8BS.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,682
Calibration 2     77,207
Calibration 3     76,019
ssj_ops@calibrated=76,613
100% 99.7% 76,613 76,378
90% 90.4% 68,952 69,226
80% 79.3% 61,290 60,730
70% 69.8% 53,629 53,473
60% 61.0% 45,968 46,707
50% 50.3% 38,306 38,500
40% 40.4% 30,645 30,926
30% 30.1% 22,984 23,091
20% 19.5% 15,323 14,959
10% 10.3% 7,661 7,871
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,126
Calibration 2     76,864
Calibration 3     75,403
ssj_ops@calibrated=76,133
100% 98.6% 76,133 75,077
90% 91.0% 68,520 69,246
80% 79.2% 60,907 60,301
70% 69.4% 53,293 52,802
60% 59.4% 45,680 45,256
50% 49.8% 38,067 37,927
40% 39.7% 30,453 30,247
30% 30.0% 22,840 22,846
20% 20.2% 15,227 15,379
10% 10.1% 7,613 7,708
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,145
Calibration 2     77,038
Calibration 3     75,762
ssj_ops@calibrated=76,400
100% 98.5% 76,400 75,288
90% 89.8% 68,760 68,585
80% 78.7% 61,120 60,135
70% 68.8% 53,480 52,567
60% 59.9% 45,840 45,776
50% 50.1% 38,200 38,262
40% 40.1% 30,560 30,669
30% 29.8% 22,920 22,780
20% 19.5% 15,280 14,864
10% 9.7% 7,640 7,436
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,780
Calibration 2     75,363
Calibration 3     73,906
ssj_ops@calibrated=74,634
100% 100.4% 74,634 74,955
90% 91.3% 67,171 68,138
80% 79.8% 59,707 59,540
70% 68.1% 52,244 50,805
60% 60.1% 44,781 44,877
50% 49.6% 37,317 37,010
40% 40.2% 29,854 29,994
30% 30.0% 22,390 22,399
20% 19.9% 14,927 14,863
10% 9.9% 7,463 7,408
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,570
Calibration 2     74,940
Calibration 3     73,628
ssj_ops@calibrated=74,284
100% 100.7% 74,284 74,804
90% 90.1% 66,856 66,963
80% 80.6% 59,427 59,870
70% 69.9% 51,999 51,917
60% 59.1% 44,570 43,928
50% 50.0% 37,142 37,112
40% 39.7% 29,714 29,491
30% 30.6% 22,285 22,726
20% 19.7% 14,857 14,615
10% 9.8% 7,428 7,283
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,905
Calibration 2     76,395
Calibration 3     75,194
ssj_ops@calibrated=75,794
100% 101.5% 75,794 76,900
90% 88.8% 68,215 67,279
80% 80.3% 60,635 60,864
70% 70.0% 53,056 53,069
60% 60.3% 45,477 45,684
50% 50.5% 37,897 38,244
40% 40.8% 30,318 30,919
30% 29.3% 22,738 22,237
20% 19.9% 15,159 15,065
10% 10.3% 7,579 7,804
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,319
Calibration 2     77,743
Calibration 3     75,544
ssj_ops@calibrated=76,644
100% 100.9% 76,644 77,355
90% 90.5% 68,979 69,346
80% 80.0% 61,315 61,311
70% 68.9% 53,651 52,834
60% 59.5% 45,986 45,603
50% 49.4% 38,322 37,857
40% 40.0% 30,657 30,646
30% 30.2% 22,993 23,133
20% 20.2% 15,329 15,471
10% 10.2% 7,664 7,792
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,962
Calibration 2     77,428
Calibration 3     76,405
ssj_ops@calibrated=76,917
100% 98.9% 76,917 76,099
90% 90.6% 69,225 69,666
80% 80.4% 61,533 61,851
70% 69.0% 53,842 53,104
60% 59.7% 46,150 45,917
50% 50.5% 38,458 38,842
40% 39.9% 30,767 30,688
30% 30.2% 23,075 23,216
20% 20.1% 15,383 15,462
10% 10.2% 7,692 7,837
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,428
Calibration 2     75,867
Calibration 3     74,566
ssj_ops@calibrated=75,217
100% 99.3% 75,217 74,682
90% 91.0% 67,695 68,485
80% 78.4% 60,173 58,993
70% 70.2% 52,652 52,796
60% 60.4% 45,130 45,424
50% 49.8% 37,608 37,483
40% 38.9% 30,087 29,297
30% 29.8% 22,565 22,380
20% 20.2% 15,043 15,160
10% 10.0% 7,522 7,536
Active Idle   0 0

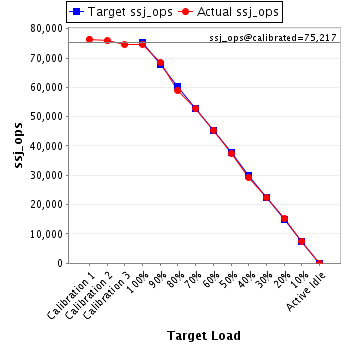

Graph of results
JVM 'WIN-MPQ8LHUV8BS.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,049
Calibration 2     75,394
Calibration 3     74,463
ssj_ops@calibrated=74,929
100% 100.3% 74,929 75,154
90% 89.1% 67,436 66,753
80% 80.6% 59,943 60,378
70% 68.9% 52,450 51,611
60% 59.5% 44,957 44,591
50% 50.0% 37,464 37,464
40% 39.3% 29,971 29,419
30% 29.9% 22,479 22,413
20% 19.8% 14,986 14,821
10% 10.1% 7,493 7,550
Active Idle   0 0
Graph of results
JVM 'WIN-MPQ8LHUV8BS.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,360
Calibration 2     74,881
Calibration 3     74,576
ssj_ops@calibrated=74,728
100% 98.5% 74,728 73,593
90% 91.0% 67,256 68,019
80% 79.9% 59,783 59,736
70% 69.1% 52,310 51,667
60% 61.2% 44,837 45,703
50% 51.4% 37,364 38,443
40% 39.8% 29,891 29,759
30% 30.1% 22,419 22,479
20% 19.8% 14,946 14,817
10% 9.9% 7,473 7,370
Active Idle   0 0

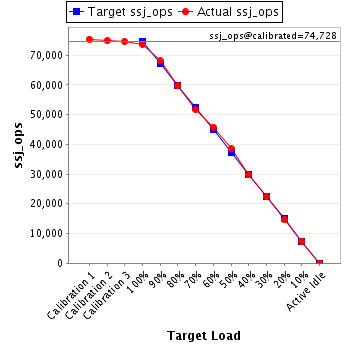

Graph of results
