Fujitsu FUJITSU Server PRIMERGY RX2530 M2 SPECpower_ssj2008 = 10,950 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Apr 19, 2016
Hardware Availability: Apr-2016 Software Availability: Apr-2015 Publication: May 12, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 264 21.9
Calibration 2 270 22.1
Calibration 3 267 22.0
100% 266 21.4
90% 239 21.2
80% 211 21.5
70% 186 21.9
60% 169 22.2
50% 154 22.2
40% 138 21.5
30% 122 21.2
20% 107 21.3
10% 91.4 21.7
Active Idle 49.6 21.9

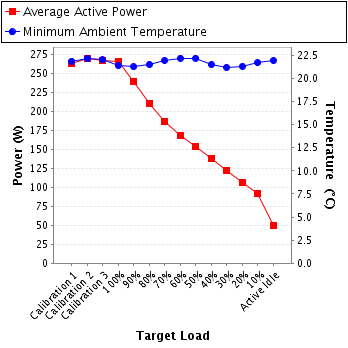

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11210802
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Atlas Copco Tools Central Europe GmbH
Calibration Label: W15113632
Date of Calibration: 30-Nov-2015
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 231 250.0 1.16 1.2 0.988 264 0.1%
Calibration 2 231 250.0 1.19 1.2 0.988 270 0.1%
Calibration 3 231 250.0 1.17 1.2 0.988 267 0.1%
100% 231 250.0 1.17 1.2 0.988 266 0.1%
90% 231 250.0 1.05 1.2 0.988 239 0.1%
80% 231 250.0 0.928 1.2 0.987 211 0.1%
70% 231 250.0 0.821 1.2 0.985 186 0.1%
60% 231 250.0 0.745 1.2 0.981 169 0.1%
50% 231 250.0 0.681 1.2 0.977 154 0.1%
40% 231 250.0 0.617 0.6 0.972 138 0.1%
30% 231 250.0 0.548 0.6 0.964 122 0.1%
20% 231 250.0 0.484 0.6 0.954 107 0.1%
10% 231 250.0 0.420 0.6 0.942 91.4 0.1%
Active Idle 231 250.0 0.258 0.6 0.832 49.6 0.2%
Power details for pwr1
