Dell Inc. PowerEdge M630 (Intel Xeon E5-2699 v4, 2.20 GHz) SPECpower_ssj2008 = 10,062 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: May 5, 2016
Hardware Availability: Mar-2016 Software Availability: Apr-2015 Publication: May 25, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 4,863 24.4
Calibration 2 4,951 24.3
Calibration 3 4,968 24.4
100% 4,918 24.4
90% 4,306 24.4
80% 3,793 24.3
70% 3,346 24.3
60% 3,016 24.3
50% 2,781 24.3
40% 2,529 24.3
30% 2,226 24.2
20% 1,899 24.2
10% 1,581 24.2
Active Idle 878 24.2

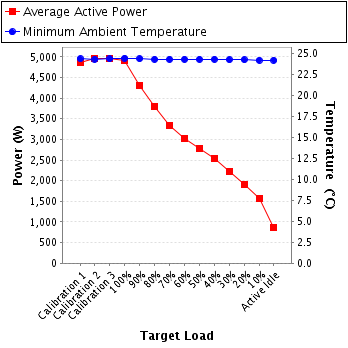

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91K308574
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: Simco Electronics
Calibration Label: 6930823
Date of Calibration: 16-Feb-2016
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: Connected to SUT power supply 1
Power Analyzer pwr2
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91KA21978
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: Simco Electronics
Calibration Label: 6703179
Date of Calibration: 07-May-2015
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: Connected to SUT power supply 2
Power Analyzer pwr3
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91K308586
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: Simco Electronics
Calibration Label: 6703181
Date of Calibration: 17-Jun-2015
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: Connected to SUT power supply 3
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.30.2.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 202 300.0 7.76 10.0 0.990 1,552 0.4%
Calibration 2 202 300.0 7.89 10.0 0.990 1,579 0.4%
Calibration 3 202 300.0 7.92 10.0 0.990 1,585 0.4%
100% 202 300.0 7.84 10.0 0.990 1,569 0.4%
90% 203 300.0 6.88 10.0 0.987 1,375 0.4%
80% 203 300.0 6.04 10.0 0.983 1,205 0.4%
70% 204 300.0 5.33 10.0 0.978 1,061 0.5%
60% 204 300.0 4.81 5.0 0.974 955 0.4%
50% 204 300.0 4.44 5.0 0.970 879 0.4%
40% 204 300.0 4.04 5.0 0.965 797 0.4%
30% 205 300.0 3.56 5.0 0.960 700 0.4%
20% 205 300.0 3.02 5.0 0.959 593 0.5%
10% 205 300.0 2.47 2.0 0.964 487 0.4%
Active Idle 206 300.0 1.29 2.0 0.965 255 0.4%

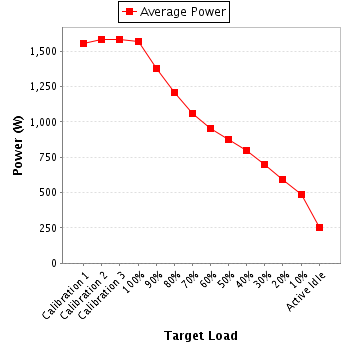

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 204 300.0 9.07 10.0 0.982 1,814 0.4%
Calibration 2 204 300.0 9.23 10.0 0.983 1,847 0.3%
Calibration 3 204 300.0 9.26 10.0 0.983 1,853 0.3%
100% 204 300.0 9.17 10.0 0.983 1,835 0.4%
90% 204 300.0 8.08 10.0 0.978 1,612 0.4%
80% 204 300.0 7.23 10.0 0.972 1,436 0.4%
70% 205 300.0 6.48 10.0 0.966 1,281 0.4%
60% 205 300.0 5.91 10.0 0.959 1,161 0.5%
50% 205 300.0 5.50 10.0 0.953 1,073 0.5%
40% 205 300.0 5.06 5.0 0.945 981 0.4%
30% 205 300.0 4.55 5.0 0.934 874 0.4%
20% 206 300.0 4.03 5.0 0.921 764 0.4%
10% 206 300.0 3.54 5.0 0.905 660 0.5%
Active Idle 206 300.0 2.41 5.0 0.863 429 0.6%

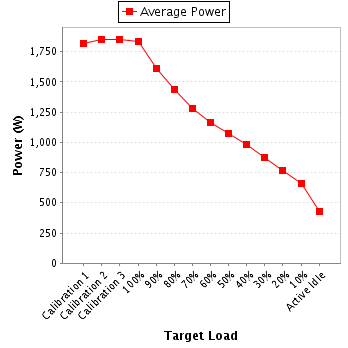

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 202 300.0 7.49 10.0 0.989 1,497 0.4%
Calibration 2 202 300.0 7.63 10.0 0.990 1,525 0.4%
Calibration 3 202 300.0 7.65 10.0 0.990 1,530 0.4%
100% 202 300.0 7.57 10.0 0.990 1,514 0.4%
90% 203 300.0 6.60 10.0 0.986 1,319 0.4%
80% 203 300.0 5.77 10.0 0.982 1,151 0.4%
70% 204 300.0 5.05 10.0 0.977 1,004 0.5%
60% 204 300.0 4.54 5.0 0.972 899 0.4%
50% 204 300.0 4.20 5.0 0.968 829 0.4%
40% 204 300.0 3.81 5.0 0.963 751 0.4%
30% 205 300.0 3.32 5.0 0.959 652 0.4%
20% 205 300.0 2.77 5.0 0.958 543 0.5%
10% 205 300.0 2.18 2.0 0.971 434 0.4%
Active Idle 206 300.0 1.000 2.0 0.942 194 0.5%

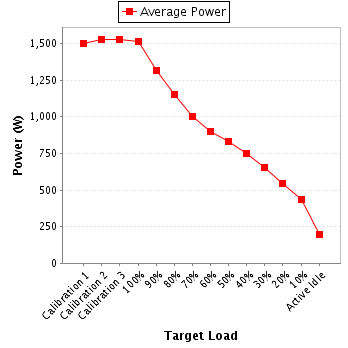

Power details for pwr3
