Fujitsu FUJITSU Server PRIMERGY TX1320 M3 SPECpower_ssj2008 = 10,427 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Mar 7, 2017
Hardware Availability: May-2017 Software Availability: Jan-2015 Publication: Apr 12, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 591,742 51.8 11,421
90% 90.0% 534,498 47.9 11,154
80% 79.9% 474,350 40.9 11,606
70% 70.3% 417,545 34.6 12,070
60% 60.1% 356,872 29.5 12,103
50% 49.9% 296,352 25.5 11,629
40% 40.1% 237,875 22.5 10,576
30% 30.0% 178,292 19.9 8,958
20% 19.9% 118,311 17.2 6,862
10% 10.1% 59,729 14.0 4,254
Active Idle 0 9.33 0
∑ssj_ops / ∑power = 10,427

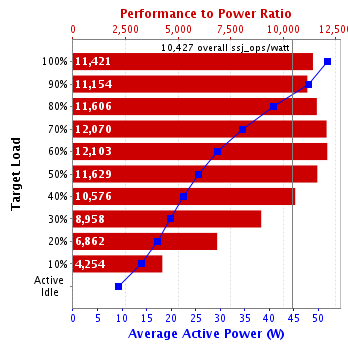

Graph of results
System Under Test
Set: 'TX1320 M3'
Set Identifier: TX1320 M3
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY TX1320 M3
Form Factor: Tower
CPU Name: Intel Xeon E3-1230 v6
CPU Characteristics: 4-Core, 3.50GHz, 8MB L3 Cache
CPU Frequency (MHz): 3500
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2 x 8192 MB
Memory Details: 8 GB DDR4, unbuffered, ECC, 2400 MHz, PC4-2400T, DIMM, 1Rx8; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 250
Power Supply Details: Standard power supply part of base unit S26361-K1591-V201
Disk Drive: 1 x SSD SATA 6G 64GB DOM N H-P, S26361-F5618-E64
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Balanced" power plan in OS)
Operating System (OS): Microsoft Windows Server 2012 R2 Standard
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80)
JVM Command-line Options: -server -Xmn9500m -Xms11000m -Xmx11000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: None
JVM Instances: 1
JVM Initial Heap (MB): 11000
JVM Maximum Heap (MB): 11000
JVM Address Bits: 64
Boot Firmware Version: R1.0.0
Management Firmware Version: 8.64F
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX1330 M1
CPU Description: Intel Xeon E3-1220 v3
Memory amount (GB): 32
Software
Operating System (OS): Microsoft Windows Server 2012 R2 Standard
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 20.0-b11, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Hioki
Model: Hioki3336
Serial Number: 170121768
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NICT (National Institute of Information and Communications Technology)
Accredited by: HIOKI E.E. CORPORATION
Calibration Label: 2017H010225
Date of Calibration: 20-Jan-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
  • None
    • Aggregate Electrical and Environmental Data
    Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
    100% 51.8 20.2
    90% 47.9 20.2
    80% 40.9 20.2
    70% 34.6 20.2
    60% 29.5 20.2
    50% 25.5 20.2
    40% 22.5 20.2
    30% 19.9 20.2
    20% 17.2 20.2
    10% 14.0 20.2
    Active Idle 9.33 20.2
    Line Standard Minimum Temperature (°C) Elevation (m)
    200V / 50 Hz / 1 phase / 2 wires 20.2 11
    See the Power/Temperature Details Report for additional details.
    Aggregate Performance Data
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     590,030
    Calibration 2     593,101
    Calibration 3     594,298
    ssj_ops@calibrated=593,699
    100% 99.7% 593,699 591,742
    90% 90.0% 534,329 534,498
    80% 79.9% 474,959 474,350
    70% 70.3% 415,590 417,545
    60% 60.1% 356,220 356,872
    50% 49.9% 296,850 296,352
    40% 40.1% 237,480 237,875
    30% 30.0% 178,110 178,292
    20% 19.9% 118,740 118,311
    10% 10.1% 59,370 59,729
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
