Lenovo Global Technology ThinkSystem SR650 (Intel Xeon Platinum 8176 CPU 2.10 GHz) ssj_ops@100% = 5,025,064
ssj_ops@100% per JVM = 89,733
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Taipei, Taiwan Test Date: Jun 19, 2017
Hardware Availability: Aug-2017 Software Availability: Sep-2017 Publication: Jul 11, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,188,148
Calibration 2     5,087,218
Calibration 3     5,018,237
ssj_ops@calibrated=5,052,728
100% 99.5% 5,052,728 5,025,064
90% 90.5% 4,547,455 4,571,184
80% 79.9% 4,042,182 4,038,031
70% 70.0% 3,536,909 3,537,200
60% 60.1% 3,031,637 3,034,752
50% 50.0% 2,526,364 2,524,960
40% 39.9% 2,021,091 2,017,577
30% 30.0% 1,515,818 1,517,044
20% 20.0% 1,010,546 1,009,615
10% 10.0% 505,273 504,275
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR650 (Intel Xeon Platinum 8176 CPU 2.10 GHz)
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176 CPU 2.10 GHz (Intel Turbo Boost Technology up to 2.80 GHz)
CPU Characteristics: 28 core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 16GB 2Rx8 PC4-2666 ECC, Slots 1, 3, 5, 8, 10, 12, 13, 15, 17, 20, 22, and 24 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:7N67A00884
Disk Drive: 1 x 32 GB M.2 SSD (Lenovo P/N: 7N47A00129)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1Gb 2-Port RJ45 LOM (Lenovo P/N: 7ZT7A00544)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Lenovo Power Plan V1.0 for Windows Server 2012 R2 in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Standard
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2] /AFFINITY [3, C, 30, C0, C000, 30000, C0000, 30000000, C0000000, 300000000, C00000000, C0000000000, 300000000000, C00000000000]; start /NODE [1,3] /AFFINITY [3, C, 30, 3000, C000, 30000, C0000, 30000000, C0000000, 300000000, 30000000000, C0000000000, 300000000000, C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: IVE109F
Management Firmware Version: CDI305F
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-UB1VE4UE859.001 89,958
WIN-UB1VE4UE859.002 89,519
WIN-UB1VE4UE859.003 89,195
WIN-UB1VE4UE859.004 89,099
WIN-UB1VE4UE859.005 92,070
WIN-UB1VE4UE859.006 90,456
WIN-UB1VE4UE859.007 90,715
WIN-UB1VE4UE859.008 88,779
WIN-UB1VE4UE859.009 89,261
WIN-UB1VE4UE859.010 91,345
WIN-UB1VE4UE859.011 89,582
WIN-UB1VE4UE859.012 89,557
WIN-UB1VE4UE859.013 91,296
WIN-UB1VE4UE859.014 89,952
WIN-UB1VE4UE859.015 89,058
WIN-UB1VE4UE859.016 91,069
WIN-UB1VE4UE859.017 90,002
WIN-UB1VE4UE859.018 90,677
WIN-UB1VE4UE859.019 89,922
WIN-UB1VE4UE859.020 90,736
WIN-UB1VE4UE859.021 89,571
WIN-UB1VE4UE859.022 90,157
WIN-UB1VE4UE859.023 89,881
WIN-UB1VE4UE859.024 90,905
WIN-UB1VE4UE859.025 90,332
WIN-UB1VE4UE859.026 90,275
WIN-UB1VE4UE859.027 89,013
WIN-UB1VE4UE859.028 91,521
WIN-UB1VE4UE859.029 80,275
WIN-UB1VE4UE859.030 88,922
WIN-UB1VE4UE859.031 89,389
WIN-UB1VE4UE859.032 91,396
WIN-UB1VE4UE859.033 88,646
WIN-UB1VE4UE859.034 91,101
WIN-UB1VE4UE859.035 89,347
WIN-UB1VE4UE859.036 90,112
WIN-UB1VE4UE859.037 90,940
WIN-UB1VE4UE859.038 87,545
WIN-UB1VE4UE859.039 88,316
WIN-UB1VE4UE859.040 90,303
WIN-UB1VE4UE859.041 88,414
WIN-UB1VE4UE859.042 89,154
WIN-UB1VE4UE859.043 90,407
WIN-UB1VE4UE859.044 90,460
WIN-UB1VE4UE859.045 89,810
WIN-UB1VE4UE859.046 88,658
WIN-UB1VE4UE859.047 89,236
WIN-UB1VE4UE859.048 91,550
WIN-UB1VE4UE859.049 90,614
WIN-UB1VE4UE859.050 89,445
WIN-UB1VE4UE859.051 90,674
WIN-UB1VE4UE859.052 89,900
WIN-UB1VE4UE859.053 88,889
WIN-UB1VE4UE859.054 89,210
WIN-UB1VE4UE859.055 89,852
WIN-UB1VE4UE859.056 88,597
ssj_ops@100% 5,025,064
ssj_ops@100% per JVM 89,733

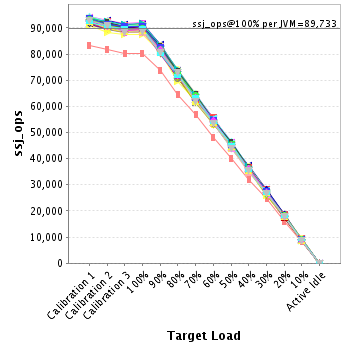

Graph of per-instance results
JVM 'WIN-UB1VE4UE859.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,214
Calibration 2     91,777
Calibration 3     90,405
ssj_ops@calibrated=91,091
100% 98.8% 91,091 89,958
90% 89.9% 81,982 81,911
80% 80.0% 72,873 72,858
70% 69.2% 63,763 63,016
60% 61.1% 54,654 55,694
50% 49.5% 45,545 45,054
40% 39.4% 36,436 35,924
30% 30.1% 27,327 27,464
20% 20.3% 18,218 18,496
10% 10.0% 9,109 9,109
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,448
Calibration 2     90,697
Calibration 3     89,285
ssj_ops@calibrated=89,991
100% 99.5% 89,991 89,519
90% 90.2% 80,992 81,200
80% 80.3% 71,993 72,236
70% 70.3% 62,994 63,291
60% 61.1% 53,995 54,972
50% 50.5% 44,996 45,464
40% 39.8% 35,997 35,836
30% 30.4% 26,997 27,354
20% 20.2% 17,998 18,165
10% 10.1% 8,999 9,100
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

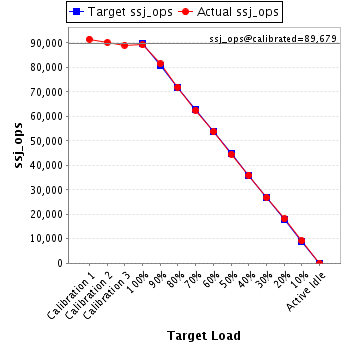

JVM 'WIN-UB1VE4UE859.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,544
Calibration 2     90,257
Calibration 3     89,101
ssj_ops@calibrated=89,679
100% 99.5% 89,679 89,195
90% 90.8% 80,711 81,472
80% 80.2% 71,743 71,933
70% 69.8% 62,775 62,564
60% 60.0% 53,807 53,792
50% 49.7% 44,839 44,553
40% 40.2% 35,871 36,051
30% 30.0% 26,904 26,869
20% 20.2% 17,936 18,103
10% 10.2% 8,968 9,124
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,756
Calibration 2     91,045
Calibration 3     89,652
ssj_ops@calibrated=90,348
100% 98.6% 90,348 89,099
90% 89.9% 81,313 81,205
80% 78.8% 72,279 71,150
70% 70.3% 63,244 63,549
60% 60.0% 54,209 54,236
50% 50.2% 45,174 45,396
40% 40.6% 36,139 36,664
30% 29.8% 27,104 26,941
20% 20.1% 18,070 18,133
10% 10.0% 9,035 9,061
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,343
Calibration 2     92,887
Calibration 3     91,667
ssj_ops@calibrated=92,277
100% 99.8% 92,277 92,070
90% 90.1% 83,049 83,177
80% 80.3% 73,822 74,133
70% 70.2% 64,594 64,788
60% 59.5% 55,366 54,927
50% 50.6% 46,138 46,723
40% 39.8% 36,911 36,760
30% 29.1% 27,683 26,882
20% 20.1% 18,455 18,569
10% 9.7% 9,228 8,991
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,382
Calibration 2     91,569
Calibration 3     90,341
ssj_ops@calibrated=90,955
100% 99.5% 90,955 90,456
90% 89.9% 81,859 81,756
80% 79.5% 72,764 72,348
70% 69.9% 63,668 63,623
60% 60.8% 54,573 55,295
50% 49.9% 45,477 45,426
40% 39.6% 36,382 36,044
30% 29.9% 27,286 27,202
20% 19.9% 18,191 18,141
10% 10.5% 9,095 9,518
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,619
Calibration 2     91,456
Calibration 3     90,733
ssj_ops@calibrated=91,095
100% 99.6% 91,095 90,715
90% 90.7% 81,985 82,605
80% 79.4% 72,876 72,310
70% 70.2% 63,766 63,972
60% 59.7% 54,657 54,354
50% 50.3% 45,547 45,790
40% 40.2% 36,438 36,632
30% 30.5% 27,328 27,741
20% 20.4% 18,219 18,583
10% 9.6% 9,109 8,783
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,408
Calibration 2     89,524
Calibration 3     88,135
ssj_ops@calibrated=88,830
100% 99.9% 88,830 88,779
90% 91.9% 79,947 81,677
80% 80.1% 71,064 71,190
70% 69.0% 62,181 61,330
60% 60.6% 53,298 53,868
50% 50.0% 44,415 44,410
40% 40.2% 35,532 35,674
30% 30.5% 26,649 27,065
20% 20.0% 17,766 17,753
10% 10.1% 8,883 8,941
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

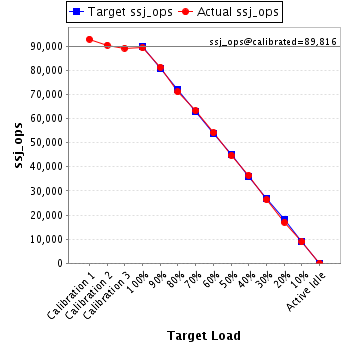

JVM 'WIN-UB1VE4UE859.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,894
Calibration 2     90,432
Calibration 3     89,200
ssj_ops@calibrated=89,816
100% 99.4% 89,816 89,261
90% 90.4% 80,834 81,230
80% 79.1% 71,853 71,042
70% 70.4% 62,871 63,198
60% 60.3% 53,890 54,115
50% 49.7% 44,908 44,624
40% 40.6% 35,926 36,446
30% 29.3% 26,945 26,323
20% 18.9% 17,963 17,017
10% 9.9% 8,982 8,891
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,964
Calibration 2     92,881
Calibration 3     91,133
ssj_ops@calibrated=92,007
100% 99.3% 92,007 91,345
90% 90.8% 82,806 83,553
80% 80.0% 73,605 73,610
70% 69.0% 64,405 63,440
60% 60.1% 55,204 55,306
50% 49.6% 46,003 45,597
40% 40.5% 36,803 37,290
30% 30.6% 27,602 28,128
20% 19.9% 18,401 18,302
10% 9.8% 9,201 9,061
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,380
Calibration 2     90,693
Calibration 3     89,356
ssj_ops@calibrated=90,024
100% 99.5% 90,024 89,582
90% 90.6% 81,022 81,543
80% 79.9% 72,019 71,971
70% 70.0% 63,017 63,027
60% 60.1% 54,015 54,096
50% 49.4% 45,012 44,501
40% 40.0% 36,010 35,970
30% 29.9% 27,007 26,919
20% 19.9% 18,005 17,923
10% 10.6% 9,002 9,549
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,570
Calibration 2     90,717
Calibration 3     89,791
ssj_ops@calibrated=90,254
100% 99.2% 90,254 89,557
90% 90.6% 81,229 81,770
80% 79.7% 72,203 71,899
70% 69.6% 63,178 62,857
60% 59.8% 54,152 53,980
50% 50.1% 45,127 45,197
40% 40.3% 36,102 36,368
30% 30.6% 27,076 27,652
20% 19.5% 18,051 17,642
10% 10.3% 9,025 9,283
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

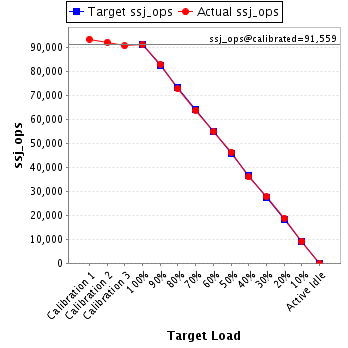

JVM 'WIN-UB1VE4UE859.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,600
Calibration 2     92,301
Calibration 3     90,818
ssj_ops@calibrated=91,559
100% 99.7% 91,559 91,296
90% 90.7% 82,403 83,058
80% 79.7% 73,248 72,932
70% 69.9% 64,092 63,978
60% 60.1% 54,936 55,035
50% 50.6% 45,780 46,334
40% 39.4% 36,624 36,038
30% 30.4% 27,468 27,794
20% 20.5% 18,312 18,809
10% 10.0% 9,156 9,145
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,561
Calibration 2     90,639
Calibration 3     89,888
ssj_ops@calibrated=90,263
100% 99.7% 90,263 89,952
90% 89.5% 81,237 80,764
80% 79.6% 72,211 71,809
70% 70.0% 63,184 63,224
60% 60.1% 54,158 54,221
50% 50.7% 45,132 45,722
40% 39.7% 36,105 35,796
30% 29.6% 27,079 26,706
20% 20.0% 18,053 18,057
10% 9.7% 9,026 8,775
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,657
Calibration 2     90,396
Calibration 3     89,285
ssj_ops@calibrated=89,841
100% 99.1% 89,841 89,058
90% 90.2% 80,857 81,015
80% 80.6% 71,872 72,426
70% 70.3% 62,888 63,136
60% 59.3% 53,904 53,304
50% 49.2% 44,920 44,222
40% 39.8% 35,936 35,787
30% 29.7% 26,952 26,663
20% 20.2% 17,968 18,112
10% 10.4% 8,984 9,375
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,640
Calibration 2     92,295
Calibration 3     90,957
ssj_ops@calibrated=91,626
100% 99.4% 91,626 91,069
90% 89.6% 82,463 82,107
80% 79.6% 73,301 72,958
70% 70.4% 64,138 64,479
60% 60.2% 54,976 55,180
50% 50.2% 45,813 45,974
40% 39.9% 36,650 36,559
30% 30.6% 27,488 28,065
20% 19.9% 18,325 18,224
10% 10.2% 9,163 9,340
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,980
Calibration 2     89,854
Calibration 3     90,147
ssj_ops@calibrated=90,000
100% 100.0% 90,000 90,002
90% 90.3% 81,000 81,250
80% 79.8% 72,000 71,835
70% 69.8% 63,000 62,812
60% 60.6% 54,000 54,506
50% 50.4% 45,000 45,330
40% 39.8% 36,000 35,781
30% 30.1% 27,000 27,061
20% 19.8% 18,000 17,841
10% 10.0% 9,000 9,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,630
Calibration 2     92,206
Calibration 3     90,466
ssj_ops@calibrated=91,336
100% 99.3% 91,336 90,677
90% 89.9% 82,203 82,095
80% 79.2% 73,069 72,368
70% 69.3% 63,935 63,287
60% 59.3% 54,802 54,193
50% 49.9% 45,668 45,605
40% 39.9% 36,534 36,473
30% 30.5% 27,401 27,893
20% 20.0% 18,267 18,303
10% 10.1% 9,134 9,266
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,551
Calibration 2     90,950
Calibration 3     89,720
ssj_ops@calibrated=90,335
100% 99.5% 90,335 89,922
90% 91.2% 81,302 82,391
80% 79.6% 72,268 71,949
70% 71.0% 63,235 64,133
60% 58.8% 54,201 53,134
50% 50.5% 45,168 45,584
40% 39.6% 36,134 35,788
30% 29.6% 27,101 26,752
20% 20.4% 18,067 18,443
10% 9.7% 9,034 8,785
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

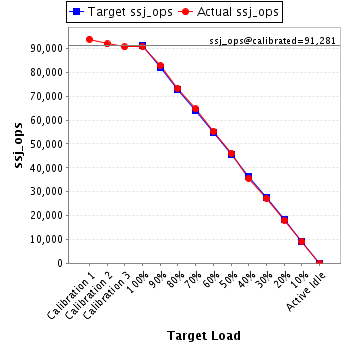

JVM 'WIN-UB1VE4UE859.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,921
Calibration 2     91,922
Calibration 3     90,641
ssj_ops@calibrated=91,281
100% 99.4% 91,281 90,736
90% 90.7% 82,153 82,781
80% 80.3% 73,025 73,287
70% 70.8% 63,897 64,668
60% 60.6% 54,769 55,295
50% 50.5% 45,641 46,100
40% 39.0% 36,513 35,625
30% 29.8% 27,384 27,214
20% 19.7% 18,256 17,982
10% 9.9% 9,128 9,050
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,347
Calibration 2     90,469
Calibration 3     89,577
ssj_ops@calibrated=90,023
100% 99.5% 90,023 89,571
90% 90.2% 81,021 81,169
80% 81.0% 72,019 72,950
70% 69.1% 63,016 62,233
60% 59.9% 54,014 53,890
50% 50.3% 45,012 45,245
40% 40.3% 36,009 36,284
30% 30.8% 27,007 27,727
20% 20.1% 18,005 18,136
10% 9.7% 9,002 8,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,956
Calibration 2     90,834
Calibration 3     89,850
ssj_ops@calibrated=90,342
100% 99.8% 90,342 90,157
90% 90.7% 81,308 81,925
80% 80.4% 72,273 72,649
70% 69.9% 63,239 63,105
60% 59.8% 54,205 54,006
50% 50.3% 45,171 45,482
40% 39.3% 36,137 35,548
30% 30.0% 27,103 27,093
20% 19.8% 18,068 17,849
10% 10.1% 9,034 9,154
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,851
Calibration 2     90,667
Calibration 3     89,816
ssj_ops@calibrated=90,241
100% 99.6% 90,241 89,881
90% 91.3% 81,217 82,370
80% 79.6% 72,193 71,863
70% 69.5% 63,169 62,733
60% 59.8% 54,145 53,991
50% 49.2% 45,121 44,419
40% 40.1% 36,096 36,231
30% 30.5% 27,072 27,500
20% 20.4% 18,048 18,399
10% 10.1% 9,024 9,095
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,721
Calibration 2     91,794
Calibration 3     90,412
ssj_ops@calibrated=91,103
100% 99.8% 91,103 90,905
90% 91.2% 81,993 83,041
80% 80.4% 72,882 73,204
70% 68.6% 63,772 62,510
60% 59.8% 54,662 54,522
50% 50.3% 45,551 45,799
40% 39.8% 36,441 36,284
30% 30.3% 27,331 27,573
20% 19.8% 18,221 18,033
10% 10.0% 9,110 9,145
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,307
Calibration 2     91,161
Calibration 3     89,966
ssj_ops@calibrated=90,563
100% 99.7% 90,563 90,332
90% 89.2% 81,507 80,737
80% 80.3% 72,451 72,721
70% 71.0% 63,394 64,298
60% 60.6% 54,338 54,857
50% 49.3% 45,282 44,612
40% 40.2% 36,225 36,439
30% 29.9% 27,169 27,114
20% 20.2% 18,113 18,281
10% 9.8% 9,056 8,878
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,255
Calibration 2     90,063
Calibration 3     89,432
ssj_ops@calibrated=89,747
100% 100.6% 89,747 90,275
90% 89.5% 80,773 80,351
80% 79.3% 71,798 71,166
70% 69.4% 62,823 62,307
60% 59.8% 53,848 53,667
50% 49.5% 44,874 44,396
40% 39.6% 35,899 35,501
30% 30.0% 26,924 26,930
20% 19.8% 17,949 17,799
10% 10.3% 8,975 9,246
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,213
Calibration 2     89,849
Calibration 3     88,610
ssj_ops@calibrated=89,230
100% 99.8% 89,230 89,013
90% 90.4% 80,307 80,696
80% 79.0% 71,384 70,534
70% 70.5% 62,461 62,922
60% 60.2% 53,538 53,681
50% 50.4% 44,615 45,009
40% 40.0% 35,692 35,736
30% 30.3% 26,769 27,039
20% 19.9% 17,846 17,753
10% 10.1% 8,923 9,041
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,944
Calibration 2     91,767
Calibration 3     90,924
ssj_ops@calibrated=91,345
100% 100.2% 91,345 91,521
90% 90.0% 82,211 82,231
80% 80.3% 73,076 73,365
70% 70.8% 63,942 64,702
60% 59.7% 54,807 54,518
50% 49.9% 45,673 45,574
40% 40.0% 36,538 36,523
30% 29.2% 27,404 26,705
20% 19.7% 18,269 18,028
10% 9.9% 9,135 9,004
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,422
Calibration 2     81,567
Calibration 3     80,292
ssj_ops@calibrated=80,929
100% 99.2% 80,929 80,275
90% 90.9% 72,837 73,526
80% 79.8% 64,744 64,614
70% 70.1% 56,651 56,734
60% 59.3% 48,558 47,963
50% 49.5% 40,465 40,040
40% 39.8% 32,372 32,215
30% 30.4% 24,279 24,623
20% 19.5% 16,186 15,812
10% 10.1% 8,093 8,137
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,351
Calibration 2     89,966
Calibration 3     88,928
ssj_ops@calibrated=89,447
100% 99.4% 89,447 88,922
90% 90.5% 80,502 80,970
80% 80.2% 71,557 71,747
70% 69.8% 62,613 62,401
60% 60.8% 53,668 54,340
50% 50.2% 44,723 44,895
40% 40.3% 35,779 36,066
30% 30.4% 26,834 27,192
20% 20.5% 17,889 18,357
10% 10.2% 8,945 9,116
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,496
Calibration 2     90,780
Calibration 3     89,528
ssj_ops@calibrated=90,154
100% 99.2% 90,154 89,389
90% 90.8% 81,139 81,869
80% 79.2% 72,123 71,368
70% 69.5% 63,108 62,694
60% 59.3% 54,093 53,423
50% 50.2% 45,077 45,222
40% 39.5% 36,062 35,568
30% 29.9% 27,046 26,966
20% 20.1% 18,031 18,129
10% 10.0% 9,015 8,987
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,135
Calibration 2     92,592
Calibration 3     91,023
ssj_ops@calibrated=91,808
100% 99.6% 91,808 91,396
90% 90.5% 82,627 83,103
80% 80.8% 73,446 74,147
70% 70.9% 64,265 65,083
60% 59.6% 55,085 54,705
50% 49.2% 45,904 45,140
40% 40.5% 36,723 37,166
30% 30.2% 27,542 27,744
20% 19.7% 18,362 18,087
10% 10.1% 9,181 9,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,738
Calibration 2     90,550
Calibration 3     88,965
ssj_ops@calibrated=89,757
100% 98.8% 89,757 88,646
90% 89.7% 80,782 80,491
80% 80.7% 71,806 72,442
70% 69.9% 62,830 62,752
60% 61.4% 53,854 55,070
50% 49.1% 44,879 44,046
40% 39.8% 35,903 35,681
30% 29.2% 26,927 26,211
20% 20.3% 17,951 18,217
10% 9.9% 8,976 8,859
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,423
Calibration 2     92,383
Calibration 3     90,964
ssj_ops@calibrated=91,673
100% 99.4% 91,673 91,101
90% 90.4% 82,506 82,849
80% 79.3% 73,339 72,685
70% 70.9% 64,171 64,989
60% 59.9% 55,004 54,881
50% 50.8% 45,837 46,614
40% 40.1% 36,669 36,800
30% 29.5% 27,502 27,080
20% 20.2% 18,335 18,540
10% 9.8% 9,167 8,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,698
Calibration 2     91,327
Calibration 3     89,466
ssj_ops@calibrated=90,396
100% 98.8% 90,396 89,347
90% 90.2% 81,357 81,507
80% 80.0% 72,317 72,348
70% 69.5% 63,277 62,847
60% 59.4% 54,238 53,663
50% 49.2% 45,198 44,436
40% 40.2% 36,158 36,370
30% 29.4% 27,119 26,602
20% 19.3% 18,079 17,407
10% 10.2% 9,040 9,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,988
Calibration 2     91,119
Calibration 3     89,883
ssj_ops@calibrated=90,501
100% 99.6% 90,501 90,112
90% 90.2% 81,451 81,592
80% 79.8% 72,401 72,242
70% 69.4% 63,351 62,843
60% 60.8% 54,301 54,982
50% 49.8% 45,250 45,101
40% 40.1% 36,200 36,266
30% 29.7% 27,150 26,861
20% 19.8% 18,100 17,912
10% 10.1% 9,050 9,123
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,233
Calibration 2     91,878
Calibration 3     90,724
ssj_ops@calibrated=91,301
100% 99.6% 91,301 90,940
90% 90.6% 82,171 82,730
80% 79.2% 73,041 72,337
70% 70.3% 63,911 64,214
60% 59.6% 54,781 54,461
50% 49.6% 45,651 45,256
40% 39.4% 36,521 35,938
30% 30.0% 27,390 27,419
20% 20.0% 18,260 18,283
10% 9.9% 9,130 9,053
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,889
Calibration 2     88,328
Calibration 3     87,632
ssj_ops@calibrated=87,980
100% 99.5% 87,980 87,545
90% 91.7% 79,182 80,673
80% 79.1% 70,384 69,555
70% 70.6% 61,586 62,140
60% 61.2% 52,788 53,848
50% 50.0% 43,990 43,955
40% 40.2% 35,192 35,391
30% 29.5% 26,394 25,963
20% 20.0% 17,596 17,616
10% 10.0% 8,798 8,820
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,629
Calibration 2     89,782
Calibration 3     88,210
ssj_ops@calibrated=88,996
100% 99.2% 88,996 88,316
90% 91.1% 80,096 81,069
80% 80.2% 71,197 71,343
70% 71.3% 62,297 63,452
60% 61.5% 53,398 54,742
50% 50.2% 44,498 44,688
40% 39.9% 35,598 35,547
30% 30.1% 26,699 26,794
20% 20.2% 17,799 17,954
10% 10.2% 8,900 9,070
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,057
Calibration 2     91,368
Calibration 3     90,491
ssj_ops@calibrated=90,929
100% 99.3% 90,929 90,303
90% 90.6% 81,837 82,425
80% 79.9% 72,744 72,646
70% 69.7% 63,651 63,365
60% 61.1% 54,558 55,536
50% 50.2% 45,465 45,677
40% 39.7% 36,372 36,098
30% 30.6% 27,279 27,807
20% 19.8% 18,186 18,043
10% 10.0% 9,093 9,124
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,942
Calibration 2     90,462
Calibration 3     88,558
ssj_ops@calibrated=89,510
100% 98.8% 89,510 88,414
90% 91.2% 80,559 81,630
80% 80.7% 71,608 72,192
70% 70.7% 62,657 63,326
60% 59.8% 53,706 53,558
50% 49.4% 44,755 44,226
40% 38.8% 35,804 34,729
30% 30.6% 26,853 27,394
20% 20.0% 17,902 17,908
10% 9.8% 8,951 8,762
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,525
Calibration 2     90,765
Calibration 3     89,386
ssj_ops@calibrated=90,076
100% 99.0% 90,076 89,154
90% 91.0% 81,068 82,000
80% 78.6% 72,060 70,812
70% 69.8% 63,053 62,844
60% 59.5% 54,045 53,621
50% 49.9% 45,038 44,989
40% 40.5% 36,030 36,495
30% 30.1% 27,023 27,123
20% 20.9% 18,015 18,786
10% 9.9% 9,008 8,879
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,719
Calibration 2     91,472
Calibration 3     89,954
ssj_ops@calibrated=90,713
100% 99.7% 90,713 90,407
90% 90.8% 81,642 82,390
80% 79.7% 72,570 72,333
70% 70.5% 63,499 63,942
60% 59.5% 54,428 53,981
50% 49.9% 45,356 45,283
40% 40.0% 36,285 36,283
30% 29.6% 27,214 26,881
20% 19.3% 18,143 17,497
10% 9.6% 9,071 8,700
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,853
Calibration 2     91,633
Calibration 3     90,110
ssj_ops@calibrated=90,871
100% 99.5% 90,871 90,460
90% 91.1% 81,784 82,815
80% 79.0% 72,697 71,744
70% 69.5% 63,610 63,183
60% 59.3% 54,523 53,923
50% 49.7% 45,436 45,198
40% 39.5% 36,349 35,926
30% 30.9% 27,261 28,089
20% 20.5% 18,174 18,647
10% 9.5% 9,087 8,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,486
Calibration 2     91,296
Calibration 3     89,827
ssj_ops@calibrated=90,561
100% 99.2% 90,561 89,810
90% 90.6% 81,505 82,009
80% 80.4% 72,449 72,838
70% 69.7% 63,393 63,133
60% 60.1% 54,337 54,444
50% 50.4% 45,281 45,661
40% 40.0% 36,224 36,197
30% 30.0% 27,168 27,151
20% 19.5% 18,112 17,667
10% 9.8% 9,056 8,858
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,059
Calibration 2     89,589
Calibration 3     88,286
ssj_ops@calibrated=88,938
100% 99.7% 88,938 88,658
90% 90.5% 80,044 80,533
80% 79.9% 71,150 71,041
70% 69.2% 62,256 61,509
60% 59.8% 53,363 53,191
50% 51.0% 44,469 45,348
40% 40.2% 35,575 35,724
30% 29.2% 26,681 25,963
20% 20.1% 17,788 17,833
10% 9.7% 8,894 8,654
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,992
Calibration 2     89,695
Calibration 3     89,069
ssj_ops@calibrated=89,382
100% 99.8% 89,382 89,236
90% 89.5% 80,444 79,965
80% 79.8% 71,505 71,316
70% 70.2% 62,567 62,721
60% 60.0% 53,629 53,619
50% 50.1% 44,691 44,751
40% 40.0% 35,753 35,743
30% 30.4% 26,815 27,214
20% 19.5% 17,876 17,432
10% 10.1% 8,938 9,054
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,541
Calibration 2     92,566
Calibration 3     91,438
ssj_ops@calibrated=92,002
100% 99.5% 92,002 91,550
90% 90.6% 82,802 83,328
80% 80.7% 73,602 74,277
70% 70.3% 64,401 64,716
60% 59.9% 55,201 55,095
50% 50.2% 46,001 46,173
40% 40.3% 36,801 37,061
30% 29.6% 27,601 27,253
20% 19.9% 18,400 18,298
10% 9.6% 9,200 8,854
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,841
Calibration 2     91,937
Calibration 3     90,499
ssj_ops@calibrated=91,218
100% 99.3% 91,218 90,614
90% 90.8% 82,096 82,871
80% 80.2% 72,975 73,152
70% 70.9% 63,853 64,666
60% 59.8% 54,731 54,522
50% 50.8% 45,609 46,319
40% 40.3% 36,487 36,759
30% 29.6% 27,365 26,975
20% 20.2% 18,244 18,437
10% 10.0% 9,122 9,114
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,308
Calibration 2     90,852
Calibration 3     89,645
ssj_ops@calibrated=90,248
100% 99.1% 90,248 89,445
90% 90.6% 81,224 81,791
80% 80.3% 72,199 72,461
70% 69.2% 63,174 62,482
60% 60.2% 54,149 54,323
50% 49.6% 45,124 44,727
40% 40.4% 36,099 36,471
30% 30.2% 27,075 27,236
20% 20.3% 18,050 18,301
10% 10.0% 9,025 9,029
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,728
Calibration 2     91,397
Calibration 3     90,656
ssj_ops@calibrated=91,026
100% 99.6% 91,026 90,674
90% 90.8% 81,924 82,648
80% 79.3% 72,821 72,186
70% 69.8% 63,719 63,496
60% 59.9% 54,616 54,488
50% 49.2% 45,513 44,821
40% 39.3% 36,411 35,759
30% 30.2% 27,308 27,534
20% 19.7% 18,205 17,932
10% 9.9% 9,103 9,024
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,270
Calibration 2     90,982
Calibration 3     89,460
ssj_ops@calibrated=90,221
100% 99.6% 90,221 89,900
90% 90.5% 81,199 81,616
80% 80.6% 72,177 72,697
70% 71.0% 63,155 64,069
60% 59.5% 54,133 53,644
50% 50.2% 45,111 45,248
40% 40.3% 36,088 36,391
30% 29.8% 27,066 26,852
20% 20.2% 18,044 18,222
10% 9.9% 9,022 8,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,491
Calibration 2     89,936
Calibration 3     88,771
ssj_ops@calibrated=89,354
100% 99.5% 89,354 88,889
90% 91.0% 80,418 81,339
80% 80.7% 71,483 72,112
70% 69.2% 62,548 61,834
60% 60.4% 53,612 54,007
50% 49.8% 44,677 44,483
40% 39.8% 35,741 35,520
30% 30.3% 26,806 27,080
20% 19.8% 17,871 17,733
10% 9.9% 8,935 8,804
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,731
Calibration 2     90,545
Calibration 3     88,943
ssj_ops@calibrated=89,744
100% 99.4% 89,744 89,210
90% 90.9% 80,770 81,583
80% 80.2% 71,795 71,966
70% 70.5% 62,821 63,257
60% 61.0% 53,846 54,718
50% 50.4% 44,872 45,199
40% 40.6% 35,898 36,414
30% 30.3% 26,923 27,157
20% 19.8% 17,949 17,782
10% 9.8% 8,974 8,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,192
Calibration 2     90,553
Calibration 3     89,789
ssj_ops@calibrated=90,171
100% 99.6% 90,171 89,852
90% 88.8% 81,154 80,053
80% 79.5% 72,137 71,655
70% 70.3% 63,120 63,415
60% 59.8% 54,102 53,908
50% 50.3% 45,085 45,386
40% 39.5% 36,068 35,586
30% 29.6% 27,051 26,721
20% 19.9% 18,034 17,986
10% 10.2% 9,017 9,155
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UB1VE4UE859.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,757
Calibration 2     90,799
Calibration 3     88,435
ssj_ops@calibrated=89,617
100% 98.9% 89,617 88,597
90% 90.1% 80,655 80,730
80% 81.5% 71,694 73,078
70% 69.1% 62,732 61,915
60% 59.7% 53,770 53,458
50% 49.0% 44,808 43,941
40% 39.5% 35,847 35,365
30% 29.9% 26,885 26,789
20% 20.0% 17,923 17,919
10% 9.7% 8,962 8,666
Active Idle   0 0

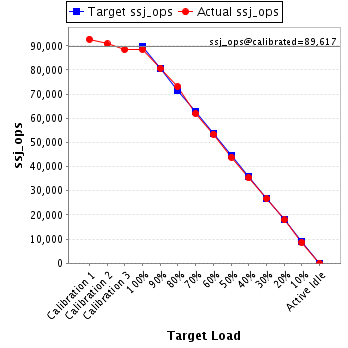

Graph of results
See the JVM Instance Performance Report for additional details.
