Lenovo Global Technology ThinkSystem SD530 SPECpower_ssj2008 = 11,472 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Jul 4, 2017
Hardware Availability: Aug-2017 Software Availability: Sep-2017 Publication: Jul 19, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 97.8% 19,563,206 1,434 13,638
90% 90.0% 17,995,753 1,324 13,596
80% 80.0% 15,995,160 1,179 13,567
70% 70.0% 13,988,227 1,042 13,422
60% 60.0% 11,991,902 929 12,902
50% 50.0% 9,995,529 838 11,929
40% 40.0% 7,998,520 758 10,551
30% 30.0% 6,002,957 678 8,853
20% 20.0% 3,993,109 597 6,690
10% 10.0% 2,001,936 512 3,911
Active Idle 0 256 0
∑ssj_ops / ∑power = 11,472

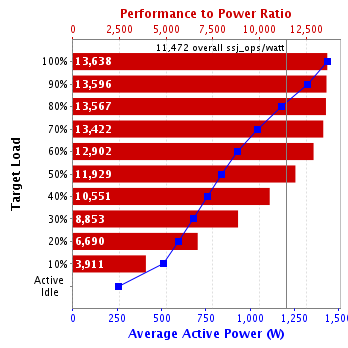

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 224 448 768 4 224
System Under Test
Shared Hardware
Shared Hardware
Enclosure: ThinkSystem SD530
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 1600
Power Supply Details: Lenovo P/N SP50L09213
Network Switch: Extreme Summit X670V
Network Switch Details: 48-PORT Extreme Summit X670V
KVM Switch: None
KVM Switch Details: None
Other Hardware: None
Comment: Network switch did not measure for Power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: 'SUT'
Hardware per Node
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD530
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28-Core, 2.10 GHz, 39424 KB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,2,3,6,7,8,9,10,11,14,15 and 16 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB M.2 SSD (Lenovo P/N 7N47A00129)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: TEE113J
Management Firmware Version: TEI305U
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkServer RS160
CPU Description: 1 x Intel Xeon E3-1280 v5
Memory amount (GB): 64
Software
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter - Version 6.3.9600 (Build 9600)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310
Serial Number: C2RA21002V
Connectivity: USB
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: China CEPREI Laboratory
Calibration Label: 1GA17001629-0002
Date of Calibration: 24-Feb-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1,PSU 2
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 1,434 24.6
90% 1,324 24.9
80% 1,179 25.1
70% 1,042 25.1
60% 929 25.1
50% 838 24.9
40% 758 24.8
30% 678 24.8
20% 597 24.7
10% 512 24.2
Active Idle 256 23.2
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 23.2 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     20,483,503
Calibration 2     20,333,568
Calibration 3     19,655,663
ssj_ops@calibrated=19,994,615
100% 97.8% 19,994,615 19,563,206
90% 90.0% 17,995,154 17,995,753
80% 80.0% 15,995,692 15,995,160
70% 70.0% 13,996,231 13,988,227
60% 60.0% 11,996,769 11,991,902
50% 50.0% 9,997,308 9,995,529
40% 40.0% 7,997,846 7,998,520
30% 30.0% 5,998,385 6,002,957
20% 20.0% 3,998,923 3,993,109
10% 10.0% 1,999,462 2,001,936
Active Idle   0 0

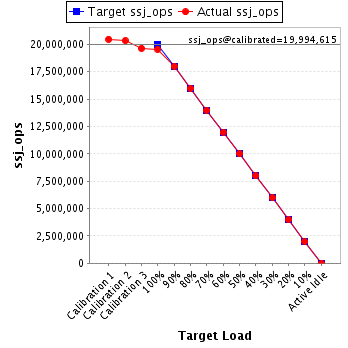

Graph of results
