Dell Inc. PowerEdge R640 ssj_ops@100% = 5,759,892
ssj_ops@100% per JVM = 102,855
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 27, 2017
Hardware Availability: Jul-2017 Software Availability: Apr-2015 Publication: Sep 13, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,795,160
Calibration 2     5,769,390
Calibration 3     5,773,360
ssj_ops@calibrated=5,771,375
100% 99.8% 5,771,375 5,759,892
90% 90.1% 5,194,238 5,197,627
80% 79.9% 4,617,100 4,612,342
70% 70.1% 4,039,963 4,043,547
60% 60.1% 3,462,825 3,466,023
50% 50.0% 2,885,688 2,886,301
40% 40.0% 2,308,550 2,310,072
30% 30.0% 1,731,413 1,733,905
20% 20.0% 1,154,275 1,154,992
10% 10.0% 577,138 577,465
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge R640
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R640
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8180 2.50 GHz
CPU Characteristics: 28 core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V; Dell p/n VM51C, Slots A1-6,B1-6 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Dell p/n KNHJV
Disk Drive: 1 x 120 GB SATA SSD, Dell p/n KX83R
Disk Controller: Native Chipset SATA
# and type of Network Interface Cards (NICs) Installed: 1 x quad-port Broadcom 5720, Dell P/N FM487
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power plan in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.17196
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx1550m -Xms1550m -Xmn1300m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0x3,0xC,0x30,0xC0,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000]; start /NODE [1,3] /AFFINITY [0x3,0xC,0x30,0x3000,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0x30000000000,0xC0000000000,0x300000000000,0xC00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 1.0.7
Management Firmware Version: 3.00.00.00 A00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-D6UROU3FEIN.001 92,232
WIN-D6UROU3FEIN.002 105,146
WIN-D6UROU3FEIN.003 104,716
WIN-D6UROU3FEIN.004 101,028
WIN-D6UROU3FEIN.005 105,144
WIN-D6UROU3FEIN.006 105,348
WIN-D6UROU3FEIN.007 106,690
WIN-D6UROU3FEIN.008 105,581
WIN-D6UROU3FEIN.009 104,329
WIN-D6UROU3FEIN.010 103,320
WIN-D6UROU3FEIN.011 104,917
WIN-D6UROU3FEIN.012 104,976
WIN-D6UROU3FEIN.013 105,359
WIN-D6UROU3FEIN.014 103,877
WIN-D6UROU3FEIN.015 92,084
WIN-D6UROU3FEIN.016 103,833
WIN-D6UROU3FEIN.017 101,799
WIN-D6UROU3FEIN.018 95,682
WIN-D6UROU3FEIN.019 105,817
WIN-D6UROU3FEIN.020 105,292
WIN-D6UROU3FEIN.021 99,585
WIN-D6UROU3FEIN.022 104,353
WIN-D6UROU3FEIN.023 106,031
WIN-D6UROU3FEIN.024 102,658
WIN-D6UROU3FEIN.025 98,311
WIN-D6UROU3FEIN.026 104,159
WIN-D6UROU3FEIN.027 104,731
WIN-D6UROU3FEIN.028 104,031
WIN-D6UROU3FEIN.029 102,465
WIN-D6UROU3FEIN.030 106,644
WIN-D6UROU3FEIN.031 102,986
WIN-D6UROU3FEIN.032 93,117
WIN-D6UROU3FEIN.033 104,356
WIN-D6UROU3FEIN.034 104,421
WIN-D6UROU3FEIN.035 103,089
WIN-D6UROU3FEIN.036 102,780
WIN-D6UROU3FEIN.037 104,611
WIN-D6UROU3FEIN.038 102,540
WIN-D6UROU3FEIN.039 94,999
WIN-D6UROU3FEIN.040 104,878
WIN-D6UROU3FEIN.041 101,030
WIN-D6UROU3FEIN.042 104,576
WIN-D6UROU3FEIN.043 104,174
WIN-D6UROU3FEIN.044 104,000
WIN-D6UROU3FEIN.045 101,363
WIN-D6UROU3FEIN.046 104,799
WIN-D6UROU3FEIN.047 102,072
WIN-D6UROU3FEIN.048 103,031
WIN-D6UROU3FEIN.049 103,357
WIN-D6UROU3FEIN.050 102,574
WIN-D6UROU3FEIN.051 103,405
WIN-D6UROU3FEIN.052 105,258
WIN-D6UROU3FEIN.053 103,233
WIN-D6UROU3FEIN.054 102,687
WIN-D6UROU3FEIN.055 102,828
WIN-D6UROU3FEIN.056 103,591
ssj_ops@100% 5,759,892
ssj_ops@100% per JVM 102,855

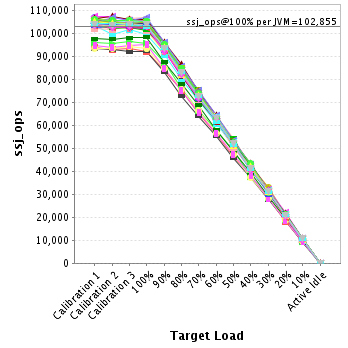

Graph of per-instance results
JVM 'WIN-D6UROU3FEIN.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,900
Calibration 2     92,878
Calibration 3     93,452
ssj_ops@calibrated=93,165
100% 99.0% 93,165 92,232
90% 89.9% 83,848 83,747
80% 80.5% 74,532 74,983
70% 70.1% 65,215 65,285
60% 59.9% 55,899 55,787
50% 49.8% 46,582 46,375
40% 40.9% 37,266 38,112
30% 30.0% 27,949 27,946
20% 19.7% 18,633 18,345
10% 10.2% 9,316 9,533
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,728
Calibration 2     104,567
Calibration 3     105,520
ssj_ops@calibrated=105,044
100% 100.1% 105,044 105,146
90% 89.8% 94,539 94,343
80% 80.9% 84,035 85,024
70% 70.0% 73,531 73,528
60% 60.0% 63,026 63,011
50% 49.2% 52,522 51,649
40% 40.8% 42,017 42,840
30% 30.5% 31,513 32,073
20% 20.1% 21,009 21,162
10% 10.1% 10,504 10,594
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,984
Calibration 2     105,020
Calibration 3     104,704
ssj_ops@calibrated=104,862
100% 99.9% 104,862 104,716
90% 90.0% 94,376 94,372
80% 79.8% 83,889 83,698
70% 70.1% 73,403 73,524
60% 60.5% 62,917 63,463
50% 49.8% 52,431 52,231
40% 40.0% 41,945 41,987
30% 30.2% 31,459 31,620
20% 19.9% 20,972 20,878
10% 9.8% 10,486 10,325
Active Idle   0 0

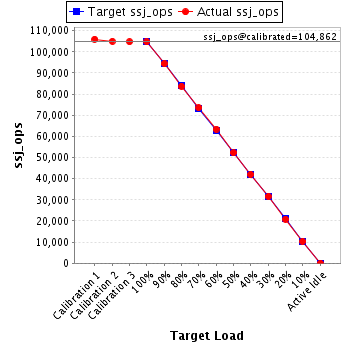

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,463
Calibration 2     102,561
Calibration 3     102,951
ssj_ops@calibrated=102,756
100% 98.3% 102,756 101,028
90% 89.1% 92,480 91,536
80% 80.5% 82,205 82,689
70% 70.1% 71,929 72,030
60% 60.6% 61,653 62,266
50% 49.8% 51,378 51,189
40% 39.8% 41,102 40,871
30% 30.6% 30,827 31,403
20% 20.3% 20,551 20,858
10% 10.2% 10,276 10,466
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,408
Calibration 2     104,653
Calibration 3     104,656
ssj_ops@calibrated=104,654
100% 100.5% 104,654 105,144
90% 90.1% 94,189 94,341
80% 79.9% 83,723 83,589
70% 70.4% 73,258 73,666
60% 59.7% 62,793 62,481
50% 49.8% 52,327 52,107
40% 39.9% 41,862 41,785
30% 30.5% 31,396 31,893
20% 20.0% 20,931 20,915
10% 10.0% 10,465 10,454
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,631
Calibration 2     105,274
Calibration 3     105,319
ssj_ops@calibrated=105,296
100% 100.0% 105,296 105,348
90% 90.4% 94,766 95,148
80% 79.4% 84,237 83,571
70% 70.4% 73,707 74,146
60% 60.0% 63,178 63,160
50% 50.1% 52,648 52,731
40% 39.4% 42,118 41,459
30% 29.8% 31,589 31,368
20% 19.5% 21,059 20,520
10% 10.2% 10,530 10,754
Active Idle   0 0

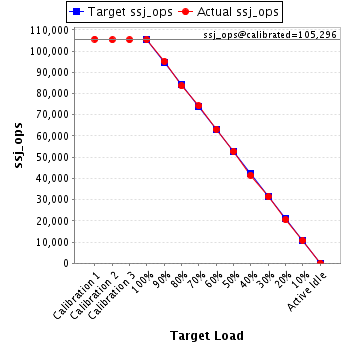

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,308
Calibration 2     106,435
Calibration 3     106,439
ssj_ops@calibrated=106,437
100% 100.2% 106,437 106,690
90% 88.2% 95,794 93,837
80% 79.2% 85,150 84,262
70% 70.1% 74,506 74,623
60% 59.9% 63,862 63,760
50% 50.8% 53,219 54,049
40% 39.9% 42,575 42,446
30% 30.2% 31,931 32,171
20% 20.1% 21,287 21,369
10% 9.8% 10,644 10,437
Active Idle   0 0

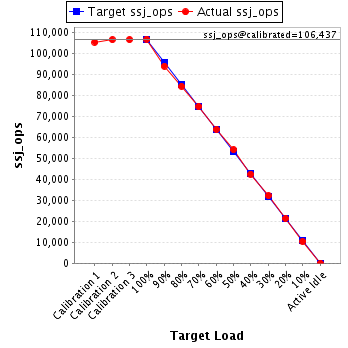

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,017
Calibration 2     105,463
Calibration 3     104,909
ssj_ops@calibrated=105,186
100% 100.4% 105,186 105,581
90% 89.7% 94,667 94,328
80% 80.7% 84,149 84,889
70% 70.7% 73,630 74,416
60% 59.8% 63,112 62,853
50% 49.6% 52,593 52,214
40% 39.4% 42,074 41,433
30% 29.8% 31,556 31,311
20% 20.1% 21,037 21,120
10% 10.0% 10,519 10,491
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,293
Calibration 2     104,594
Calibration 3     104,871
ssj_ops@calibrated=104,732
100% 99.6% 104,732 104,329
90% 90.8% 94,259 95,116
80% 80.3% 83,786 84,081
70% 70.5% 73,313 73,813
60% 60.9% 62,839 63,833
50% 50.0% 52,366 52,392
40% 39.3% 41,893 41,204
30% 30.5% 31,420 31,926
20% 20.3% 20,946 21,256
10% 10.1% 10,473 10,546
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,144
Calibration 2     104,040
Calibration 3     103,423
ssj_ops@calibrated=103,731
100% 99.6% 103,731 103,320
90% 90.4% 93,358 93,765
80% 78.8% 82,985 81,709
70% 70.8% 72,612 73,448
60% 60.1% 62,239 62,335
50% 50.4% 51,866 52,281
40% 40.4% 41,493 41,933
30% 30.2% 31,119 31,359
20% 19.7% 20,746 20,445
10% 10.2% 10,373 10,550
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,946
Calibration 2     104,175
Calibration 3     104,912
ssj_ops@calibrated=104,543
100% 100.4% 104,543 104,917
90% 89.5% 94,089 93,597
80% 80.8% 83,635 84,500
70% 71.8% 73,180 75,038
60% 59.9% 62,726 62,623
50% 51.3% 52,272 53,621
40% 40.3% 41,817 42,161
30% 29.7% 31,363 31,054
20% 19.8% 20,909 20,693
10% 9.9% 10,454 10,300
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,176
Calibration 2     105,524
Calibration 3     105,323
ssj_ops@calibrated=105,423
100% 99.6% 105,423 104,976
90% 89.4% 94,881 94,283
80% 80.3% 84,339 84,608
70% 71.1% 73,796 74,940
60% 59.9% 63,254 63,194
50% 49.7% 52,712 52,394
40% 40.2% 42,169 42,426
30% 31.0% 31,627 32,733
20% 20.0% 21,085 21,137
10% 10.2% 10,542 10,795
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,998
Calibration 2     105,204
Calibration 3     105,534
ssj_ops@calibrated=105,369
100% 100.0% 105,369 105,359
90% 90.8% 94,832 95,656
80% 79.3% 84,295 83,597
70% 70.9% 73,758 74,688
60% 59.2% 63,221 62,330
50% 49.9% 52,684 52,603
40% 40.3% 42,148 42,413
30% 29.8% 31,611 31,425
20% 19.3% 21,074 20,291
10% 9.9% 10,537 10,461
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,443
Calibration 2     103,460
Calibration 3     104,395
ssj_ops@calibrated=103,927
100% 100.0% 103,927 103,877
90% 89.6% 93,534 93,077
80% 80.1% 83,142 83,206
70% 69.6% 72,749 72,282
60% 60.3% 62,356 62,651
50% 50.1% 51,964 52,073
40% 39.9% 41,571 41,435
30% 30.0% 31,178 31,170
20% 19.7% 20,785 20,461
10% 10.2% 10,393 10,579
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,215
Calibration 2     92,725
Calibration 3     91,873
ssj_ops@calibrated=92,299
100% 99.8% 92,299 92,084
90% 89.9% 83,069 82,961
80% 78.7% 73,839 72,624
70% 69.1% 64,609 63,795
60% 59.8% 55,380 55,194
50% 49.4% 46,150 45,602
40% 40.5% 36,920 37,386
30% 30.0% 27,690 27,678
20% 20.2% 18,460 18,670
10% 9.7% 9,230 8,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,121
Calibration 2     104,466
Calibration 3     102,474
ssj_ops@calibrated=103,470
100% 100.4% 103,470 103,833
90% 89.8% 93,123 92,901
80% 79.9% 82,776 82,693
70% 69.9% 72,429 72,310
60% 59.7% 62,082 61,751
50% 49.9% 51,735 51,622
40% 39.9% 41,388 41,256
30% 29.7% 31,041 30,683
20% 20.0% 20,694 20,688
10% 10.0% 10,347 10,381
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,862
Calibration 2     102,838
Calibration 3     102,986
ssj_ops@calibrated=102,912
100% 98.9% 102,912 101,799
90% 90.0% 92,621 92,575
80% 80.1% 82,330 82,398
70% 69.6% 72,039 71,576
60% 61.0% 61,747 62,799
50% 50.7% 51,456 52,192
40% 40.0% 41,165 41,130
30% 30.3% 30,874 31,180
20% 20.2% 20,582 20,779
10% 9.7% 10,291 10,032
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,792
Calibration 2     95,387
Calibration 3     96,258
ssj_ops@calibrated=95,823
100% 99.9% 95,823 95,682
90% 91.0% 86,240 87,222
80% 79.4% 76,658 76,054
70% 69.1% 67,076 66,228
60% 60.2% 57,494 57,654
50% 50.9% 47,911 48,792
40% 39.3% 38,329 37,692
30% 29.9% 28,747 28,647
20% 19.7% 19,165 18,861
10% 9.7% 9,582 9,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,711
Calibration 2     105,624
Calibration 3     104,890
ssj_ops@calibrated=105,257
100% 100.5% 105,257 105,817
90% 89.9% 94,731 94,637
80% 80.3% 84,206 84,523
70% 69.8% 73,680 73,518
60% 60.5% 63,154 63,653
50% 49.9% 52,629 52,552
40% 39.7% 42,103 41,777
30% 30.2% 31,577 31,783
20% 20.3% 21,051 21,369
10% 9.9% 10,526 10,391
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,048
Calibration 2     107,177
Calibration 3     105,599
ssj_ops@calibrated=106,388
100% 99.0% 106,388 105,292
90% 89.6% 95,749 95,349
80% 79.5% 85,110 84,549
70% 70.2% 74,471 74,734
60% 59.9% 63,833 63,714
50% 49.9% 53,194 53,080
40% 40.3% 42,555 42,870
30% 30.0% 31,916 31,900
20% 20.6% 21,278 21,944
10% 9.9% 10,639 10,549
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,136
Calibration 2     99,450
Calibration 3     101,787
ssj_ops@calibrated=100,619
100% 99.0% 100,619 99,585
90% 90.1% 90,557 90,672
80% 79.5% 80,495 79,953
70% 70.1% 70,433 70,566
60% 60.4% 60,371 60,782
50% 50.2% 50,309 50,540
40% 40.5% 40,247 40,785
30% 29.9% 30,186 30,114
20% 20.1% 20,124 20,236
10% 10.0% 10,062 10,071
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,061
Calibration 2     104,511
Calibration 3     105,484
ssj_ops@calibrated=104,997
100% 99.4% 104,997 104,353
90% 91.0% 94,498 95,566
80% 80.0% 83,998 83,960
70% 69.8% 73,498 73,259
60% 59.9% 62,998 62,896
50% 50.1% 52,499 52,605
40% 39.8% 41,999 41,778
30% 30.0% 31,499 31,453
20% 20.3% 20,999 21,307
10% 9.8% 10,500 10,258
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,361
Calibration 2     107,298
Calibration 3     106,022
ssj_ops@calibrated=106,660
100% 99.4% 106,660 106,031
90% 89.7% 95,994 95,720
80% 81.1% 85,328 86,457
70% 70.1% 74,662 74,766
60% 60.2% 63,996 64,197
50% 49.5% 53,330 52,810
40% 40.4% 42,664 43,140
30% 29.5% 31,998 31,517
20% 20.3% 21,332 21,661
10% 10.2% 10,666 10,870
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,210
Calibration 2     103,731
Calibration 3     101,926
ssj_ops@calibrated=102,829
100% 99.8% 102,829 102,658
90% 89.4% 92,546 91,946
80% 80.3% 82,263 82,609
70% 71.1% 71,980 73,132
60% 60.5% 61,697 62,195
50% 50.2% 51,414 51,605
40% 40.1% 41,131 41,211
30% 30.4% 30,849 31,293
20% 20.0% 20,566 20,551
10% 9.8% 10,283 10,094
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,596
Calibration 2     97,295
Calibration 3     97,958
ssj_ops@calibrated=97,627
100% 100.7% 97,627 98,311
90% 89.4% 87,864 87,325
80% 80.0% 78,102 78,080
70% 70.3% 68,339 68,623
60% 59.1% 58,576 57,730
50% 49.8% 48,813 48,575
40% 40.3% 39,051 39,313
30% 29.7% 29,288 29,031
20% 20.0% 19,525 19,533
10% 9.8% 9,763 9,537
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,202
Calibration 2     104,692
Calibration 3     104,549
ssj_ops@calibrated=104,621
100% 99.6% 104,621 104,159
90% 90.4% 94,159 94,561
80% 80.4% 83,697 84,106
70% 70.3% 73,234 73,558
60% 59.7% 62,772 62,510
50% 50.4% 52,310 52,726
40% 40.1% 41,848 41,956
30% 30.0% 31,386 31,414
20% 20.2% 20,924 21,113
10% 10.2% 10,462 10,700
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,353
Calibration 2     104,431
Calibration 3     104,752
ssj_ops@calibrated=104,592
100% 100.1% 104,592 104,731
90% 90.4% 94,132 94,587
80% 80.5% 83,673 84,229
70% 70.4% 73,214 73,605
60% 59.2% 62,755 61,888
50% 51.0% 52,296 53,339
40% 39.6% 41,837 41,418
30% 29.9% 31,377 31,295
20% 19.6% 20,918 20,540
10% 10.3% 10,459 10,816
Active Idle   0 0

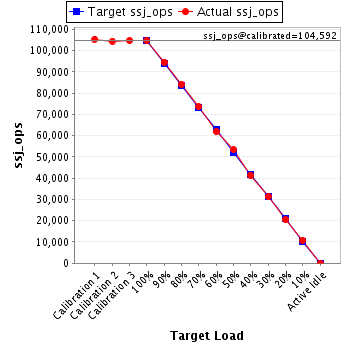

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,188
Calibration 2     103,684
Calibration 3     103,585
ssj_ops@calibrated=103,635
100% 100.4% 103,635 104,031
90% 89.5% 93,271 92,707
80% 80.0% 82,908 82,895
70% 70.9% 72,544 73,477
60% 59.6% 62,181 61,787
50% 49.9% 51,817 51,722
40% 39.8% 41,454 41,241
30% 29.8% 31,090 30,919
20% 19.7% 20,727 20,370
10% 9.7% 10,363 10,058
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,754
Calibration 2     102,822
Calibration 3     101,992
ssj_ops@calibrated=102,407
100% 100.1% 102,407 102,465
90% 89.9% 92,166 92,104
80% 79.7% 81,925 81,610
70% 69.5% 71,685 71,223
60% 60.7% 61,444 62,139
50% 49.7% 51,203 50,870
40% 40.0% 40,963 40,999
30% 29.9% 30,722 30,634
20% 19.9% 20,481 20,336
10% 10.0% 10,241 10,248
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,101
Calibration 2     106,908
Calibration 3     105,395
ssj_ops@calibrated=106,151
100% 100.5% 106,151 106,644
90% 90.4% 95,536 95,961
80% 80.7% 84,921 85,649
70% 70.6% 74,306 74,900
60% 60.4% 63,691 64,144
50% 50.1% 53,076 53,208
40% 40.2% 42,460 42,714
30% 29.9% 31,845 31,744
20% 19.9% 21,230 21,114
10% 9.7% 10,615 10,333
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,994
Calibration 2     103,031
Calibration 3     103,537
ssj_ops@calibrated=103,284
100% 99.7% 103,284 102,986
90% 90.6% 92,956 93,562
80% 80.7% 82,627 83,341
70% 69.6% 72,299 71,897
60% 59.5% 61,971 61,473
50% 50.6% 51,642 52,234
40% 39.6% 41,314 40,936
30% 29.9% 30,985 30,928
20% 19.7% 20,657 20,348
10% 10.6% 10,328 10,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

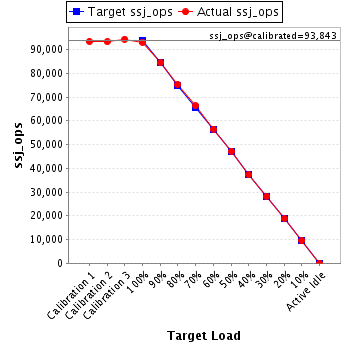

JVM 'WIN-D6UROU3FEIN.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,448
Calibration 2     93,309
Calibration 3     94,378
ssj_ops@calibrated=93,843
100% 99.2% 93,843 93,117
90% 90.0% 84,459 84,504
80% 80.3% 75,075 75,314
70% 70.7% 65,690 66,350
60% 60.3% 56,306 56,544
50% 50.3% 46,922 47,184
40% 39.7% 37,537 37,283
30% 30.1% 28,153 28,270
20% 20.0% 18,769 18,799
10% 10.1% 9,384 9,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,361
Calibration 2     104,203
Calibration 3     104,590
ssj_ops@calibrated=104,396
100% 100.0% 104,396 104,356
90% 90.3% 93,957 94,238
80% 79.2% 83,517 82,663
70% 70.8% 73,077 73,927
60% 60.5% 62,638 63,166
50% 49.3% 52,198 51,429
40% 40.1% 41,759 41,838
30% 30.3% 31,319 31,591
20% 20.3% 20,879 21,182
10% 10.2% 10,440 10,645
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,359
Calibration 2     104,376
Calibration 3     105,276
ssj_ops@calibrated=104,826
100% 99.6% 104,826 104,421
90% 90.1% 94,343 94,469
80% 79.9% 83,861 83,757
70% 68.7% 73,378 72,043
60% 60.6% 62,895 63,480
50% 49.9% 52,413 52,335
40% 40.1% 41,930 42,023
30% 30.2% 31,448 31,656
20% 20.2% 20,965 21,163
10% 9.9% 10,483 10,416
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,417
Calibration 2     102,370
Calibration 3     104,287
ssj_ops@calibrated=103,329
100% 99.8% 103,329 103,089
90% 90.5% 92,996 93,533
80% 79.2% 82,663 81,866
70% 68.9% 72,330 71,235
60% 60.3% 61,997 62,306
50% 49.9% 51,664 51,563
40% 40.2% 41,331 41,502
30% 30.3% 30,999 31,356
20% 19.9% 20,666 20,531
10% 10.0% 10,333 10,333
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,042
Calibration 2     103,385
Calibration 3     102,522
ssj_ops@calibrated=102,953
100% 99.8% 102,953 102,780
90% 90.4% 92,658 93,113
80% 79.5% 82,363 81,842
70% 69.2% 72,067 71,206
60% 59.8% 61,772 61,528
50% 49.9% 51,477 51,394
40% 39.9% 41,181 41,058
30% 30.3% 30,886 31,185
20% 20.5% 20,591 21,099
10% 10.2% 10,295 10,496
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,694
Calibration 2     104,872
Calibration 3     103,777
ssj_ops@calibrated=104,325
100% 100.3% 104,325 104,611
90% 89.0% 93,892 92,886
80% 80.3% 83,460 83,814
70% 71.0% 73,027 74,080
60% 59.3% 62,595 61,903
50% 49.9% 52,162 52,079
40% 41.1% 41,730 42,848
30% 29.6% 31,297 30,899
20% 19.9% 20,865 20,783
10% 9.9% 10,432 10,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,608
Calibration 2     103,300
Calibration 3     103,500
ssj_ops@calibrated=103,400
100% 99.2% 103,400 102,540
90% 89.8% 93,060 92,884
80% 80.3% 82,720 83,053
70% 69.9% 72,380 72,252
60% 60.1% 62,040 62,161
50% 49.6% 51,700 51,318
40% 40.1% 41,360 41,413
30% 30.4% 31,020 31,407
20% 19.3% 20,680 19,992
10% 10.0% 10,340 10,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,606
Calibration 2     93,689
Calibration 3     94,754
ssj_ops@calibrated=94,221
100% 100.8% 94,221 94,999
90% 89.9% 84,799 84,728
80% 79.6% 75,377 75,007
70% 69.6% 65,955 65,562
60% 59.8% 56,533 56,362
50% 50.1% 47,111 47,162
40% 40.5% 37,689 38,205
30% 30.0% 28,266 28,227
20% 20.0% 18,844 18,798
10% 10.0% 9,422 9,441
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,422
Calibration 2     104,183
Calibration 3     104,283
ssj_ops@calibrated=104,233
100% 100.6% 104,233 104,878
90% 90.2% 93,809 93,995
80% 79.3% 83,386 82,615
70% 69.1% 72,963 72,015
60% 60.8% 62,540 63,334
50% 50.2% 52,116 52,298
40% 40.2% 41,693 41,919
30% 30.2% 31,270 31,441
20% 20.4% 20,847 21,307
10% 9.6% 10,423 10,004
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,232
Calibration 2     101,746
Calibration 3     102,706
ssj_ops@calibrated=102,226
100% 98.8% 102,226 101,030
90% 90.3% 92,004 92,328
80% 79.8% 81,781 81,553
70% 69.7% 71,558 71,208
60% 60.2% 61,336 61,517
50% 49.2% 51,113 50,283
40% 40.1% 40,891 41,025
30% 29.5% 30,668 30,151
20% 20.1% 20,445 20,577
10% 10.0% 10,223 10,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,587
Calibration 2     103,758
Calibration 3     104,154
ssj_ops@calibrated=103,956
100% 100.6% 103,956 104,576
90% 89.9% 93,560 93,490
80% 79.7% 83,165 82,808
70% 71.6% 72,769 74,395
60% 60.6% 62,374 63,048
50% 50.2% 51,978 52,153
40% 39.4% 41,582 40,996
30% 30.3% 31,187 31,482
20% 20.3% 20,791 21,064
10% 9.9% 10,396 10,333
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,221
Calibration 2     103,608
Calibration 3     103,883
ssj_ops@calibrated=103,745
100% 100.4% 103,745 104,174
90% 90.4% 93,371 93,807
80% 79.7% 82,996 82,711
70% 69.9% 72,622 72,530
60% 59.5% 62,247 61,757
50% 49.8% 51,873 51,644
40% 40.1% 41,498 41,586
30% 30.0% 31,124 31,088
20% 20.5% 20,749 21,259
10% 10.1% 10,375 10,530
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,165
Calibration 2     103,874
Calibration 3     104,333
ssj_ops@calibrated=104,103
100% 99.9% 104,103 104,000
90% 91.1% 93,693 94,829
80% 79.2% 83,283 82,467
70% 69.7% 72,872 72,530
60% 60.1% 62,462 62,579
50% 49.5% 52,052 51,496
40% 39.7% 41,641 41,366
30% 30.0% 31,231 31,260
20% 20.0% 20,821 20,791
10% 10.0% 10,410 10,375
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,254
Calibration 2     102,132
Calibration 3     102,662
ssj_ops@calibrated=102,397
100% 99.0% 102,397 101,363
90% 91.4% 92,157 93,602
80% 80.0% 81,918 81,926
70% 69.3% 71,678 70,942
60% 60.6% 61,438 62,064
50% 51.0% 51,198 52,223
40% 39.9% 40,959 40,902
30% 30.1% 30,719 30,798
20% 20.1% 20,479 20,590
10% 10.0% 10,240 10,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,169
Calibration 2     104,426
Calibration 3     104,066
ssj_ops@calibrated=104,246
100% 100.5% 104,246 104,799
90% 90.4% 93,821 94,207
80% 81.2% 83,397 84,689
70% 69.3% 72,972 72,256
60% 59.7% 62,548 62,267
50% 49.8% 52,123 51,962
40% 39.3% 41,698 40,928
30% 30.1% 31,274 31,348
20% 20.1% 20,849 20,949
10% 10.1% 10,425 10,533
Active Idle   0 0

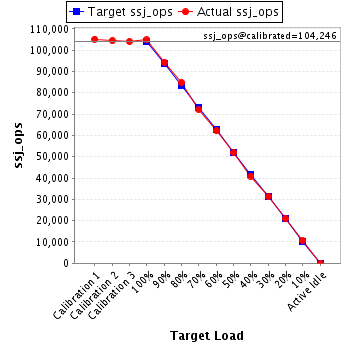

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,434
Calibration 2     102,619
Calibration 3     102,378
ssj_ops@calibrated=102,499
100% 99.6% 102,499 102,072
90% 90.3% 92,249 92,535
80% 79.4% 81,999 81,334
70% 70.3% 71,749 72,025
60% 59.9% 61,499 61,445
50% 50.4% 51,249 51,681
40% 39.7% 40,999 40,641
30% 30.5% 30,750 31,309
20% 19.9% 20,500 20,392
10% 9.8% 10,250 10,016
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,176
Calibration 2     103,617
Calibration 3     104,077
ssj_ops@calibrated=103,847
100% 99.2% 103,847 103,031
90% 89.7% 93,462 93,102
80% 79.8% 83,078 82,836
70% 70.3% 72,693 72,997
60% 59.2% 62,308 61,479
50% 49.8% 51,924 51,744
40% 40.1% 41,539 41,596
30% 29.7% 31,154 30,798
20% 20.2% 20,769 21,000
10% 10.2% 10,385 10,587
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,754
Calibration 2     104,030
Calibration 3     103,972
ssj_ops@calibrated=104,001
100% 99.4% 104,001 103,357
90% 90.0% 93,601 93,626
80% 78.4% 83,201 81,514
70% 68.9% 72,801 71,677
60% 59.5% 62,401 61,884
50% 50.3% 52,001 52,343
40% 41.0% 41,600 42,639
30% 29.4% 31,200 30,570
20% 20.2% 20,800 21,001
10% 9.8% 10,400 10,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,111
Calibration 2     102,635
Calibration 3     102,733
ssj_ops@calibrated=102,684
100% 99.9% 102,684 102,574
90% 90.0% 92,415 92,443
80% 80.2% 82,147 82,325
70% 70.4% 71,879 72,258
60% 61.2% 61,610 62,893
50% 49.9% 51,342 51,280
40% 40.0% 41,074 41,099
30% 29.9% 30,805 30,675
20% 19.5% 20,537 19,987
10% 9.9% 10,268 10,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,895
Calibration 2     103,775
Calibration 3     103,643
ssj_ops@calibrated=103,709
100% 99.7% 103,709 103,405
90% 90.6% 93,338 93,935
80% 80.2% 82,967 83,193
70% 69.5% 72,596 72,031
60% 60.2% 62,226 62,473
50% 50.0% 51,855 51,868
40% 40.0% 41,484 41,470
30% 29.4% 31,113 30,523
20% 19.8% 20,742 20,541
10% 10.0% 10,371 10,337
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,132
Calibration 2     105,700
Calibration 3     105,535
ssj_ops@calibrated=105,618
100% 99.7% 105,618 105,258
90% 90.1% 95,056 95,114
80% 80.1% 84,494 84,643
70% 69.9% 73,932 73,782
60% 59.4% 63,371 62,705
50% 49.7% 52,809 52,490
40% 40.9% 42,247 43,247
30% 29.2% 31,685 30,805
20% 19.9% 21,124 20,990
10% 10.1% 10,562 10,712
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,857
Calibration 2     104,224
Calibration 3     104,025
ssj_ops@calibrated=104,125
100% 99.1% 104,125 103,233
90% 90.0% 93,712 93,718
80% 78.9% 83,300 82,143
70% 70.2% 72,887 73,080
60% 60.0% 62,475 62,451
50% 49.3% 52,062 51,375
40% 40.3% 41,650 42,008
30% 30.1% 31,237 31,372
20% 20.1% 20,825 20,917
10% 10.1% 10,412 10,481
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,217
Calibration 2     102,239
Calibration 3     103,006
ssj_ops@calibrated=102,622
100% 100.1% 102,622 102,687
90% 89.9% 92,360 92,229
80% 80.1% 82,098 82,157
70% 69.7% 71,836 71,529
60% 60.4% 61,573 61,973
50% 50.2% 51,311 51,482
40% 39.5% 41,049 40,562
30% 30.9% 30,787 31,663
20% 20.0% 20,524 20,537
10% 9.8% 10,262 10,061
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,128
Calibration 2     104,106
Calibration 3     103,703
ssj_ops@calibrated=103,904
100% 99.0% 103,904 102,828
90% 90.2% 93,514 93,673
80% 80.0% 83,123 83,143
70% 69.8% 72,733 72,558
60% 59.2% 62,343 61,540
50% 49.6% 51,952 51,529
40% 39.3% 41,562 40,787
30% 29.9% 31,171 31,038
20% 20.1% 20,781 20,908
10% 10.1% 10,390 10,541
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-D6UROU3FEIN.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,728
Calibration 2     103,297
Calibration 3     103,643
ssj_ops@calibrated=103,470
100% 100.1% 103,470 103,591
90% 90.0% 93,123 93,136
80% 80.1% 82,776 82,835
70% 70.1% 72,429 72,483
60% 60.8% 62,082 62,911
50% 50.3% 51,735 52,005
40% 39.6% 41,388 41,024
30% 30.3% 31,041 31,328
20% 20.3% 20,694 20,960
10% 10.4% 10,347 10,716
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
