Lenovo Global Technology ThinkSystem SR850 SPECpower_ssj2008 = 13,010 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Taipei, Taiwan Test Date: Sep 26, 2017
Hardware Availability: Aug-2017 Software Availability: Sep-2017 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 98.2% 10,052,756 688 14,617
90% 90.5% 9,263,423 614 15,079
80% 80.0% 8,194,534 532 15,399
70% 70.0% 7,163,627 467 15,354
60% 60.0% 6,146,537 416 14,780
50% 50.0% 5,119,675 374 13,693
40% 40.0% 4,096,209 337 12,151
30% 29.9% 3,065,282 301 10,177
20% 20.0% 2,051,162 266 7,718
10% 10.0% 1,022,957 228 4,495
Active Idle 0 95.8 0
∑ssj_ops / ∑power = 13,010

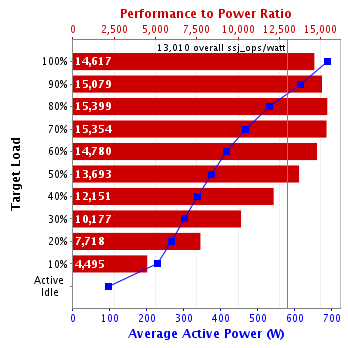

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: The machine type of the SUT is 7X19.
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR850
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176 CPU 2.10 GHz (Intel Turbo Boost Technology up to 2.80 GHz)
CPU Characteristics: 28 core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 2Rx8 PC4-2666V-R; Slots 1, 3, 5, 8, 10, 12, 13, 15, 17, 20, 22, 24, 25, 27, 29, 32, 34, 36, 37, 39, 41, 44, 46, and 48 populated.
Power Supply Quantity and Rating (W): 1 x 1100
Power Supply Details: Lenovo P/N:7N67A00885
Disk Drive: 1 x 32 GB M.2 SSD (Lenovo P/N: 7N47A00129)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1Gb 2-Port RJ45 LOM (Lenovo P/N: 7ZT7A00544)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Lenovo Power Plan V1.0 for Windows Server 2012 R2 in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Standard
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,4,6] /AFFINITY [3, C, 30, C0, C000, 30000, C0000, 30000000, C0000000, 300000000, C00000000, C0000000000, 300000000000, C00000000000]; start /NODE [1,3,5,7] /AFFINITY [3, C, 30, 3000, C000, 30000, C0000, 30000000, C0000000, 300000000, 30000000000, C0000000000, 300000000000, C00000000000]
JVM Instances: 112
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: TEE113Z
Management Firmware Version: TEI307L
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x iDataPlex dx320 Server
CPU Description: Intel Xeon CPU L5420
Memory amount (GB): 24
Software
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise Edition
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build pwa6460sr5-20090529_04(SR5))
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa, Inc.
Model: WT210
Serial Number: 91H245649
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 17-07-BAC-121-03
Date of Calibration: 9-Jul-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 688 22.9
90% 614 22.9
80% 532 22.9
70% 467 23.0
60% 416 23.0
50% 374 23.0
40% 337 23.0
30% 301 22.9
20% 266 22.9
10% 228 22.9
Active Idle 95.8 22.8
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 22.8 63
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,404,685
Calibration 2     10,217,026
Calibration 3     10,259,059
ssj_ops@calibrated=10,238,042
100% 98.2% 10,238,042 10,052,756
90% 90.5% 9,214,238 9,263,423
80% 80.0% 8,190,434 8,194,534
70% 70.0% 7,166,629 7,163,627
60% 60.0% 6,142,825 6,146,537
50% 50.0% 5,119,021 5,119,675
40% 40.0% 4,095,217 4,096,209
30% 29.9% 3,071,413 3,065,282
20% 20.0% 2,047,608 2,051,162
10% 10.0% 1,023,804 1,022,957
Active Idle   0 0
Graph of results
