Hewlett Packard Enterprise ProLiant DL360 Gen10 | SPECpower_ssj2008 = 11,550 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Oct 23, 2017 |
Hardware Availability: | Oct-2017 | Software Availability: | Apr-2015 | Publication: | Nov 8, 2017 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

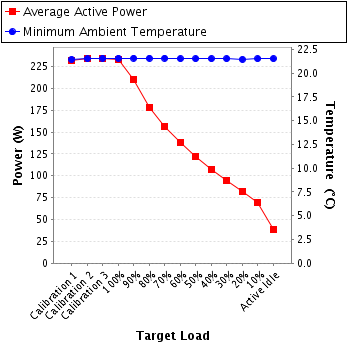

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 232 | 21.4 |
Calibration 2 | 234 | 21.5 |
Calibration 3 | 234 | 21.6 |
100% | 233 | 21.6 |
90% | 210 | 21.6 |
80% | 178 | 21.6 |
70% | 156 | 21.6 |
60% | 138 | 21.5 |
50% | 121 | 21.5 |
40% | 107 | 21.5 |
30% | 94.6 | 21.5 |
20% | 82.2 | 21.4 |
10% | 68.9 | 21.5 |
Active Idle | 38.7 | 21.5 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT310E |
Serial Number: | C2QM22001V |
Connectivity: | Yokogawa USB |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | Transcat |
Calibration Label: | 5-D40W6-20-1 |
Date of Calibration: | 21-Jun-2017 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | Connected to SUT Power Supply 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 213 | 300.0 | 1.11 | 2.0 | 0.982 | 232 | 0.4% |
Calibration 2 | 213 | 300.0 | 1.12 | 2.0 | 0.982 | 234 | 0.4% |
Calibration 3 | 213 | 300.0 | 1.12 | 2.0 | 0.982 | 234 | 0.4% |
100% | 213 | 300.0 | 1.11 | 2.0 | 0.982 | 233 | 0.4% |
90% | 213 | 300.0 | 1.01 | 2.0 | 0.977 | 210 | 0.4% |
80% | 213 | 300.0 | 0.860 | 1.0 | 0.970 | 178 | 0.3% |
70% | 213 | 300.0 | 0.760 | 1.0 | 0.963 | 156 | 0.3% |
60% | 213 | 300.0 | 0.678 | 1.0 | 0.954 | 138 | 0.4% |
50% | 213 | 300.0 | 0.603 | 1.0 | 0.944 | 121 | 0.4% |
40% | 213 | 300.0 | 0.541 | 1.0 | 0.932 | 107 | 0.4% |
30% | 213 | 300.0 | 0.485 | 0.5 | 0.915 | 94.6 | 0.3% |
20% | 214 | 300.0 | 0.430 | 0.5 | 0.896 | 82.2 | 0.4% |
10% | 214 | 300.0 | 0.374 | 0.5 | 0.863 | 68.9 | 0.4% |
Active Idle | 213 | 300.0 | 0.265 | 0.5 | 0.686 | 38.7 | 0.6% |
