Sugon I620-G30 (Intel Xeon Platinum 8180) ssj_ops@100% = 5,741,928
ssj_ops@100% per JVM = 102,534
Test Sponsor: Sugon SPEC License #: 9046 Test Method: Single Node
Tested By: Sugon Test Location: Beijing, CHN Test Date: May 25, 2018
Hardware Availability: Feb-2018 Software Availability: Jan-2018 Publication: Aug 15, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,859,212
Calibration 2     5,841,328
Calibration 3     5,837,445
ssj_ops@calibrated=5,839,386
100% 98.3% 5,839,386 5,741,928
90% 89.8% 5,255,448 5,246,453
80% 79.9% 4,671,509 4,662,967
70% 69.9% 4,087,570 4,083,852
60% 60.0% 3,503,632 3,503,550
50% 50.1% 2,919,693 2,926,414
40% 39.9% 2,335,755 2,331,208
30% 30.0% 1,751,816 1,751,710
20% 20.0% 1,167,877 1,167,464
10% 10.0% 583,939 586,100
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Sugon
Model: I620-G30 (Intel Xeon Platinum 8180)
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8180
CPU Characteristics: 28-Core, 2.5GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-R(P/N:M393A2K43CB2-CTD6Q); slots DIMM_CPU[0-1]_[A-F]0 populated
Power Supply Quantity and Rating (W): 1 x 550
Power Supply Details: ARTESYN 550W PSU(P/N:CSU550AP-3-200)
Disk Drive: 1 x 120GB M.2 SATA SSD(P/N:SU120GBSS3M55M28NE)
Disk Controller: Integrated onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Integrated onboard Ethernet 1Gb with 2-port RJ45 Adapter
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: JGS012
Management Firmware Version: Ver 0.70
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-TNLGK16A38D.001 102,476
WIN-TNLGK16A38D.002 101,687
WIN-TNLGK16A38D.003 103,810
WIN-TNLGK16A38D.004 104,187
WIN-TNLGK16A38D.005 101,045
WIN-TNLGK16A38D.006 103,875
WIN-TNLGK16A38D.007 104,331
WIN-TNLGK16A38D.008 99,529
WIN-TNLGK16A38D.009 103,893
WIN-TNLGK16A38D.010 99,923
WIN-TNLGK16A38D.011 100,862
WIN-TNLGK16A38D.012 101,918
WIN-TNLGK16A38D.013 102,273
WIN-TNLGK16A38D.014 103,507
WIN-TNLGK16A38D.015 102,343
WIN-TNLGK16A38D.016 103,737
WIN-TNLGK16A38D.017 103,998
WIN-TNLGK16A38D.018 105,383
WIN-TNLGK16A38D.019 101,881
WIN-TNLGK16A38D.020 101,395
WIN-TNLGK16A38D.021 102,348
WIN-TNLGK16A38D.022 102,047
WIN-TNLGK16A38D.023 103,829
WIN-TNLGK16A38D.024 102,415
WIN-TNLGK16A38D.025 103,417
WIN-TNLGK16A38D.026 103,715
WIN-TNLGK16A38D.027 102,554
WIN-TNLGK16A38D.028 101,480
WIN-TNLGK16A38D.029 103,612
WIN-TNLGK16A38D.030 102,287
WIN-TNLGK16A38D.031 101,617
WIN-TNLGK16A38D.032 101,520
WIN-TNLGK16A38D.033 103,562
WIN-TNLGK16A38D.034 100,235
WIN-TNLGK16A38D.035 103,393
WIN-TNLGK16A38D.036 102,043
WIN-TNLGK16A38D.037 102,867
WIN-TNLGK16A38D.038 102,043
WIN-TNLGK16A38D.039 102,801
WIN-TNLGK16A38D.040 101,911
WIN-TNLGK16A38D.041 104,597
WIN-TNLGK16A38D.042 101,898
WIN-TNLGK16A38D.043 101,461
WIN-TNLGK16A38D.044 103,660
WIN-TNLGK16A38D.045 101,748
WIN-TNLGK16A38D.046 102,641
WIN-TNLGK16A38D.047 101,606
WIN-TNLGK16A38D.048 102,256
WIN-TNLGK16A38D.049 104,163
WIN-TNLGK16A38D.050 101,803
WIN-TNLGK16A38D.051 102,527
WIN-TNLGK16A38D.052 102,461
WIN-TNLGK16A38D.053 101,299
WIN-TNLGK16A38D.054 102,653
WIN-TNLGK16A38D.055 103,337
WIN-TNLGK16A38D.056 102,073
ssj_ops@100% 5,741,928
ssj_ops@100% per JVM 102,534

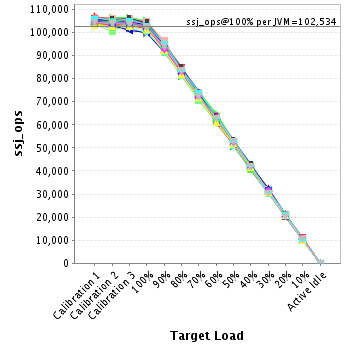

Graph of per-instance results
JVM 'WIN-TNLGK16A38D.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,421
Calibration 2     104,036
Calibration 3     104,255
ssj_ops@calibrated=104,145
100% 98.4% 104,145 102,476
90% 89.7% 93,731 93,453
80% 79.1% 83,316 82,364
70% 69.2% 72,902 72,083
60% 59.3% 62,487 61,800
50% 50.1% 52,073 52,178
40% 39.7% 41,658 41,299
30% 29.9% 31,244 31,189
20% 20.3% 20,829 21,162
10% 9.8% 10,415 10,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,223
Calibration 2     103,505
Calibration 3     103,785
ssj_ops@calibrated=103,645
100% 98.1% 103,645 101,687
90% 89.8% 93,280 93,078
80% 80.7% 82,916 83,648
70% 69.5% 72,551 72,036
60% 59.7% 62,187 61,898
50% 50.6% 51,822 52,447
40% 40.0% 41,458 41,455
30% 30.4% 31,093 31,493
20% 19.8% 20,729 20,504
10% 9.9% 10,364 10,221
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,045
Calibration 2     104,883
Calibration 3     104,893
ssj_ops@calibrated=104,888
100% 99.0% 104,888 103,810
90% 89.8% 94,399 94,175
80% 80.4% 83,911 84,285
70% 69.7% 73,422 73,057
60% 60.2% 62,933 63,096
50% 49.5% 52,444 51,920
40% 39.6% 41,955 41,515
30% 29.5% 31,466 30,928
20% 20.0% 20,978 21,026
10% 10.0% 10,489 10,492
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,621
Calibration 2     106,077
Calibration 3     105,889
ssj_ops@calibrated=105,983
100% 98.3% 105,983 104,187
90% 89.1% 95,385 94,435
80% 78.9% 84,787 83,672
70% 69.5% 74,188 73,632
60% 60.2% 63,590 63,786
50% 49.3% 52,992 52,236
40% 39.2% 42,393 41,519
30% 30.1% 31,795 31,940
20% 20.0% 21,197 21,247
10% 9.8% 10,598 10,366
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,949
Calibration 2     103,009
Calibration 3     103,339
ssj_ops@calibrated=103,174
100% 97.9% 103,174 101,045
90% 90.3% 92,857 93,128
80% 79.4% 82,539 81,870
70% 70.2% 72,222 72,429
60% 59.9% 61,904 61,806
50% 50.4% 51,587 51,975
40% 40.6% 41,270 41,896
30% 30.0% 30,952 30,927
20% 20.2% 20,635 20,856
10% 10.0% 10,317 10,358
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,967
Calibration 2     105,492
Calibration 3     105,394
ssj_ops@calibrated=105,443
100% 98.5% 105,443 103,875
90% 89.5% 94,899 94,419
80% 80.1% 84,355 84,436
70% 69.6% 73,810 73,427
60% 59.5% 63,266 62,768
50% 49.6% 52,722 52,302
40% 40.3% 42,177 42,506
30% 29.9% 31,633 31,514
20% 19.7% 21,089 20,824
10% 10.4% 10,544 10,943
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,199
Calibration 2     106,585
Calibration 3     106,697
ssj_ops@calibrated=106,641
100% 97.8% 106,641 104,331
90% 89.2% 95,977 95,112
80% 79.8% 85,313 85,142
70% 69.7% 74,649 74,284
60% 60.2% 63,985 64,188
50% 50.4% 53,321 53,694
40% 39.4% 42,656 42,059
30% 30.0% 31,992 31,963
20% 20.2% 21,328 21,492
10% 10.0% 10,664 10,678
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,994
Calibration 2     102,376
Calibration 3     101,926
ssj_ops@calibrated=102,151
100% 97.4% 102,151 99,529
90% 90.1% 91,936 92,042
80% 79.4% 81,721 81,117
70% 70.6% 71,506 72,086
60% 61.1% 61,291 62,461
50% 50.5% 51,076 51,629
40% 40.5% 40,860 41,333
30% 30.3% 30,645 30,902
20% 19.8% 20,430 20,223
10% 9.8% 10,215 10,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,348
Calibration 2     105,990
Calibration 3     105,947
ssj_ops@calibrated=105,968
100% 98.0% 105,968 103,893
90% 89.7% 95,372 95,014
80% 78.7% 84,775 83,405
70% 70.0% 74,178 74,165
60% 60.0% 63,581 63,582
50% 50.3% 52,984 53,339
40% 39.8% 42,387 42,170
30% 30.0% 31,791 31,790
20% 19.8% 21,194 20,992
10% 9.8% 10,597 10,375
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,374
Calibration 2     102,959
Calibration 3     100,920
ssj_ops@calibrated=101,939
100% 98.0% 101,939 99,923
90% 89.5% 91,746 91,211
80% 80.5% 81,552 82,095
70% 70.3% 71,358 71,674
60% 60.4% 61,164 61,598
50% 50.0% 50,970 50,970
40% 39.9% 40,776 40,645
30% 29.7% 30,582 30,269
20% 19.9% 20,388 20,299
10% 10.2% 10,194 10,408
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,110
Calibration 2     103,855
Calibration 3     103,491
ssj_ops@calibrated=103,673
100% 97.3% 103,673 100,862
90% 89.6% 93,306 92,924
80% 80.9% 82,939 83,850
70% 69.5% 72,571 72,076
60% 60.7% 62,204 62,927
50% 49.9% 51,837 51,733
40% 39.9% 41,469 41,396
30% 29.9% 31,102 30,987
20% 19.8% 20,735 20,540
10% 10.1% 10,367 10,482
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

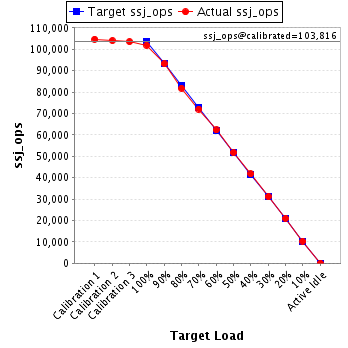

JVM 'WIN-TNLGK16A38D.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,774
Calibration 2     104,081
Calibration 3     103,552
ssj_ops@calibrated=103,816
100% 98.2% 103,816 101,918
90% 89.8% 93,435 93,203
80% 78.9% 83,053 81,868
70% 69.5% 72,671 72,111
60% 60.0% 62,290 62,334
50% 49.9% 51,908 51,803
40% 40.2% 41,526 41,753
30% 30.0% 31,145 31,157
20% 20.3% 20,763 21,036
10% 10.0% 10,382 10,346
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,237
Calibration 2     104,534
Calibration 3     104,896
ssj_ops@calibrated=104,715
100% 97.7% 104,715 102,273
90% 90.4% 94,243 94,684
80% 80.3% 83,772 84,138
70% 70.3% 73,300 73,567
60% 60.0% 62,829 62,792
50% 50.4% 52,357 52,729
40% 40.1% 41,886 41,982
30% 30.5% 31,414 31,957
20% 20.2% 20,943 21,154
10% 9.6% 10,471 10,010
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,978
Calibration 2     104,663
Calibration 3     104,875
ssj_ops@calibrated=104,769
100% 98.8% 104,769 103,507
90% 89.6% 94,292 93,881
80% 80.3% 83,815 84,175
70% 69.9% 73,338 73,237
60% 60.1% 62,861 62,927
50% 50.4% 52,384 52,783
40% 40.2% 41,907 42,129
30% 30.0% 31,431 31,382
20% 20.1% 20,954 21,049
10% 10.2% 10,477 10,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,731
Calibration 2     104,172
Calibration 3     104,159
ssj_ops@calibrated=104,166
100% 98.2% 104,166 102,343
90% 89.7% 93,749 93,484
80% 79.5% 83,333 82,766
70% 69.3% 72,916 72,145
60% 60.1% 62,499 62,623
50% 49.9% 52,083 52,005
40% 39.6% 41,666 41,202
30% 30.0% 31,250 31,259
20% 20.1% 20,833 20,911
10% 10.3% 10,417 10,762
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,977
Calibration 2     104,704
Calibration 3     105,170
ssj_ops@calibrated=104,937
100% 98.9% 104,937 103,737
90% 90.4% 94,443 94,889
80% 81.0% 83,950 85,017
70% 70.0% 73,456 73,479
60% 60.5% 62,962 63,446
50% 50.1% 52,468 52,566
40% 40.2% 41,975 42,199
30% 30.2% 31,481 31,701
20% 20.0% 20,987 20,982
10% 10.5% 10,494 11,016
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,388
Calibration 2     106,119
Calibration 3     105,890
ssj_ops@calibrated=106,005
100% 98.1% 106,005 103,998
90% 89.9% 95,404 95,276
80% 79.7% 84,804 84,474
70% 70.6% 74,203 74,863
60% 59.5% 63,603 63,113
50% 50.0% 53,002 53,020
40% 40.8% 42,402 43,249
30% 29.7% 31,801 31,464
20% 20.1% 21,201 21,321
10% 10.2% 10,600 10,804
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,389
Calibration 2     106,431
Calibration 3     106,696
ssj_ops@calibrated=106,563
100% 98.9% 106,563 105,383
90% 89.0% 95,907 94,816
80% 78.9% 85,251 84,029
70% 69.9% 74,594 74,497
60% 61.0% 63,938 65,038
50% 50.0% 53,282 53,323
40% 40.0% 42,625 42,613
30% 30.0% 31,969 32,005
20% 20.4% 21,313 21,732
10% 10.1% 10,656 10,717
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,727
Calibration 2     103,544
Calibration 3     103,407
ssj_ops@calibrated=103,475
100% 98.5% 103,475 101,881
90% 89.8% 93,128 92,883
80% 80.2% 82,780 83,013
70% 69.5% 72,433 71,918
60% 59.8% 62,085 61,845
50% 49.7% 51,738 51,415
40% 39.8% 41,390 41,175
30% 29.6% 31,043 30,675
20% 19.8% 20,695 20,537
10% 10.2% 10,348 10,533
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,321
Calibration 2     102,560
Calibration 3     102,551
ssj_ops@calibrated=102,556
100% 98.9% 102,556 101,395
90% 89.1% 92,300 91,346
80% 79.9% 82,044 81,979
70% 70.4% 71,789 72,226
60% 61.1% 61,533 62,677
50% 50.4% 51,278 51,737
40% 40.1% 41,022 41,091
30% 30.1% 30,767 30,880
20% 19.8% 20,511 20,316
10% 10.3% 10,256 10,562
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,698
Calibration 2     104,195
Calibration 3     103,461
ssj_ops@calibrated=103,828
100% 98.6% 103,828 102,348
90% 90.1% 93,445 93,563
80% 80.7% 83,063 83,836
70% 70.2% 72,680 72,911
60% 59.5% 62,297 61,735
50% 49.6% 51,914 51,478
40% 39.3% 41,531 40,753
30% 30.7% 31,148 31,874
20% 19.9% 20,766 20,635
10% 9.6% 10,383 9,979
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,610
Calibration 2     104,307
Calibration 3     103,991
ssj_ops@calibrated=104,149
100% 98.0% 104,149 102,047
90% 89.8% 93,734 93,546
80% 79.3% 83,319 82,592
70% 70.1% 72,904 73,029
60% 59.5% 62,489 61,995
50% 49.2% 52,075 51,260
40% 40.3% 41,660 42,009
30% 29.9% 31,245 31,125
20% 19.5% 20,830 20,348
10% 10.1% 10,415 10,512
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,025
Calibration 2     105,541
Calibration 3     105,388
ssj_ops@calibrated=105,464
100% 98.4% 105,464 103,829
90% 90.4% 94,918 95,366
80% 80.1% 84,371 84,519
70% 70.0% 73,825 73,794
60% 59.9% 63,279 63,171
50% 50.1% 52,732 52,796
40% 40.1% 42,186 42,249
30% 30.7% 31,639 32,429
20% 20.0% 21,093 21,083
10% 10.3% 10,546 10,819
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,001
Calibration 2     103,639
Calibration 3     103,715
ssj_ops@calibrated=103,677
100% 98.8% 103,677 102,415
90% 90.0% 93,309 93,302
80% 79.6% 82,942 82,517
70% 69.3% 72,574 71,847
60% 60.2% 62,206 62,380
50% 50.3% 51,838 52,178
40% 40.6% 41,471 42,052
30% 30.5% 31,103 31,598
20% 20.0% 20,735 20,720
10% 10.2% 10,368 10,526
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,070
Calibration 2     104,829
Calibration 3     104,934
ssj_ops@calibrated=104,881
100% 98.6% 104,881 103,417
90% 90.3% 94,393 94,747
80% 80.3% 83,905 84,181
70% 70.2% 73,417 73,600
60% 59.5% 62,929 62,375
50% 50.0% 52,441 52,473
40% 40.0% 41,952 41,927
30% 29.7% 31,464 31,161
20% 19.6% 20,976 20,591
10% 9.8% 10,488 10,318
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,433
Calibration 2     104,925
Calibration 3     104,949
ssj_ops@calibrated=104,937
100% 98.8% 104,937 103,715
90% 90.3% 94,443 94,734
80% 79.9% 83,950 83,889
70% 69.6% 73,456 73,061
60% 60.1% 62,962 63,026
50% 49.8% 52,468 52,296
40% 39.4% 41,975 41,358
30% 29.7% 31,481 31,198
20% 19.9% 20,987 20,920
10% 10.1% 10,494 10,616
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,092
Calibration 2     104,763
Calibration 3     104,408
ssj_ops@calibrated=104,585
100% 98.1% 104,585 102,554
90% 88.5% 94,127 92,573
80% 80.2% 83,668 83,904
70% 70.3% 73,210 73,563
60% 60.1% 62,751 62,864
50% 49.3% 52,293 51,537
40% 40.0% 41,834 41,803
30% 30.0% 31,376 31,422
20% 19.5% 20,917 20,360
10% 10.0% 10,459 10,504
Active Idle   0 0

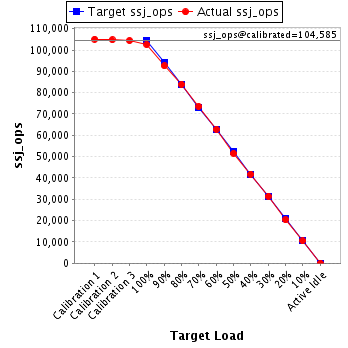

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,612
Calibration 2     104,039
Calibration 3     103,075
ssj_ops@calibrated=103,557
100% 98.0% 103,557 101,480
90% 88.6% 93,201 91,761
80% 79.3% 82,845 82,100
70% 70.6% 72,490 73,137
60% 60.5% 62,134 62,620
50% 49.0% 51,778 50,754
40% 40.4% 41,423 41,867
30% 29.9% 31,067 30,960
20% 19.9% 20,711 20,566
10% 10.2% 10,356 10,599
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,480
Calibration 2     105,972
Calibration 3     105,079
ssj_ops@calibrated=105,526
100% 98.2% 105,526 103,612
90% 90.7% 94,973 95,731
80% 79.6% 84,420 84,048
70% 69.5% 73,868 73,335
60% 59.6% 63,315 62,912
50% 50.0% 52,763 52,797
40% 39.8% 42,210 41,997
30% 30.0% 31,658 31,659
20% 19.9% 21,105 21,020
10% 9.8% 10,553 10,339
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,785
Calibration 2     103,659
Calibration 3     103,882
ssj_ops@calibrated=103,770
100% 98.6% 103,770 102,287
90% 90.5% 93,393 93,941
80% 80.8% 83,016 83,848
70% 69.2% 72,639 71,843
60% 59.1% 62,262 61,325
50% 50.2% 51,885 52,098
40% 40.4% 41,508 41,885
30% 30.1% 31,131 31,230
20% 20.3% 20,754 21,056
10% 10.1% 10,377 10,437
Active Idle   0 0

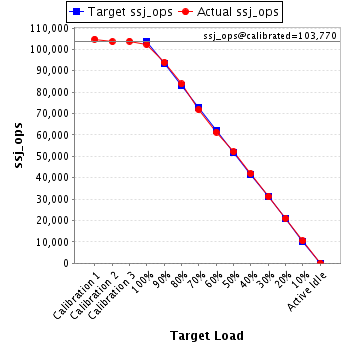

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,515
Calibration 2     100,448
Calibration 3     103,374
ssj_ops@calibrated=101,911
100% 99.7% 101,911 101,617
90% 89.5% 91,720 91,234
80% 79.7% 81,529 81,262
70% 69.2% 71,338 70,555
60% 59.9% 61,147 61,034
50% 49.9% 50,956 50,857
40% 39.8% 40,764 40,516
30% 29.6% 30,573 30,154
20% 19.9% 20,382 20,256
10% 10.0% 10,191 10,160
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,860
Calibration 2     102,671
Calibration 3     103,470
ssj_ops@calibrated=103,071
100% 98.5% 103,071 101,520
90% 89.8% 92,764 92,516
80% 80.5% 82,457 83,020
70% 70.5% 72,150 72,670
60% 60.1% 61,843 61,934
50% 51.1% 51,535 52,659
40% 40.2% 41,228 41,420
30% 30.7% 30,921 31,654
20% 19.9% 20,614 20,549
10% 10.1% 10,307 10,424
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,082
Calibration 2     104,608
Calibration 3     104,883
ssj_ops@calibrated=104,745
100% 98.9% 104,745 103,562
90% 90.8% 94,271 95,135
80% 79.6% 83,796 83,355
70% 70.3% 73,322 73,605
60% 60.7% 62,847 63,529
50% 50.8% 52,373 53,162
40% 39.7% 41,898 41,537
30% 30.5% 31,424 31,978
20% 20.0% 20,949 20,970
10% 10.2% 10,475 10,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,034
Calibration 2     103,063
Calibration 3     102,106
ssj_ops@calibrated=102,585
100% 97.7% 102,585 100,235
90% 90.1% 92,326 92,453
80% 80.8% 82,068 82,903
70% 70.3% 71,809 72,095
60% 59.1% 61,551 60,629
50% 49.8% 51,292 51,138
40% 39.8% 41,034 40,860
30% 30.0% 30,775 30,784
20% 20.2% 20,517 20,749
10% 10.1% 10,258 10,316
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,895
Calibration 2     104,739
Calibration 3     104,872
ssj_ops@calibrated=104,805
100% 98.7% 104,805 103,393
90% 89.3% 94,325 93,554
80% 79.8% 83,844 83,625
70% 70.8% 73,364 74,246
60% 59.8% 62,883 62,630
50% 50.1% 52,403 52,488
40% 39.7% 41,922 41,608
30% 30.0% 31,442 31,403
20% 19.6% 20,961 20,527
10% 10.1% 10,481 10,616
Active Idle   0 0

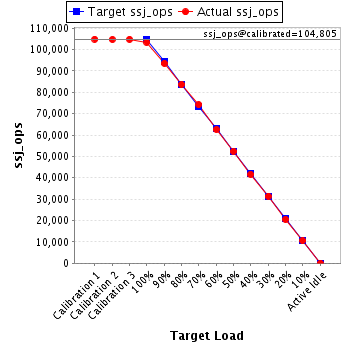

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,654
Calibration 2     103,967
Calibration 3     103,405
ssj_ops@calibrated=103,686
100% 98.4% 103,686 102,043
90% 89.0% 93,317 92,297
80% 79.5% 82,949 82,421
70% 69.8% 72,580 72,352
60% 61.1% 62,212 63,302
50% 50.4% 51,843 52,220
40% 39.5% 41,474 41,001
30% 30.4% 31,106 31,555
20% 20.6% 20,737 21,349
10% 9.9% 10,369 10,223
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,561
Calibration 2     105,088
Calibration 3     104,567
ssj_ops@calibrated=104,828
100% 98.1% 104,828 102,867
90% 89.2% 94,345 93,483
80% 79.4% 83,862 83,273
70% 70.5% 73,379 73,880
60% 59.4% 62,897 62,246
50% 50.8% 52,414 53,247
40% 39.2% 41,931 41,113
30% 29.2% 31,448 30,584
20% 20.1% 20,966 21,032
10% 10.0% 10,483 10,455
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,518
Calibration 2     103,668
Calibration 3     103,703
ssj_ops@calibrated=103,686
100% 98.4% 103,686 102,043
90% 89.8% 93,317 93,094
80% 80.4% 82,948 83,325
70% 69.9% 72,580 72,510
60% 59.6% 62,211 61,766
50% 51.3% 51,843 53,209
40% 39.9% 41,474 41,404
30% 30.6% 31,106 31,711
20% 20.0% 20,737 20,725
10% 10.4% 10,369 10,804
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,729
Calibration 2     104,781
Calibration 3     104,936
ssj_ops@calibrated=104,859
100% 98.0% 104,859 102,801
90% 90.0% 94,373 94,402
80% 79.2% 83,887 83,063
70% 69.9% 73,401 73,278
60% 61.1% 62,915 64,048
50% 50.1% 52,429 52,504
40% 39.8% 41,943 41,716
30% 30.1% 31,458 31,512
20% 20.1% 20,972 21,127
10% 10.1% 10,486 10,582
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,771
Calibration 2     103,981
Calibration 3     103,096
ssj_ops@calibrated=103,538
100% 98.4% 103,538 101,911
90% 89.7% 93,185 92,898
80% 78.8% 82,831 81,549
70% 69.7% 72,477 72,153
60% 60.2% 62,123 62,341
50% 50.3% 51,769 52,119
40% 39.8% 41,415 41,237
30% 30.0% 31,062 31,039
20% 19.7% 20,708 20,432
10% 9.9% 10,354 10,205
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,418
Calibration 2     106,068
Calibration 3     106,132
ssj_ops@calibrated=106,100
100% 98.6% 106,100 104,597
90% 91.0% 95,490 96,581
80% 79.0% 84,880 83,845
70% 69.9% 74,270 74,130
60% 59.6% 63,660 63,232
50% 49.4% 53,050 52,466
40% 39.9% 42,440 42,297
30% 29.9% 31,830 31,744
20% 20.0% 21,220 21,267
10% 10.1% 10,610 10,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,574
Calibration 2     104,225
Calibration 3     104,107
ssj_ops@calibrated=104,166
100% 97.8% 104,166 101,898
90% 90.5% 93,750 94,249
80% 79.4% 83,333 82,715
70% 69.9% 72,916 72,803
60% 59.9% 62,500 62,438
50% 50.5% 52,083 52,613
40% 39.2% 41,666 40,800
30% 30.3% 31,250 31,549
20% 20.1% 20,833 20,981
10% 10.1% 10,417 10,493
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,680
Calibration 2     103,986
Calibration 3     103,599
ssj_ops@calibrated=103,793
100% 97.8% 103,793 101,461
90% 90.7% 93,413 94,111
80% 80.5% 83,034 83,576
70% 69.9% 72,655 72,588
60% 60.5% 62,276 62,791
50% 50.2% 51,896 52,126
40% 39.9% 41,517 41,444
30% 29.9% 31,138 31,002
20% 20.3% 20,759 21,103
10% 10.0% 10,379 10,392
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,770
Calibration 2     105,372
Calibration 3     104,353
ssj_ops@calibrated=104,862
100% 98.9% 104,862 103,660
90% 90.2% 94,376 94,606
80% 80.6% 83,890 84,487
70% 70.7% 73,404 74,189
60% 59.6% 62,917 62,496
50% 50.3% 52,431 52,781
40% 40.3% 41,945 42,260
30% 30.3% 31,459 31,812
20% 20.2% 20,972 21,181
10% 10.0% 10,486 10,471
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,699
Calibration 2     103,632
Calibration 3     103,705
ssj_ops@calibrated=103,668
100% 98.1% 103,668 101,748
90% 90.3% 93,302 93,589
80% 80.3% 82,935 83,260
70% 70.4% 72,568 72,969
60% 60.0% 62,201 62,219
50% 49.6% 51,834 51,400
40% 40.3% 41,467 41,788
30% 29.6% 31,101 30,647
20% 20.0% 20,734 20,771
10% 10.4% 10,367 10,755
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,081
Calibration 2     104,076
Calibration 3     104,014
ssj_ops@calibrated=104,045
100% 98.7% 104,045 102,641
90% 89.0% 93,641 92,648
80% 79.4% 83,236 82,605
70% 70.0% 72,832 72,828
60% 60.4% 62,427 62,874
50% 50.1% 52,023 52,155
40% 39.4% 41,618 41,019
30% 30.2% 31,214 31,461
20% 20.1% 20,809 20,864
10% 10.1% 10,405 10,504
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,100
Calibration 2     103,914
Calibration 3     104,168
ssj_ops@calibrated=104,041
100% 97.7% 104,041 101,606
90% 91.0% 93,637 94,661
80% 78.9% 83,233 82,069
70% 69.7% 72,829 72,544
60% 59.0% 62,424 61,381
50% 49.8% 52,020 51,816
40% 39.2% 41,616 40,735
30% 29.8% 31,212 31,051
20% 19.7% 20,808 20,456
10% 9.9% 10,404 10,266
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,960
Calibration 2     103,813
Calibration 3     103,754
ssj_ops@calibrated=103,783
100% 98.5% 103,783 102,256
90% 90.1% 93,405 93,473
80% 79.9% 83,027 82,972
70% 70.0% 72,648 72,662
60% 60.3% 62,270 62,557
50% 50.5% 51,892 52,403
40% 39.8% 41,513 41,298
30% 29.9% 31,135 31,008
20% 20.4% 20,757 21,190
10% 10.3% 10,378 10,673
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,240
Calibration 2     105,616
Calibration 3     106,285
ssj_ops@calibrated=105,950
100% 98.3% 105,950 104,163
90% 89.4% 95,355 94,675
80% 80.0% 84,760 84,743
70% 69.7% 74,165 73,795
60% 60.0% 63,570 63,544
50% 50.4% 52,975 53,380
40% 40.4% 42,380 42,826
30% 29.5% 31,785 31,308
20% 19.9% 21,190 21,082
10% 9.9% 10,595 10,458
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,345
Calibration 2     102,859
Calibration 3     103,397
ssj_ops@calibrated=103,128
100% 98.7% 103,128 101,803
90% 90.4% 92,815 93,177
80% 79.9% 82,503 82,351
70% 70.5% 72,190 72,721
60% 58.9% 61,877 60,783
50% 50.0% 51,564 51,566
40% 40.1% 41,251 41,360
30% 30.0% 30,938 30,920
20% 19.8% 20,626 20,394
10% 9.8% 10,313 10,156
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,473
Calibration 2     104,524
Calibration 3     104,322
ssj_ops@calibrated=104,423
100% 98.2% 104,423 102,527
90% 89.5% 93,981 93,438
80% 79.7% 83,538 83,246
70% 69.1% 73,096 72,170
60% 59.6% 62,654 62,185
50% 50.1% 52,212 52,366
40% 39.8% 41,769 41,509
30% 30.1% 31,327 31,431
20% 19.5% 20,885 20,323
10% 9.9% 10,442 10,367
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,192
Calibration 2     104,628
Calibration 3     104,325
ssj_ops@calibrated=104,477
100% 98.1% 104,477 102,461
90% 89.2% 94,029 93,198
80% 80.1% 83,581 83,729
70% 70.0% 73,134 73,134
60% 59.2% 62,686 61,820
50% 49.8% 52,238 52,054
40% 39.0% 41,791 40,716
30% 29.7% 31,343 30,996
20% 20.4% 20,895 21,312
10% 10.0% 10,448 10,425
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,188
Calibration 2     102,678
Calibration 3     102,552
ssj_ops@calibrated=102,615
100% 98.7% 102,615 101,299
90% 89.7% 92,354 92,029
80% 79.9% 82,092 81,995
70% 70.2% 71,831 72,022
60% 59.6% 61,569 61,207
50% 50.8% 51,308 52,079
40% 40.5% 41,046 41,521
30% 29.7% 30,785 30,513
20% 20.0% 20,523 20,532
10% 9.8% 10,262 10,047
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,450
Calibration 2     104,402
Calibration 3     104,437
ssj_ops@calibrated=104,420
100% 98.3% 104,420 102,653
90% 88.8% 93,978 92,712
80% 79.8% 83,536 83,325
70% 69.3% 73,094 72,390
60% 60.6% 62,652 63,251
50% 50.1% 52,210 52,265
40% 40.1% 41,768 41,843
30% 30.2% 31,326 31,510
20% 20.1% 20,884 20,981
10% 10.1% 10,442 10,568
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,497
Calibration 2     105,149
Calibration 3     105,642
ssj_ops@calibrated=105,396
100% 98.0% 105,396 103,337
90% 90.5% 94,856 95,373
80% 79.7% 84,316 83,948
70% 70.5% 73,777 74,253
60% 60.2% 63,237 63,500
50% 50.4% 52,698 53,155
40% 40.2% 42,158 42,392
30% 29.4% 31,619 31,010
20% 20.4% 21,079 21,503
10% 9.7% 10,540 10,245
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,346
Calibration 2     103,928
Calibration 3     103,626
ssj_ops@calibrated=103,777
100% 98.4% 103,777 102,073
90% 90.7% 93,399 94,150
80% 80.5% 83,022 83,527
70% 69.6% 72,644 72,195
60% 60.4% 62,266 62,703
50% 50.8% 51,889 52,717
40% 40.4% 41,511 41,903
30% 29.2% 31,133 30,334
20% 19.6% 20,755 20,306
10% 10.1% 10,378 10,514
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
