Sugon I620-G30 (Intel Xeon Gold 6140) ssj_ops@100% = 3,536,666
ssj_ops@100% per JVM = 98,241
Test Sponsor: Sugon SPEC License #: 9046 Test Method: Single Node
Tested By: Sugon Test Location: Beijing, CHN Test Date: May 26, 2018
Hardware Availability: Feb-2018 Software Availability: Jan-2018 Publication: Aug 15, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,598,835
Calibration 2     3,576,602
Calibration 3     3,578,096
ssj_ops@calibrated=3,577,349
100% 98.9% 3,577,349 3,536,666
90% 90.0% 3,219,614 3,219,062
80% 79.9% 2,861,879 2,858,892
70% 70.1% 2,504,144 2,507,422
60% 59.9% 2,146,409 2,142,176
50% 50.0% 1,788,675 1,787,773
40% 40.0% 1,430,940 1,429,381
30% 30.0% 1,073,205 1,074,539
20% 20.0% 715,470 716,615
10% 10.0% 357,735 358,898
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node.
Hardware
Hardware Vendor: Sugon
Model: I620-G30 (Intel Xeon Gold 6140)
Form Factor: 2U
CPU Name: Intel Xeon Gold 6140
CPU Characteristics: 18-Core, 2.3GHz, 24.75MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 25344 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-R(P/N:M393A2K43CB2-CTD6Q); slots DIMM_CPU[0-1]_[A-F]0 populated
Power Supply Quantity and Rating (W): 1 x 550
Power Supply Details: ARTESYN 550W PSU(P/N:CSU550AP-3-200)
Disk Drive: 1 x 120GB M.2 SATA SSD(P/N:SU120GBSS3M55M28NE)
Disk Controller: Integrated onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Integrated onboard Ethernet 1Gb with 2-port RJ45 Adapter
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: JGS012
Management Firmware Version: Ver 0.70
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-TNLGK16A38D.001 103,773
WIN-TNLGK16A38D.002 100,421
WIN-TNLGK16A38D.003 101,763
WIN-TNLGK16A38D.004 96,147
WIN-TNLGK16A38D.005 92,570
WIN-TNLGK16A38D.006 91,618
WIN-TNLGK16A38D.007 103,739
WIN-TNLGK16A38D.008 103,814
WIN-TNLGK16A38D.009 99,864
WIN-TNLGK16A38D.010 101,675
WIN-TNLGK16A38D.011 101,403
WIN-TNLGK16A38D.012 100,219
WIN-TNLGK16A38D.013 91,515
WIN-TNLGK16A38D.014 92,549
WIN-TNLGK16A38D.015 101,574
WIN-TNLGK16A38D.016 99,980
WIN-TNLGK16A38D.017 93,145
WIN-TNLGK16A38D.018 91,629
WIN-TNLGK16A38D.019 92,935
WIN-TNLGK16A38D.020 100,362
WIN-TNLGK16A38D.021 102,006
WIN-TNLGK16A38D.022 101,124
WIN-TNLGK16A38D.023 92,705
WIN-TNLGK16A38D.024 92,624
WIN-TNLGK16A38D.025 100,947
WIN-TNLGK16A38D.026 103,187
WIN-TNLGK16A38D.027 104,022
WIN-TNLGK16A38D.028 91,648
WIN-TNLGK16A38D.029 102,160
WIN-TNLGK16A38D.030 101,829
WIN-TNLGK16A38D.031 101,465
WIN-TNLGK16A38D.032 92,720
WIN-TNLGK16A38D.033 94,756
WIN-TNLGK16A38D.034 91,276
WIN-TNLGK16A38D.035 101,759
WIN-TNLGK16A38D.036 101,744
ssj_ops@100% 3,536,666
ssj_ops@100% per JVM 98,241
Graph of per-instance results
JVM 'WIN-TNLGK16A38D.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,137
Calibration 2     104,004
Calibration 3     103,327
ssj_ops@calibrated=103,666
100% 100.1% 103,666 103,773
90% 90.3% 93,299 93,653
80% 79.1% 82,932 81,961
70% 71.5% 72,566 74,092
60% 59.0% 62,199 61,214
50% 50.4% 51,833 52,203
40% 39.1% 41,466 40,558
30% 30.2% 31,100 31,262
20% 19.8% 20,733 20,548
10% 10.5% 10,367 10,900
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,706
Calibration 2     103,862
Calibration 3     104,772
ssj_ops@calibrated=104,317
100% 96.3% 104,317 100,421
90% 89.3% 93,885 93,148
80% 79.7% 83,453 83,102
70% 70.1% 73,022 73,080
60% 60.4% 62,590 63,010
50% 50.2% 52,158 52,334
40% 40.0% 41,727 41,748
30% 29.8% 31,295 31,130
20% 20.6% 20,863 21,470
10% 10.2% 10,432 10,628
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,169
Calibration 2     100,585
Calibration 3     102,761
ssj_ops@calibrated=101,673
100% 100.1% 101,673 101,763
90% 89.6% 91,506 91,075
80% 79.3% 81,338 80,626
70% 70.1% 71,171 71,252
60% 59.5% 61,004 60,459
50% 50.0% 50,837 50,872
40% 40.2% 40,669 40,834
30% 30.0% 30,502 30,543
20% 21.0% 20,335 21,397
10% 9.7% 10,167 9,815
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,299
Calibration 2     97,759
Calibration 3     95,188
ssj_ops@calibrated=96,474
100% 99.7% 96,474 96,147
90% 90.6% 86,826 87,364
80% 80.2% 77,179 77,350
70% 70.5% 67,532 67,966
60% 59.5% 57,884 57,393
50% 49.2% 48,237 47,456
40% 39.4% 38,589 38,000
30% 30.1% 28,942 29,064
20% 19.8% 19,295 19,141
10% 10.1% 9,647 9,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,919
Calibration 2     92,213
Calibration 3     95,785
ssj_ops@calibrated=93,999
100% 98.5% 93,999 92,570
90% 90.9% 84,599 85,427
80% 79.4% 75,199 74,664
70% 69.5% 65,799 65,334
60% 60.0% 56,399 56,414
50% 49.8% 47,000 46,801
40% 40.4% 37,600 37,965
30% 30.3% 28,200 28,435
20% 19.8% 18,800 18,628
10% 10.2% 9,400 9,541
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,028
Calibration 2     92,028
Calibration 3     93,034
ssj_ops@calibrated=92,531
100% 99.0% 92,531 91,618
90% 89.9% 83,278 83,183
80% 80.4% 74,025 74,406
70% 69.5% 64,772 64,345
60% 59.5% 55,519 55,013
50% 50.0% 46,266 46,266
40% 40.2% 37,012 37,152
30% 30.3% 27,759 28,025
20% 19.8% 18,506 18,362
10% 10.3% 9,253 9,540
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,020
Calibration 2     104,364
Calibration 3     102,740
ssj_ops@calibrated=103,552
100% 100.2% 103,552 103,739
90% 91.5% 93,197 94,755
80% 80.1% 82,842 82,902
70% 69.7% 72,487 72,171
60% 60.0% 62,131 62,156
50% 49.6% 51,776 51,337
40% 39.9% 41,421 41,322
30% 29.8% 31,066 30,902
20% 20.0% 20,710 20,674
10% 9.8% 10,355 10,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,813
Calibration 2     104,483
Calibration 3     104,598
ssj_ops@calibrated=104,541
100% 99.3% 104,541 103,814
90% 90.2% 94,086 94,299
80% 79.5% 83,632 83,153
70% 70.0% 73,178 73,139
60% 60.1% 62,724 62,786
50% 49.9% 52,270 52,190
40% 40.8% 41,816 42,648
30% 30.4% 31,362 31,749
20% 20.0% 20,908 20,884
10% 9.7% 10,454 10,142
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,205
Calibration 2     102,379
Calibration 3     100,805
ssj_ops@calibrated=101,592
100% 98.3% 101,592 99,864
90% 89.7% 91,433 91,135
80% 80.0% 81,274 81,271
70% 69.2% 71,114 70,286
60% 60.0% 60,955 60,941
50% 50.1% 50,796 50,863
40% 39.6% 40,637 40,184
30% 30.0% 30,478 30,449
20% 19.8% 20,318 20,083
10% 9.8% 10,159 9,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,980
Calibration 2     101,040
Calibration 3     102,435
ssj_ops@calibrated=101,738
100% 99.9% 101,738 101,675
90% 89.2% 91,564 90,763
80% 79.6% 81,390 80,997
70% 69.8% 71,216 70,966
60% 60.3% 61,043 61,307
50% 50.0% 50,869 50,820
40% 40.0% 40,695 40,652
30% 30.4% 30,521 30,894
20% 19.9% 20,348 20,233
10% 9.8% 10,174 9,946
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,468
Calibration 2     101,849
Calibration 3     104,019
ssj_ops@calibrated=102,934
100% 98.5% 102,934 101,403
90% 90.8% 92,641 93,481
80% 79.3% 82,347 81,669
70% 69.1% 72,054 71,147
60% 59.6% 61,760 61,313
50% 49.7% 51,467 51,121
40% 40.0% 41,174 41,132
30% 30.1% 30,880 30,953
20% 20.7% 20,587 21,291
10% 10.0% 10,293 10,285
Active Idle   0 0

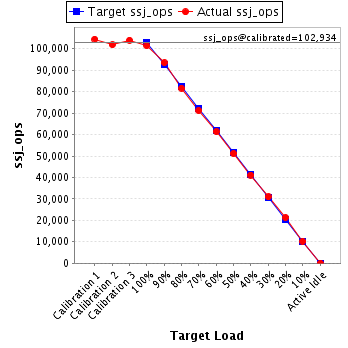

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,772
Calibration 2     101,781
Calibration 3     102,303
ssj_ops@calibrated=102,042
100% 98.2% 102,042 100,219
90% 89.7% 91,838 91,548
80% 79.6% 81,634 81,197
70% 71.1% 71,429 72,554
60% 60.5% 61,225 61,712
50% 50.2% 51,021 51,267
40% 39.3% 40,817 40,098
30% 29.8% 30,613 30,403
20% 21.0% 20,408 21,387
10% 10.3% 10,204 10,469
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,212
Calibration 2     93,621
Calibration 3     91,258
ssj_ops@calibrated=92,440
100% 99.0% 92,440 91,515
90% 89.6% 83,196 82,795
80% 80.0% 73,952 73,917
70% 69.7% 64,708 64,436
60% 60.1% 55,464 55,560
50% 50.7% 46,220 46,852
40% 40.1% 36,976 37,029
30% 29.7% 27,732 27,478
20% 20.1% 18,488 18,540
10% 10.4% 9,244 9,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,995
Calibration 2     94,640
Calibration 3     93,626
ssj_ops@calibrated=94,133
100% 98.3% 94,133 92,549
90% 90.5% 84,720 85,180
80% 80.4% 75,306 75,639
70% 70.1% 65,893 65,945
60% 60.1% 56,480 56,535
50% 49.8% 47,067 46,886
40% 39.8% 37,653 37,446
30% 29.7% 28,240 27,970
20% 20.0% 18,827 18,826
10% 9.9% 9,413 9,286
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,321
Calibration 2     100,558
Calibration 3     102,998
ssj_ops@calibrated=101,778
100% 99.8% 101,778 101,574
90% 89.4% 91,600 90,993
80% 80.2% 81,422 81,613
70% 69.3% 71,245 70,492
60% 59.1% 61,067 60,124
50% 50.0% 50,889 50,864
40% 39.2% 40,711 39,897
30% 30.6% 30,533 31,110
20% 19.8% 20,356 20,120
10% 10.2% 10,178 10,420
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,618
Calibration 2     100,414
Calibration 3     101,417
ssj_ops@calibrated=100,916
100% 99.1% 100,916 99,980
90% 90.2% 90,824 91,019
80% 80.2% 80,733 80,961
70% 70.5% 70,641 71,097
60% 59.6% 60,549 60,161
50% 49.9% 50,458 50,313
40% 40.3% 40,366 40,711
30% 30.3% 30,275 30,602
20% 20.0% 20,183 20,166
10% 10.5% 10,092 10,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,922
Calibration 2     95,333
Calibration 3     92,330
ssj_ops@calibrated=93,832
100% 99.3% 93,832 93,145
90% 89.7% 84,449 84,159
80% 80.9% 75,066 75,945
70% 69.8% 65,682 65,479
60% 60.2% 56,299 56,491
50% 49.9% 46,916 46,840
40% 40.4% 37,533 37,893
30% 29.8% 28,150 27,959
20% 20.7% 18,766 19,383
10% 10.1% 9,383 9,512
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,820
Calibration 2     93,818
Calibration 3     93,844
ssj_ops@calibrated=93,831
100% 97.7% 93,831 91,629
90% 90.3% 84,448 84,727
80% 79.3% 75,065 74,448
70% 69.3% 65,682 65,055
60% 60.6% 56,299 56,875
50% 49.3% 46,915 46,261
40% 40.1% 37,532 37,625
30% 29.3% 28,149 27,516
20% 20.2% 18,766 18,969
10% 10.4% 9,383 9,725
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,229
Calibration 2     95,213
Calibration 3     93,617
ssj_ops@calibrated=94,415
100% 98.4% 94,415 92,935
90% 89.4% 84,973 84,438
80% 79.2% 75,532 74,752
70% 71.2% 66,090 67,268
60% 59.4% 56,649 56,091
50% 49.4% 47,207 46,676
40% 40.1% 37,766 37,831
30% 29.9% 28,324 28,229
20% 19.4% 18,883 18,359
10% 9.8% 9,441 9,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,683
Calibration 2     103,182
Calibration 3     102,120
ssj_ops@calibrated=102,651
100% 97.8% 102,651 100,362
90% 89.6% 92,386 91,936
80% 79.8% 82,121 81,871
70% 71.1% 71,856 72,970
60% 60.3% 61,591 61,916
50% 49.3% 51,325 50,565
40% 39.2% 41,060 40,241
30% 29.7% 30,795 30,447
20% 20.0% 20,530 20,530
10% 10.2% 10,265 10,420
Active Idle   0 0

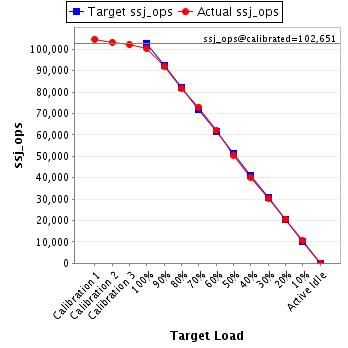

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,586
Calibration 2     102,213
Calibration 3     104,079
ssj_ops@calibrated=103,146
100% 98.9% 103,146 102,006
90% 89.7% 92,831 92,548
80% 80.4% 82,517 82,893
70% 69.8% 72,202 72,011
60% 60.4% 61,888 62,270
50% 50.2% 51,573 51,792
40% 39.8% 41,258 41,073
30% 30.4% 30,944 31,319
20% 20.0% 20,629 20,662
10% 10.0% 10,315 10,324
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,279
Calibration 2     102,169
Calibration 3     102,249
ssj_ops@calibrated=102,209
100% 98.9% 102,209 101,124
90% 90.4% 91,988 92,406
80% 79.6% 81,767 81,382
70% 70.6% 71,546 72,161
60% 59.5% 61,325 60,790
50% 49.3% 51,105 50,429
40% 40.3% 40,884 41,223
30% 29.8% 30,663 30,498
20% 19.9% 20,442 20,383
10% 9.9% 10,221 10,070
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,450
Calibration 2     94,293
Calibration 3     93,959
ssj_ops@calibrated=94,126
100% 98.5% 94,126 92,705
90% 90.3% 84,713 85,029
80% 79.8% 75,301 75,072
70% 69.9% 65,888 65,748
60% 59.7% 56,476 56,205
50% 49.9% 47,063 46,939
40% 39.8% 37,650 37,470
30% 30.3% 28,238 28,511
20% 20.1% 18,825 18,966
10% 10.1% 9,413 9,466
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,565
Calibration 2     93,454
Calibration 3     92,819
ssj_ops@calibrated=93,137
100% 99.4% 93,137 92,624
90% 91.2% 83,823 84,924
80% 79.9% 74,510 74,375
70% 70.0% 65,196 65,174
60% 59.3% 55,882 55,189
50% 50.5% 46,568 47,057
40% 40.4% 37,255 37,631
30% 30.6% 27,941 28,528
20% 19.3% 18,627 17,937
10% 9.9% 9,314 9,237
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,407
Calibration 2     103,921
Calibration 3     102,885
ssj_ops@calibrated=103,403
100% 97.6% 103,403 100,947
90% 89.9% 93,063 92,948
80% 80.6% 82,722 83,295
70% 69.5% 72,382 71,912
60% 59.9% 62,042 61,969
50% 50.5% 51,701 52,184
40% 40.2% 41,361 41,592
30% 29.9% 31,021 30,885
20% 19.8% 20,681 20,487
10% 10.2% 10,340 10,500
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,103
Calibration 2     103,599
Calibration 3     104,776
ssj_ops@calibrated=104,187
100% 99.0% 104,187 103,187
90% 89.9% 93,768 93,659
80% 80.9% 83,350 84,315
70% 69.9% 72,931 72,796
60% 60.7% 62,512 63,198
50% 50.3% 52,094 52,372
40% 39.6% 41,675 41,245
30% 30.1% 31,256 31,395
20% 20.3% 20,837 21,145
10% 10.3% 10,419 10,733
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,997
Calibration 2     104,948
Calibration 3     105,028
ssj_ops@calibrated=104,988
100% 99.1% 104,988 104,022
90% 89.8% 94,489 94,289
80% 79.2% 83,990 83,113
70% 70.8% 73,492 74,376
60% 59.5% 62,993 62,519
50% 50.5% 52,494 53,027
40% 39.6% 41,995 41,536
30% 30.1% 31,496 31,628
20% 19.6% 20,998 20,620
10% 10.0% 10,499 10,504
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,892
Calibration 2     94,132
Calibration 3     92,564
ssj_ops@calibrated=93,348
100% 98.2% 93,348 91,648
90% 89.6% 84,013 83,657
80% 80.4% 74,679 75,031
70% 71.0% 65,344 66,298
60% 59.3% 56,009 55,332
50% 50.5% 46,674 47,152
40% 40.2% 37,339 37,544
30% 30.7% 28,004 28,642
20% 19.5% 18,670 18,250
10% 9.9% 9,335 9,245
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,357
Calibration 2     102,706
Calibration 3     102,254
ssj_ops@calibrated=102,480
100% 99.7% 102,480 102,160
90% 89.5% 92,232 91,767
80% 80.8% 81,984 82,811
70% 69.9% 71,736 71,590
60% 59.3% 61,488 60,804
50% 50.2% 51,240 51,473
40% 40.9% 40,992 41,865
30% 30.0% 30,744 30,736
20% 20.1% 20,496 20,607
10% 9.5% 10,248 9,737
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,140
Calibration 2     103,832
Calibration 3     103,184
ssj_ops@calibrated=103,508
100% 98.4% 103,508 101,829
90% 89.4% 93,157 92,567
80% 80.2% 82,806 83,049
70% 69.9% 72,455 72,311
60% 60.2% 62,105 62,331
50% 50.1% 51,754 51,882
40% 40.1% 41,403 41,546
30% 29.7% 31,052 30,698
20% 19.9% 20,702 20,595
10% 10.4% 10,351 10,716
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,966
Calibration 2     100,711
Calibration 3     103,038
ssj_ops@calibrated=101,874
100% 99.6% 101,874 101,465
90% 90.0% 91,687 91,645
80% 79.9% 81,500 81,369
70% 70.3% 71,312 71,648
60% 60.3% 61,125 61,467
50% 50.5% 50,937 51,401
40% 39.7% 40,750 40,413
30% 30.1% 30,562 30,657
20% 19.9% 20,375 20,302
10% 9.7% 10,187 9,912
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,722
Calibration 2     92,880
Calibration 3     93,296
ssj_ops@calibrated=93,088
100% 99.6% 93,088 92,720
90% 89.3% 83,779 83,103
80% 80.5% 74,470 74,932
70% 69.9% 65,162 65,071
60% 60.3% 55,853 56,161
50% 49.6% 46,544 46,215
40% 39.7% 37,235 36,965
30% 30.0% 27,926 27,941
20% 19.9% 18,618 18,493
10% 10.2% 9,309 9,529
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,542
Calibration 2     95,222
Calibration 3     98,159
ssj_ops@calibrated=96,690
100% 98.0% 96,690 94,756
90% 89.6% 87,021 86,654
80% 80.3% 77,352 77,638
70% 70.0% 67,683 67,694
60% 59.2% 58,014 57,277
50% 50.1% 48,345 48,449
40% 39.8% 38,676 38,516
30% 29.7% 29,007 28,720
20% 20.4% 19,338 19,754
10% 9.9% 9,669 9,581
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,708
Calibration 2     92,836
Calibration 3     92,414
ssj_ops@calibrated=92,625
100% 98.5% 92,625 91,276
90% 89.7% 83,363 83,078
80% 79.8% 74,100 73,870
70% 70.4% 64,838 65,189
60% 59.6% 55,575 55,194
50% 49.7% 46,313 46,079
40% 39.8% 37,050 36,874
30% 29.8% 27,788 27,615
20% 20.0% 18,525 18,490
10% 9.8% 9,263 9,120
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,184
Calibration 2     103,622
Calibration 3     100,685
ssj_ops@calibrated=102,154
100% 99.6% 102,154 101,759
90% 90.5% 91,938 92,428
80% 79.7% 81,723 81,411
70% 70.5% 71,507 72,028
60% 59.9% 61,292 61,222
50% 49.8% 51,077 50,823
40% 40.4% 40,861 41,304
30% 30.0% 30,646 30,653
20% 19.9% 20,431 20,367
10% 9.9% 10,215 10,090
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TNLGK16A38D.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,622
Calibration 2     102,937
Calibration 3     103,729
ssj_ops@calibrated=103,333
100% 98.5% 103,333 101,744
90% 90.3% 93,000 93,283
80% 79.3% 82,666 81,894
70% 70.0% 72,333 72,340
60% 60.7% 62,000 62,773
50% 50.0% 51,666 51,714
40% 40.3% 41,333 41,615
30% 30.0% 31,000 30,992
20% 19.9% 20,667 20,565
10% 9.9% 10,333 10,240
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
