Sugon I620-G30(Intel Xeon Platinum 8160) | SPECpower_ssj2008 = 10,255 overall ssj_ops/watt | ||||
Test Sponsor: | Sugon | SPEC License #: | 9046 | Test Method: | Single Node |
Tested By: | Sugon | Test Location: | Beijing, CHN | Test Date: | May 26, 2018 |
Hardware Availability: | Feb-2018 | Software Availability: | Jul-2017 | Publication: | Aug 8, 2018 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

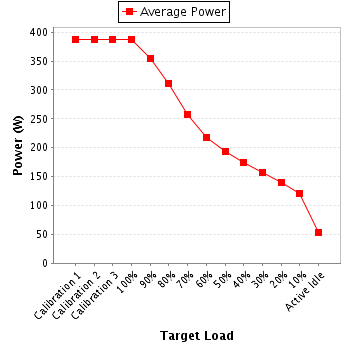

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 387 | 28.4 |
Calibration 2 | 388 | 28.4 |
Calibration 3 | 388 | 28.4 |
100% | 387 | 28.4 |
90% | 354 | 28.4 |
80% | 312 | 28.4 |
70% | 258 | 28.4 |
60% | 218 | 28.3 |
50% | 194 | 28.3 |
40% | 174 | 28.3 |
30% | 157 | 28.2 |
20% | 140 | 28.2 |
10% | 121 | 28.2 |
Active Idle | 53.4 | 28.2 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | YOKOGAWA Meters and Instruments Corporation |
Model: | WT310E |
Serial Number: | C3UB14026E |
Connectivity: | GPIB |
Input Connection: | Default |
Metrology Institute: | CNAS(China National Accreditation Service for Conformity Assessment) |
Accredited by: | National Institute of Metrology |
Calibration Label: | CSG06300180301-1145 |
Date of Calibration: | 01-Mar-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | Connect to PSU1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | iButton Link Technology |
Model: | iButton Link T-Sense/T-Probe |
Driver Version: | 2.12.24.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 10mm in front of SUT main airflow intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 226 | 300.0 | 1.73 | 5.0 | 0.990 | 387 | 0.3% |
Calibration 2 | 226 | 300.0 | 1.73 | 5.0 | 0.990 | 388 | 0.3% |
Calibration 3 | 224 | 300.0 | 1.75 | 5.0 | 0.990 | 388 | 0.3% |
100% | 223 | 300.0 | 1.75 | 5.0 | 0.990 | 387 | 0.3% |
90% | 223 | 300.0 | 1.61 | 2.0 | 0.989 | 354 | 0.2% |
80% | 222 | 300.0 | 1.43 | 2.0 | 0.985 | 312 | 0.2% |
70% | 222 | 300.0 | 1.19 | 2.0 | 0.979 | 258 | 0.3% |
60% | 222 | 300.0 | 1.01 | 2.0 | 0.975 | 218 | 0.3% |
50% | 222 | 300.0 | 0.899 | 2.0 | 0.970 | 194 | 0.3% |
40% | 223 | 300.0 | 0.812 | 1.0 | 0.964 | 174 | 0.2% |
30% | 223 | 300.0 | 0.737 | 1.0 | 0.956 | 157 | 0.3% |
20% | 223 | 300.0 | 0.662 | 1.0 | 0.947 | 140 | 0.3% |
10% | 223 | 300.0 | 0.581 | 1.0 | 0.934 | 121 | 0.3% |
Active Idle | 224 | 300.0 | 0.333 | 0.5 | 0.723 | 53.4 | 0.4% |
