Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,728,531
ssj_ops@100% per JVM = 1,432,133
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 26, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,760,674
Calibration 2     5,753,998
Calibration 3     5,759,425
ssj_ops@calibrated=5,756,712
100% 99.5% 5,756,712 5,728,531
90% 90.0% 5,181,041 5,180,344
80% 79.9% 4,605,370 4,601,648
70% 70.1% 4,029,698 4,035,366
60% 60.1% 3,454,027 3,458,526
50% 50.0% 2,878,356 2,875,624
40% 40.1% 2,302,685 2,305,717
30% 30.0% 1,727,014 1,727,589
20% 20.0% 1,151,342 1,150,405
10% 10.0% 575,671 575,507
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 11
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE02.001 1,439,743
NODE02.002 1,442,967
NODE02.003 1,428,573
NODE02.004 1,417,248
ssj_ops@100% 5,728,531
ssj_ops@100% per JVM 1,432,133

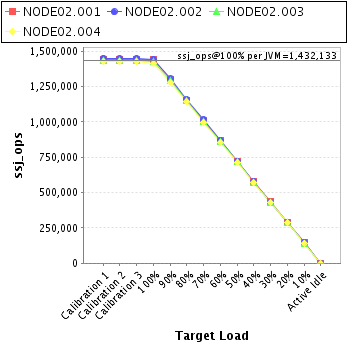

Graph of per-instance results
JVM 'NODE02.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,445,230
Calibration 2     1,443,555
Calibration 3     1,444,516
ssj_ops@calibrated=1,444,035
100% 99.7% 1,444,035 1,439,743
90% 90.3% 1,299,632 1,303,772
80% 79.7% 1,155,228 1,151,319
70% 70.2% 1,010,825 1,013,708
60% 60.1% 866,421 868,097
50% 50.1% 722,018 723,431
40% 40.3% 577,614 581,638
30% 30.1% 433,211 434,072
20% 19.9% 288,807 286,931
10% 10.0% 144,404 144,924
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE02.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,451,701
Calibration 2     1,449,219
Calibration 3     1,449,203
ssj_ops@calibrated=1,449,211
100% 99.6% 1,449,211 1,442,967
90% 90.0% 1,304,290 1,304,765
80% 80.0% 1,159,369 1,159,071
70% 70.2% 1,014,448 1,016,779
60% 60.1% 869,527 870,775
50% 49.9% 724,605 722,710
40% 40.0% 579,684 579,180
30% 29.9% 434,763 433,485
20% 19.9% 289,842 288,314
10% 10.0% 144,921 144,496
Active Idle   0 0

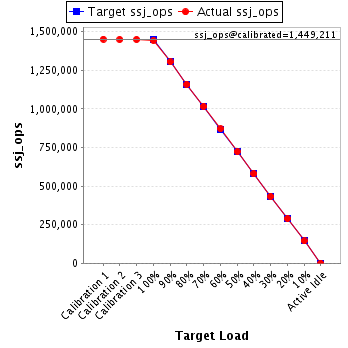

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE02.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,435,611
Calibration 2     1,434,112
Calibration 3     1,435,631
ssj_ops@calibrated=1,434,871
100% 99.6% 1,434,871 1,428,573
90% 90.0% 1,291,384 1,291,094
80% 80.1% 1,147,897 1,148,616
70% 70.1% 1,004,410 1,006,096
60% 60.0% 860,923 861,480
50% 50.0% 717,436 717,862
40% 40.1% 573,949 574,964
30% 30.1% 430,461 431,345
20% 20.2% 286,974 289,183
10% 9.9% 143,487 142,681
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE02.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,428,131
Calibration 2     1,427,114
Calibration 3     1,430,075
ssj_ops@calibrated=1,428,594
100% 99.2% 1,428,594 1,417,248
90% 89.6% 1,285,735 1,280,713
80% 80.0% 1,142,876 1,142,642
70% 69.9% 1,000,016 998,783
60% 60.1% 857,157 858,174
50% 49.8% 714,297 711,621
40% 39.9% 571,438 569,934
30% 30.0% 428,578 428,687
20% 20.0% 285,719 285,978
10% 10.0% 142,859 143,406
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
