Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,747,101
ssj_ops@100% per JVM = 1,436,775
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 26, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,765,190
Calibration 2     5,760,763
Calibration 3     5,767,384
ssj_ops@calibrated=5,764,073
100% 99.7% 5,764,073 5,747,101
90% 89.9% 5,187,666 5,180,753
80% 80.0% 4,611,259 4,614,091
70% 69.9% 4,034,851 4,028,596
60% 60.0% 3,458,444 3,459,072
50% 50.0% 2,882,037 2,881,098
40% 40.0% 2,305,629 2,303,485
30% 30.0% 1,729,222 1,727,590
20% 20.0% 1,152,815 1,152,416
10% 10.0% 576,407 575,413
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 9
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE04.001 1,437,216
NODE04.002 1,435,817
NODE04.003 1,443,039
NODE04.004 1,431,029
ssj_ops@100% 5,747,101
ssj_ops@100% per JVM 1,436,775

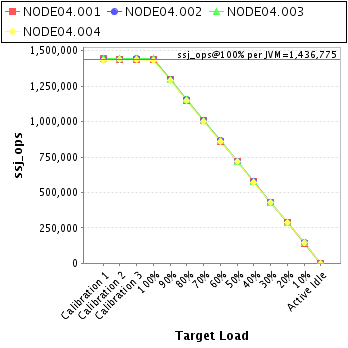

Graph of per-instance results
JVM 'NODE04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,443,314
Calibration 2     1,441,483
Calibration 3     1,440,667
ssj_ops@calibrated=1,441,075
100% 99.7% 1,441,075 1,437,216
90% 89.9% 1,296,967 1,295,563
80% 80.0% 1,152,860 1,152,534
70% 69.8% 1,008,752 1,006,387
60% 59.8% 864,645 862,389
50% 50.0% 720,537 720,607
40% 40.0% 576,430 576,733
30% 30.0% 432,322 432,245
20% 20.0% 288,215 288,649
10% 9.9% 144,107 142,850
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,440,795
Calibration 2     1,438,609
Calibration 3     1,442,595
ssj_ops@calibrated=1,440,602
100% 99.7% 1,440,602 1,435,817
90% 89.8% 1,296,542 1,294,231
80% 80.1% 1,152,482 1,153,542
70% 70.0% 1,008,421 1,008,275
60% 60.0% 864,361 864,852
50% 50.0% 720,301 719,722
40% 39.8% 576,241 573,903
30% 30.0% 432,181 432,474
20% 20.0% 288,120 287,920
10% 10.0% 144,060 144,650
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,447,593
Calibration 2     1,444,727
Calibration 3     1,447,827
ssj_ops@calibrated=1,446,277
100% 99.8% 1,446,277 1,443,039
90% 89.8% 1,301,649 1,298,161
80% 80.1% 1,157,021 1,158,582
70% 69.9% 1,012,394 1,010,389
60% 60.1% 867,766 869,310
50% 49.9% 723,138 721,452
40% 40.1% 578,511 579,603
30% 29.8% 433,883 431,602
20% 19.9% 289,255 288,254
10% 9.9% 144,628 143,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,433,488
Calibration 2     1,435,944
Calibration 3     1,436,295
ssj_ops@calibrated=1,436,120
100% 99.6% 1,436,120 1,431,029
90% 90.0% 1,292,508 1,292,798
80% 80.0% 1,148,896 1,149,432
70% 69.9% 1,005,284 1,003,546
60% 60.1% 861,672 862,522
50% 50.1% 718,060 719,317
40% 39.9% 574,448 573,247
30% 30.0% 430,836 431,268
20% 20.0% 287,224 287,593
10% 10.0% 143,612 144,209
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
