Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,700,624
ssj_ops@100% per JVM = 1,425,156
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 26, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,712,026
Calibration 2     5,712,593
Calibration 3     5,722,967
ssj_ops@calibrated=5,717,780
100% 99.7% 5,717,780 5,700,624
90% 90.0% 5,146,002 5,148,050
80% 80.1% 4,574,224 4,579,141
70% 70.0% 4,002,446 4,002,895
60% 59.9% 3,430,668 3,425,473
50% 50.0% 2,858,890 2,861,235
40% 39.9% 2,287,112 2,284,164
30% 30.0% 1,715,334 1,713,664
20% 20.0% 1,143,556 1,145,290
10% 10.0% 571,778 570,429
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 9
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE07.001 1,441,663
NODE07.002 1,421,682
NODE07.003 1,427,150
NODE07.004 1,410,129
ssj_ops@100% 5,700,624
ssj_ops@100% per JVM 1,425,156

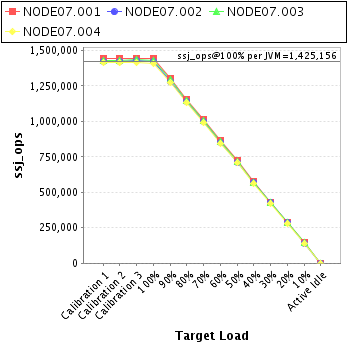

Graph of per-instance results
JVM 'NODE07.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,444,069
Calibration 2     1,444,867
Calibration 3     1,445,742
ssj_ops@calibrated=1,445,304
100% 99.7% 1,445,304 1,441,663
90% 90.3% 1,300,774 1,305,086
80% 80.1% 1,156,243 1,157,936
70% 69.9% 1,011,713 1,010,432
60% 60.0% 867,183 866,825
50% 50.0% 722,652 723,214
40% 39.8% 578,122 575,547
30% 29.8% 433,591 431,311
20% 20.1% 289,061 289,839
10% 10.0% 144,530 144,380
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

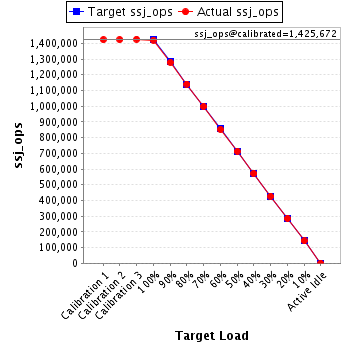

JVM 'NODE07.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,423,502
Calibration 2     1,424,357
Calibration 3     1,426,987
ssj_ops@calibrated=1,425,672
100% 99.7% 1,425,672 1,421,682
90% 89.7% 1,283,105 1,278,635
80% 80.1% 1,140,537 1,141,295
70% 70.0% 997,970 998,652
60% 59.8% 855,403 852,600
50% 50.0% 712,836 713,531
40% 40.1% 570,269 571,141
30% 30.0% 427,702 427,444
20% 20.0% 285,134 285,336
10% 10.0% 142,567 142,208
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE07.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,428,817
Calibration 2     1,430,699
Calibration 3     1,434,544
ssj_ops@calibrated=1,432,621
100% 99.6% 1,432,621 1,427,150
90% 90.2% 1,289,359 1,292,313
80% 80.1% 1,146,097 1,148,048
70% 70.1% 1,002,835 1,004,973
60% 60.0% 859,573 859,353
50% 50.0% 716,311 716,711
40% 39.9% 573,049 572,193
30% 30.1% 429,786 430,738
20% 20.0% 286,524 287,066
10% 10.0% 143,262 143,976
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE07.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,415,638
Calibration 2     1,412,670
Calibration 3     1,415,695
ssj_ops@calibrated=1,414,183
100% 99.7% 1,414,183 1,410,129
90% 89.9% 1,272,765 1,272,017
80% 80.0% 1,131,346 1,131,862
70% 69.9% 989,928 988,837
60% 59.9% 848,510 846,695
50% 50.0% 707,091 707,779
40% 40.0% 565,673 565,283
30% 30.0% 424,255 424,171
20% 20.0% 282,837 283,048
10% 9.9% 141,418 139,865
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
