Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,754,801
ssj_ops@100% per JVM = 1,438,700
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 26, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,764,320
Calibration 2     5,761,281
Calibration 3     5,776,147
ssj_ops@calibrated=5,768,714
100% 99.8% 5,768,714 5,754,801
90% 90.2% 5,191,842 5,203,045
80% 80.0% 4,614,971 4,617,540
70% 70.1% 4,038,100 4,041,986
60% 59.9% 3,461,228 3,454,190
50% 49.9% 2,884,357 2,880,534
40% 40.0% 2,307,485 2,307,700
30% 29.9% 1,730,614 1,723,591
20% 20.0% 1,153,743 1,155,587
10% 10.0% 576,871 578,245
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 9
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE09.001 1,444,049
NODE09.002 1,444,151
NODE09.003 1,448,197
NODE09.004 1,418,403
ssj_ops@100% 5,754,801
ssj_ops@100% per JVM 1,438,700

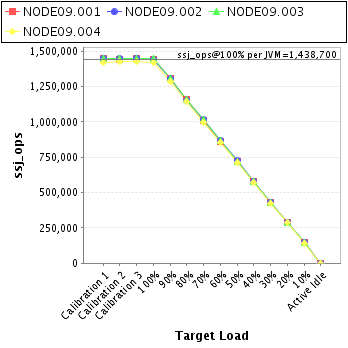

Graph of per-instance results
JVM 'NODE09.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,450,466
Calibration 2     1,443,465
Calibration 3     1,449,845
ssj_ops@calibrated=1,446,655
100% 99.8% 1,446,655 1,444,049
90% 90.2% 1,301,989 1,304,784
80% 80.3% 1,157,324 1,161,489
70% 70.0% 1,012,658 1,012,478
60% 59.7% 867,993 864,322
50% 50.0% 723,327 722,620
40% 40.2% 578,662 580,923
30% 29.9% 433,996 432,835
20% 20.0% 289,331 289,436
10% 10.0% 144,665 144,713
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE09.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,447,224
Calibration 2     1,445,702
Calibration 3     1,451,004
ssj_ops@calibrated=1,448,353
100% 99.7% 1,448,353 1,444,151
90% 90.0% 1,303,518 1,304,148
80% 79.7% 1,158,683 1,154,418
70% 70.0% 1,013,847 1,014,158
60% 59.9% 869,012 867,310
50% 50.0% 724,177 723,546
40% 39.8% 579,341 576,370
30% 29.9% 434,506 432,453
20% 20.1% 289,671 290,797
10% 10.0% 144,835 144,339
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE09.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,445,898
Calibration 2     1,447,980
Calibration 3     1,449,174
ssj_ops@calibrated=1,448,577
100% 100.0% 1,448,577 1,448,197
90% 90.4% 1,303,719 1,309,597
80% 80.0% 1,158,861 1,159,272
70% 70.2% 1,014,004 1,016,850
60% 60.0% 869,146 868,520
50% 49.9% 724,288 722,696
40% 40.1% 579,431 580,874
30% 29.9% 434,573 432,852
20% 20.0% 289,715 289,781
10% 10.1% 144,858 146,945
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE09.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,420,732
Calibration 2     1,424,133
Calibration 3     1,426,124
ssj_ops@calibrated=1,425,129
100% 99.5% 1,425,129 1,418,403
90% 90.1% 1,282,616 1,284,515
80% 80.2% 1,140,103 1,142,361
70% 70.1% 997,590 998,500
60% 59.9% 855,077 854,038
50% 49.9% 712,564 711,672
40% 40.0% 570,051 569,533
30% 29.9% 427,539 425,451
20% 20.0% 285,026 285,574
10% 10.0% 142,513 142,247
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
