Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,693,258
ssj_ops@100% per JVM = 1,423,315
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 24, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,706,984
Calibration 2     5,704,971
Calibration 3     5,716,393
ssj_ops@calibrated=5,710,682
100% 99.7% 5,710,682 5,693,258
90% 89.9% 5,139,614 5,135,277
80% 79.9% 4,568,545 4,564,340
70% 70.0% 3,997,477 3,997,612
60% 60.1% 3,426,409 3,429,684
50% 50.0% 2,855,341 2,857,296
40% 40.0% 2,284,273 2,281,707
30% 30.0% 1,713,205 1,712,513
20% 20.0% 1,142,136 1,142,438
10% 10.1% 571,068 575,113
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 8
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE02.001 1,414,932
NODE02.002 1,420,261
NODE02.003 1,428,412
NODE02.004 1,429,653
ssj_ops@100% 5,693,258
ssj_ops@100% per JVM 1,423,315

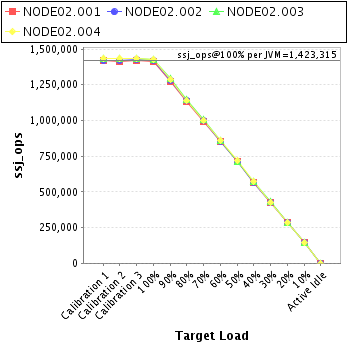

Graph of per-instance results
JVM 'NODE02.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,418,212
Calibration 2     1,415,838
Calibration 3     1,418,752
ssj_ops@calibrated=1,417,295
100% 99.8% 1,417,295 1,414,932
90% 89.7% 1,275,566 1,271,994
80% 79.9% 1,133,836 1,132,698
70% 69.9% 992,107 990,739
60% 60.2% 850,377 852,982
50% 50.1% 708,648 709,901
40% 40.0% 566,918 566,427
30% 30.0% 425,189 424,727
20% 20.1% 283,459 285,192
10% 10.1% 141,730 142,793
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE02.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,421,969
Calibration 2     1,422,797
Calibration 3     1,426,799
ssj_ops@calibrated=1,424,798
100% 99.7% 1,424,798 1,420,261
90% 90.0% 1,282,318 1,282,961
80% 80.2% 1,139,838 1,142,730
70% 70.1% 997,358 998,280
60% 60.0% 854,879 854,713
50% 50.0% 712,399 713,077
40% 39.8% 569,919 567,722
30% 29.9% 427,439 425,889
20% 20.0% 284,960 284,404
10% 10.0% 142,480 143,038
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE02.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,433,131
Calibration 2     1,431,363
Calibration 3     1,436,237
ssj_ops@calibrated=1,433,800
100% 99.6% 1,433,800 1,428,412
90% 90.0% 1,290,420 1,290,978
80% 80.2% 1,147,040 1,149,753
70% 70.2% 1,003,660 1,006,269
60% 60.0% 860,280 859,686
50% 49.9% 716,900 716,160
40% 40.0% 573,520 573,443
30% 30.2% 430,140 433,215
20% 19.9% 286,760 285,787
10% 10.1% 143,380 144,503
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE02.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,433,674
Calibration 2     1,434,972
Calibration 3     1,434,606
ssj_ops@calibrated=1,434,789
100% 99.6% 1,434,789 1,429,653
90% 89.9% 1,291,310 1,289,345
80% 79.4% 1,147,831 1,139,159
70% 69.9% 1,004,352 1,002,323
60% 60.1% 860,873 862,302
50% 50.1% 717,395 718,159
40% 40.0% 573,916 574,115
30% 29.9% 430,437 428,681
20% 20.0% 286,958 287,055
10% 10.1% 143,479 144,780
Active Idle   0 0

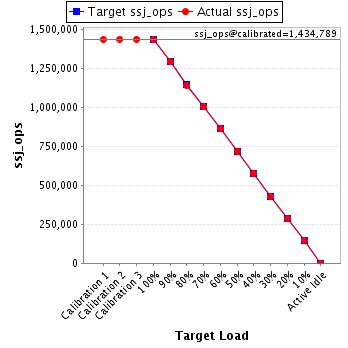

Graph of results
See the JVM Instance Performance Report for additional details.
