Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,669,432
ssj_ops@100% per JVM = 1,417,358
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 24, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,694,773
Calibration 2     5,682,334
Calibration 3     5,686,107
ssj_ops@calibrated=5,684,221
100% 99.7% 5,684,221 5,669,432
90% 90.0% 5,115,799 5,116,728
80% 80.0% 4,547,377 4,546,937
70% 70.1% 3,978,954 3,984,686
60% 60.0% 3,410,532 3,411,998
50% 49.9% 2,842,110 2,835,074
40% 39.9% 2,273,688 2,266,360
30% 30.1% 1,705,266 1,709,403
20% 19.9% 1,136,844 1,132,556
10% 10.0% 568,422 569,045
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 6
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE02.001 1,413,632
NODE02.002 1,408,338
NODE02.003 1,432,412
NODE02.004 1,415,050
ssj_ops@100% 5,669,432
ssj_ops@100% per JVM 1,417,358

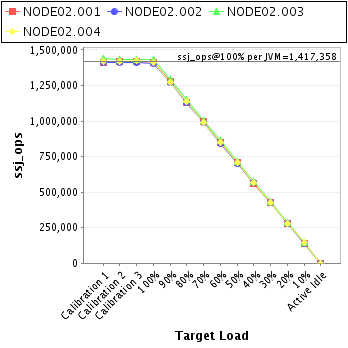

Graph of per-instance results
JVM 'NODE02.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,415,358
Calibration 2     1,416,750
Calibration 3     1,416,927
ssj_ops@calibrated=1,416,838
100% 99.8% 1,416,838 1,413,632
90% 90.0% 1,275,154 1,274,971
80% 79.8% 1,133,471 1,130,534
70% 70.2% 991,787 995,264
60% 60.1% 850,103 851,341
50% 49.8% 708,419 706,142
40% 39.7% 566,735 562,249
30% 30.1% 425,051 426,381
20% 19.9% 283,368 281,674
10% 10.0% 141,684 141,743
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE02.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,414,763
Calibration 2     1,411,674
Calibration 3     1,411,176
ssj_ops@calibrated=1,411,425
100% 99.8% 1,411,425 1,408,338
90% 90.2% 1,270,283 1,272,881
80% 80.0% 1,129,140 1,129,810
70% 70.2% 987,998 991,423
60% 59.9% 846,855 845,358
50% 49.8% 705,713 703,260
40% 40.0% 564,570 564,572
30% 30.1% 423,428 424,852
20% 19.9% 282,285 281,467
10% 10.1% 141,143 141,899
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE02.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,442,280
Calibration 2     1,435,345
Calibration 3     1,435,442
ssj_ops@calibrated=1,435,393
100% 99.8% 1,435,393 1,432,412
90% 90.2% 1,291,854 1,294,604
80% 80.1% 1,148,315 1,149,586
70% 70.1% 1,004,775 1,005,518
60% 60.1% 861,236 862,895
50% 49.9% 717,697 716,962
40% 40.0% 574,157 573,778
30% 30.1% 430,618 431,428
20% 20.0% 287,079 287,735
10% 9.9% 143,539 142,746
Active Idle   0 0

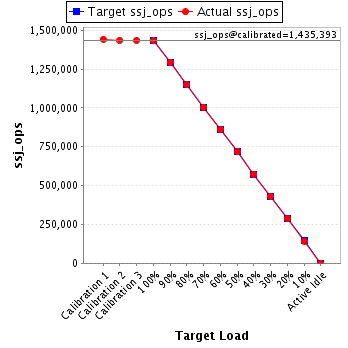

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE02.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,422,372
Calibration 2     1,418,566
Calibration 3     1,422,562
ssj_ops@calibrated=1,420,564
100% 99.6% 1,420,564 1,415,050
90% 89.7% 1,278,508 1,274,272
80% 80.0% 1,136,451 1,137,007
70% 69.9% 994,395 992,480
60% 60.0% 852,338 852,404
50% 49.9% 710,282 708,709
40% 39.8% 568,226 565,760
30% 30.0% 426,169 426,742
20% 19.8% 284,113 281,680
10% 10.0% 142,056 142,657
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
