Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module | SPECpower_ssj2008 = 10,855 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Multi Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Aug 27, 2018 |
Hardware Availability: | Jun-2018 | Software Availability: | Mar-2018 | Publication: | Sep 12, 2018 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

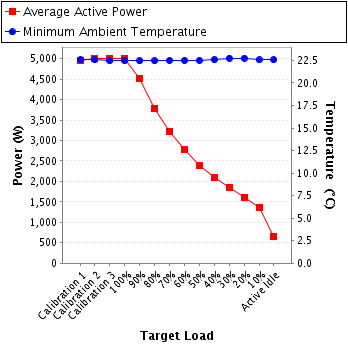

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 4,962 | 22.6 |
Calibration 2 | 5,010 | 22.6 |
Calibration 3 | 5,013 | 22.4 |
100% | 5,001 | 22.4 |
90% | 4,514 | 22.4 |
80% | 3,773 | 22.4 |
70% | 3,218 | 22.5 |
60% | 2,772 | 22.5 |
50% | 2,392 | 22.5 |
40% | 2,102 | 22.6 |
30% | 1,857 | 22.8 |
20% | 1,616 | 22.8 |
10% | 1,369 | 22.6 |
Active Idle | 664 | 22.6 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB53024 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | Transcat Metrology |
Calibration Label: | 5-EM5Y4-80-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supply 2, and 5 |
Power Analyzer pwr2 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB47168 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | Transcat Metrology |
Calibration Label: | 5-EN5Y4-60-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supplies 1, and 4 |
Power Analyzer pwr3 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GC21887 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | Transcat Metrology |
Calibration Label: | 5-EM5Y4-20-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supplies 3, and 6 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 210 | 300.0 | 8.09 | 10.0 | 0.994 | 1,686 | 0.3% |
Calibration 2 | 210 | 300.0 | 8.17 | 10.0 | 0.995 | 1,703 | 0.3% |
Calibration 3 | 210 | 300.0 | 8.19 | 10.0 | 0.995 | 1,706 | 0.3% |
100% | 209 | 300.0 | 8.17 | 10.0 | 0.995 | 1,701 | 0.3% |
90% | 209 | 300.0 | 7.35 | 10.0 | 0.993 | 1,527 | 0.4% |
80% | 212 | 300.0 | 6.00 | 10.0 | 0.990 | 1,260 | 0.4% |
70% | 212 | 300.0 | 5.10 | 10.0 | 0.986 | 1,067 | 0.5% |
60% | 212 | 300.0 | 4.43 | 5.0 | 0.982 | 924 | 0.4% |
50% | 213 | 300.0 | 3.91 | 5.0 | 0.976 | 812 | 0.4% |
40% | 213 | 300.0 | 3.45 | 5.0 | 0.970 | 712 | 0.4% |
30% | 213 | 300.0 | 3.07 | 5.0 | 0.962 | 629 | 0.4% |
20% | 213 | 300.0 | 2.68 | 5.0 | 0.949 | 540 | 0.5% |
10% | 213 | 300.0 | 2.43 | 5.0 | 0.930 | 482 | 0.5% |
Active Idle | 213 | 300.0 | 1.29 | 2.0 | 0.765 | 211 | 0.6% |

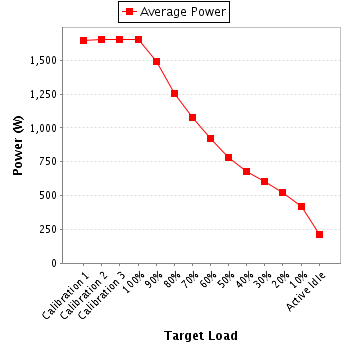

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 210 | 300.0 | 7.86 | 10.0 | 0.994 | 1,642 | 0.4% |
Calibration 2 | 210 | 300.0 | 7.92 | 10.0 | 0.995 | 1,655 | 0.4% |
Calibration 3 | 210 | 300.0 | 7.91 | 10.0 | 0.995 | 1,652 | 0.4% |
100% | 210 | 300.0 | 7.91 | 10.0 | 0.995 | 1,652 | 0.4% |
90% | 210 | 300.0 | 7.15 | 10.0 | 0.993 | 1,492 | 0.4% |
80% | 213 | 300.0 | 5.94 | 10.0 | 0.991 | 1,253 | 0.4% |
70% | 213 | 300.0 | 5.12 | 10.0 | 0.987 | 1,077 | 0.5% |
60% | 213 | 300.0 | 4.41 | 5.0 | 0.983 | 925 | 0.3% |
50% | 214 | 300.0 | 3.74 | 5.0 | 0.976 | 779 | 0.4% |
40% | 213 | 300.0 | 3.29 | 5.0 | 0.970 | 680 | 0.4% |
30% | 214 | 300.0 | 2.93 | 5.0 | 0.962 | 603 | 0.5% |
20% | 213 | 300.0 | 2.57 | 5.0 | 0.949 | 520 | 0.5% |
10% | 214 | 300.0 | 2.14 | 5.0 | 0.907 | 416 | 0.6% |
Active Idle | 214 | 300.0 | 1.28 | 2.0 | 0.784 | 214 | 0.6% |

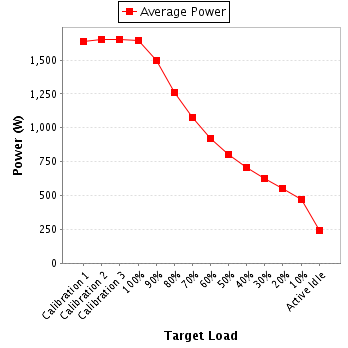

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 213 | 300.0 | 7.86 | 10.0 | 0.978 | 1,634 | 0.4% |
Calibration 2 | 213 | 300.0 | 7.93 | 10.0 | 0.979 | 1,652 | 0.4% |
Calibration 3 | 213 | 300.0 | 7.95 | 10.0 | 0.979 | 1,654 | 0.4% |
100% | 213 | 300.0 | 7.92 | 10.0 | 0.979 | 1,648 | 0.4% |
90% | 212 | 300.0 | 7.22 | 10.0 | 0.974 | 1,495 | 0.4% |
80% | 215 | 300.0 | 6.07 | 10.0 | 0.965 | 1,260 | 0.4% |
70% | 215 | 300.0 | 5.23 | 10.0 | 0.952 | 1,074 | 0.5% |
60% | 216 | 300.0 | 4.57 | 5.0 | 0.937 | 923 | 0.4% |
50% | 216 | 300.0 | 4.04 | 5.0 | 0.918 | 801 | 0.4% |
40% | 216 | 300.0 | 3.65 | 5.0 | 0.900 | 710 | 0.5% |
30% | 216 | 300.0 | 3.31 | 5.0 | 0.875 | 626 | 0.5% |
20% | 216 | 300.0 | 3.03 | 5.0 | 0.848 | 555 | 0.5% |
10% | 216 | 300.0 | 2.73 | 5.0 | 0.799 | 472 | 0.6% |
Active Idle | 217 | 300.0 | 1.94 | 2.0 | 0.571 | 240 | 0.7% |
