SPECpower_ssj2008 Host 'Node06' Performance Report

SPECpower_ssj2008

Host 'Node06' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,570,919 ssj_ops@100% per JVM = 1,446,365
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Aug 27, 2018
Hardware Availability:	Jun-2018	Software Availability:	Mar-2018	Publication:	Sep 12, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,595,383
Calibration 2			11,586,543
Calibration 3			11,603,178
ssj_ops@calibrated=11,594,860
100%	99.8%	11,594,860	11,570,919
90%	90.0%	10,435,374	10,438,373
80%	80.0%	9,275,888	9,276,807
70%	70.0%	8,116,402	8,120,601
60%	60.0%	6,956,916	6,952,664
50%	50.0%	5,797,430	5,800,503
40%	40.0%	4,637,944	4,633,230
30%	30.0%	3,478,458	3,479,334
20%	20.0%	2,318,972	2,316,840
10%	10.0%	1,159,486	1,160,092
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	5
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	Other
CPU Name:	Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics:	28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x HPE 480GB SATA 6G Read Intensive M.2 (875319-B21)
Disk Controller:	1 x HPE Smart Array S100i SR Gen10 (784308-B21)
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=30 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,2,4,6] /AFFINITY [0x0000000FC0FF, 0xFC0FF0000000]; start /NODE [1,3,5,7] /AFFINITY [0x0000000FF03F,0xFF03F0000000]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v1.32 (02/01/2018)
Management Firmware Version:	1.15 August 17 2017
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898

Boot Firmware Settings

USB Control: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled
SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled
x2APIC: Disabled
Memory Refresh Rate: 1x Refresh
Memory Patrol Scrubbing: Disabled
Memory Bus Frequency: 2400 MHz
Power Regulator: OS Control
Energy Performance Bias: Balanced Power
Turbo Boost Technology: Disabled
Collaborative Power Control: Disabled
DMI Link Frequency: Gen 1
Sub-NUMA Clustering: Enabled
Intel NIC DMA Channels (IOAT): Disabled
HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
DCU IP Prefetcher: Disabled
LLC Prefetcher: Disabled
XPT Prefetcher: Enabled
UPI Link Frequency: Min UPI Speed
Maximum PCI Express Speed: PCIe Generation 1.0
Embedded SATA Configuration: Smart Array SW RAID Support
Embedded SATA Controller #1: Disabled
AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Run initiated via Windows Remote Desktop Connection
SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.
Windows Power Plan = Balanced
Turn off display = 1 minute
Turn off hard disk = 1 minute
Processor power management: Minimum Processor State = 0%, Maximum Processor State = 100%
System cooling policy = Active
Synergy Frame Power Supply mode set to Redundant Power Supply via HPE OneView.

Applied protection against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: Aug 14, 2018)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

JVM Instance Summary

JVM Instance	ssj_ops@100%
Node06.001	1,446,776
Node06.002	1,439,865
Node06.003	1,457,030
Node06.004	1,432,949
Node06.005	1,452,563
Node06.006	1,430,225
Node06.007	1,465,063
Node06.008	1,446,449
ssj_ops@100%	11,570,919
ssj_ops@100% per JVM	1,446,365

JVM 'Node06.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,451,721
Calibration 2			1,451,398
Calibration 3			1,449,698
ssj_ops@calibrated=1,450,548
100%	99.7%	1,450,548	1,446,776
90%	90.2%	1,305,493	1,308,624
80%	80.0%	1,160,438	1,159,726
70%	70.1%	1,015,383	1,017,140
60%	60.0%	870,329	870,463
50%	50.0%	725,274	725,165
40%	40.0%	580,219	579,561
30%	30.1%	435,164	436,274
20%	19.9%	290,110	289,116
10%	10.0%	145,055	145,043
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

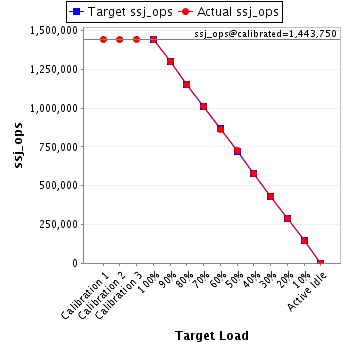

JVM 'Node06.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,442,820
Calibration 2			1,442,573
Calibration 3			1,444,927
ssj_ops@calibrated=1,443,750
100%	99.7%	1,443,750	1,439,865
90%	90.0%	1,299,375	1,299,273
80%	79.7%	1,155,000	1,151,382
70%	70.0%	1,010,625	1,011,301
60%	59.9%	866,250	864,253
50%	50.2%	721,875	724,871
40%	39.9%	577,500	576,242
30%	30.0%	433,125	432,879
20%	20.0%	288,750	288,361
10%	10.0%	144,375	144,172
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node06.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,461,717
Calibration 2			1,461,122
Calibration 3			1,462,085
ssj_ops@calibrated=1,461,604
100%	99.7%	1,461,604	1,457,030
90%	90.1%	1,315,443	1,317,147
80%	80.1%	1,169,283	1,170,546
70%	69.8%	1,023,123	1,020,460
60%	60.1%	876,962	878,806
50%	50.3%	730,802	735,088
40%	39.9%	584,641	582,453
30%	30.0%	438,481	438,191
20%	20.0%	292,321	292,815
10%	9.9%	146,160	144,465
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node06.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,434,854
Calibration 2			1,434,832
Calibration 3			1,435,674
ssj_ops@calibrated=1,435,253
100%	99.8%	1,435,253	1,432,949
90%	89.9%	1,291,728	1,290,676
80%	80.2%	1,148,202	1,150,590
70%	70.2%	1,004,677	1,008,209
60%	60.0%	861,152	860,903
50%	50.0%	717,626	717,072
40%	40.0%	574,101	574,323
30%	30.0%	430,576	431,088
20%	20.2%	287,051	289,693
10%	10.1%	143,525	145,242
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node06.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,455,383
Calibration 2			1,451,823
Calibration 3			1,457,218
ssj_ops@calibrated=1,454,521
100%	99.9%	1,454,521	1,452,563
90%	89.9%	1,309,069	1,307,806
80%	80.1%	1,163,617	1,165,152
70%	69.9%	1,018,164	1,016,746
60%	60.1%	872,712	874,195
50%	50.0%	727,260	726,790
40%	40.0%	581,808	582,290
30%	30.0%	436,356	435,990
20%	19.9%	290,904	289,299
10%	10.0%	145,452	144,949
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node06.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,433,761
Calibration 2			1,431,520
Calibration 3			1,434,809
ssj_ops@calibrated=1,433,164
100%	99.8%	1,433,164	1,430,225
90%	90.0%	1,289,848	1,290,343
80%	79.8%	1,146,532	1,144,328
70%	70.1%	1,003,215	1,004,840
60%	59.7%	859,899	856,205
50%	49.9%	716,582	715,504
40%	40.2%	573,266	575,780
30%	29.9%	429,949	428,469
20%	20.0%	286,633	286,964
10%	10.0%	143,316	143,004
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node06.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,466,582
Calibration 2			1,465,949
Calibration 3			1,469,418
ssj_ops@calibrated=1,467,683
100%	99.8%	1,467,683	1,465,063
90%	89.9%	1,320,915	1,320,164
80%	80.2%	1,174,147	1,176,480
70%	69.9%	1,027,378	1,025,961
60%	60.0%	880,610	880,842
50%	50.0%	733,842	734,316
40%	39.9%	587,073	585,014
30%	30.0%	440,305	440,277
20%	19.9%	293,537	291,359
10%	10.0%	146,768	147,402
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node06.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,448,546
Calibration 2			1,447,326
Calibration 3			1,449,348
ssj_ops@calibrated=1,448,337
100%	99.9%	1,448,337	1,446,449
90%	90.1%	1,303,504	1,304,340
80%	80.0%	1,158,670	1,158,602
70%	70.1%	1,013,836	1,015,943
60%	59.9%	869,002	866,996
50%	49.8%	724,169	721,697
40%	39.9%	579,335	577,567
30%	30.1%	434,501	436,165
20%	20.0%	289,667	289,233
10%	10.1%	144,834	145,816
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
