Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module ssj_ops@100% = 46,086,610
ssj_ops@100% per Host = 11,521,652
ssj_ops@100% per JVM = 1,440,207
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 27, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     46,201,611
Calibration 2     46,169,077
Calibration 3     46,223,188
ssj_ops@calibrated=46,196,133
100% 99.8% 46,196,133 46,086,610
90% 90.0% 41,576,519 41,591,728
80% 80.1% 36,956,906 36,991,644
70% 70.0% 32,337,293 32,359,425
60% 60.0% 27,717,680 27,736,920
50% 50.0% 23,098,066 23,101,483
40% 40.0% 18,478,453 18,490,282
30% 30.0% 13,858,840 13,856,456
20% 20.0% 9,239,227 9,242,397
10% 10.0% 4,619,613 4,613,071
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 16 448 896 1,536 4 32
System Under Test
Shared Hardware
Shared Hardware
Enclosure: HPE Synergy 12000 Frame
Form Factor: 10U
Power Supply Quantity and Rating (W): 6 x 2650
Power Supply Details: HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch: 1
Network Switch Details: HP A5820X Series Switch JG219A
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: 1 x HPE Synergy 10Gb Pass Thru Module (799330-B21), 1 x HPE Synergy Composer (804353-B21), 1 x HPE Synergy Frame Link Module (804942-B21)
Comment: Network switch not measured for power
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 4
Comment: SUT
Hardware per Node
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 660 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G Read Intensive M.2 (875319-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10 (784308-B21)
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=30 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,4,6] /AFFINITY [0x0000000FC0FF, 0xFC0FF0000000]; start /NODE [1,3,5,7] /AFFINITY [0x0000000FF03F,0xFF03F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I43 v1.32 (02/01/2018)
Management Firmware Version: 1.15 August 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
Node03 11,497,048
Node04 11,546,436
Node05 11,542,753
Node06 11,500,373
ssj_ops@100% 46,086,610
ssj_ops@100% per Host 11,521,652
ssj_ops@100% per JVM 1,440,207
Graph of per-host results
Host 'Node03' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,536,967
Calibration 2     11,514,375
Calibration 3     11,526,953
ssj_ops@calibrated=11,520,664
100% 99.8% 11,520,664 11,497,048
90% 90.0% 10,368,597 10,373,981
80% 80.1% 9,216,531 9,223,085
70% 69.9% 8,064,465 8,047,305
60% 60.0% 6,912,398 6,910,584
50% 50.1% 5,760,332 5,766,337
40% 40.0% 4,608,266 4,611,946
30% 30.0% 3,456,199 3,452,881
20% 20.0% 2,304,133 2,305,939
10% 10.0% 1,152,066 1,147,004
Active Idle   0 0
Graph of results
Host 'Node04' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,555,241
Calibration 2     11,560,581
Calibration 3     11,579,728
ssj_ops@calibrated=11,570,154
100% 99.8% 11,570,154 11,546,436
90% 90.1% 10,413,139 10,422,073
80% 80.4% 9,256,123 9,297,052
70% 70.0% 8,099,108 8,101,503
60% 60.1% 6,942,093 6,958,612
50% 50.0% 5,785,077 5,781,624
40% 40.1% 4,628,062 4,634,296
30% 30.0% 3,471,046 3,473,092
20% 20.0% 2,314,031 2,313,769
10% 10.0% 1,157,015 1,153,800
Active Idle   0 0
Graph of results

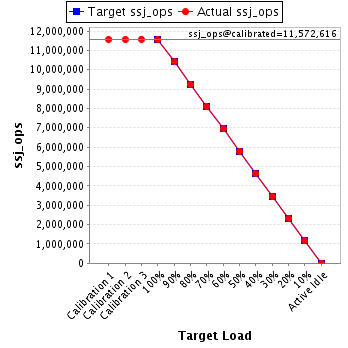

Host 'Node05' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,570,505
Calibration 2     11,565,198
Calibration 3     11,580,033
ssj_ops@calibrated=11,572,616
100% 99.7% 11,572,616 11,542,753
90% 90.0% 10,415,354 10,412,662
80% 80.0% 9,258,093 9,253,673
70% 70.0% 8,100,831 8,102,679
60% 60.0% 6,943,570 6,947,240
50% 50.0% 5,786,308 5,789,541
40% 40.0% 4,629,046 4,631,114
30% 30.0% 3,471,785 3,474,706
20% 20.0% 2,314,523 2,316,407
10% 10.0% 1,157,262 1,156,628
Active Idle   0 0
Graph of results
Host 'Node06' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,538,899
Calibration 2     11,528,924
Calibration 3     11,536,474
ssj_ops@calibrated=11,532,699
100% 99.7% 11,532,699 11,500,373
90% 90.0% 10,379,429 10,383,011
80% 79.9% 9,226,159 9,217,834
70% 70.3% 8,072,889 8,107,937
60% 60.0% 6,919,619 6,920,484
50% 50.0% 5,766,349 5,763,981
40% 40.0% 4,613,079 4,612,926
30% 30.0% 3,459,810 3,455,777
20% 20.0% 2,306,540 2,306,283
10% 10.0% 1,153,270 1,155,639
Active Idle   0 0
Graph of results
