Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module SPECpower_ssj2008 = 10,373 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 27, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 3,028 22.8
Calibration 2 3,056 22.7
Calibration 3 3,056 22.5
100% 3,048 22.4
90% 2,764 22.5
80% 2,332 22.6
70% 1,989 22.7
60% 1,733 22.6
50% 1,510 22.5
40% 1,335 22.5
30% 1,192 22.6
20% 1,048 22.7
10% 902 22.6
Active Idle 478 22.5

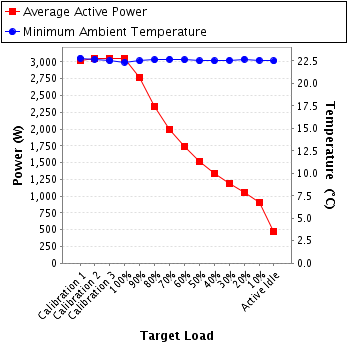

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 2, and 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EN5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1, and 4
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 3, and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 4.80 10.0 0.984 1,006 0.5%
Calibration 2 213 300.0 4.83 10.0 0.985 1,013 0.5%
Calibration 3 213 300.0 4.83 10.0 0.985 1,013 0.5%
100% 213 300.0 4.84 10.0 0.985 1,014 0.5%
90% 213 300.0 4.41 10.0 0.982 921 0.5%
80% 213 300.0 3.80 10.0 0.975 790 0.6%
70% 213 300.0 3.30 10.0 0.968 681 0.6%
60% 213 300.0 2.92 5.0 0.958 597 0.5%
50% 213 300.0 2.65 5.0 0.948 536 0.5%
40% 213 300.0 2.42 5.0 0.929 479 0.5%
30% 213 300.0 1.98 5.0 0.883 373 0.7%
20% 213 300.0 1.77 5.0 0.857 323 0.7%
10% 213 300.0 1.69 5.0 0.862 309 0.8%
Active Idle 213 300.0 1.12 2.0 0.633 151 0.8%

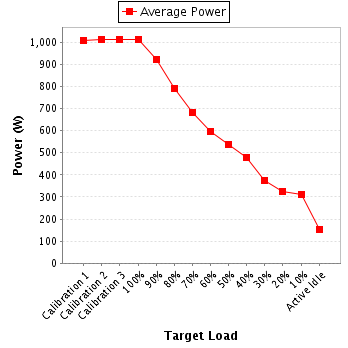

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 4.82 10.0 0.986 1,011 0.5%
Calibration 2 213 300.0 4.87 10.0 0.986 1,023 0.5%
Calibration 3 213 300.0 4.87 10.0 0.986 1,023 0.5%
100% 213 300.0 4.84 10.0 0.986 1,018 0.5%
90% 213 300.0 4.38 10.0 0.983 918 0.5%
80% 214 300.0 3.68 10.0 0.975 766 0.6%
70% 214 300.0 3.09 10.0 0.966 638 0.7%
60% 214 300.0 2.71 5.0 0.956 555 0.5%
50% 214 300.0 2.34 5.0 0.936 469 0.5%
40% 214 300.0 2.16 5.0 0.911 421 0.6%
30% 214 300.0 2.05 5.0 0.893 391 0.6%
20% 213 300.0 1.87 5.0 0.875 350 0.7%
10% 213 300.0 1.58 5.0 0.856 288 0.8%
Active Idle 214 300.0 1.05 2.0 0.658 148 0.8%
Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 216 300.0 4.94 10.0 0.946 1,011 0.5%
Calibration 2 216 300.0 4.98 10.0 0.947 1,019 0.5%
Calibration 3 216 300.0 4.98 10.0 0.947 1,020 0.5%
100% 216 300.0 4.96 10.0 0.947 1,016 0.5%
90% 216 300.0 4.56 10.0 0.937 925 0.5%
80% 217 300.0 3.92 10.0 0.914 776 0.6%
70% 217 300.0 3.47 10.0 0.889 669 0.7%
60% 217 300.0 3.11 5.0 0.860 581 0.5%
50% 217 300.0 2.82 5.0 0.825 505 0.6%
40% 217 300.0 2.60 5.0 0.771 435 0.7%
30% 217 300.0 2.55 5.0 0.772 427 0.7%
20% 217 300.0 2.37 5.0 0.730 375 0.7%
10% 217 300.0 2.13 5.0 0.662 305 0.9%
Active Idle 217 300.0 1.79 2.0 0.461 179 0.9%

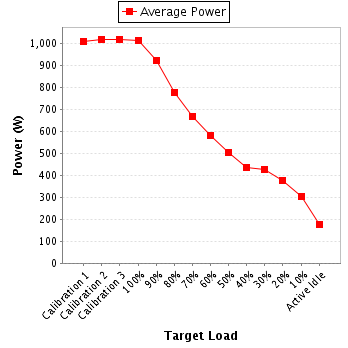

Power details for pwr3
