Hewlett Packard Enterprise ProLiant DL360 Gen10 | ssj_ops@100% = 2,962,862 ssj_ops@100% per JVM = 1,481,431 |
||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Aug 27, 2018 |
Hardware Availability: | Jun-2018 | Software Availability: | Jul-2018 | Publication: | Sep 12, 2018 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 2,976,986 | ||
Calibration 2 | 2,971,599 | ||
Calibration 3 | 2,975,386 | ||
ssj_ops@calibrated=2,973,492 | |||
100% | 99.6% | 2,973,492 | 2,962,862 |
90% | 90.2% | 2,676,143 | 2,680,618 |
80% | 79.9% | 2,378,794 | 2,376,476 |
70% | 70.0% | 2,081,445 | 2,081,211 |
60% | 59.9% | 1,784,095 | 1,781,852 |
50% | 49.8% | 1,486,746 | 1,480,004 |
40% | 40.0% | 1,189,397 | 1,188,425 |
30% | 29.9% | 892,048 | 889,523 |
20% | 20.0% | 594,698 | 594,972 |
10% | 10.0% | 297,349 | 297,033 |
Active Idle | 0 | 0 |
Set Identifier: | SUT |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | SUT |
Hardware | |
---|---|
Hardware Vendor: | Hewlett Packard Enterprise |
Model: | ProLiant DL360 Gen10 |
Form Factor: | 1U |
CPU Name: | Intel Xeon Platinum 8180 2.50GHz |
CPU Characteristics: | 28-Core, 2.50 GHz, 38.5MB L3 Cache |
CPU Frequency (MHz): | 2500 |
CPU(s) Enabled: | 28 cores, 1 chip, 28 cores/chip |
Hardware Threads: | 56 (2 / core) |
CPU(s) Orderable: | 1,2 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 39424 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 48 |
# and size of DIMM: | 6 x 8182 MB |
Memory Details: | 6 x 8GB 2Rx8 PC4-2666V-RE1-12; slots 1, 3, 5, 8, 10, and 12 populated |
Power Supply Quantity and Rating (W): | 1 x 800 |
Power Supply Details: | HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply 96% (865438-B21) |
Disk Drive: | 1 x HPE 240GB SATA 6G SSD (875503-B21) |
Disk Controller: | 1 x HPE Smart Array S100i SR Gen10 (784308-B21) |
# and type of Network Interface Cards (NICs) Installed: | 1 x HPE Ethernet 1Gb 4-port 331i Adapter |
NICs Enabled in Firmware / OS / Connected: | 4/4/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | SUSE Linux Enterprise Server 12 SP3 |
OS Version: | Kernel 4.4.120-94.17-default |
Filesystem: | xfs |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
JVM Command-line Options: | -Djava.awt.headless=true -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC |
JVM Affinity: | numactl --cpunodebind=[0-1] --localalloc |
JVM Instances: | 2 |
JVM Initial Heap (MB): | 21000 |
JVM Maximum Heap (MB): | 21000 |
JVM Address Bits: | 64 |
Boot Firmware Version: | U32 v1.40 (06/15/2018) |
Management Firmware Version: | 1.30 pass 01 Dec 14 2017 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | HPE Service Pack for ProLiant (SPP) Version:2018.06.0 (26 Jun 2018), HPE Microprocessor Vulnerability ROM Updates (spp_supplement-2018.06.0.2) Version:2018.06.0(9 Jul 2018); ucode-intel-20180312-13.17.1 |

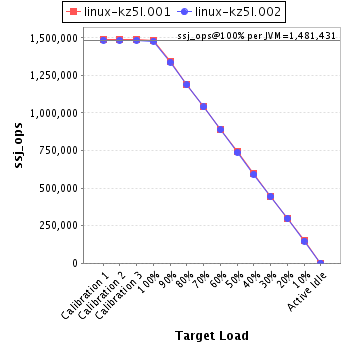

JVM Instance | ssj_ops@100% |
---|---|
linux-kz5l.001 | 1,484,488 |
linux-kz5l.002 | 1,478,374 |
ssj_ops@100% | 2,962,862 |
ssj_ops@100% per JVM | 1,481,431 |

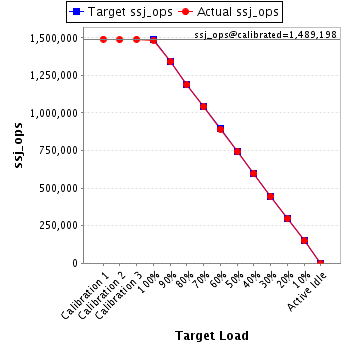

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,491,319 | ||
Calibration 2 | 1,487,674 | ||
Calibration 3 | 1,490,721 | ||
ssj_ops@calibrated=1,489,198 | |||
100% | 99.7% | 1,489,198 | 1,484,488 |
90% | 90.1% | 1,340,278 | 1,342,009 |
80% | 79.8% | 1,191,358 | 1,189,119 |
70% | 69.9% | 1,042,438 | 1,041,169 |
60% | 59.9% | 893,519 | 892,417 |
50% | 49.8% | 744,599 | 741,964 |
40% | 40.1% | 595,679 | 596,570 |
30% | 29.9% | 446,759 | 445,159 |
20% | 20.0% | 297,840 | 297,189 |
10% | 10.1% | 148,920 | 149,747 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,485,666 | ||
Calibration 2 | 1,483,924 | ||
Calibration 3 | 1,484,665 | ||
ssj_ops@calibrated=1,484,295 | |||
100% | 99.6% | 1,484,295 | 1,478,374 |
90% | 90.2% | 1,335,865 | 1,338,609 |
80% | 80.0% | 1,187,436 | 1,187,357 |
70% | 70.1% | 1,039,006 | 1,040,042 |
60% | 59.9% | 890,577 | 889,435 |
50% | 49.7% | 742,147 | 738,040 |
40% | 39.9% | 593,718 | 591,855 |
30% | 29.9% | 445,288 | 444,364 |
20% | 20.1% | 296,859 | 297,783 |
10% | 9.9% | 148,429 | 147,286 |
Active Idle | 0 | 0 |
