Lenovo Global Technology ThinkSystem SN850 SPECpower_ssj2008 = 11,538 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Aug 29, 2018
Hardware Availability: Jul-2018 Software Availability: Jan-2018 Publication: Sep 27, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 5,795 21.9
Calibration 2 5,689 22.4
Calibration 3 5,357 22.3
100% 5,366 22.8
90% 4,683 23.1
80% 4,141 22.9
70% 3,670 22.4
60% 3,302 22.1
50% 2,982 22.1
40% 2,681 22.2
30% 2,391 22.1
20% 2,102 21.7
10% 1,801 21.7
Active Idle 820 21.7

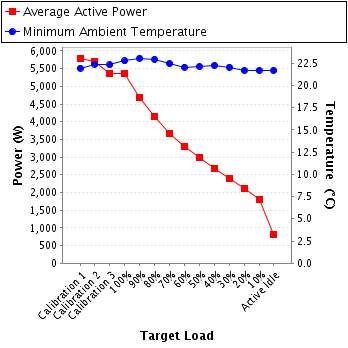

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C3UD17024E
Connectivity: USB
Input Connection: Default
Metrology Institute: Yokogawa Test & Measurement Corporation
Accredited by: Yokogawa Test & Measurement Corporation
Calibration Label: 2004871237-000010-0002
Date of Calibration: 19-Apr-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1,PSU 2,PSU 3
Power Analyzer pwr2
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C3UD17023E
Connectivity: USB
Input Connection: Default
Metrology Institute: Yokogawa Meters and Instruments Corporation
Accredited by: Yokogawa Meters and Instruments Corporation
Calibration Label: 2004871237-000010-0001
Date of Calibration: 19-Apr-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 4,PSU 5,PSU 6
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 13.1 20.0 0.993 2,863 0.3%
Calibration 2 219 300.0 12.9 20.0 0.993 2,813 0.3%
Calibration 3 219 300.0 12.2 20.0 0.992 2,647 0.3%
100% 219 300.0 12.2 20.0 0.992 2,651 0.3%
90% 219 300.0 10.6 20.0 0.991 2,311 0.3%
80% 220 300.0 9.40 20.0 0.989 2,042 0.3%
70% 220 300.0 8.36 10.0 0.987 1,811 0.2%
60% 220 300.0 7.51 10.0 0.984 1,622 0.2%
50% 220 300.0 6.79 10.0 0.980 1,463 0.3%
40% 220 300.0 6.11 10.0 0.976 1,309 0.3%
30% 220 300.0 5.46 10.0 0.970 1,164 0.3%
20% 220 300.0 4.84 10.0 0.961 1,022 0.3%
10% 220 300.0 4.22 10.0 0.949 880 0.3%
Active Idle 220 300.0 2.04 10.0 0.848 380 0.6%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 13.5 20.0 0.993 2,932 0.3%
Calibration 2 219 300.0 13.2 20.0 0.993 2,876 0.3%
Calibration 3 219 300.0 12.4 20.0 0.992 2,710 0.3%
100% 219 300.0 12.5 20.0 0.992 2,714 0.3%
90% 220 300.0 10.9 20.0 0.991 2,372 0.3%
80% 220 300.0 9.66 20.0 0.989 2,098 0.3%
70% 220 300.0 8.57 10.0 0.987 1,859 0.2%
60% 220 300.0 7.76 10.0 0.985 1,680 0.2%
50% 220 300.0 7.05 10.0 0.981 1,520 0.2%
40% 220 300.0 6.38 10.0 0.977 1,371 0.3%
30% 220 300.0 5.74 10.0 0.972 1,226 0.3%
20% 220 300.0 5.09 10.0 0.965 1,080 0.3%
10% 220 300.0 4.40 10.0 0.952 921 0.3%
Active Idle 220 300.0 2.24 10.0 0.894 440 0.5%
Power details for pwr2
