Huawei Technologies Co., Ltd Fusion Server 2288H V5 SPECpower_ssj2008 = 13,478 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Aug 21, 2018
Hardware Availability: Jul-2018 Software Availability: Jul-2018 Publication: Sep 27, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 437 21.1
Calibration 2 437 21.6
Calibration 3 437 21.2
100% 437 21.4
90% 341 22.0
80% 280 21.8
70% 249 21.4
60% 220 21.4
50% 198 21.8
40% 180 21.7
30% 161 21.5
20% 142 21.6
10% 123 21.6
Active Idle 50.3 21.6

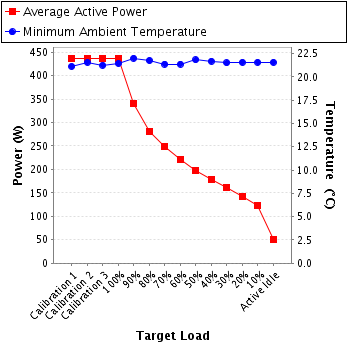

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91M412342
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: B18008105-0029
Date of Calibration: 4-Aug-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 221 300.0 2.02 2.0 0.983 437 0.3%
Calibration 2 221 300.0 2.02 2.0 0.983 437 0.3%
Calibration 3 221 300.0 2.02 2.0 0.983 437 0.3%
100% 221 300.0 2.02 2.0 0.983 437 0.3%
90% 221 300.0 1.59 2.0 0.978 341 0.4%
80% 221 300.0 1.30 2.0 0.976 280 0.4%
70% 221 300.0 1.16 2.0 0.972 249 0.4%
60% 221 300.0 1.03 2.0 0.967 220 0.5%
50% 221 300.0 0.935 1.0 0.960 198 0.4%
40% 221 300.0 0.851 1.0 0.954 180 0.4%
30% 221 300.0 0.768 1.0 0.947 161 0.4%
20% 221 300.0 0.686 1.0 0.939 142 0.4%
10% 221 300.0 0.594 1.0 0.933 123 0.5%
Active Idle 221 300.0 0.267 0.5 0.853 50.3 0.6%

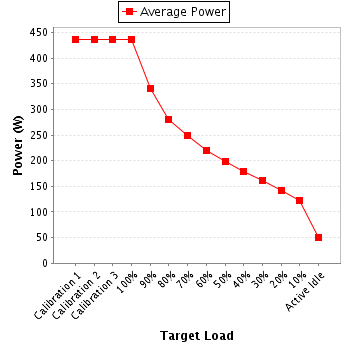

Power details for pwr1
