Huawei Technologies Co., Ltd Fusion Server 2288H V5 ssj_ops@100% = 5,835,340
ssj_ops@100% per JVM = 104,202
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Aug 21, 2018
Hardware Availability: Jul-2018 Software Availability: Jul-2018 Publication: Sep 27, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,876,292
Calibration 2     5,833,097
Calibration 3     5,837,036
ssj_ops@calibrated=5,835,067
100% 100.0% 5,835,067 5,835,340
90% 90.1% 5,251,560 5,258,916
80% 80.1% 4,668,053 4,673,554
70% 70.0% 4,084,547 4,083,543
60% 59.9% 3,501,040 3,495,276
50% 50.0% 2,917,533 2,915,788
40% 40.1% 2,334,027 2,338,263
30% 30.0% 1,750,520 1,751,516
20% 20.1% 1,167,013 1,170,069
10% 10.0% 583,507 584,445
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Fusion Server 2288H V5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8180
CPU Characteristics: 28-Core, 2.5GHz, 38.5MB L3 Cache (Intel Turbo Boost Technology up to 2.8GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 2Rx8 PC4-2666V ECC RDIMM;slots DIMM000, DIMM010, DIMM020, DIMM030,DIMM040, DIMM050, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, and DIMM150 populated
Power Supply Quantity and Rating (W): 1 x 550
Power Supply Details: Huawei P/N 02131255
Disk Drive: 1 x 480GB SSD 2.5" SATA Huawei P/N 02312DXS
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: LOM with 2 x 10GbE + 2 x GbE Intel X722 Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced (recommended) Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.18969
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,] /AFFINITY [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE [1,3,] /AFFINITY [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000];
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 0.80
Management Firmware Version: 3.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4056898,KB4338824
Boot Firmware Settings
Management Firmware Settings
440W User Defined Power Capping Policy
System Under Test Notes
Notes
.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-V0250ROLGU6.001 102,047
WIN-V0250ROLGU6.002 103,625
WIN-V0250ROLGU6.003 103,203
WIN-V0250ROLGU6.004 101,451
WIN-V0250ROLGU6.005 104,269
WIN-V0250ROLGU6.006 103,511
WIN-V0250ROLGU6.007 102,439
WIN-V0250ROLGU6.008 104,507
WIN-V0250ROLGU6.009 104,978
WIN-V0250ROLGU6.010 104,342
WIN-V0250ROLGU6.011 101,828
WIN-V0250ROLGU6.012 103,698
WIN-V0250ROLGU6.013 103,637
WIN-V0250ROLGU6.014 103,882
WIN-V0250ROLGU6.015 102,639
WIN-V0250ROLGU6.016 103,912
WIN-V0250ROLGU6.017 102,876
WIN-V0250ROLGU6.018 102,860
WIN-V0250ROLGU6.019 102,767
WIN-V0250ROLGU6.020 103,892
WIN-V0250ROLGU6.021 104,606
WIN-V0250ROLGU6.022 102,985
WIN-V0250ROLGU6.023 104,550
WIN-V0250ROLGU6.024 103,543
WIN-V0250ROLGU6.025 102,237
WIN-V0250ROLGU6.026 104,370
WIN-V0250ROLGU6.027 103,867
WIN-V0250ROLGU6.028 101,860
WIN-V0250ROLGU6.029 106,339
WIN-V0250ROLGU6.030 106,505
WIN-V0250ROLGU6.031 105,069
WIN-V0250ROLGU6.032 105,558
WIN-V0250ROLGU6.033 107,393
WIN-V0250ROLGU6.034 104,412
WIN-V0250ROLGU6.035 104,642
WIN-V0250ROLGU6.036 105,922
WIN-V0250ROLGU6.037 106,134
WIN-V0250ROLGU6.038 103,144
WIN-V0250ROLGU6.039 104,663
WIN-V0250ROLGU6.040 104,612
WIN-V0250ROLGU6.041 106,076
WIN-V0250ROLGU6.042 103,947
WIN-V0250ROLGU6.043 103,457
WIN-V0250ROLGU6.044 105,001
WIN-V0250ROLGU6.045 102,847
WIN-V0250ROLGU6.046 108,099
WIN-V0250ROLGU6.047 102,086
WIN-V0250ROLGU6.048 105,721
WIN-V0250ROLGU6.049 106,030
WIN-V0250ROLGU6.050 102,838
WIN-V0250ROLGU6.051 104,851
WIN-V0250ROLGU6.052 106,500
WIN-V0250ROLGU6.053 106,375
WIN-V0250ROLGU6.054 103,597
WIN-V0250ROLGU6.055 106,917
WIN-V0250ROLGU6.056 102,222
ssj_ops@100% 5,835,340
ssj_ops@100% per JVM 104,202

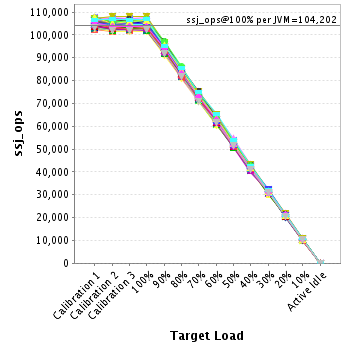

Graph of per-instance results
JVM 'WIN-V0250ROLGU6.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,134
Calibration 2     101,677
Calibration 3     101,972
ssj_ops@calibrated=101,825
100% 100.2% 101,825 102,047
90% 90.5% 91,642 92,118
80% 80.6% 81,460 82,050
70% 69.8% 71,277 71,105
60% 59.7% 61,095 60,807
50% 50.0% 50,912 50,928
40% 39.9% 40,730 40,635
30% 30.2% 30,547 30,733
20% 20.1% 20,365 20,420
10% 10.1% 10,182 10,317
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,469
Calibration 2     103,274
Calibration 3     103,592
ssj_ops@calibrated=103,433
100% 100.2% 103,433 103,625
90% 89.0% 93,090 92,070
80% 80.6% 82,746 83,415
70% 70.5% 72,403 72,966
60% 59.7% 62,060 61,774
50% 50.1% 51,717 51,796
40% 40.7% 41,373 42,061
30% 30.6% 31,030 31,670
20% 20.4% 20,687 21,090
10% 9.9% 10,343 10,271
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,072
Calibration 2     103,441
Calibration 3     103,250
ssj_ops@calibrated=103,345
100% 99.9% 103,345 103,203
90% 90.1% 93,011 93,127
80% 80.5% 82,676 83,151
70% 69.6% 72,342 71,898
60% 58.7% 62,007 60,675
50% 49.6% 51,673 51,289
40% 40.2% 41,338 41,558
30% 30.4% 31,004 31,415
20% 19.9% 20,669 20,590
10% 10.0% 10,335 10,336
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,622
Calibration 2     101,277
Calibration 3     101,304
ssj_ops@calibrated=101,291
100% 100.2% 101,291 101,451
90% 90.0% 91,162 91,126
80% 79.8% 81,033 80,835
70% 70.1% 70,904 70,978
60% 59.6% 60,774 60,358
50% 50.7% 50,645 51,356
40% 40.0% 40,516 40,565
30% 30.5% 30,387 30,845
20% 20.2% 20,258 20,428
10% 10.0% 10,129 10,104
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,538
Calibration 2     104,181
Calibration 3     104,110
ssj_ops@calibrated=104,146
100% 100.1% 104,146 104,269
90% 89.7% 93,731 93,410
80% 80.0% 83,316 83,301
70% 70.5% 72,902 73,403
60% 59.0% 62,487 61,497
50% 51.2% 52,073 53,328
40% 40.2% 41,658 41,875
30% 30.1% 31,244 31,312
20% 20.1% 20,829 20,941
10% 10.1% 10,415 10,558
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,399
Calibration 2     103,643
Calibration 3     103,603
ssj_ops@calibrated=103,623
100% 99.9% 103,623 103,511
90% 88.9% 93,261 92,136
80% 79.3% 82,899 82,157
70% 69.3% 72,536 71,840
60% 60.0% 62,174 62,219
50% 50.6% 51,812 52,439
40% 40.7% 41,449 42,130
30% 30.1% 31,087 31,212
20% 19.5% 20,725 20,215
10% 10.3% 10,362 10,667
Active Idle   0 0
Graph of results

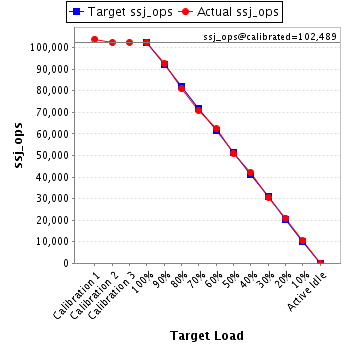

JVM 'WIN-V0250ROLGU6.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,959
Calibration 2     102,428
Calibration 3     102,550
ssj_ops@calibrated=102,489
100% 100.0% 102,489 102,439
90% 90.4% 92,240 92,685
80% 79.0% 81,991 80,949
70% 69.1% 71,742 70,824
60% 60.9% 61,494 62,429
50% 49.9% 51,245 51,141
40% 41.1% 40,996 42,081
30% 29.9% 30,747 30,598
20% 20.5% 20,498 20,985
10% 10.1% 10,249 10,362
Active Idle   0 0
Graph of results

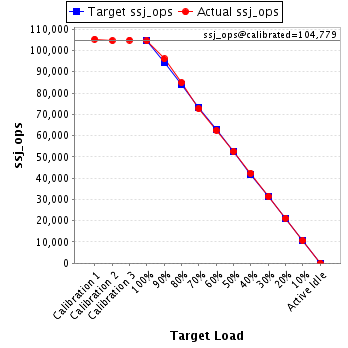

JVM 'WIN-V0250ROLGU6.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,319
Calibration 2     104,644
Calibration 3     104,915
ssj_ops@calibrated=104,779
100% 99.7% 104,779 104,507
90% 91.7% 94,302 96,083
80% 81.0% 83,824 84,871
70% 69.4% 73,346 72,697
60% 59.6% 62,868 62,462
50% 50.2% 52,390 52,582
40% 40.4% 41,912 42,308
30% 30.0% 31,434 31,389
20% 20.2% 20,956 21,208
10% 10.2% 10,478 10,694
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,893
Calibration 2     104,208
Calibration 3     105,363
ssj_ops@calibrated=104,786
100% 100.2% 104,786 104,978
90% 90.0% 94,307 94,347
80% 80.5% 83,829 84,305
70% 70.3% 73,350 73,698
60% 59.4% 62,871 62,212
50% 50.2% 52,393 52,635
40% 39.7% 41,914 41,631
30% 30.4% 31,436 31,807
20% 19.9% 20,957 20,865
10% 10.1% 10,479 10,621
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,250
Calibration 2     103,828
Calibration 3     104,125
ssj_ops@calibrated=103,977
100% 100.4% 103,977 104,342
90% 89.6% 93,579 93,142
80% 79.9% 83,181 83,050
70% 69.9% 72,784 72,687
60% 59.2% 62,386 61,527
50% 50.2% 51,988 52,247
40% 39.9% 41,591 41,515
30% 30.1% 31,193 31,349
20% 19.8% 20,795 20,616
10% 9.9% 10,398 10,312
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,596
Calibration 2     101,933
Calibration 3     102,230
ssj_ops@calibrated=102,081
100% 99.8% 102,081 101,828
90% 90.0% 91,873 91,857
80% 81.1% 81,665 82,774
70% 69.9% 71,457 71,313
60% 59.4% 61,249 60,674
50% 49.6% 51,041 50,643
40% 40.2% 40,833 41,044
30% 30.3% 30,624 30,932
20% 20.0% 20,416 20,436
10% 9.9% 10,208 10,089
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,222
Calibration 2     103,580
Calibration 3     104,284
ssj_ops@calibrated=103,932
100% 99.8% 103,932 103,698
90% 89.0% 93,539 92,530
80% 80.3% 83,145 83,469
70% 70.2% 72,752 72,922
60% 59.8% 62,359 62,168
50% 50.0% 51,966 51,949
40% 39.9% 41,573 41,434
30% 29.0% 31,180 30,172
20% 20.2% 20,786 21,034
10% 10.1% 10,393 10,529
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,019
Calibration 2     104,307
Calibration 3     103,938
ssj_ops@calibrated=104,122
100% 99.5% 104,122 103,637
90% 89.5% 93,710 93,198
80% 80.7% 83,298 84,015
70% 69.7% 72,886 72,532
60% 58.8% 62,473 61,244
50% 50.0% 52,061 52,098
40% 40.0% 41,649 41,636
30% 29.2% 31,237 30,372
20% 20.4% 20,824 21,228
10% 9.8% 10,412 10,190
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,796
Calibration 2     103,916
Calibration 3     104,134
ssj_ops@calibrated=104,025
100% 99.9% 104,025 103,882
90% 90.2% 93,623 93,813
80% 80.4% 83,220 83,637
70% 70.4% 72,818 73,239
60% 60.2% 62,415 62,621
50% 50.1% 52,013 52,074
40% 39.4% 41,610 40,979
30% 30.6% 31,208 31,860
20% 20.5% 20,805 21,343
10% 10.1% 10,403 10,500
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,223
Calibration 2     103,346
Calibration 3     102,984
ssj_ops@calibrated=103,165
100% 99.5% 103,165 102,639
90% 89.8% 92,848 92,661
80% 80.6% 82,532 83,117
70% 69.8% 72,215 71,982
60% 60.6% 61,899 62,502
50% 50.0% 51,582 51,610
40% 40.7% 41,266 42,001
30% 30.2% 30,949 31,194
20% 19.9% 20,633 20,516
10% 9.9% 10,316 10,237
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,297
Calibration 2     103,475
Calibration 3     103,518
ssj_ops@calibrated=103,496
100% 100.4% 103,496 103,912
90% 90.5% 93,147 93,624
80% 79.4% 82,797 82,159
70% 69.7% 72,447 72,168
60% 60.7% 62,098 62,791
50% 50.1% 51,748 51,881
40% 40.3% 41,399 41,746
30% 30.1% 31,049 31,103
20% 20.3% 20,699 21,028
10% 10.3% 10,350 10,641
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,841
Calibration 2     102,722
Calibration 3     103,006
ssj_ops@calibrated=102,864
100% 100.0% 102,864 102,876
90% 90.0% 92,578 92,574
80% 79.0% 82,291 81,279
70% 70.6% 72,005 72,664
60% 60.1% 61,718 61,770
50% 50.1% 51,432 51,561
40% 40.4% 41,146 41,568
30% 30.2% 30,859 31,055
20% 20.0% 20,573 20,556
10% 10.1% 10,286 10,391
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,212
Calibration 2     102,230
Calibration 3     102,653
ssj_ops@calibrated=102,441
100% 100.4% 102,441 102,860
90% 90.9% 92,197 93,138
80% 79.8% 81,953 81,710
70% 69.4% 71,709 71,104
60% 59.5% 61,465 60,924
50% 50.2% 51,221 51,392
40% 39.9% 40,977 40,870
30% 30.0% 30,732 30,768
20% 20.1% 20,488 20,591
10% 9.9% 10,244 10,108
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,445
Calibration 2     102,134
Calibration 3     102,714
ssj_ops@calibrated=102,424
100% 100.3% 102,424 102,767
90% 90.1% 92,181 92,321
80% 79.8% 81,939 81,747
70% 69.6% 71,697 71,268
60% 59.2% 61,454 60,680
50% 50.3% 51,212 51,561
40% 39.8% 40,970 40,742
30% 29.4% 30,727 30,069
20% 20.3% 20,485 20,773
10% 9.8% 10,242 10,079
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,149
Calibration 2     104,023
Calibration 3     104,018
ssj_ops@calibrated=104,020
100% 99.9% 104,020 103,892
90% 89.6% 93,618 93,252
80% 80.4% 83,216 83,666
70% 70.0% 72,814 72,863
60% 60.0% 62,412 62,450
50% 50.1% 52,010 52,112
40% 39.7% 41,608 41,252
30% 30.2% 31,206 31,463
20% 19.8% 20,804 20,568
10% 9.7% 10,402 10,137
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,314
Calibration 2     104,752
Calibration 3     104,835
ssj_ops@calibrated=104,793
100% 99.8% 104,793 104,606
90% 90.2% 94,314 94,488
80% 80.7% 83,835 84,577
70% 70.0% 73,355 73,366
60% 59.5% 62,876 62,367
50% 49.2% 52,397 51,547
40% 40.3% 41,917 42,210
30% 29.9% 31,438 31,347
20% 20.0% 20,959 20,952
10% 10.2% 10,479 10,708
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,564
Calibration 2     102,674
Calibration 3     102,813
ssj_ops@calibrated=102,744
100% 100.2% 102,744 102,985
90% 90.1% 92,469 92,529
80% 80.0% 82,195 82,156
70% 69.7% 71,921 71,651
60% 59.9% 61,646 61,536
50% 50.1% 51,372 51,481
40% 40.2% 41,097 41,324
30% 30.0% 30,823 30,833
20% 19.8% 20,549 20,332
10% 10.3% 10,274 10,594
Active Idle   0 0
Graph of results

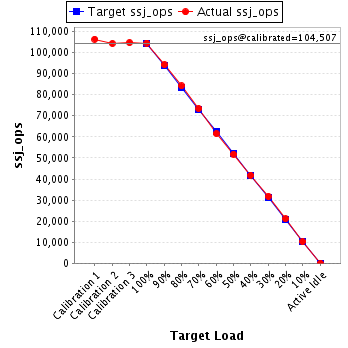

JVM 'WIN-V0250ROLGU6.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,381
Calibration 2     104,337
Calibration 3     104,677
ssj_ops@calibrated=104,507
100% 100.0% 104,507 104,550
90% 90.2% 94,056 94,248
80% 80.5% 83,606 84,171
70% 70.3% 73,155 73,487
60% 58.9% 62,704 61,568
50% 49.6% 52,254 51,827
40% 40.0% 41,803 41,799
30% 30.4% 31,352 31,765
20% 20.2% 20,901 21,071
10% 9.8% 10,451 10,268
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,072
Calibration 2     103,261
Calibration 3     103,702
ssj_ops@calibrated=103,482
100% 100.1% 103,482 103,543
90% 88.9% 93,134 92,022
80% 80.2% 82,785 83,009
70% 69.4% 72,437 71,787
60% 59.9% 62,089 61,987
50% 50.0% 51,741 51,762
40% 40.6% 41,393 42,054
30% 30.1% 31,045 31,107
20% 19.4% 20,696 20,123
10% 9.8% 10,348 10,121
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,359
Calibration 2     102,532
Calibration 3     102,020
ssj_ops@calibrated=102,276
100% 100.0% 102,276 102,237
90% 91.0% 92,048 93,025
80% 81.1% 81,821 82,959
70% 69.5% 71,593 71,111
60% 60.6% 61,366 61,965
50% 50.6% 51,138 51,701
40% 40.1% 40,910 41,047
30% 29.6% 30,683 30,310
20% 20.3% 20,455 20,729
10% 10.4% 10,228 10,621
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,998
Calibration 2     104,187
Calibration 3     104,369
ssj_ops@calibrated=104,278
100% 100.1% 104,278 104,370
90% 90.4% 93,850 94,292
80% 79.5% 83,422 82,901
70% 70.2% 72,995 73,199
60% 60.4% 62,567 62,940
50% 50.5% 52,139 52,665
40% 40.5% 41,711 42,203
30% 29.7% 31,283 30,992
20% 19.9% 20,856 20,720
10% 9.8% 10,428 10,208
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,261
Calibration 2     103,685
Calibration 3     103,813
ssj_ops@calibrated=103,749
100% 100.1% 103,749 103,867
90% 89.4% 93,374 92,737
80% 80.5% 82,999 83,548
70% 69.7% 72,625 72,295
60% 59.8% 62,250 62,055
50% 49.9% 51,875 51,791
40% 39.8% 41,500 41,296
30% 29.9% 31,125 30,981
20% 20.7% 20,750 21,486
10% 10.0% 10,375 10,392
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,601
Calibration 2     102,392
Calibration 3     102,535
ssj_ops@calibrated=102,463
100% 99.4% 102,463 101,860
90% 89.9% 92,217 92,134
80% 79.8% 81,971 81,810
70% 70.0% 71,724 71,757
60% 59.9% 61,478 61,388
50% 49.7% 51,232 50,932
40% 39.8% 40,985 40,791
30% 30.1% 30,739 30,877
20% 20.0% 20,493 20,485
10% 10.0% 10,246 10,250
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,737
Calibration 2     106,408
Calibration 3     106,163
ssj_ops@calibrated=106,286
100% 100.1% 106,286 106,339
90% 89.9% 95,657 95,573
80% 79.5% 85,029 84,502
70% 70.2% 74,400 74,611
60% 60.5% 63,771 64,293
50% 49.0% 53,143 52,043
40% 40.0% 42,514 42,533
30% 29.9% 31,886 31,785
20% 20.1% 21,257 21,393
10% 9.8% 10,629 10,400
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,377
Calibration 2     107,029
Calibration 3     107,025
ssj_ops@calibrated=107,027
100% 99.5% 107,027 106,505
90% 89.9% 96,324 96,208
80% 79.7% 85,622 85,273
70% 70.0% 74,919 74,908
60% 60.3% 64,216 64,498
50% 50.1% 53,514 53,603
40% 39.1% 42,811 41,829
30% 30.2% 32,108 32,329
20% 20.1% 21,405 21,564
10% 9.9% 10,703 10,612
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,941
Calibration 2     105,136
Calibration 3     104,872
ssj_ops@calibrated=105,004
100% 100.1% 105,004 105,069
90% 91.0% 94,503 95,560
80% 79.7% 84,003 83,711
70% 69.7% 73,503 73,139
60% 60.2% 63,002 63,254
50% 49.8% 52,502 52,303
40% 39.6% 42,001 41,629
30% 29.9% 31,501 31,397
20% 19.9% 21,001 20,924
10% 10.0% 10,500 10,542
Active Idle   0 0
Graph of results

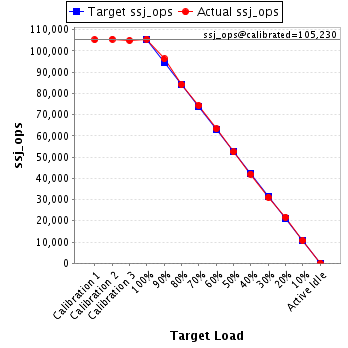

JVM 'WIN-V0250ROLGU6.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,299
Calibration 2     105,520
Calibration 3     104,941
ssj_ops@calibrated=105,230
100% 100.3% 105,230 105,558
90% 91.5% 94,707 96,267
80% 80.0% 84,184 84,210
70% 70.6% 73,661 74,331
60% 60.2% 63,138 63,332
50% 49.8% 52,615 52,418
40% 39.9% 42,092 41,996
30% 29.5% 31,569 31,069
20% 20.7% 21,046 21,745
10% 10.2% 10,523 10,710
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,499
Calibration 2     107,375
Calibration 3     106,976
ssj_ops@calibrated=107,176
100% 100.2% 107,176 107,393
90% 90.3% 96,458 96,817
80% 79.8% 85,740 85,510
70% 70.3% 75,023 75,350
60% 60.2% 64,305 64,548
50% 51.0% 53,588 54,634
40% 40.3% 42,870 43,221
30% 29.3% 32,153 31,368
20% 20.3% 21,435 21,720
10% 10.0% 10,718 10,700
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,401
Calibration 2     104,319
Calibration 3     104,516
ssj_ops@calibrated=104,417
100% 100.0% 104,417 104,412
90% 90.2% 93,976 94,171
80% 80.3% 83,534 83,860
70% 70.9% 73,092 74,001
60% 59.9% 62,650 62,520
50% 49.8% 52,209 52,001
40% 40.2% 41,767 41,958
30% 30.0% 31,325 31,364
20% 19.8% 20,883 20,678
10% 10.1% 10,442 10,495
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,711
Calibration 2     104,826
Calibration 3     104,506
ssj_ops@calibrated=104,666
100% 100.0% 104,666 104,642
90% 89.7% 94,200 93,874
80% 80.1% 83,733 83,855
70% 70.7% 73,266 73,966
60% 59.9% 62,800 62,675
50% 50.2% 52,333 52,580
40% 39.9% 41,866 41,731
30% 29.7% 31,400 31,109
20% 19.5% 20,933 20,366
10% 9.9% 10,467 10,361
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,507
Calibration 2     105,768
Calibration 3     106,164
ssj_ops@calibrated=105,966
100% 100.0% 105,966 105,922
90% 90.5% 95,369 95,850
80% 80.0% 84,773 84,726
70% 70.1% 74,176 74,240
60% 59.3% 63,580 62,825
50% 49.8% 52,983 52,768
40% 40.2% 42,386 42,586
30% 30.3% 31,790 32,146
20% 20.2% 21,193 21,386
10% 10.1% 10,597 10,708
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,026
Calibration 2     106,139
Calibration 3     106,331
ssj_ops@calibrated=106,235
100% 99.9% 106,235 106,134
90% 90.1% 95,612 95,682
80% 80.8% 84,988 85,837
70% 69.5% 74,365 73,876
60% 58.6% 63,741 62,265
50% 49.3% 53,118 52,354
40% 40.1% 42,494 42,607
30% 29.9% 31,871 31,797
20% 19.9% 21,247 21,099
10% 10.3% 10,624 10,924
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,581
Calibration 2     103,260
Calibration 3     103,697
ssj_ops@calibrated=103,478
100% 99.7% 103,478 103,144
90% 89.7% 93,131 92,775
80% 80.9% 82,783 83,690
70% 70.8% 72,435 73,259
60% 60.2% 62,087 62,273
50% 49.8% 51,739 51,488
40% 40.4% 41,391 41,781
30% 30.4% 31,044 31,474
20% 20.0% 20,696 20,712
10% 9.8% 10,348 10,104
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,533
Calibration 2     104,239
Calibration 3     104,766
ssj_ops@calibrated=104,503
100% 100.2% 104,503 104,663
90% 90.5% 94,052 94,616
80% 79.7% 83,602 83,289
70% 70.7% 73,152 73,927
60% 60.2% 62,702 62,945
50% 49.3% 52,251 51,528
40% 40.4% 41,801 42,197
30% 29.6% 31,351 30,889
20% 20.3% 20,901 21,196
10% 9.9% 10,450 10,317
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,988
Calibration 2     104,456
Calibration 3     104,369
ssj_ops@calibrated=104,413
100% 100.2% 104,413 104,612
90% 90.2% 93,971 94,227
80% 79.7% 83,530 83,171
70% 68.8% 73,089 71,885
60% 60.4% 62,648 63,074
50% 49.4% 52,206 51,628
40% 39.8% 41,765 41,561
30% 29.5% 31,324 30,847
20% 20.1% 20,883 21,012
10% 10.4% 10,441 10,821
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,030
Calibration 2     106,358
Calibration 3     105,854
ssj_ops@calibrated=106,106
100% 100.0% 106,106 106,076
90% 89.7% 95,495 95,164
80% 79.5% 84,884 84,395
70% 70.1% 74,274 74,419
60% 59.2% 63,663 62,824
50% 49.9% 53,053 52,983
40% 39.5% 42,442 41,928
30% 29.8% 31,832 31,653
20% 20.1% 21,221 21,361
10% 9.7% 10,611 10,286
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,577
Calibration 2     104,849
Calibration 3     103,982
ssj_ops@calibrated=104,416
100% 99.6% 104,416 103,947
90% 90.8% 93,974 94,789
80% 80.6% 83,532 84,201
70% 69.3% 73,091 72,412
60% 59.8% 62,649 62,470
50% 50.0% 52,208 52,258
40% 39.9% 41,766 41,711
30% 30.2% 31,325 31,561
20% 19.6% 20,883 20,436
10% 10.0% 10,442 10,474
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,815
Calibration 2     102,793
Calibration 3     103,309
ssj_ops@calibrated=103,051
100% 100.4% 103,051 103,457
90% 90.3% 92,746 93,077
80% 80.8% 82,441 83,243
70% 70.4% 72,136 72,509
60% 60.0% 61,831 61,823
50% 49.6% 51,525 51,126
40% 40.2% 41,220 41,426
30% 30.3% 30,915 31,219
20% 19.9% 20,610 20,503
10% 10.0% 10,305 10,342
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,613
Calibration 2     105,568
Calibration 3     105,714
ssj_ops@calibrated=105,641
100% 99.4% 105,641 105,001
90% 90.3% 95,077 95,409
80% 79.3% 84,513 83,761
70% 69.6% 73,949 73,499
60% 59.1% 63,385 62,415
50% 50.0% 52,821 52,770
40% 40.3% 42,257 42,613
30% 29.9% 31,692 31,597
20% 20.0% 21,128 21,177
10% 10.2% 10,564 10,824
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,598
Calibration 2     104,719
Calibration 3     102,865
ssj_ops@calibrated=103,792
100% 99.1% 103,792 102,847
90% 89.8% 93,413 93,214
80% 80.2% 83,034 83,216
70% 70.1% 72,655 72,757
60% 61.1% 62,275 63,367
50% 49.6% 51,896 51,439
40% 40.4% 41,517 41,953
30% 29.7% 31,138 30,790
20% 19.7% 20,758 20,429
10% 10.2% 10,379 10,625
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,343
Calibration 2     107,984
Calibration 3     107,902
ssj_ops@calibrated=107,943
100% 100.1% 107,943 108,099
90% 89.7% 97,149 96,810
80% 79.1% 86,355 85,342
70% 69.7% 75,560 75,257
60% 60.4% 64,766 65,159
50% 49.4% 53,972 53,374
40% 40.2% 43,177 43,403
30% 29.6% 32,383 31,921
20% 20.2% 21,589 21,759
10% 10.1% 10,794 10,924
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,487
Calibration 2     102,572
Calibration 3     101,925
ssj_ops@calibrated=102,248
100% 99.8% 102,248 102,086
90% 89.8% 92,023 91,799
80% 79.5% 81,799 81,287
70% 70.2% 71,574 71,743
60% 59.7% 61,349 61,051
50% 49.5% 51,124 50,662
40% 39.1% 40,899 39,934
30% 30.6% 30,674 31,314
20% 20.0% 20,450 20,492
10% 9.9% 10,225 10,108
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,157
Calibration 2     105,125
Calibration 3     105,726
ssj_ops@calibrated=105,426
100% 100.3% 105,426 105,721
90% 89.9% 94,883 94,799
80% 79.8% 84,341 84,158
70% 69.9% 73,798 73,675
60% 59.9% 63,255 63,108
50% 49.6% 52,713 52,340
40% 39.3% 42,170 41,389
30% 30.3% 31,628 31,906
20% 19.7% 21,085 20,816
10% 9.9% 10,543 10,479
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,494
Calibration 2     105,942
Calibration 3     106,554
ssj_ops@calibrated=106,248
100% 99.8% 106,248 106,030
90% 91.3% 95,623 97,036
80% 80.2% 84,999 85,250
70% 70.8% 74,374 75,241
60% 60.1% 63,749 63,822
50% 49.7% 53,124 52,755
40% 40.1% 42,499 42,608
30% 29.8% 31,874 31,619
20% 20.1% 21,250 21,325
10% 9.7% 10,625 10,350
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,497
Calibration 2     103,354
Calibration 3     102,557
ssj_ops@calibrated=102,956
100% 99.9% 102,956 102,838
90% 90.3% 92,660 93,008
80% 78.9% 82,364 81,269
70% 70.0% 72,069 72,050
60% 60.2% 61,773 61,931
50% 49.7% 51,478 51,142
40% 40.1% 41,182 41,311
30% 30.5% 30,887 31,381
20% 20.3% 20,591 20,887
10% 9.9% 10,296 10,179
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,477
Calibration 2     104,347
Calibration 3     104,993
ssj_ops@calibrated=104,670
100% 100.2% 104,670 104,851
90% 90.1% 94,203 94,282
80% 80.2% 83,736 83,935
70% 70.1% 73,269 73,335
60% 59.7% 62,802 62,485
50% 49.8% 52,335 52,131
40% 40.0% 41,868 41,873
30% 31.0% 31,401 32,484
20% 20.1% 20,934 21,068
10% 9.9% 10,467 10,395
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,970
Calibration 2     105,866
Calibration 3     106,060
ssj_ops@calibrated=105,963
100% 100.5% 105,963 106,500
90% 91.4% 95,367 96,888
80% 81.1% 84,771 85,979
70% 70.0% 74,174 74,181
60% 60.0% 63,578 63,533
50% 50.4% 52,982 53,425
40% 40.2% 42,385 42,638
30% 29.7% 31,789 31,426
20% 19.7% 21,193 20,904
10% 9.7% 10,596 10,311
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,485
Calibration 2     104,780
Calibration 3     105,793
ssj_ops@calibrated=105,287
100% 101.0% 105,287 106,375
90% 90.6% 94,758 95,359
80% 80.3% 84,229 84,567
70% 69.7% 73,701 73,366
60% 60.2% 63,172 63,343
50% 50.0% 52,643 52,601
40% 39.9% 42,115 41,994
30% 29.9% 31,586 31,526
20% 19.7% 21,057 20,793
10% 10.0% 10,529 10,569
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,249
Calibration 2     103,457
Calibration 3     103,857
ssj_ops@calibrated=103,657
100% 99.9% 103,657 103,597
90% 90.8% 93,291 94,146
80% 80.2% 82,925 83,138
70% 70.4% 72,560 72,927
60% 60.6% 62,194 62,785
50% 49.9% 51,828 51,739
40% 40.3% 41,463 41,805
30% 29.9% 31,097 31,039
20% 20.7% 20,731 21,507
10% 10.1% 10,366 10,429
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,690
Calibration 2     106,783
Calibration 3     106,602
ssj_ops@calibrated=106,693
100% 100.2% 106,693 106,917
90% 89.2% 96,023 95,148
80% 80.2% 85,354 85,567
70% 70.2% 74,685 74,879
60% 61.3% 64,016 65,422
50% 50.6% 53,346 54,000
40% 40.0% 42,677 42,698
30% 30.0% 32,008 31,970
20% 19.8% 21,339 21,174
10% 10.2% 10,669 10,925
Active Idle   0 0
Graph of results
JVM 'WIN-V0250ROLGU6.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,208
Calibration 2     102,035
Calibration 3     101,991
ssj_ops@calibrated=102,013
100% 100.2% 102,013 102,222
90% 89.9% 91,811 91,681
80% 80.2% 81,610 81,823
70% 69.6% 71,409 70,995
60% 60.4% 61,208 61,649
50% 50.4% 51,006 51,369
40% 40.2% 40,805 40,993
30% 30.4% 30,604 31,005
20% 19.9% 20,403 20,315
10% 10.0% 10,201 10,229
Active Idle   0 0
Graph of results
