SPECpower_ssj2008 Host 'node-1' Performance Report

SPECpower_ssj2008

Host 'node-1' Performance Report

Lenovo Global Technology ThinkSystem SD530			ssj_ops@100% = 5,000,511 ssj_ops@100% per JVM = 89,295
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Multi Node
Tested By:	Lenovo Global Technology	Test Location:	Taipei, Taiwan	Test Date:	Aug 24, 2018
Hardware Availability:	Jul-2018	Software Availability:	Jan-2018	Publication:	Sep 12, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,218,480
Calibration 2			5,133,821
Calibration 3			5,017,570
ssj_ops@calibrated=5,075,696
100%	98.5%	5,075,696	5,000,511
90%	90.5%	4,568,126	4,594,122
80%	80.1%	4,060,557	4,065,184
70%	70.1%	3,552,987	3,558,584
60%	59.9%	3,045,417	3,041,909
50%	50.0%	2,537,848	2,538,628
40%	39.9%	2,030,278	2,027,627
30%	30.0%	1,522,709	1,524,878
20%	20.0%	1,015,139	1,014,857
10%	10.0%	507,570	508,341
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	4
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	ThinkSystem SD530
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8176
CPU Characteristics:	28-Core, 2.10 GHz, 39424 KB L3 Cache
CPU Frequency (MHz):	2100
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16 GB
Memory Details:	16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,2,3,6,7,8,9,10,11,14,15 and 16 for each processor
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130)
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel Ethernet Connection X722 for 10Gb SFP+
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Lenovo Power Plan V1.0 for Windows Server 2012 R2 in OS
Operating System (OS):	Microsoft Windows Server 2012 R2 DataCenter
OS Version:	6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances:	56
JVM Initial Heap (MB):	1550
JVM Maximum Heap (MB):	1550
JVM Address Bits:	64
Boot Firmware Version:	TEE123N (Jul 12 2018)
Management Firmware Version:	TEI325Q (Jul 19 2018)
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Applied the OS patches: KB4056898

Boot Firmware Settings

Operating Mode: Custom Mode
Memory Power Management: Balanced
Page Policy:Adaptive
Intel VT for Directed I/O(VT-d): Disable
Memory Data Scrambling: Disable
Execute Disable Bit: Disable
Turbo Mode: Disable
Hardware Prefetcher: Disable
Adjacent Cache Prefetch: Disable
DCU Streamer Prefetcher: Disable
Patrol Scrub:Disable

Management Firmware Settings

None

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Benchmark was started via Windows Remote Desktop Connection
Minimum Processor State: 0%
Maximum Processor State: 100%
Set "Turn off hard disk after = 1 Minute" in OS.
Applied protection against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: Aug 15, 2018)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.

JVM Instance Summary

JVM Instance	ssj_ops@100%
node-1.001	89,737
node-1.002	90,779
node-1.003	89,896
node-1.004	89,672
node-1.005	90,629
node-1.006	89,646
node-1.007	89,284
node-1.008	91,874
node-1.009	90,546
node-1.010	89,409
node-1.011	88,065
node-1.012	88,228
node-1.013	90,306
node-1.014	89,987
node-1.015	88,372
node-1.016	90,401
node-1.017	89,853
node-1.018	89,392
node-1.019	88,254
node-1.020	90,058
node-1.021	89,753
node-1.022	88,816
node-1.023	89,585
node-1.024	89,416
node-1.025	91,574
node-1.026	88,402
node-1.027	90,201
node-1.028	89,297
node-1.029	88,428
node-1.030	89,185
node-1.031	89,533
node-1.032	88,205
node-1.033	89,095
node-1.034	88,975
node-1.035	88,404
node-1.036	88,830
node-1.037	88,487
node-1.038	88,046
node-1.039	88,516
node-1.040	89,064
node-1.041	89,621
node-1.042	88,171
node-1.043	89,276
node-1.044	90,375
node-1.045	88,636
node-1.046	88,707
node-1.047	88,855
node-1.048	89,700
node-1.049	89,082
node-1.050	87,613
node-1.051	90,172
node-1.052	88,579
node-1.053	87,721
node-1.054	88,989
node-1.055	88,820
node-1.056	89,992
ssj_ops@100%	5,000,511
ssj_ops@100% per JVM	89,295

JVM 'node-1.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,475
Calibration 2			92,438
Calibration 3			90,415
ssj_ops@calibrated=91,426
100%	98.2%	91,426	89,737
90%	90.6%	82,284	82,849
80%	79.1%	73,141	72,284
70%	69.8%	63,999	63,848
60%	60.6%	54,856	55,374
50%	49.8%	45,713	45,538
40%	40.4%	36,571	36,894
30%	29.5%	27,428	26,978
20%	19.4%	18,285	17,775
10%	9.8%	9,143	8,970
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,196
Calibration 2			93,428
Calibration 3			90,646
ssj_ops@calibrated=92,037
100%	98.6%	92,037	90,779
90%	90.5%	82,833	83,298
80%	79.4%	73,630	73,053
70%	70.2%	64,426	64,633
60%	58.9%	55,222	54,255
50%	50.4%	46,018	46,374
40%	39.4%	36,815	36,269
30%	29.9%	27,611	27,529
20%	20.0%	18,407	18,373
10%	10.2%	9,204	9,391
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,620
Calibration 2			92,622
Calibration 3			90,082
ssj_ops@calibrated=91,352
100%	98.4%	91,352	89,896
90%	90.0%	82,217	82,227
80%	80.7%	73,081	73,689
70%	69.8%	63,946	63,770
60%	59.5%	54,811	54,374
50%	49.7%	45,676	45,430
40%	40.2%	36,541	36,714
30%	30.3%	27,406	27,643
20%	20.2%	18,270	18,492
10%	9.8%	9,135	8,937
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,262
Calibration 2			91,713
Calibration 3			89,915
ssj_ops@calibrated=90,814
100%	98.7%	90,814	89,672
90%	89.4%	81,733	81,191
80%	80.2%	72,651	72,800
70%	70.4%	63,570	63,918
60%	59.8%	54,489	54,331
50%	50.2%	45,407	45,602
40%	39.9%	36,326	36,225
30%	29.1%	27,244	26,436
20%	20.5%	18,163	18,576
10%	10.1%	9,081	9,136
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

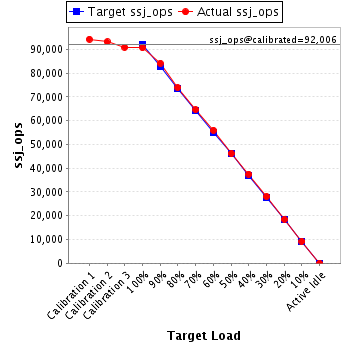

JVM 'node-1.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,266
Calibration 2			93,141
Calibration 3			90,871
ssj_ops@calibrated=92,006
100%	98.5%	92,006	90,629
90%	91.5%	82,805	84,185
80%	80.4%	73,605	73,943
70%	70.2%	64,404	64,606
60%	60.8%	55,204	55,968
50%	50.2%	46,003	46,178
40%	40.8%	36,802	37,545
30%	30.6%	27,602	28,108
20%	20.1%	18,401	18,494
10%	10.0%	9,201	9,206
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,605
Calibration 2			91,965
Calibration 3			89,421
ssj_ops@calibrated=90,693
100%	98.8%	90,693	89,646
90%	92.0%	81,624	83,456
80%	79.5%	72,555	72,092
70%	69.9%	63,485	63,391
60%	60.2%	54,416	54,630
50%	50.3%	45,347	45,616
40%	39.5%	36,277	35,854
30%	30.3%	27,208	27,479
20%	19.9%	18,139	18,077
10%	9.9%	9,069	8,937
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,641
Calibration 2			91,408
Calibration 3			89,509
ssj_ops@calibrated=90,459
100%	98.7%	90,459	89,284
90%	90.2%	81,413	81,612
80%	79.6%	72,367	71,971
70%	70.4%	63,321	63,716
60%	60.3%	54,275	54,571
50%	50.5%	45,229	45,666
40%	40.0%	36,184	36,206
30%	30.1%	27,138	27,263
20%	20.0%	18,092	18,070
10%	9.9%	9,046	8,970
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

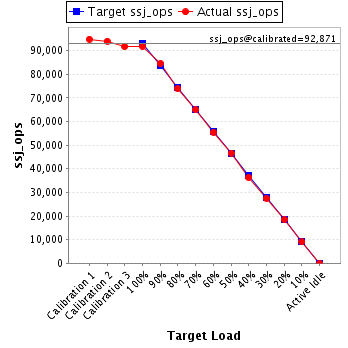

JVM 'node-1.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,835
Calibration 2			94,000
Calibration 3			91,742
ssj_ops@calibrated=92,871
100%	98.9%	92,871	91,874
90%	91.0%	83,584	84,480
80%	79.6%	74,297	73,906
70%	69.9%	65,010	64,906
60%	59.7%	55,723	55,455
50%	50.2%	46,436	46,657
40%	39.1%	37,149	36,310
30%	29.6%	27,861	27,503
20%	19.9%	18,574	18,482
10%	9.7%	9,287	9,008
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.009' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,810
Calibration 2			92,036
Calibration 3			90,839
ssj_ops@calibrated=91,437
100%	99.0%	91,437	90,546
90%	89.9%	82,294	82,183
80%	81.1%	73,150	74,149
70%	70.4%	64,006	64,373
60%	60.1%	54,862	54,971
50%	49.9%	45,719	45,587
40%	40.2%	36,575	36,733
30%	30.2%	27,431	27,570
20%	19.7%	18,287	18,046
10%	10.1%	9,144	9,212
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.010' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,173
Calibration 2			91,725
Calibration 3			89,886
ssj_ops@calibrated=90,805
100%	98.5%	90,805	89,409
90%	90.5%	81,725	82,133
80%	79.3%	72,644	72,024
70%	69.7%	63,564	63,316
60%	59.4%	54,483	53,896
50%	50.7%	45,403	46,014
40%	40.7%	36,322	36,937
30%	30.4%	27,242	27,617
20%	20.8%	18,161	18,912
10%	9.9%	9,081	9,012
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.011' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,696
Calibration 2			90,214
Calibration 3			88,270
ssj_ops@calibrated=89,242
100%	98.7%	89,242	88,065
90%	91.1%	80,318	81,286
80%	80.4%	71,393	71,768
70%	70.1%	62,469	62,535
60%	60.4%	53,545	53,858
50%	49.8%	44,621	44,425
40%	39.2%	35,697	34,985
30%	30.5%	26,773	27,189
20%	20.3%	17,848	18,137
10%	10.3%	8,924	9,186
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.012' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,791
Calibration 2			90,867
Calibration 3			88,935
ssj_ops@calibrated=89,901
100%	98.1%	89,901	88,228
90%	90.8%	80,911	81,619
80%	79.7%	71,921	71,607
70%	71.0%	62,931	63,803
60%	59.7%	53,941	53,665
50%	50.1%	44,951	45,034
40%	39.6%	35,960	35,629
30%	29.5%	26,970	26,478
20%	20.0%	17,980	17,991
10%	10.3%	8,990	9,254
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.013' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,049
Calibration 2			92,541
Calibration 3			90,400
ssj_ops@calibrated=91,470
100%	98.7%	91,470	90,306
90%	91.5%	82,323	83,666
80%	79.4%	73,176	72,613
70%	70.0%	64,029	63,992
60%	59.3%	54,882	54,210
50%	50.8%	45,735	46,483
40%	40.3%	36,588	36,885
30%	30.3%	27,441	27,681
20%	20.1%	18,294	18,357
10%	10.2%	9,147	9,317
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.014' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,495
Calibration 2			92,139
Calibration 3			89,923
ssj_ops@calibrated=91,031
100%	98.9%	91,031	89,987
90%	91.8%	81,928	83,546
80%	80.1%	72,825	72,897
70%	70.1%	63,721	63,847
60%	60.4%	54,618	54,962
50%	50.0%	45,515	45,535
40%	40.0%	36,412	36,390
30%	29.7%	27,309	27,064
20%	20.1%	18,206	18,258
10%	9.9%	9,103	8,987
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.015' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,530
Calibration 2			90,720
Calibration 3			88,275
ssj_ops@calibrated=89,497
100%	98.7%	89,497	88,372
90%	90.3%	80,548	80,856
80%	80.4%	71,598	71,953
70%	69.7%	62,648	62,359
60%	59.9%	53,698	53,647
50%	49.8%	44,749	44,554
40%	40.0%	35,799	35,797
30%	30.1%	26,849	26,907
20%	19.7%	17,899	17,644
10%	9.7%	8,950	8,666
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

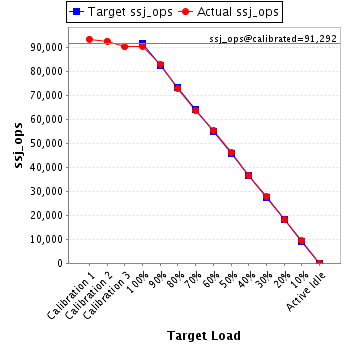

JVM 'node-1.016' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,299
Calibration 2			92,524
Calibration 3			90,061
ssj_ops@calibrated=91,292
100%	99.0%	91,292	90,401
90%	90.9%	82,163	82,950
80%	79.8%	73,034	72,872
70%	69.5%	63,905	63,425
60%	60.5%	54,775	55,212
50%	50.4%	45,646	45,988
40%	40.1%	36,517	36,606
30%	30.3%	27,388	27,680
20%	19.9%	18,258	18,183
10%	10.2%	9,129	9,305
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.017' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,137
Calibration 2			92,131
Calibration 3			89,400
ssj_ops@calibrated=90,765
100%	99.0%	90,765	89,853
90%	89.6%	81,689	81,338
80%	79.2%	72,612	71,902
70%	69.6%	63,536	63,184
60%	59.3%	54,459	53,844
50%	50.0%	45,383	45,366
40%	39.8%	36,306	36,160
30%	30.3%	27,230	27,467
20%	20.0%	18,153	18,144
10%	10.0%	9,077	9,116
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.018' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,158
Calibration 2			91,631
Calibration 3			89,283
ssj_ops@calibrated=90,457
100%	98.8%	90,457	89,392
90%	89.0%	81,411	80,549
80%	80.7%	72,366	72,978
70%	69.4%	63,320	62,745
60%	60.0%	54,274	54,292
50%	50.3%	45,229	45,542
40%	40.3%	36,183	36,423
30%	30.0%	27,137	27,180
20%	20.1%	18,091	18,176
10%	10.3%	9,046	9,294
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.019' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,076
Calibration 2			90,601
Calibration 3			87,984
ssj_ops@calibrated=89,293
100%	98.8%	89,293	88,254
90%	91.7%	80,363	81,896
80%	80.1%	71,434	71,567
70%	71.4%	62,505	63,774
60%	60.7%	53,576	54,242
50%	50.1%	44,646	44,732
40%	40.5%	35,717	36,124
30%	29.8%	26,788	26,591
20%	19.9%	17,859	17,766
10%	9.9%	8,929	8,866
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.020' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,508
Calibration 2			92,044
Calibration 3			90,088
ssj_ops@calibrated=91,066
100%	98.9%	91,066	90,058
90%	90.4%	81,959	82,286
80%	79.7%	72,853	72,595
70%	68.4%	63,746	62,310
60%	59.9%	54,640	54,535
50%	49.6%	45,533	45,177
40%	39.8%	36,426	36,210
30%	30.3%	27,320	27,554
20%	19.8%	18,213	18,037
10%	9.9%	9,107	8,973
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.021' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,640
Calibration 2			92,422
Calibration 3			90,018
ssj_ops@calibrated=91,220
100%	98.4%	91,220	89,753
90%	90.6%	82,098	82,623
80%	81.0%	72,976	73,873
70%	70.6%	63,854	64,402
60%	59.5%	54,732	54,315
50%	49.8%	45,610	45,419
40%	39.8%	36,488	36,339
30%	29.5%	27,366	26,908
20%	20.0%	18,244	18,202
10%	10.4%	9,122	9,456
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.022' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,376
Calibration 2			91,337
Calibration 3			88,820
ssj_ops@calibrated=90,079
100%	98.6%	90,079	88,816
90%	90.5%	81,071	81,524
80%	79.6%	72,063	71,709
70%	70.0%	63,055	63,050
60%	58.8%	54,047	52,984
50%	51.0%	45,039	45,963
40%	39.6%	36,031	35,700
30%	29.8%	27,024	26,832
20%	20.2%	18,016	18,163
10%	10.0%	9,008	8,967
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.023' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,425
Calibration 2			92,057
Calibration 3			89,020
ssj_ops@calibrated=90,538
100%	98.9%	90,538	89,585
90%	89.5%	81,484	81,054
80%	80.6%	72,431	72,954
70%	68.9%	63,377	62,394
60%	60.3%	54,323	54,627
50%	49.3%	45,269	44,609
40%	39.3%	36,215	35,547
30%	29.9%	27,161	27,037
20%	19.9%	18,108	17,991
10%	10.2%	9,054	9,244
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

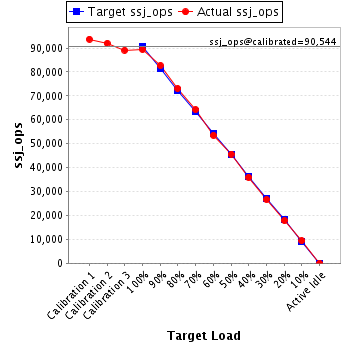

JVM 'node-1.024' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,695
Calibration 2			91,993
Calibration 3			89,095
ssj_ops@calibrated=90,544
100%	98.8%	90,544	89,416
90%	91.4%	81,489	82,719
80%	80.7%	72,435	73,064
70%	70.9%	63,381	64,237
60%	59.1%	54,326	53,508
50%	50.4%	45,272	45,642
40%	39.7%	36,218	35,960
30%	29.4%	27,163	26,647
20%	19.7%	18,109	17,845
10%	10.5%	9,054	9,462
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

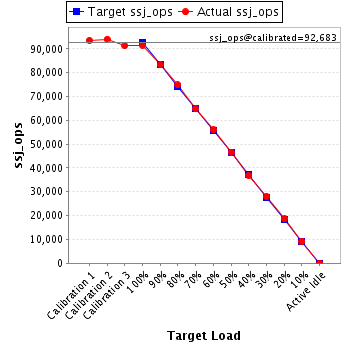

JVM 'node-1.025' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,548
Calibration 2			94,087
Calibration 3			91,280
ssj_ops@calibrated=92,683
100%	98.8%	92,683	91,574
90%	89.9%	83,415	83,294
80%	80.8%	74,147	74,863
70%	70.0%	64,878	64,836
60%	60.5%	55,610	56,030
50%	50.4%	46,342	46,683
40%	39.9%	37,073	36,960
30%	30.3%	27,805	28,045
20%	20.1%	18,537	18,631
10%	9.9%	9,268	9,200
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.026' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,761
Calibration 2			90,881
Calibration 3			88,188
ssj_ops@calibrated=89,535
100%	98.7%	89,535	88,402
90%	90.3%	80,581	80,851
80%	80.1%	71,628	71,712
70%	70.8%	62,674	63,433
60%	59.1%	53,721	52,934
50%	49.6%	44,767	44,447
40%	39.1%	35,814	35,016
30%	30.4%	26,860	27,223
20%	20.1%	17,907	17,973
10%	9.6%	8,953	8,603
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.027' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,190
Calibration 2			92,404
Calibration 3			90,036
ssj_ops@calibrated=91,220
100%	98.9%	91,220	90,201
90%	90.5%	82,098	82,596
80%	80.4%	72,976	73,315
70%	70.3%	63,854	64,148
60%	60.1%	54,732	54,812
50%	49.6%	45,610	45,224
40%	39.9%	36,488	36,434
30%	29.8%	27,366	27,157
20%	20.0%	18,244	18,224
10%	9.7%	9,122	8,816
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.028' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,710
Calibration 2			91,661
Calibration 3			89,090
ssj_ops@calibrated=90,376
100%	98.8%	90,376	89,297
90%	90.1%	81,338	81,454
80%	80.3%	72,300	72,550
70%	70.6%	63,263	63,791
60%	59.3%	54,225	53,560
50%	50.1%	45,188	45,269
40%	40.5%	36,150	36,608
30%	30.3%	27,113	27,380
20%	20.3%	18,075	18,329
10%	10.1%	9,038	9,155
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

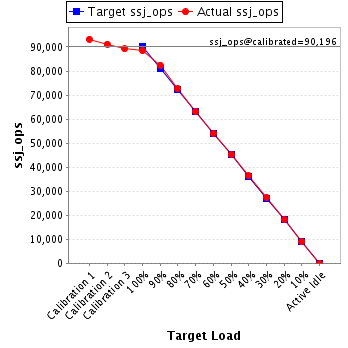

JVM 'node-1.029' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,250
Calibration 2			91,170
Calibration 3			89,222
ssj_ops@calibrated=90,196
100%	98.0%	90,196	88,428
90%	91.5%	81,176	82,499
80%	80.7%	72,157	72,751
70%	70.0%	63,137	63,154
60%	60.0%	54,118	54,114
50%	50.1%	45,098	45,183
40%	40.3%	36,078	36,349
30%	30.4%	27,059	27,461
20%	20.3%	18,039	18,302
10%	10.0%	9,020	9,004
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.030' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,767
Calibration 2			91,696
Calibration 3			89,769
ssj_ops@calibrated=90,732
100%	98.3%	90,732	89,185
90%	89.4%	81,659	81,146
80%	81.0%	72,586	73,455
70%	69.6%	63,513	63,133
60%	60.9%	54,439	55,293
50%	49.8%	45,366	45,149
40%	40.0%	36,293	36,311
30%	29.9%	27,220	27,087
20%	20.1%	18,146	18,278
10%	10.1%	9,073	9,168
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.031' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,137
Calibration 2			91,940
Calibration 3			90,175
ssj_ops@calibrated=91,057
100%	98.3%	91,057	89,533
90%	91.3%	81,951	83,107
80%	79.6%	72,846	72,477
70%	70.0%	63,740	63,702
60%	59.8%	54,634	54,408
50%	49.7%	45,529	45,246
40%	40.1%	36,423	36,531
30%	29.7%	27,317	27,012
20%	19.8%	18,211	18,011
10%	9.7%	9,106	8,850
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.032' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,285
Calibration 2			90,780
Calibration 3			89,042
ssj_ops@calibrated=89,911
100%	98.1%	89,911	88,205
90%	90.8%	80,920	81,626
80%	81.2%	71,929	73,028
70%	70.3%	62,938	63,190
60%	60.1%	53,947	54,051
50%	50.1%	44,956	45,011
40%	39.9%	35,964	35,862
30%	30.4%	26,973	27,328
20%	19.6%	17,982	17,650
10%	9.9%	8,991	8,873
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.033' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,932
Calibration 2			91,750
Calibration 3			90,014
ssj_ops@calibrated=90,882
100%	98.0%	90,882	89,095
90%	89.9%	81,794	81,697
80%	80.2%	72,706	72,907
70%	69.8%	63,618	63,464
60%	59.9%	54,529	54,409
50%	50.8%	45,441	46,208
40%	39.7%	36,353	36,091
30%	30.1%	27,265	27,346
20%	19.8%	18,176	17,986
10%	9.7%	9,088	8,854
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.034' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,352
Calibration 2			90,622
Calibration 3			89,339
ssj_ops@calibrated=89,981
100%	98.9%	89,981	88,975
90%	91.5%	80,983	82,290
80%	81.0%	71,984	72,915
70%	71.2%	62,986	64,101
60%	59.3%	53,988	53,323
50%	49.2%	44,990	44,248
40%	40.3%	35,992	36,231
30%	30.1%	26,994	27,108
20%	19.4%	17,996	17,427
10%	9.9%	8,998	8,923
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

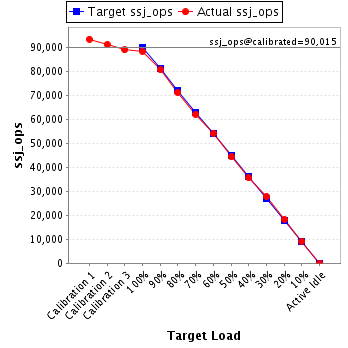

JVM 'node-1.035' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,366
Calibration 2			91,141
Calibration 3			88,889
ssj_ops@calibrated=90,015
100%	98.2%	90,015	88,404
90%	89.6%	81,013	80,642
80%	79.0%	72,012	71,148
70%	69.0%	63,010	62,151
60%	60.2%	54,009	54,150
50%	49.3%	45,007	44,345
40%	39.6%	36,006	35,636
30%	30.9%	27,004	27,794
20%	20.3%	18,003	18,310
10%	10.2%	9,001	9,150
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.036' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,143
Calibration 2			90,569
Calibration 3			89,039
ssj_ops@calibrated=89,804
100%	98.9%	89,804	88,830
90%	89.4%	80,824	80,273
80%	79.5%	71,843	71,396
70%	69.8%	62,863	62,650
60%	60.5%	53,882	54,296
50%	49.6%	44,902	44,587
40%	40.6%	35,922	36,448
30%	29.8%	26,941	26,786
20%	19.7%	17,961	17,703
10%	10.2%	8,980	9,170
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.037' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,660
Calibration 2			90,896
Calibration 3			89,432
ssj_ops@calibrated=90,164
100%	98.1%	90,164	88,487
90%	90.7%	81,148	81,809
80%	79.2%	72,131	71,447
70%	70.4%	63,115	63,472
60%	60.3%	54,099	54,335
50%	50.2%	45,082	45,241
40%	40.3%	36,066	36,364
30%	30.3%	27,049	27,339
20%	19.9%	18,033	17,925
10%	10.3%	9,016	9,254
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.038' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,817
Calibration 2			90,410
Calibration 3			88,815
ssj_ops@calibrated=89,612
100%	98.3%	89,612	88,046
90%	90.8%	80,651	81,328
80%	80.6%	71,690	72,229
70%	69.6%	62,729	62,411
60%	59.8%	53,767	53,562
50%	50.0%	44,806	44,845
40%	39.7%	35,845	35,601
30%	29.6%	26,884	26,496
20%	20.2%	17,922	18,077
10%	10.3%	8,961	9,229
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.039' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,361
Calibration 2			90,915
Calibration 3			88,912
ssj_ops@calibrated=89,913
100%	98.4%	89,913	88,516
90%	90.2%	80,922	81,117
80%	80.5%	71,931	72,422
70%	70.0%	62,939	62,970
60%	60.3%	53,948	54,174
50%	50.9%	44,957	45,773
40%	40.2%	35,965	36,166
30%	30.2%	26,974	27,154
20%	19.9%	17,983	17,903
10%	9.9%	8,991	8,912
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.040' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,475
Calibration 2			91,604
Calibration 3			89,883
ssj_ops@calibrated=90,744
100%	98.1%	90,744	89,064
90%	91.3%	81,669	82,818
80%	80.8%	72,595	73,282
70%	71.2%	63,521	64,571
60%	59.9%	54,446	54,363
50%	49.6%	45,372	44,976
40%	39.8%	36,297	36,071
30%	30.2%	27,223	27,363
20%	19.6%	18,149	17,815
10%	10.1%	9,074	9,196
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.041' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,092
Calibration 2			91,733
Calibration 3			90,232
ssj_ops@calibrated=90,983
100%	98.5%	90,983	89,621
90%	90.5%	81,884	82,353
80%	79.7%	72,786	72,551
70%	70.7%	63,688	64,291
60%	60.7%	54,590	55,271
50%	49.9%	45,491	45,443
40%	39.0%	36,393	35,507
30%	30.2%	27,295	27,466
20%	19.4%	18,197	17,637
10%	10.2%	9,098	9,237
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.042' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,792
Calibration 2			90,245
Calibration 3			88,861
ssj_ops@calibrated=89,553
100%	98.5%	89,553	88,171
90%	90.8%	80,597	81,320
80%	79.9%	71,642	71,585
70%	70.9%	62,687	63,515
60%	60.4%	53,732	54,048
50%	50.1%	44,776	44,901
40%	40.0%	35,821	35,798
30%	30.5%	26,866	27,275
20%	20.1%	17,911	17,968
10%	9.7%	8,955	8,710
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.043' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,692
Calibration 2			91,313
Calibration 3			89,689
ssj_ops@calibrated=90,501
100%	98.6%	90,501	89,276
90%	89.1%	81,451	80,598
80%	79.1%	72,401	71,554
70%	71.0%	63,351	64,236
60%	60.2%	54,301	54,526
50%	50.5%	45,251	45,723
40%	39.6%	36,200	35,816
30%	29.3%	27,150	26,552
20%	20.0%	18,100	18,091
10%	10.1%	9,050	9,142
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.044' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,534
Calibration 2			92,525
Calibration 3			91,080
ssj_ops@calibrated=91,802
100%	98.4%	91,802	90,375
90%	89.9%	82,622	82,494
80%	79.8%	73,442	73,287
70%	69.5%	64,262	63,814
60%	59.7%	55,081	54,784
50%	50.8%	45,901	46,591
40%	40.3%	36,721	37,005
30%	30.1%	27,541	27,636
20%	20.2%	18,360	18,536
10%	10.1%	9,180	9,302
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

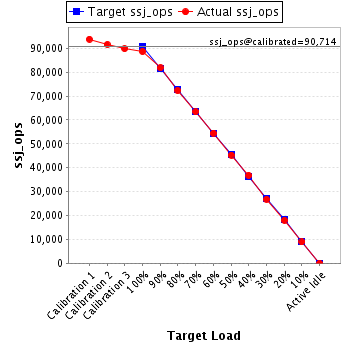

JVM 'node-1.045' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,823
Calibration 2			91,602
Calibration 3			89,825
ssj_ops@calibrated=90,714
100%	97.7%	90,714	88,636
90%	90.2%	81,642	81,830
80%	79.8%	72,571	72,355
70%	69.9%	63,500	63,395
60%	60.1%	54,428	54,492
50%	50.0%	45,357	45,327
40%	40.6%	36,286	36,843
30%	29.6%	27,214	26,858
20%	19.8%	18,143	17,997
10%	9.8%	9,071	8,912
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.046' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,456
Calibration 2			91,189
Calibration 3			89,040
ssj_ops@calibrated=90,114
100%	98.4%	90,114	88,707
90%	89.4%	81,103	80,539
80%	80.4%	72,092	72,476
70%	70.4%	63,080	63,461
60%	58.9%	54,069	53,108
50%	49.4%	45,057	44,485
40%	39.5%	36,046	35,589
30%	30.0%	27,034	26,991
20%	20.2%	18,023	18,194
10%	10.0%	9,011	9,000
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.047' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,154
Calibration 2			91,617
Calibration 3			89,195
ssj_ops@calibrated=90,406
100%	98.3%	90,406	88,855
90%	90.8%	81,366	82,123
80%	80.3%	72,325	72,591
70%	70.4%	63,284	63,657
60%	59.0%	54,244	53,323
50%	50.2%	45,203	45,354
40%	40.1%	36,162	36,295
30%	30.3%	27,122	27,413
20%	19.8%	18,081	17,904
10%	10.2%	9,041	9,250
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.048' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,820
Calibration 2			92,522
Calibration 3			90,286
ssj_ops@calibrated=91,404
100%	98.1%	91,404	89,700
90%	90.1%	82,264	82,384
80%	80.0%	73,123	73,124
70%	70.1%	63,983	64,099
60%	60.2%	54,842	55,065
50%	50.0%	45,702	45,729
40%	40.3%	36,562	36,833
30%	30.6%	27,421	27,950
20%	20.1%	18,281	18,379
10%	10.0%	9,140	9,179
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.049' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,372
Calibration 2			91,373
Calibration 3			89,294
ssj_ops@calibrated=90,334
100%	98.6%	90,334	89,082
90%	90.8%	81,300	82,046
80%	79.3%	72,267	71,603
70%	71.2%	63,234	64,324
60%	60.5%	54,200	54,683
50%	49.7%	45,167	44,929
40%	40.1%	36,134	36,200
30%	29.5%	27,100	26,636
20%	20.0%	18,067	18,041
10%	10.2%	9,033	9,221
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.050' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,418
Calibration 2			90,403
Calibration 3			88,337
ssj_ops@calibrated=89,370
100%	98.0%	89,370	87,613
90%	90.2%	80,433	80,597
80%	79.8%	71,496	71,284
70%	70.1%	62,559	62,619
60%	59.3%	53,622	53,026
50%	50.0%	44,685	44,645
40%	39.6%	35,748	35,396
30%	30.8%	26,811	27,541
20%	20.2%	17,874	18,065
10%	9.8%	8,937	8,716
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.051' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,649
Calibration 2			92,286
Calibration 3			90,112
ssj_ops@calibrated=91,199
100%	98.9%	91,199	90,172
90%	90.2%	82,079	82,245
80%	80.8%	72,959	73,706
70%	69.7%	63,839	63,566
60%	60.9%	54,719	55,527
50%	49.4%	45,600	45,082
40%	39.9%	36,480	36,424
30%	29.4%	27,360	26,855
20%	20.3%	18,240	18,478
10%	10.3%	9,120	9,424
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.052' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,829
Calibration 2			90,948
Calibration 3			89,446
ssj_ops@calibrated=90,197
100%	98.2%	90,197	88,579
90%	92.5%	81,177	83,453
80%	79.7%	72,157	71,863
70%	70.5%	63,138	63,561
60%	59.2%	54,118	53,363
50%	50.1%	45,098	45,199
40%	40.1%	36,079	36,210
30%	29.8%	27,059	26,866
20%	19.7%	18,039	17,802
10%	9.4%	9,020	8,500
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

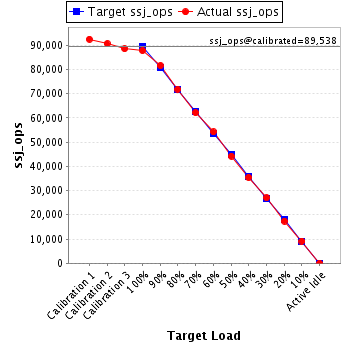

JVM 'node-1.053' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,472
Calibration 2			90,621
Calibration 3			88,454
ssj_ops@calibrated=89,538
100%	98.0%	89,538	87,721
90%	91.1%	80,584	81,588
80%	80.2%	71,630	71,829
70%	69.4%	62,676	62,133
60%	60.5%	53,723	54,190
50%	49.4%	44,769	44,218
40%	39.5%	35,815	35,373
30%	30.2%	26,861	27,002
20%	19.5%	17,908	17,419
10%	10.2%	8,954	9,158
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.054' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,111
Calibration 2			91,478
Calibration 3			89,827
ssj_ops@calibrated=90,653
100%	98.2%	90,653	88,989
90%	90.5%	81,587	82,004
80%	80.6%	72,522	73,030
70%	69.9%	63,457	63,386
60%	59.8%	54,392	54,174
50%	49.4%	45,326	44,771
40%	40.1%	36,261	36,308
30%	30.2%	27,196	27,398
20%	20.5%	18,131	18,578
10%	9.8%	9,065	8,858
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.055' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,541
Calibration 2			90,984
Calibration 3			89,243
ssj_ops@calibrated=90,113
100%	98.6%	90,113	88,820
90%	90.5%	81,102	81,565
80%	80.8%	72,091	72,839
70%	69.9%	63,079	63,022
60%	60.2%	54,068	54,254
50%	49.5%	45,057	44,601
40%	40.5%	36,045	36,519
30%	30.4%	27,034	27,394
20%	19.9%	18,023	17,889
10%	10.3%	9,011	9,254
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-1.056' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,212
Calibration 2			92,759
Calibration 3			90,628
ssj_ops@calibrated=91,693
100%	98.1%	91,693	89,992
90%	90.4%	82,524	82,911
80%	80.0%	73,355	73,350
70%	69.6%	64,185	63,796
60%	59.5%	55,016	54,537
50%	50.2%	45,847	46,066
40%	39.7%	36,677	36,389
30%	30.1%	27,508	27,627
20%	20.9%	18,339	19,142
10%	10.1%	9,169	9,248
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
