Lenovo Global Technology ThinkSystem SR150 | SPECpower_ssj2008 = 10,273 overall ssj_ops/watt | ||||
Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Dec 25, 2018 |
Hardware Availability: | Oct-2018 | Software Availability: | Jan-2018 | Publication: | Jan 17, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

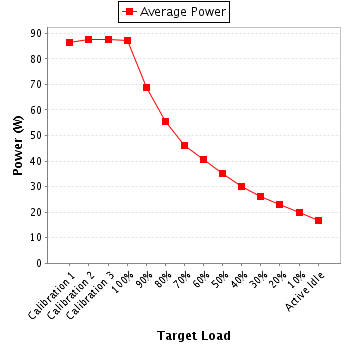

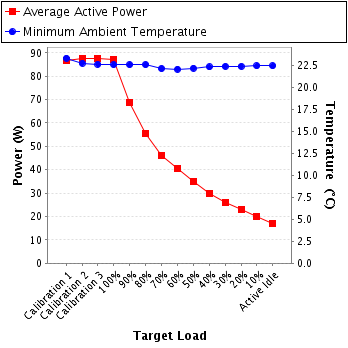

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 86.6 | 23.3 |
Calibration 2 | 87.6 | 22.8 |
Calibration 3 | 87.7 | 22.6 |
100% | 87.2 | 22.6 |
90% | 68.8 | 22.6 |
80% | 55.6 | 22.6 |
70% | 46.3 | 22.1 |
60% | 40.4 | 22.1 |
50% | 35.0 | 22.2 |
40% | 29.9 | 22.3 |
30% | 26.0 | 22.4 |
20% | 22.8 | 22.4 |
10% | 20.0 | 22.4 |
Active Idle | 16.8 | 22.4 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | YOKOGAWA, Inc. |
Model: | WT310 |
Serial Number: | C2RA21001V |
Connectivity: | USB |
Input Connection: | Default |
Metrology Institute: | Yokogawa Test & Measurement Corporation |
Accredited by: | Yokogawa Test & Measurement Corporation |
Calibration Label: | 18E388-BA1615-D8180F |
Date of Calibration: | 29-Oct-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | Connected to PSU 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi Intermational, Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 50 mm in front of SUT main intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 220 | 300.0 | 0.430 | 1.0 | 0.917 | 86.6 | 0.5% |
Calibration 2 | 220 | 300.0 | 0.433 | 1.0 | 0.921 | 87.6 | 0.5% |
Calibration 3 | 220 | 300.0 | 0.434 | 1.0 | 0.919 | 87.7 | 0.5% |
100% | 220 | 300.0 | 0.432 | 1.0 | 0.919 | 87.2 | 0.5% |
90% | 220 | 300.0 | 0.413 | 0.5 | 0.758 | 68.8 | 0.4% |
80% | 220 | 300.0 | 0.353 | 0.5 | 0.717 | 55.6 | 0.5% |
70% | 220 | 300.0 | 0.309 | 0.5 | 0.682 | 46.3 | 0.5% |
60% | 220 | 300.0 | 0.284 | 0.5 | 0.649 | 40.4 | 0.6% |
50% | 220 | 300.0 | 0.259 | 0.5 | 0.618 | 35.0 | 0.6% |
40% | 220 | 300.0 | 0.236 | 0.5 | 0.579 | 29.9 | 0.7% |
30% | 220 | 300.0 | 0.218 | 0.5 | 0.547 | 26.0 | 0.7% |
20% | 220 | 300.0 | 0.203 | 0.5 | 0.516 | 22.8 | 0.8% |
10% | 220 | 300.0 | 0.178 | 0.2 | 0.512 | 20.0 | 0.6% |
Active Idle | 220 | 300.0 | 0.163 | 0.2 | 0.471 | 16.8 | 0.6% |
